A strut job goes wrong in the ten seconds it takes to loosen the top mount nut. The coil spring is carrying the full weight of that corner of the car, and the moment that nut breaks free the stored energy has somewhere to go. Choosing among the best spring compressors for strut replacement is the least glamorous part of the job and the part that decides whether the rest of it goes smoothly.
We went through the mechanics of this topic in detail: what each mechanism actually does, where the pinch points show up in a real driveway, and which specs matter once you stop reading marketing copy. The result is eight tools that span a home garage shelf, a weekend project and a working shop, plus the safety and sizing rules that decide which one you need.
One note before the picks, because it comes up constantly: the springs on most front struts are already carrying very little load with the suspension at the bottom of its travel, so the compressor is not fighting the whole car. It only has to hold the last few inches. If your garage also runs shop air, our guides to the best portable air compressors for garages and the best two-stage air compressors for auto shops cover the other half of that setup.
Table of Contents
What a Strut Spring Compressor Actually Does
Yes, you need a spring compressor to replace struts on any car with an independent MacPherson strut and a separate coil spring. The spring carries the vehicle’s weight at full droop extension, so it must be held compressed before the top mount can slide off. The only assemblies you can change without one are springs-per-damper units, where the spring sits permanently on the damper and the whole cartridge comes out as a unit.
A strut spring compressor grips the coil at two points and drives a threaded shaft or hydraulic ram between them. Shortening the gap between those points stores the spring’s energy in the tool rather than in the coil, which is what lets the top mount, the spring plate and the upper spring seat come apart in your hands instead of launching across the driveway.
Three terms get blurred in retail listings, so define them before the picks. MacPherson strut is a damper-and-knuckle assembly where the coil spring sits concentrically around the damper body, which is the layout on the majority of front corners today. Coil height is the measured distance from the top of the upper spring seat to the top of the spring at full droop, and it is the number you write down before removal so you can put the new spring at the same ride height. Rated compression force is the load the tool is designed to hold between its plates, and it is not the same thing as the load capacity of a jack built into the frame.
That last distinction causes real confusion. A hydraulic unit advertised at 4.5 tons of load capacity may only be rated at 1 ton of actual compression force, and that second number is the one that decides whether it can hold your spring. Judge capacity by the coil in front of you, not by the number on the box.
Top 3 Best Spring Compressors for Strut Replacement in 2026
Our short list covers three very different needs: the widest all-round tool for a home garage, t he strongest manual set for heavy coils, and the cheapest credible way to do the job properly.
Orion Motor Tech 10.5 Inch Set
- 10.5 inch compression range
- Detent pins lock the spring
- Two-piece heat-treated steel set
BILITOOLS 2-Piece 2645 lb Set
- 2645 lb rated capacity
- Alignment holder
- 2.7-10.6 inch jaw range
OEMTOOLS MacPherson Compressor
- Forged hooks and detent pins
- Limited lifetime warranty
- Cars trucks and ATVs
Quick Overview: All 8 Compressors Compared
Every pick below appears here with its type, its force rating and the coil range it covers, so you can match a tool to your vehicle before reading the long version.
| Product | Specifications | Action |
|---|---|---|
| Orion Motor Tech 10.5 Inch Set |
|
Check Latest Price |
| BILITOOLS 2-Piece 2645 lb Set |
|
Check Latest Price |
| OEMTOOLS MacPherson Compressor |
|
Check Latest Price |
 Powerbuilt 648628 Kit |
|
Check Latest Price |
 OTC 6494 Clamshell |
|
Check Latest Price |
 Branick 7600 |
|
Check Latest Price |
 DAYUAN 1000 kg Fork Set |
|
Check Latest Price |
 DASBET 2-Piece Kit |
|
Check Latest Price |
The Four Spring Compressor Types Explained
Most buying confusion comes from mixing up mechanisms that need different amounts of space and different amounts of trust. Four families cover almost everything on the market.
Twin-piece yoke compressors are two threaded-rod assemblies, one on each side of the strut. You tighten both until the spring is captured. They are cheap, light and portable, and the reason most home garages own a compressor at all. Their weakness is alignment: if the two sides are not turned evenly, the strut twists in its mount.
Clamshell compressors close around the whole spring like a hinged shell, so the load is shared across the full circumference rather than at two or three contact points. The OTC 6494 in this roundup is the classic example of that layout, and clamshell designs are the ones built to take an impact wrench for fast shop cycles.
Fork and finger-claw compressors use adjustable fork sets sized to the coil diameter, which is why the DAYUAN kit ships with three different jaw ranges. The trade is bulk: the wider the range, the heavier the frame has to be.
Wall-mounted presses are fixed to a wall or bench and the strut assembly comes to the tool instead. E46 Fanatics posters describe the wall-mounted Branick as the route for serious home work, and the geometry is exactly what you want if you work on a lot of springs and never want to chase a tool around the driveway.
A MacPherson strut typically uses a helical coil spring measuring roughly 4.5 to 7 inches at free length, and that free length plus the outer coil diameter is what sets the size window any tool has to fall inside.

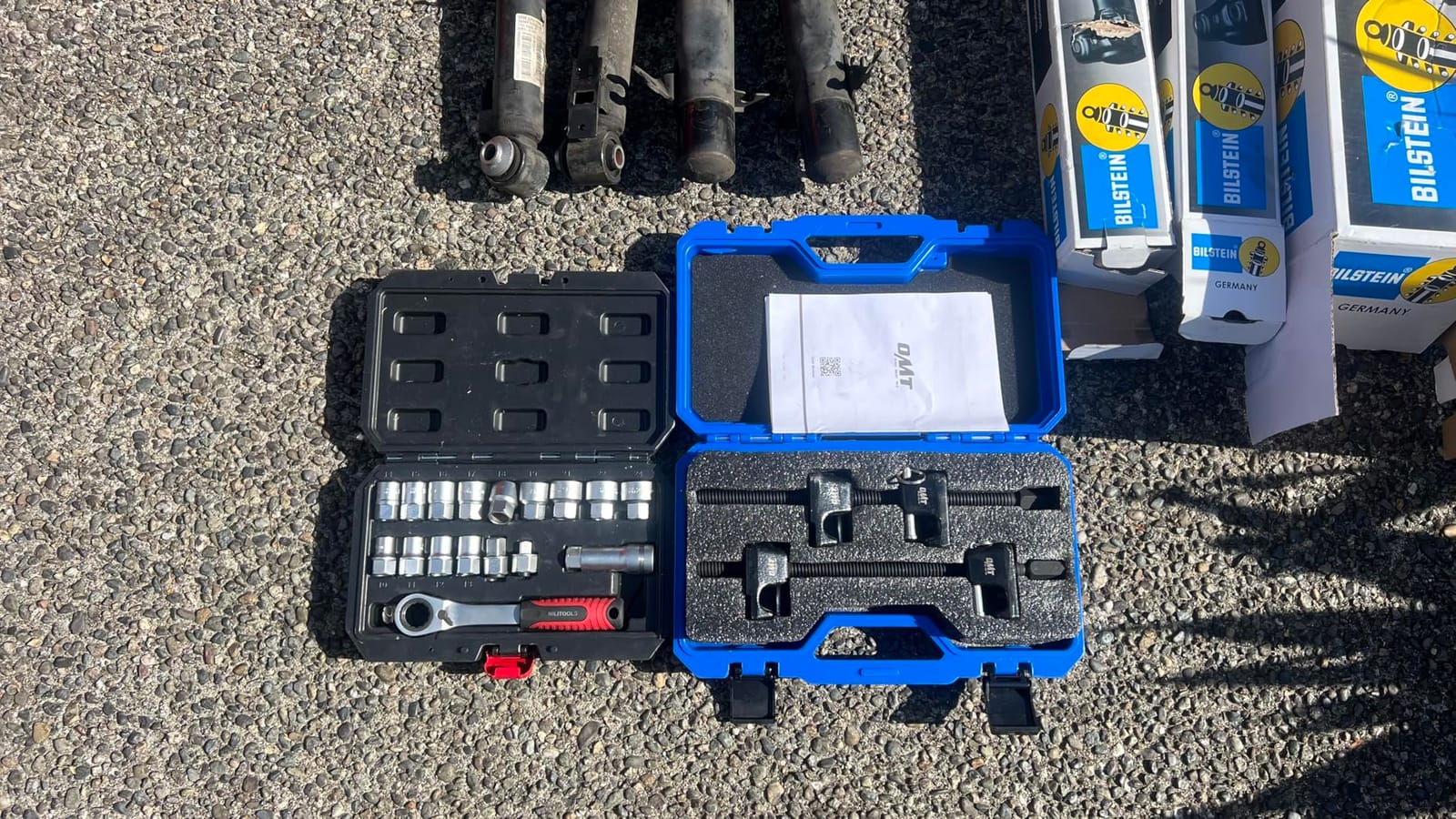

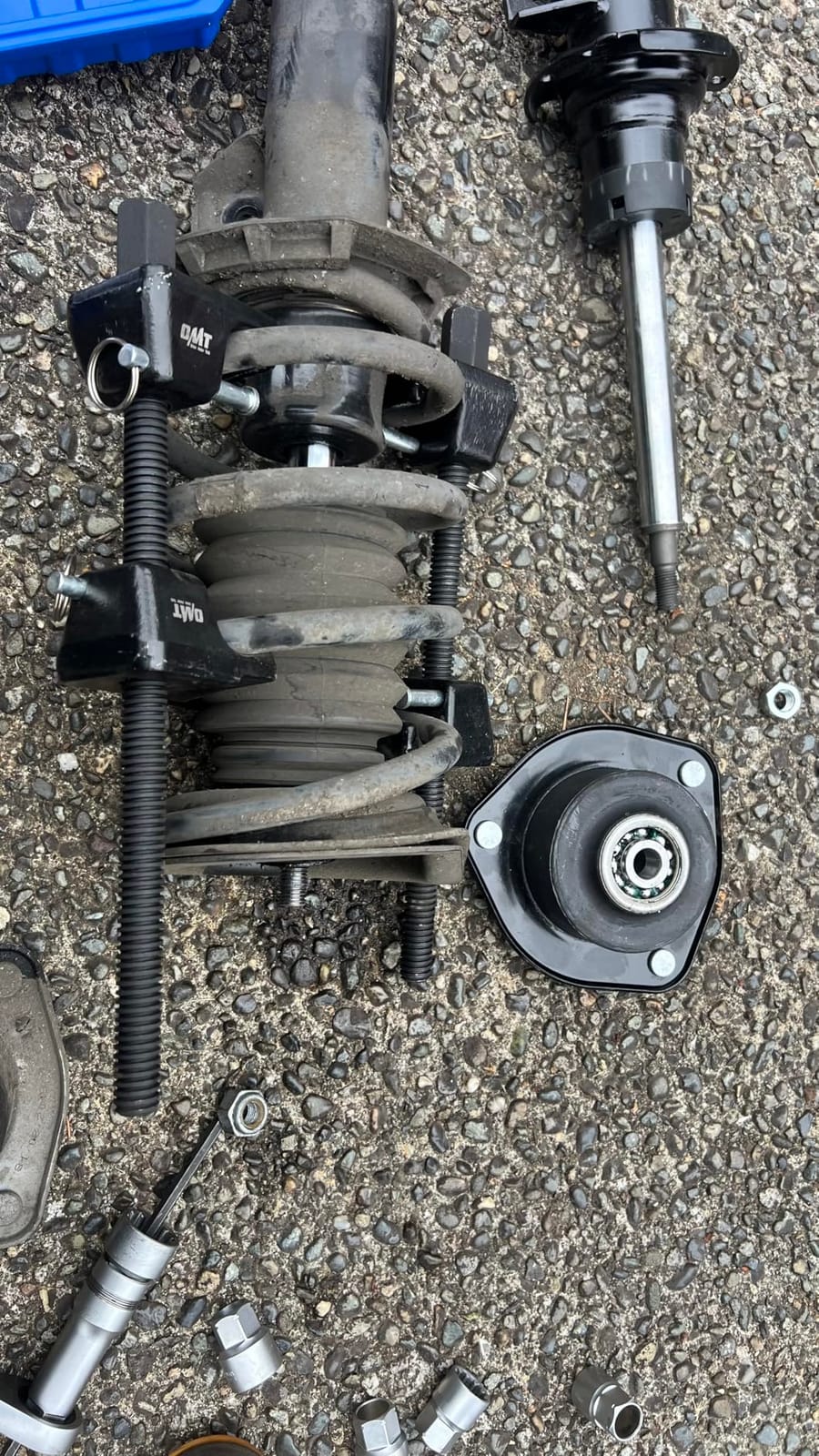

1. Orion Motor Tech 10.5 Inch Set – Best Overall Strut Spring Compressor
OMT Macpherson Strut Spring Compressor Tool Set with 10.5″ Range
10.5 inch compression range
Heat-treated steel, black oxide rods
Two-piece set with blow-molded case
Pros
- Widest compression range in this roundup at 10.5 inches
- Detent pins lock the spring against slip
- Acme threads and zinc-coated heads resist corrosion
- Over 3355 reviews and a number one sales rank in strut compressors
Cons
- Two pieces must be worked evenly or the strut twists
- Weighs 7 pounds so it eats toolbox space
The Orion Motor Tech set is the tool we reach for first on a MacPherson job, and the reason is the 10.5 inch compression range. That extra travel over a typical short-range set is what lets you deal with taller springs and with the extra few inches you gain when a spring has set in service. It currently carries 3355 reviews, and a 72 percent five-star share is a strong signal for a tool that lives in a garage rather than a shop drawer.
The mechanism is straightforward and, more importantly, visible. Acme-threaded rods with built-in detent pins capture the coil so it cannot walk upward while you tighten. On a ThirdGen discussion of pro compressors, a regular poster named scooter singled out exactly that feature on an OTC-style tool, saying the pins lock the plate from rotating, which is what makes a compressor feel safe to stand next to. The same logic applies here.
Construction is heat-treated steel with black oxide threaded rods and zinc-coated heads, and it drives with a 1/2 inch square drive or a 13/16 inch hex socket. That means a ratchet, a breaker bar or a small impact wrench all work, and the blow-molded case keeps both pieces from migrating around the trunk of the car.
Owners cite the range, the locking pins and the durability of the rods as the reasons it works reliably for routine strut service. Reviewers report it handling small and mid-size cars without complaint, which is precisely the segment it is aimed at.
What coil sizes it actually covers
The 10.5 inch stroke handles the spring range found on most passenger sedans, hatchbacks and crossovers, and the wide-open jaw design means the rods can sit low on the coils rather than crowding the top hat. That matters on vehicles where the spring pocket crowds the upper seat. If your car has an unusually short free length, a shorter-stroke tool would be easier to set, but there are very few that this one cannot reach.
Where it will frustrate you
Two pieces means two hands and a steady rhythm, and a first-timer working one side to completion before starting the other will twist the strut. Alternate the ratchet in short bursts and it behaves. At 7 pounds the set also fills a good share of a small toolbox, which is a fair trade for a tool that covers this much of the car.

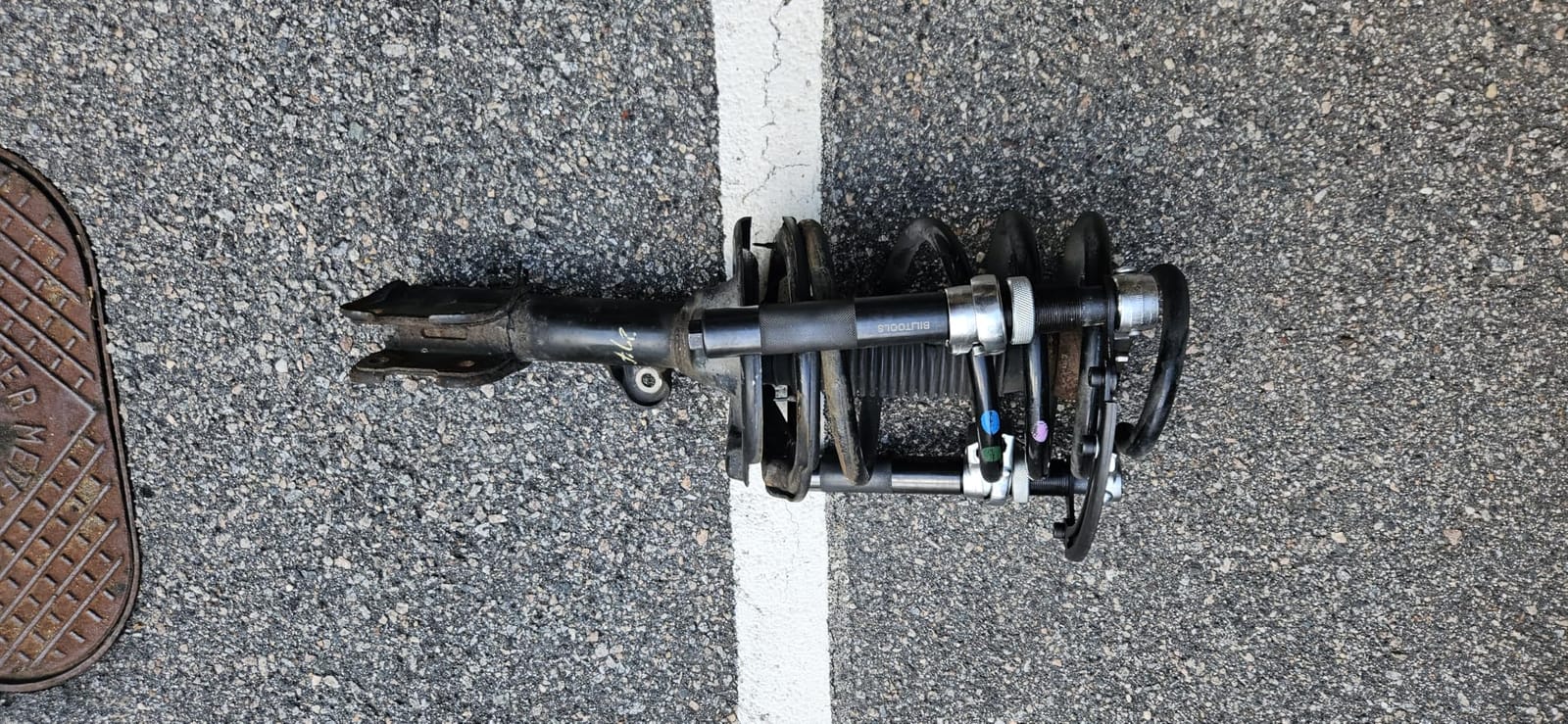

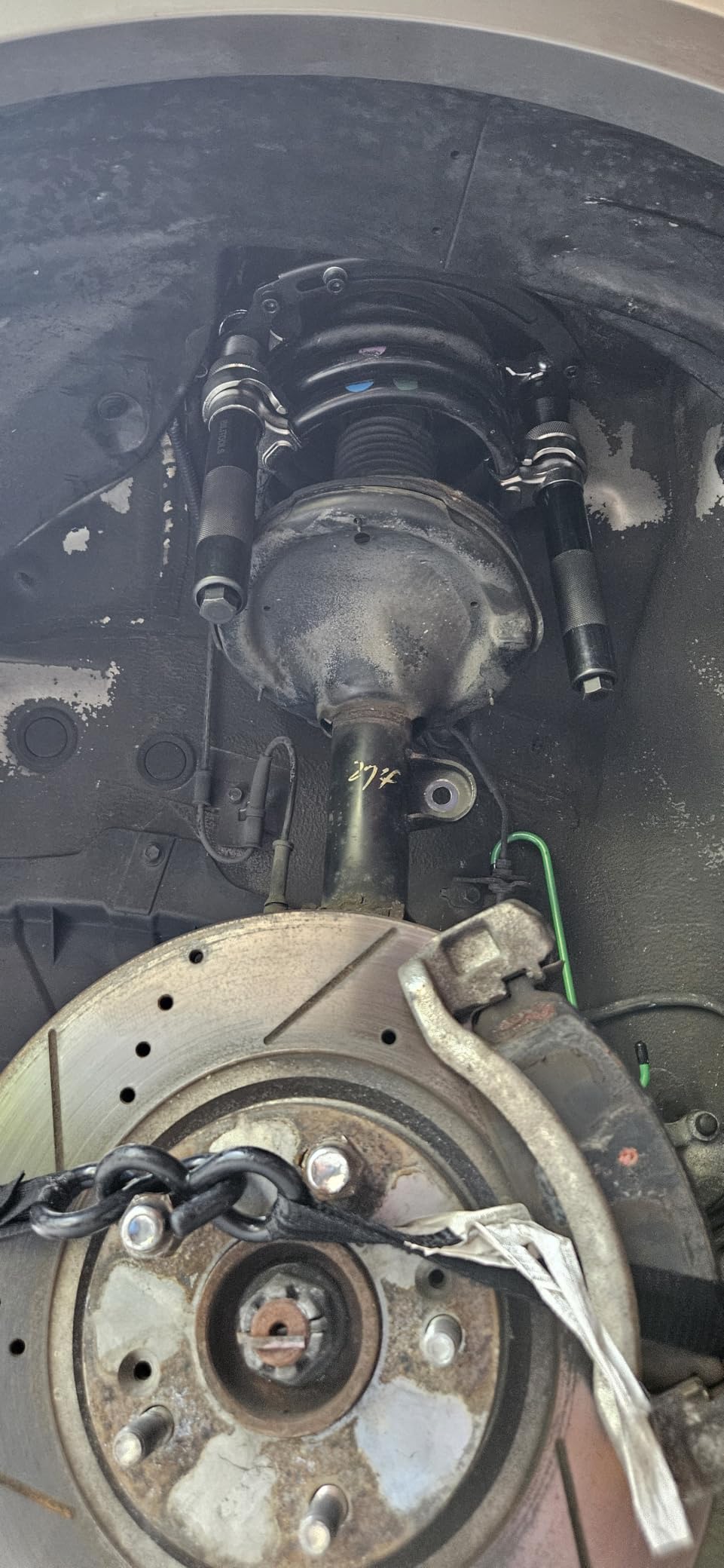

2. BILITOOLS 2-Piece 2,645 lb Set – Best for Strength and Alignment
BILITOOLS 2-Piece Coil Spring Compressor Tool, Max Load.2645LB
2645 lb rated capacity
Carbon steel, 10.36 pounds
2.7-10.6 inch jaw range
Pros
- Highest rated compression capacity of the manual sets here at 2645 lb
- Alignment holder keeps both compressors square on the coil
- Handles straight coils up to 0.8 inch wire
- 80 percent of 1163 reviews are five star
Cons
- Will not fit tapered or variable-diameter springs
- Heaviest manual pair at over 10 pounds
- Threads need greasing before every job
The BILITOOLS set is the one to buy when your springs are heavy, your spring rate is high or you simply want more margin between the tool and the load. Rated capacity is 2645 lb, and that rating is a real compression figure rather than a borrowed jack number, which puts it ahead of most of the manual sets in this group on paper and in the driveway.
The feature that changes the job is the double-retention system: hook jaws grip the coil from both sides, and an adjustable alignment holder keeps the two compressors square. Alignment is the failure mode of every two-piece design, because a twisted strut is how spring plates end up cracked on reassembly. Reviewers single out the grip and the holder for keeping things straight, and the 19 mm hex drive makes it easy to work both sides in matching turns.
Coverage is wide for a manual set. The jaws span 2.7 to 10.6 inches and the holder fits coil diameters from 8.6 to 12.2 inches, so the same set covers a small hatchback coil and a large crossover coil. Springs with wire up to 0.8 inch are within range, which is where most modern independent springs sit.
It is also worth knowing this is a straight-coil tool. Tapered and variable-diameter springs are explicitly out of scope, and if your car uses one you want a fork or finger-claw design instead. Owners who understand that up front tend to rate the tool very highly; the 4.6 average across 1163 reviews reflects a well-understood tool rather than a universal one.
Where the extra capacity pays off
Heavier spring stacks on larger crossovers and light trucks, and any spring that has a high spring rate from a lowering or performance kit, are exactly where a 2645 lb rated tool earns its weight. The wide jaw range also means one set covers front and rear work on the same vehicle, which halves what you need to buy if you plan to do both ends.
What to watch before you buy
At 10.36 pounds this is the heaviest manual pair in the roundup, and the alignment holder adds bulk you have to find room for. Grease the threads before you start, as owners consistently point out, because dry Acme threads under that much load will gall and then refuse to back off. Budget for a dedicated corner of the bench.

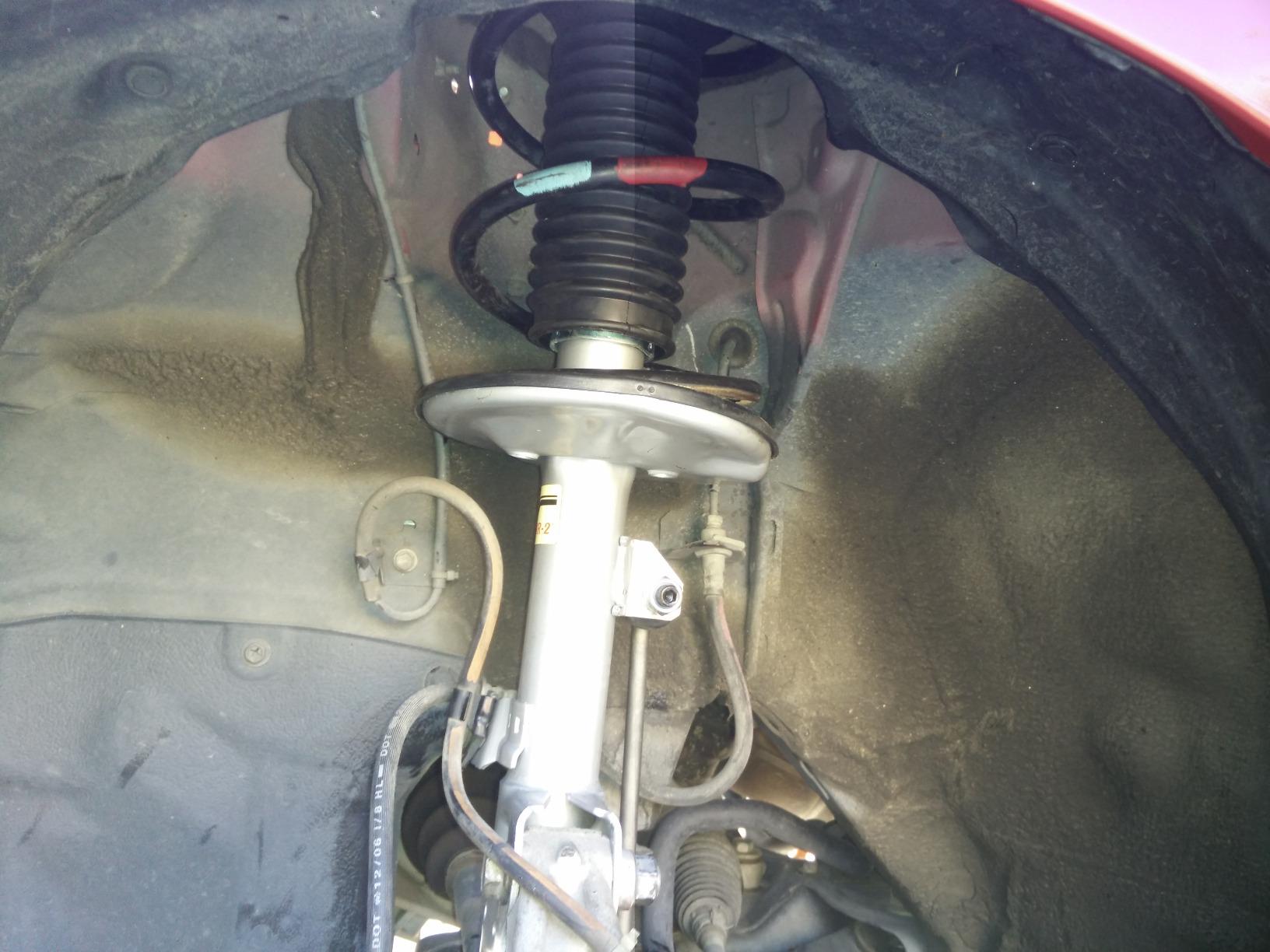

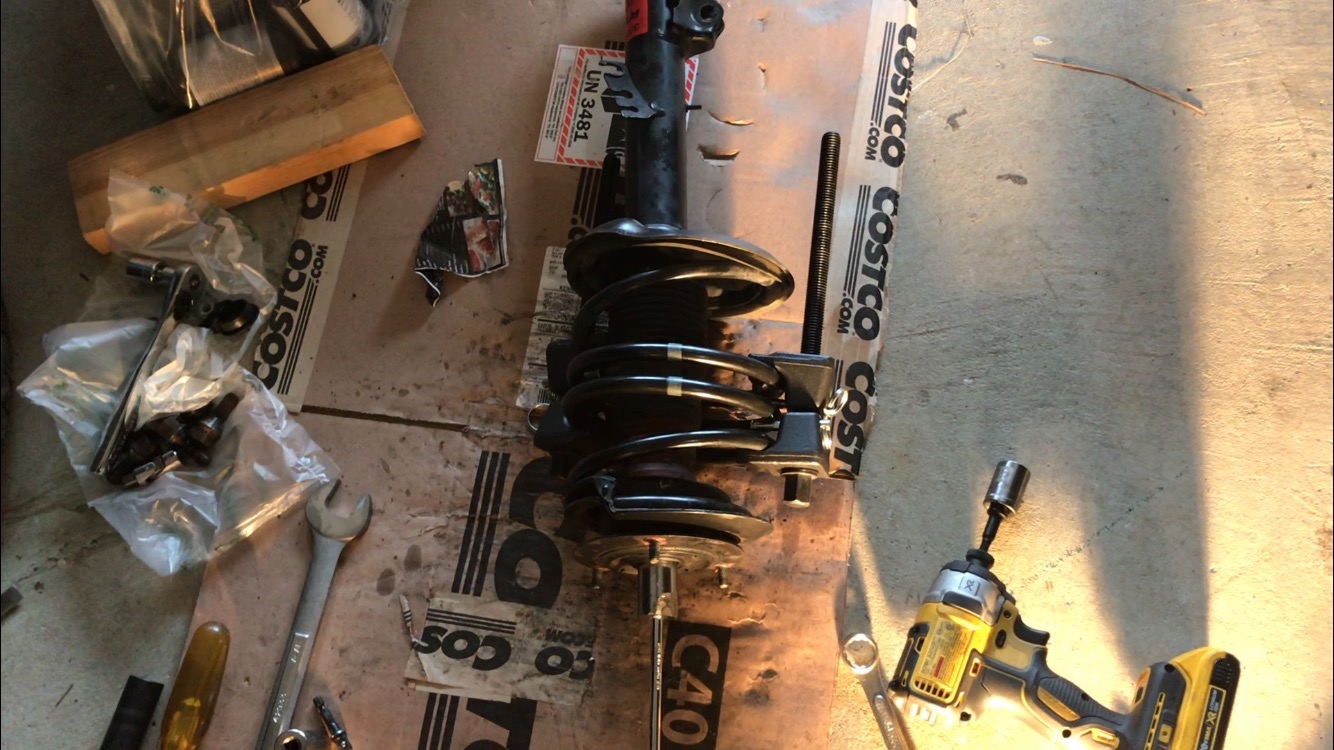

3. OEMTOOLS MacPherson Strut Spring Compressor – Best Value
OEMTOOLS Coil Spring Compressor, MacPherson Strut Spring Compressor
Heat-treated forcing mechanism, forged hooks
Detent pins and safety latches
Limited lifetime warranty
Pros
- Forged hooks and a heat-treated forcing mechanism
- Detent pins plus safety latches hold the spring
- Handles most MacPherson spring sizes on cars trucks and ATVs
- Limited lifetime warranty
- Lightest tool in the roundup at 5.6 ounces
Cons
- Thread condition depends on regular anti-seize treatment
- Instructions are thinner than a full multi-piece kit
The OEMTOOLS compressor is the answer when someone asks whether a cheap tool is a bad idea. For most MacPherson struts on cars, trucks and ATVs, it is a genuinely capable piece of kit, and the 4.6 average across 877 reviews comes largely from people doing real work with it rather than testing it once.
What earns that rating is a heat-treated forcing mechanism with forged hooks, plus two retention features working together: safety latches and built-in detent pins that lock the spring so it cannot climb the rods. Broad spring contact is what lets one tool cover such a wide range of factory sizes, and the mechanism is designed to survive repeated shop use rather than a single weekend job.
The part that most influences the ownership experience is the limited lifetime warranty. For a tool exposed to this much load and this much grit, that coverage changes the calculation completely for anyone planning more than one job. Storage and transport are trivial too, at 5.6 ounces and a footprint of 12.8 by 3.8 inches, so it lives in a drawer rather than a corner.
The honest limitation is documentation. Owners note the instructions are minimal compared with a multi-piece kit, and a first-time user will benefit from ten minutes reading a walkthrough before touching a loaded spring. That is a small price for a tool that fits anywhere and is backed for life.
Which vehicles it suits
Because the spring contact is broad rather than fixed, this handles the MacPherson sizes most commonly found on passenger cars, pickup trucks and ATVs. It is a sensible first compressor for a family car where one corner needs a spring or a whole strut assembly replaced, and an even more sensible one for a first-timer, because the detent pins do most of the thinking for you.
Which vehicles it does not suit
This is a hand tool, not a press. It will not scale up to half-ton and three-quarter-ton truck coils, where the forces involved are an order of magnitude higher, and it has no adjustable jaw sets for unusual diameters. If your work is heavy or repetitive, one of the fork or wall-mount designs further down is the better long-term answer.

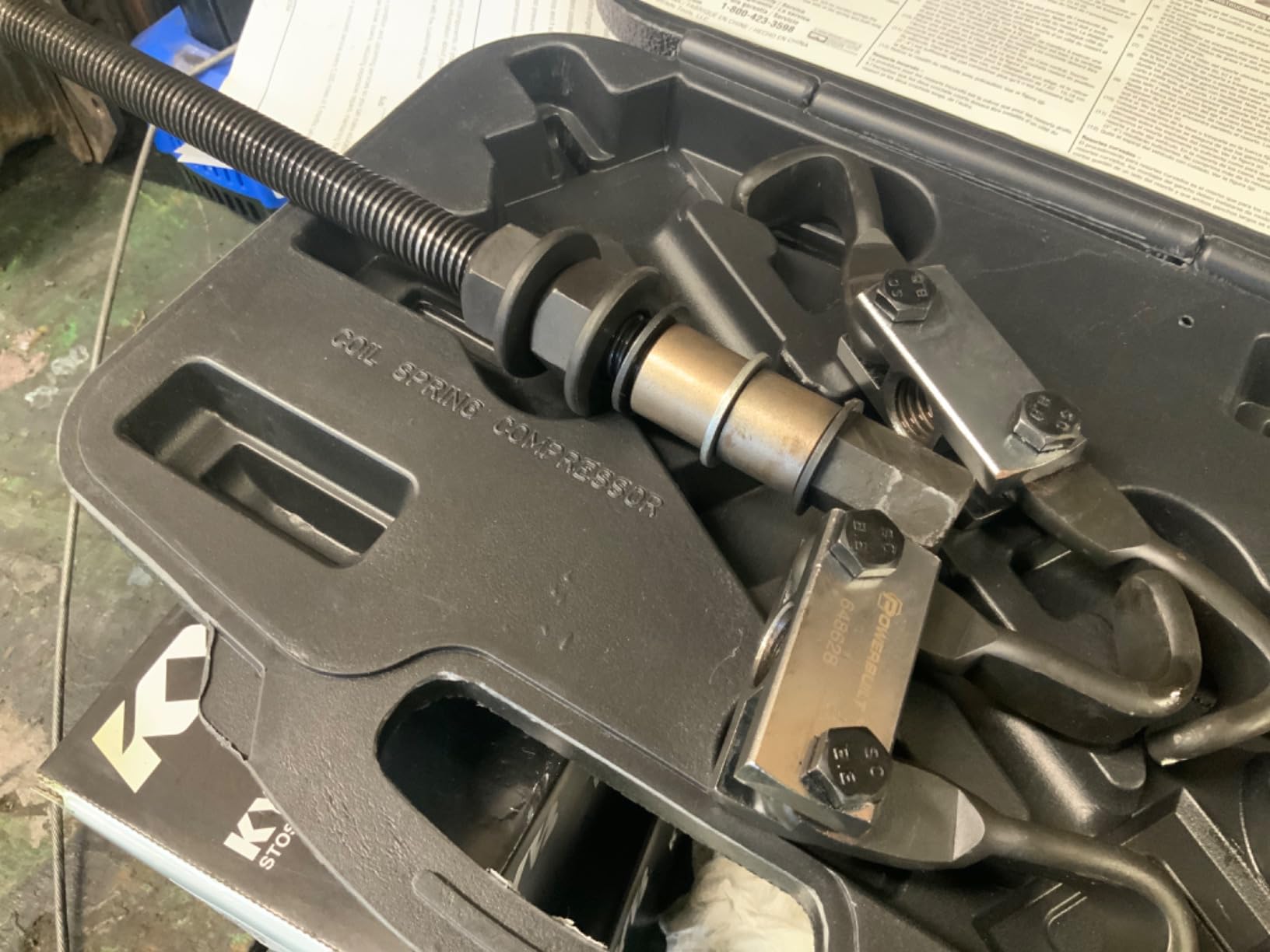

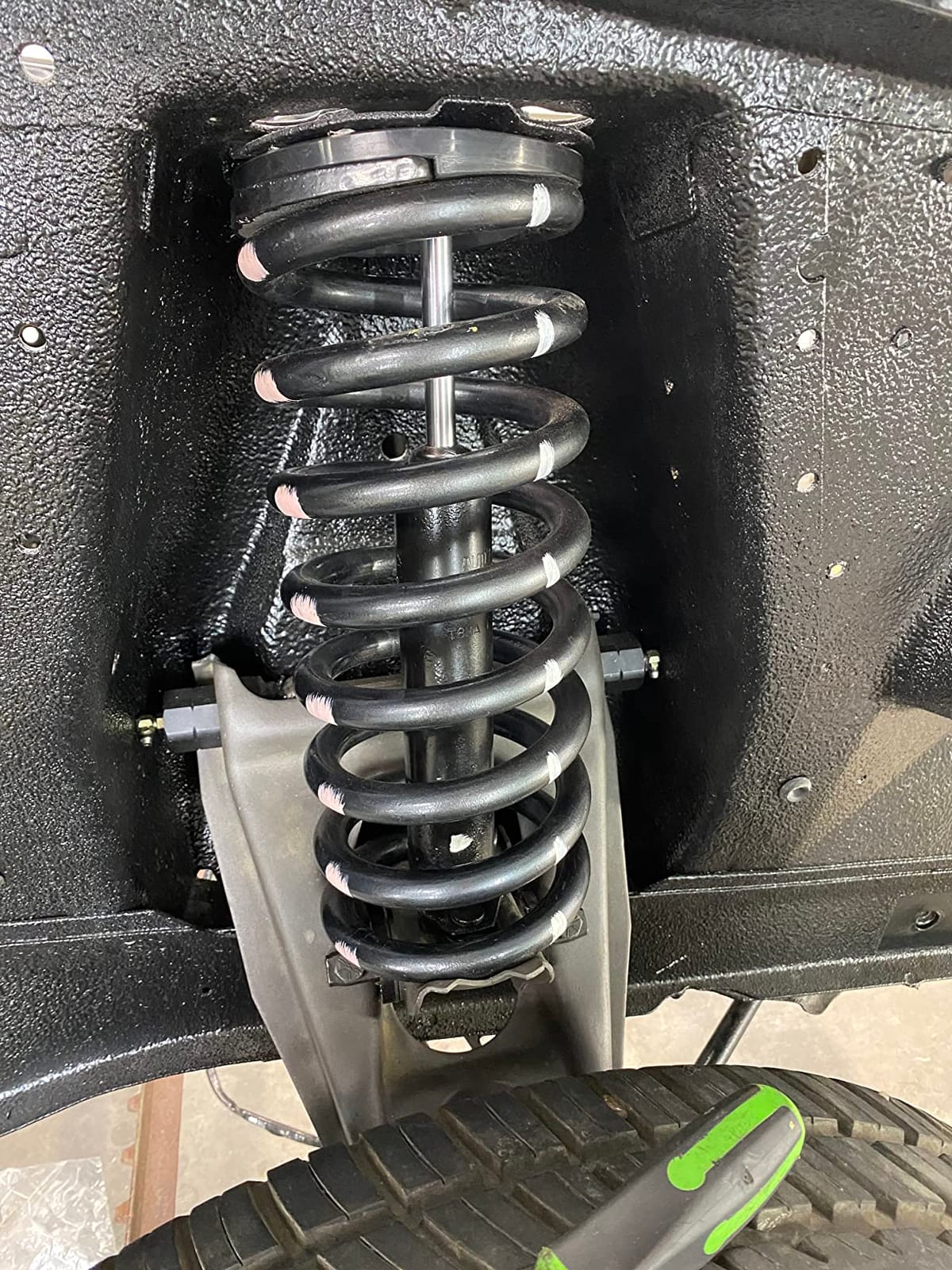

4. Powerbuilt 648628 Kit – Best for Curved and Straight Coils
Powerbuilt Strut Coil Spring Compressor Tool Kit, Compress, Remove and Install Vehicle Strut and Coil Springs Set for Vehicles, Storage Case 648628, Black
Chrome vanadium steel arms to ANSI standards
Handles wire up to 3/4 inch
Single-piece compressor with case
Pros
- Handles both curved and straight coil springs
- Chrome vanadium steel built to or above ANSI standards
- Case lid carries usage photos for first-time users
- Blow-molded case included
Cons
- Fixed-size arms limit the fit on very small or oversized springs
- No locking detent pins of the kind found on competing sets
The Powerbuilt 648628 earns its place for one specific reason: it handles curved springs as well as straight ones. Most competitors in this roundup assume a concentric coil, and owners of vehicles with a barrel-shaped or tapered profile spring find out the hard way. This kit does not care which shape it is looking at, and it takes wire up to 3/4 inch.
The build is chrome vanadium steel arms manufactured to meet or exceed ANSI standards, finished in black oxide and chrome. That matters more than it sounds, because a coil spring fighting a cheap stamped arm is a good way to generate a crack that propagates the moment the load comes off. The 716 reviews at a 4.4 average are heavily focused on the steel, which is exactly how you would expect owners to talk about it.
This is a single-piece compressor rather than a two-piece set, with a blow-molded case and detailed instructions. The case lid is printed with usage photos, and first-time users mention that as a genuine help rather than a gimmick. At 4.6 pounds it is one of the lighter kits here and still fits comfortably in a car boot.
The trade-off is the one you would expect from a fixed-arm design. Because the arms do not resize, an unusually small or unusually large coil is where this one stops working, and it has no detent pins, so the spring relies on arm friction rather than a positive lock. On standard factory struts that is fine. On a heavily modified coil, think about a fork set instead.
When the curved-coil ability matters
Barrel and tapered springs show up on plenty of older sedans, wagons and some performance applications, and they are unforgiving with tools that assume a flat seat. If you are not certain what shape your coil is, look at it before you buy, and if the coils step in diameter toward the top hat, this is the safer choice in the roundup.
What you give up for that versatility
Fixed arms mean a narrower overall envelope than an adjustable set, and the absence of detent pins means the spring is held by pressure alone. On a spring with a lot of stored energy and glossy plating, keep the arms square and watch the coil as you tighten rather than assuming the grip is there.

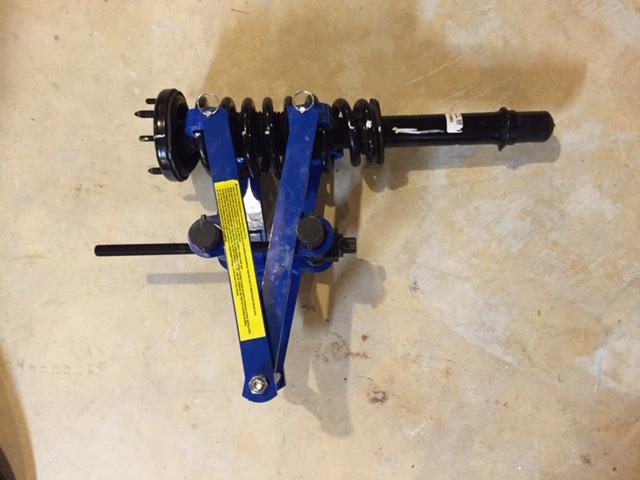

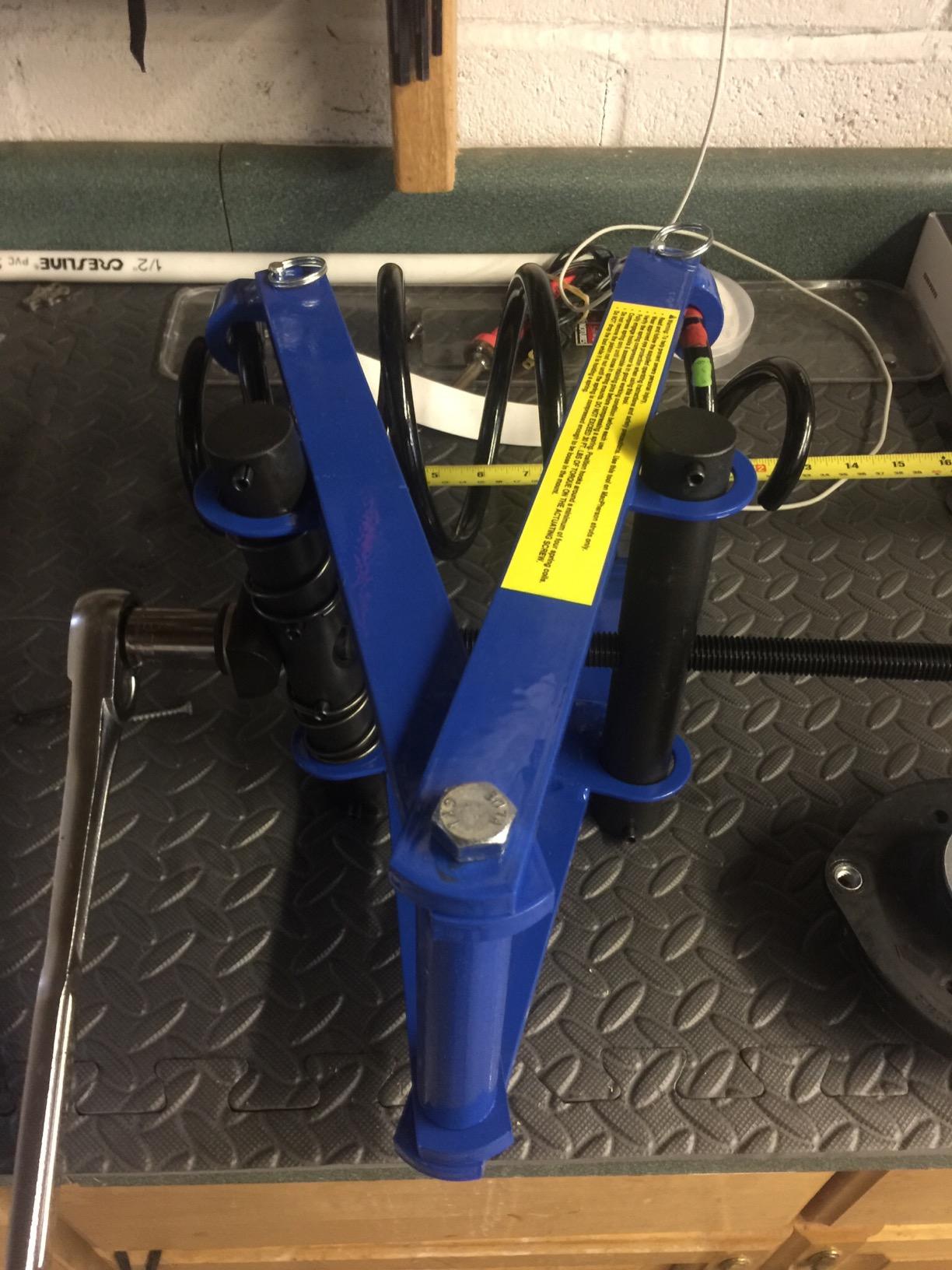

5. OTC 6494 Clamshell – Best for Shop Work With an Impact Wrench
OTC 6494 Clamshell Strut Spring Compressor – Impact Wrench Compatible
Clamshell design, impact wrench compatible
18.3 pounds
Made in the United States
Pros
- Clamshell load path shortens compression time on shop jobs
- Built for repeated professional use rather than occasional DIY
- Made in the United States by an established tool maker
Cons
- 18.3 pounds is awkward to move between vehicles
- Far costlier than two-piece manual compressors for occasional home use
The OTC 6494 is the shop answer. Where a two-piece set asks you to alternate two rods for two minutes, a clamshell closes around the entire spring and the drive closes in one pass, which is why the design is built to run off an impact wrench. If you turn struts for a living, that cycle time is the whole argument.
Mechanics who use the OTC-class design rate it highly for build and layout. On ThirdGen, scooter describes exactly this tool pattern as well made and a good design, with the pins locking the plate from rotating, and gives it 9 out of 10 while advising that you keep the bearing lubricated and grease on the screw. Another poster notes the design closely resembles a Kent-Moore tool, which is a fair description of where it sits in the market.
It is made in the United States and carries a small but loyal review base of 209 ratings at 4.4, dominated by technicians rather than occasional users. The 74 percent five-star share reflects people who bought it for the right job and are happy with what it does for them.
That same loyalty sets the limits. At 18.3 pounds it is a two-hand carry between vehicles, and the design assumes an air or electric impact wrench in the room. A homeowner doing one strut job gains almost nothing from the speed advantage and pays for it in weight and complexity, which is why it sits at number five for us rather than higher.
Where the clamshell design earns its keep
Any workflow where you compress more than a handful of springs a week. A tire and body shop, a franchise doing alignments, or a serious enthusiast running coilovers on several cars will recoup the difference in saved minutes immediately. The short drive also means less time holding a spring at maximum load, which is a safety argument as much as a speed one.
Why a home garage should look elsewhere
One job a year does not amortize this tool, and the weight is a real inconvenience when the compressor has to live in the boot. The mainstream manual sets in this roundup do the same mechanical work for a fraction of the effort involved in moving it. Buy clamshell speed when speed is what you are short of.

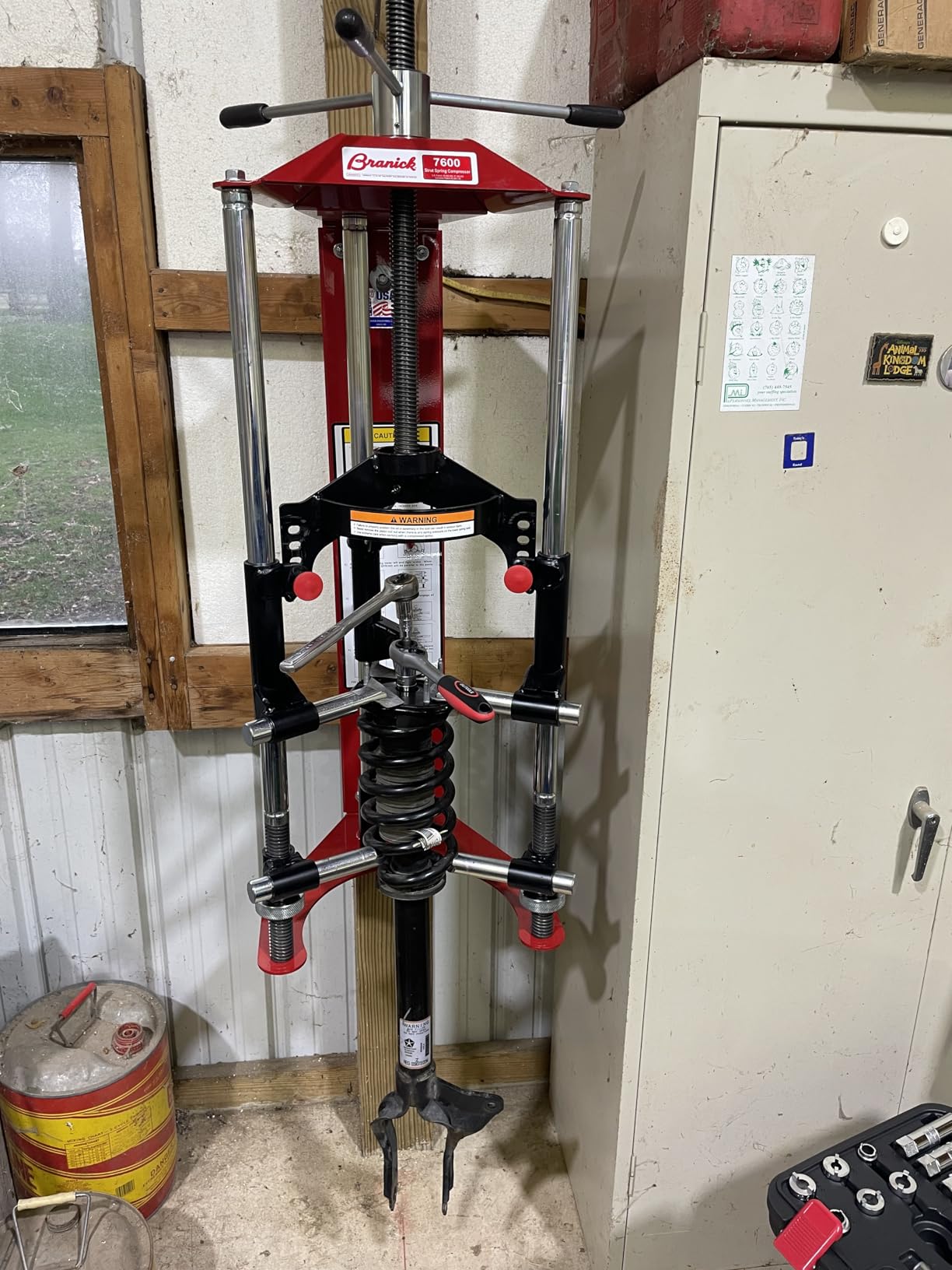

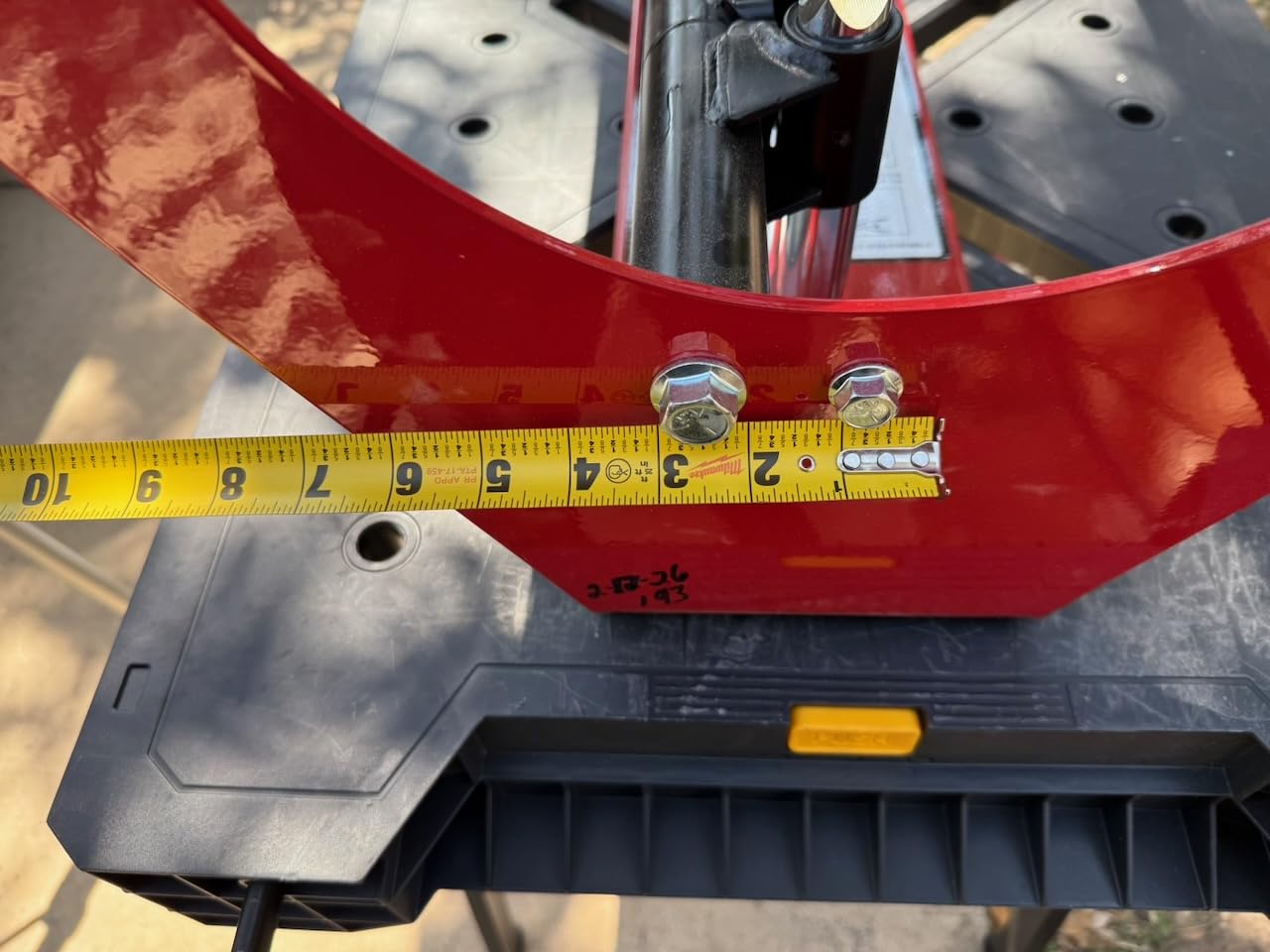

6. Branick 7600 – Best Wall-Mounted Press for a Serious Garage
Branick 7600 Strut Spring Compressor
Wall-mountable rear plate, hooks 31 inches apart
Three-point spring contact
All steel, 98 pounds
Pros
- Three-point contact and adjustable fingers compress more safely than clamp designs
- Multi-position hooks work near the spring ends and on the top hat
- All-steel US build
- Wall-mountable plate suits a home shop corner
- Handles heavier spring stacks fast
Cons
- 98 pounds means it stays bolted where it is
- Cost makes it impractical for a single one-off job
The Branick 7600 is the highest-rated tool in this roundup, at 4.8 across 373 reviews with 90 percent of owners giving it five stars. Mechanics with decades of shop experience call it the industry standard, and they name the same reason: three-point spring contact with adjustable fingers, which is a fundamentally safer load path than a two-point clamp.
That claim is worth taking seriously rather than reading as marketing. A clamp tool concentrates the spring’s reaction force on two small areas of the coil, right where the wire is most likely to take a set or a crack. Three-point contact with movable fingers spreads the load and lets the fingers sit where the coils are thickest. E46 Fanatics posters describe the wall-mounted Branick as the route for serious home work, and the reason is the same geometry.
Construction is all steel with a heavy-duty Acme thread, and it needs no adaptors, which removes the most common compatibility complaint about wide-range tools. The rear plate has two mounting holes roughly 31 inches apart for bolting to a wall, and extra claw cushions and a strut clamp come with it. Multi-position hooks let you work close to the spring ends or seat against the top hat.
The 4.8 rating comes with a caveat worth stating: those owners are describing a tool in its intended habitat. At 98 pounds and 43 inches wide, the 7600 does not move, does not fit in a car boot and does not make sense as an occasional purchase. It is a fixed workstation, and it is the best of that category.
Who this press is for
Anyone whose garage sees regular suspension work, including coilover installs and heavier spring stacks, which owners report completing in well under an hour per pair. If you have a wall you can lose and a strut that comes to the tool rather than the other way around, the fixed geometry removes every alignment problem a portable set can have.
Why it is the wrong first purchase
For a single strut replacement it is an enormous amount of hardware that will sit unused. The manual sets above do the same job and can be carried to the car, which is how most home work happens. Treat the Branick as a second-stage tool once the manual set stops earning its keep.

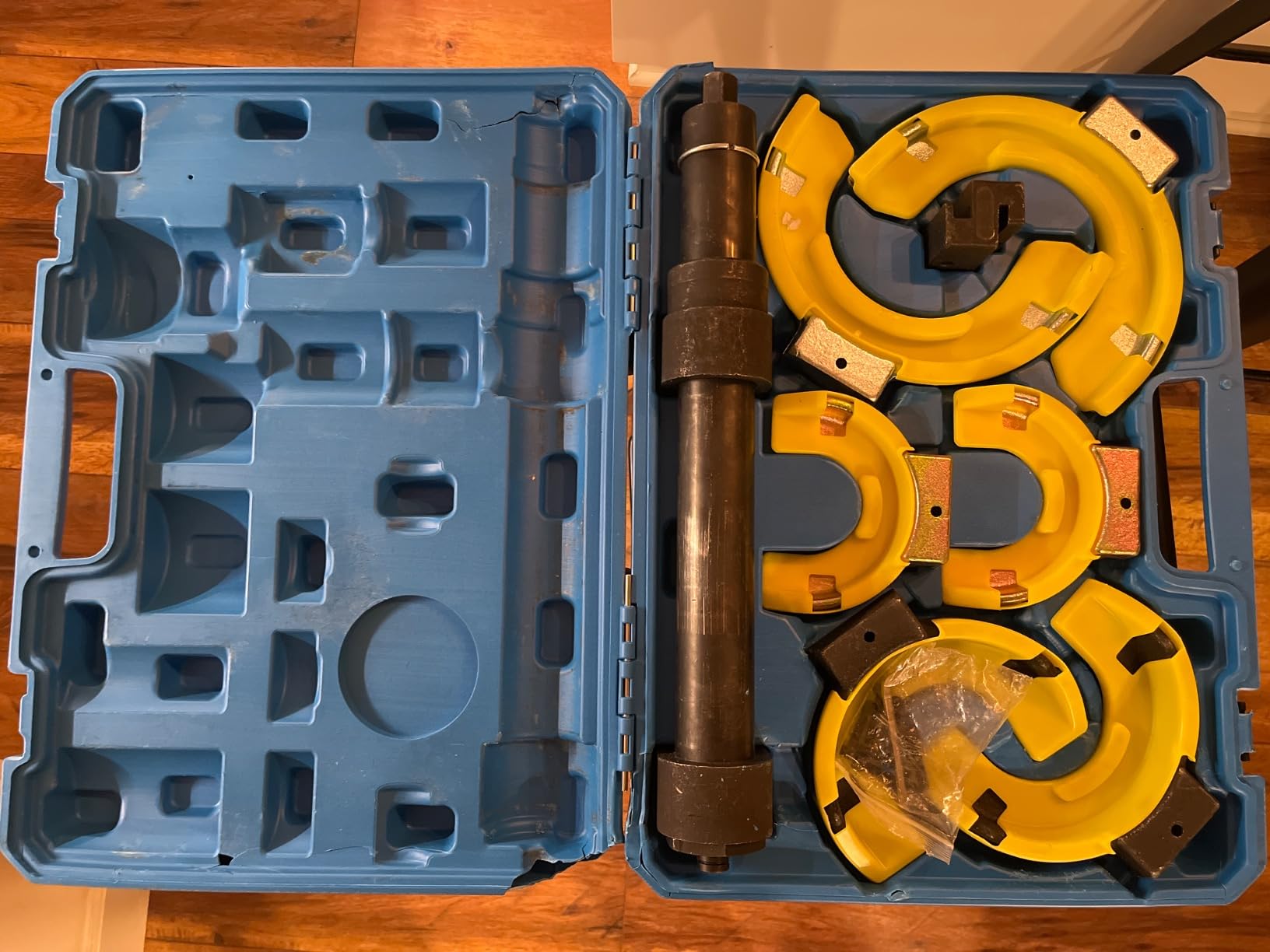

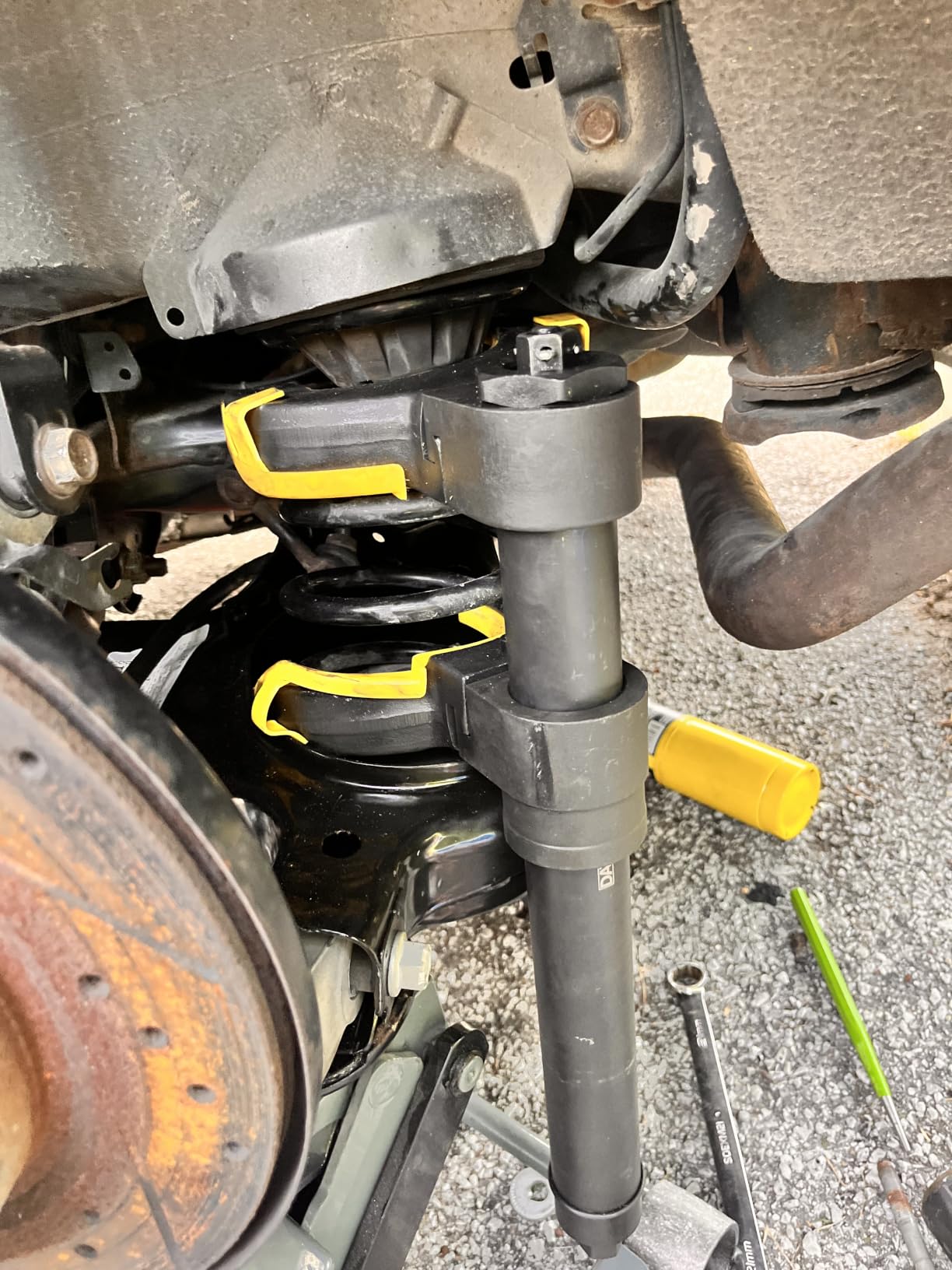

7. DAYUAN 1000 kg Fork Set – Best for the Widest Diameter Range
DAYUAN 1000kg Macpherson Strut Coil Spring Compressor Tool Kit
Three interchangeable jaw sets, 4487 kg tested force
65-125mm, 88-160mm, 126-212mm
34 pounds, hand ratchet only
Pros
- Three jaw sets cover an unusually wide band of coil diameters
- 4487 kg max force from an SGS test report
- Handles front and rear MacPherson springs with one kit
Cons
- Hand ratchet only
- never an impact wrench
- 34 pound kit is bulky in a tight engine bay
- Lowest average rating here at 4.2 with a 10 percent one-star share
The DAYUAN kit is the range specialist. Where a fixed two-piece set has a single jaw size, this one ships with three sets of interchangeable jaws covering 65-125mm, 88-160mm and 126-212mm of coil diameter, which spans the small coils of an economy hatchback through to the fat coils of a large truck or SUV. One kit, front and rear, one vehicle or five.
Force is not the question with this tool. The published SGS test report puts maximum force at 4487 kg, which is far beyond what any home strut requires, and users who work heavy trucks like the raw clamping strength. Adjustable fork jaws also let you place contact on the coils closest to the ends, where the wire is thickest, rather than mid-coil where a clamp can pinch.
The rating tells you where the compromises are. At 4.2 across 522 reviews it is the lowest average in this roundup, with a 10 percent one-star share, and reviewers focus their criticism on two things: the 34 pound bulk and the strict hand-ratchet-only requirement. Neither is a defect, but both are the price of the range and the strength.
That ratchet-only rule deserves emphasis. An impact wrench on this mechanism will destroy the drive in a way no warranty covers, and several negative reviews trace back to somebody trying it anyway. If you tend to reach for an impact gun out of habit, choose a tool designed for one instead.
When the wide range is worth the bulk
Work that spans several vehicle types, heavy front coils, or any job where the previous tool came up short on diameter. Reviewers who work on larger SUVs and trucks are the ones most enthusiastic about the jaw range, and the extra reach means you are not hunting for a second compressor the first time a big coil shows up.
What the extra weight costs you
At 34 pounds in a 19.7 by 15 inch footprint, this is the least portable tool here and the hardest to work with in a crowded engine bay. Plan to bring the tool to a clear working area rather than carrying it to the car, and keep the ratchet on the bench so there is no temptation to swap in an impact gun.

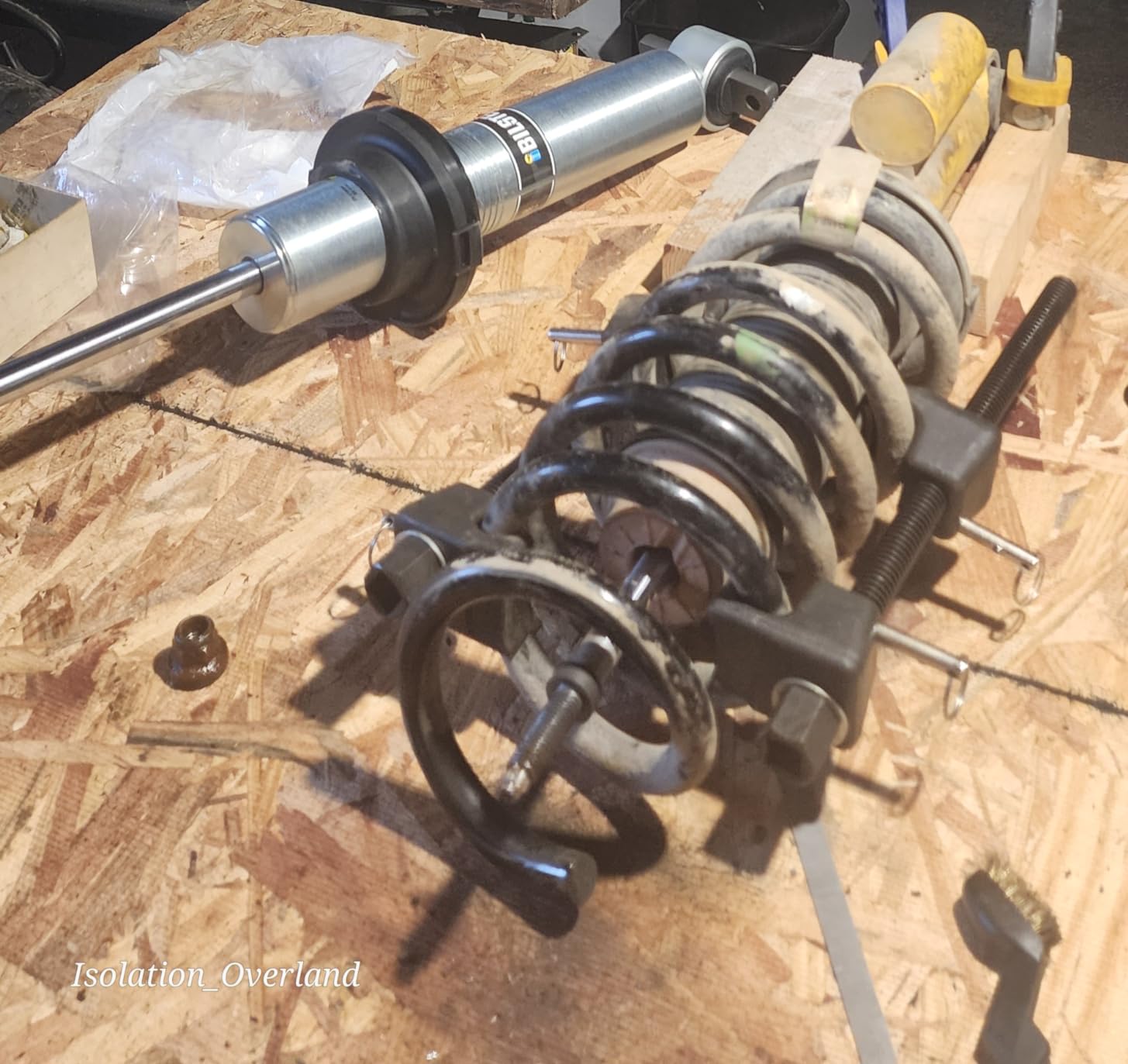

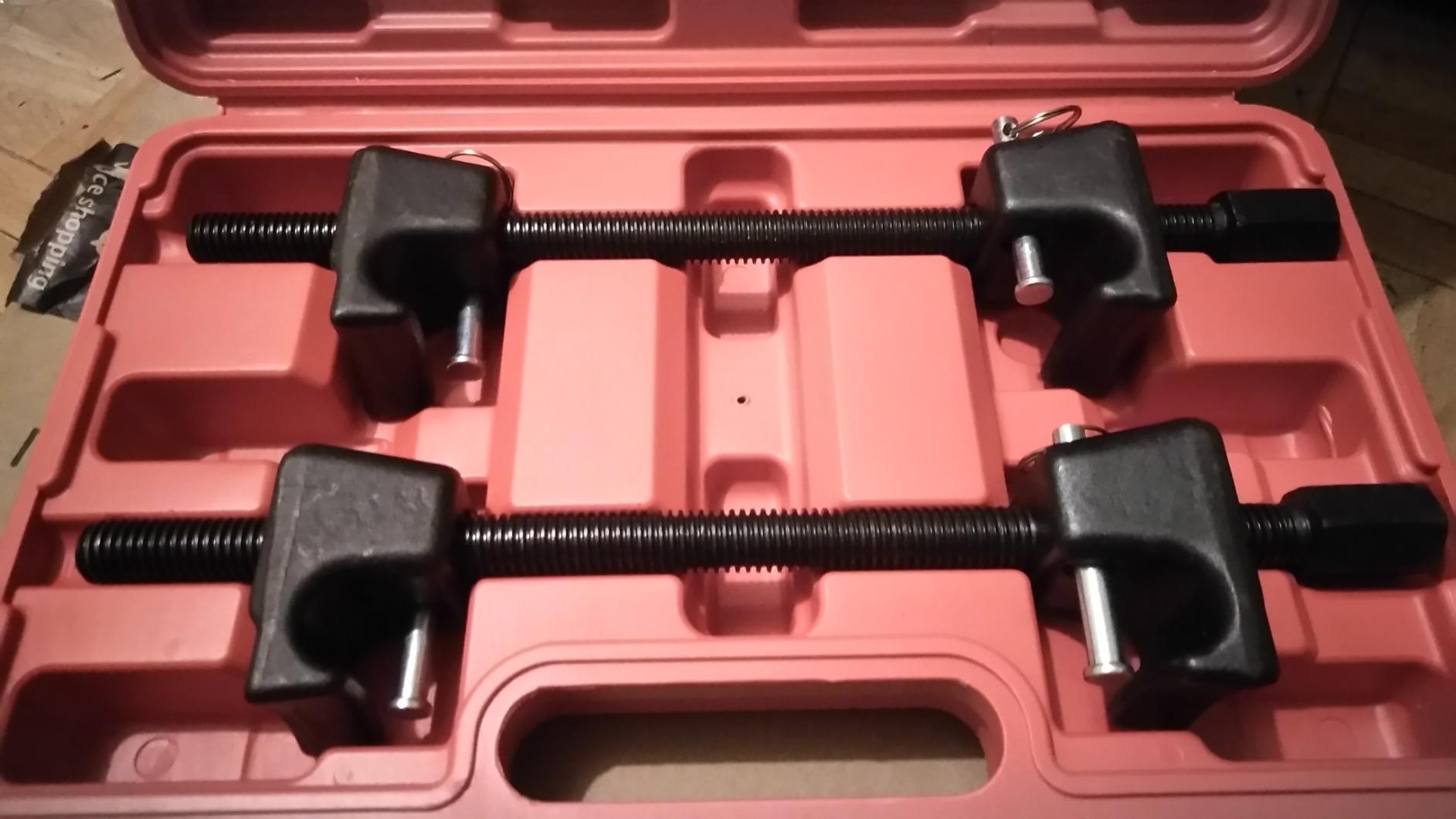

8. DASBET 2-Piece Kit – Best Budget Pick for a Home Garage
DASBET Macpherson Strut Spring Compressor Tool Kit 2PCS
Heat-treated hooks, hardened center screws
10.5 inch adjustable range
Stop pin, 3/4 inch or 19mm ratchet
Pros
- Lowest cost in the roundup with a 4.4 average over 793 reviews
- Stop pin locks the coil while the rods tighten
- Works on the car or on a removed strut with a standard ratchet
- Repeated owners report many successful jobs on trucks and Audis
Cons
- Stop pin profile does not clear every spring
- Not sized for 3/4 ton truck springs
- Rods can bow slightly on very heavy coils
The DASBET two-piece kit is the lowest-cost way into strut work here, and the numbers behind it are more reassuring than the price would suggest. 793 reviews at a 4.4 average, a number two sales rank in strut compressors, and a 76 percent five-star share, with repeated owners reporting eight or more successful jobs on everything from a Tundra to an A4 Quattro.
Construction follows the same pattern as the better-known sets: heat-treated forcing hooks, hardened center screws and a heavy-duty threaded rod with a 10.5 inch adjustable range, which matches the widest stroke in the roundup. A built-in stop pin locks the coil in place while you turn the rods, and it drives with a 3/4 inch or 19mm socket and ratchet. Working on the car or on a strut pulled to the bench are both supported.
Negative reviews cluster around three specific limitations rather than general dissatisfaction. The stop pin profile does not clear every spring, particularly some smaller right-hand-wound coils, so it is worth checking the pin against your spring before you commit. The rods can bow slightly under extreme compression on very heavy springs, and the tool is not sized for three-quarter-ton truck coils.
None of that touches the vast majority of passenger-car work, which is why the average sits where it does. If you want to learn strut replacement on a family sedan or hatchback without a serious commitment, this is the set we would start with, and the storage box keeps it tidy in between.
Where the budget tool works well
Independent MacPherson struts on cars and light trucks, for shocks, springs and the bent-strut repairs that come with potholes. The 10.5 inch range covers factory spring heights on a broad range of vehicles, and the stop pin gives you something the very cheapest two-piece kits leave out.
What to check before committing
Hold the pin against your actual spring and confirm it seats fully, because a pin that half-engages is worse than none. If you tow or run heavy half-ton coils, step up to the BILITOOLS set or the fork kit instead, and give the rods a light film of grease before every job to keep them from galling under load.
Safety First: Stored Spring Energy Is the Real Risk
A coil spring is a stored-energy device, and a MacPherson spring that has been holding up a corner of a car for a decade is storing a serious amount of it. The compressor exists to absorb that energy in a tool you control rather than in your hands, which is why a cheap tool and no tool are not the same risk. The one that actually injures people is the improvised setup.
Keep every part of your body out of the line between the spring and the direction it would travel. That means your hands stay off the coils and off the top plate while the tool is loaded, and your face stays above the spring rather than level with it. This is the pucker factor that dominates every suspension forum, and the answer is not that the fear is irrational, it is that a rated tool with a positive lock removes the reason for it.
Stay on the tool you were given. Only designs rated for impact wrench use should see one, and a lot of the damage seen in reviews happens when an impact gun meets a ratchet-only mechanism. Treat that instruction as structural, not advisory.
Maintain it like a loaded component. Greasing the bearing and the screw is the single most repeated piece of advice from experienced owners, and the OEMTOOLS and Branick picks in this roundup are the ones where it matters most because the tool is expected to live for years. Dry threads under load gall, and a thread that will not back off turns a five-minute job into a ruined afternoon.
Finally, plan for the top plate and the spring pocket. The most common usability complaint in the entire body of forum knowledge on this topic is the compressor’s upper plate colliding with the bottom of the spring pocket, which is a vehicle geometry problem rather than a tool defect. On a crowded pocket, pull the strut assembly out and compress on a bench, where you have room to see what you are doing.
How to Compress a Strut Spring, Step by Step
Measure before you touch anything. This is the discipline that separates a clean strut job from a car sitting on jack stands with a spring you cannot refit, and it is the point a Garage Journal poster was making when they wrote that eyeballing does not work, period.
Measure the coil height. With the suspension at full droop, measure from the top of the upper spring seat to the top of the spring and write the number down. Measure across the spring gap and count the coils too.
Mark the spring position. Note which end faces up and where the spring sits on the lower perch. Clocked springs and shimmed perches do not go back the way you found them.
Support the vehicle properly. Jack stands on the manufacturer-specified points, or pull the strut assembly out onto a bench if the spring pocket is tight. Never work under a car held only by a jack.
Grease the tool. Put a light film of grease on the threads and the bearing, and anti-seize on any screw that will be exposed to road salt.
Fit the compressor square. Seat the lower plate on the lower coils and the upper plate against the spring seat. Alternating in short bursts keeps the two sides even and stops the strut twisting.
Stand clear and compress slowly. Move your hands off the spring and out of the compression path. Continue until the top mount nut clears the stud and the mount can slide off.
Back the spring onto the perch. Release the pressure in small steps and walk the spring down onto the lower seat rather than letting it drop free.
Reassemble to the same measurement. Install the new spring with the compressor loaded, torque the top nut to spec with the suspension at full droop, and remove the compressor. Check the coil height against your written number before you let the car down.
If the compressor will not seat because the upper plate hits the spring pocket, that is a signal to pull the assembly and work on a bench, not to force it. Several experienced mechanics treat removing the lower control arm bolts as the fastest and safest route precisely because it opens up the space the compressor needs.
How to Choose the Right Coil Spring Compressor
Start with the type. Clamp and twin-piece designs suit cars and light trucks, fork and finger-claw designs suit a wider diameter range, clamshells suit shops with an impact wrench, and a wall-mounted press suits a garage that does this constantly. Every pick above fits into one of those four buckets.
Then look at rated compression force, not jack capacity. A hydraulic unit can carry a jack rating several times its useful compression force, and the second number is the one that decides whether it holds your spring. Ignore any listing that quotes only a ton figure without saying what it applies to.
Match the coil range to the vehicle. Record the free length and the outer diameter of the spring you are working on, then confirm the tool covers it with a little room either side. A tool that barely fits tends to land on the wrong coils, and that is how a spring plate ends up cracked.
Decide on the drive. A ratchet is the right default for a home garage, air or electric is faster for repeated work, and hydraulic is worth it when the springs are heavy enough to make manual compression a real workout. If you already run shop air, our picks for the best quiet air compressors for home shops cover the source side of that decision.
Check for positive retention. Detent pins, stop pins and safety latches are what stop a spring walking up the rods while you work, and pin-locking designs are consistently the thing owners name when they explain why a tool feels safe. A tool that grips by pressure alone needs more care and more attention.
Finally, weigh portability against permanence honestly. A set that lives in a car boot and follows you between jobs is worth more to most people than a faster press bolted to a wall, even if the press is objectively the better tool. Rent-versus-buy is a genuine question for a single job, and buying the manual set outright removes the rental counter from the decision entirely.
For coilover work specifically, you want more travel range and more adapter capability than a stock strut job requires. A compressor with adjustable yoke sets and a wide spring diameter range handles lowered springs and adjustable dampers far better than a compact fixed-yoke unit, which is the main reason we would move a coilover buyer up the list rather than down it.
Frequently Asked Questions
Do you need a spring compressor to replace struts?
Yes, for any car with an independent MacPherson strut and a separate coil spring. The spring carries the vehicle’s weight at full extension, so it must be held compressed before the top mount nut can come off. The only exception is a springs-per-damper assembly, where the coil is permanently mounted on the damper and the whole cartridge is replaced as one unit. On a strut that has dropped with age you are also fighting a stronger-than-new coil, which makes a rated tool more important, not less.
How do I compress a strut spring?
Measure and mark the coil height first, grease the tool threads, then fit the compressor square on the spring and work both sides in short alternating bursts so the strut does not twist. Stand clear of the compression path, compress slowly until the top mount clears the stud, then release in small steps and walk the spring down onto the lower perch. Reassemble to the same measured height with the suspension at full droop before removing the compressor.
How do I choose the right coil spring compressor?
Judge a compressor on five things: the mechanism type, its rated compression force rather than any borrowed jack capacity, the maximum spring diameter it covers, the drive type, and whether it has positive retention such as detent pins or safety latches. Then weigh portability, because a boot-friendly ratchet set serves most home jobs better than a heavier press that never leaves the wall. Match the tool to the coil you actually have in front of you, not to the brand on the box.
What type of spring does a MacPherson strut use?
A helical coil spring mounted concentrically around the damper body, which is what makes a MacPherson strut a strut rather than a separate shock and spring. Typical factory springs run roughly 4.5 to 7 inches at free length with an outer diameter in the region of 4 to 5.5 inches. Those two dimensions set the size window your compressor has to fit inside, and they are also what you measure before removal to confirm the new spring is installed at the correct ride height.
What is the best spring compressor tool for coilover shocks?
Coilover and adjustable-damper work needs more travel range and more adapter capability than a stock strut job, so a compressor with adjustable yoke sets and a wide spring diameter range is the right choice. Fixed-yoke compact units struggle with the shorter, fatter springs that come on lowering and performance kits. In this roundup the fork-based set with three interchangeable jaw ranges covers the widest spread of coil diameters, and the wall-mounted press suits a garage running coilovers repeatedly.
Conclusion: The Best Spring Compressors for Strut Replacement
The Orion Motor Tech 10.5 inch set is our pick as the best spring compressor for strut replacement, because the widest stroke in the roundup, positive detent-pin locking and more than 3355 reviews add up to a tool that suits most independent MacPherson jobs. For heavy springs and heavier trucks, the BILITOOLS 2-piece set takes the next step up in rated force and alignment control. The OEMTOOLS compressor is the value answer, backed for life and light enough to live in a drawer.
Match the tool to the coil in front of you, measure before you remove anything, and stay out of the compression path. Pick the right compressor for your vehicle from the picks above, and the strut job stops being the part of the repair you dread.
