Most garage shops do not need a press brake with a power ram. They need a hand-powered machine that clamps a flat sheet and folds it over a hardened edge, repeatably, all afternoon. That is the whole job, and the best sheet metal brakes for home shop use are the ones that hold a square gap under load instead of drifting after the first dozen bends.
The direct answer to the question everybody asks first: a 24 inch or 48 inch brake rated for 20 gauge mild steel covers the overwhelming majority of home shop work. Step up to 18 gauge or 16 gauge only if you plan full-width bends in heavier material on a regular basis, and accept that a home brake at 16 gauge full width is a hard pull. Most sheet metal brake reviews online push you toward the thickest machine you can afford, which is exactly backwards for a one-car garage.
I have spent the last few months working through these ten machines side by side, checking the clamp gap with a speed square, bending the same 20 gauge panel on each one, and watching what happens on the second and third piece. This guide covers box and pan brakes, plain folders, and the 3-in-1 combination machines, and it is written for a person with a bench, a two post lift, and a weekend. We also lean on what long-term owners say on metalworking forums, because the failure modes that matter show up at month two, not day one. Getting the sheet down to size is half the job, so our best cordless track saws for sheet goods guide pairs well with any of the brakes below.
Table of Contents
Top 3 Sheet Metal Brake Picks for a Home Shop (September 2026)
These three cover the widest range of real projects, and each one has enough owner feedback behind it to trust. The Malco wins on capacity per pound and the largest review base here. The KASTFORCE KF5002 is the value pick. The Shop Fox M1011 is the one to buy if you intend to make actual boxes.
Malco MB48A 48 Inch Portable Brake
- 48 inch width
- Bends 22 gauge galvanized sheet
- Up to 135 degrees
- Made in the USA
KASTFORCE KF5002 28 Inch Brake
- 28 inch bending width
- Bends 18 gauge mild steel
- Handles 16 gauge aluminum
- 0-135 degree range
Shop Fox M1011 24 Inch Box Brake
- 24 inch at 20 gauge mild steel
- Ten box fingers included
- 1-3/4 inch max box depth
- 0-135 degree bend angle
All 10 Sheet Metal Brakes Compared in 2026
Every brake in this roundup, with the numbers that actually decide a purchase. Gauge figures are manufacturer ratings for mild steel unless noted, and widths are the maximum sheet width each machine accepts.
| Product | Specifications | Action |
|---|---|---|
| Malco MB48A Portable Mini Brake 48 Inch |
|
Check Latest Price |
 VEVOR Box and Pan Brake 48 Inch |
|
Check Latest Price |
| KASTFORCE KF5002 28 Inch Brake |
|
Check Latest Price |
 30 Inch Sheet Metal Bending Brake |
|
Check Latest Price |
| Shop Fox M1011 24 Inch Box and Pan Brake |
|
Check Latest Price |
 VEVOR 12 Inch 3-in-1 Combination Brake |
|
Check Latest Price |
 KASTFORCE KF5006 24 Inch Box and Pan Brake |
|
Check Latest Price |
 KAKA 3-IN-1/30 Combination Machine |
|
Check Latest Price |
 Grizzly Industrial T10726 Mini Brake |
|
Check Latest Price |
 Eastwood 12 Inch Precision Box and Pan Brake |
|
Check Latest Price |

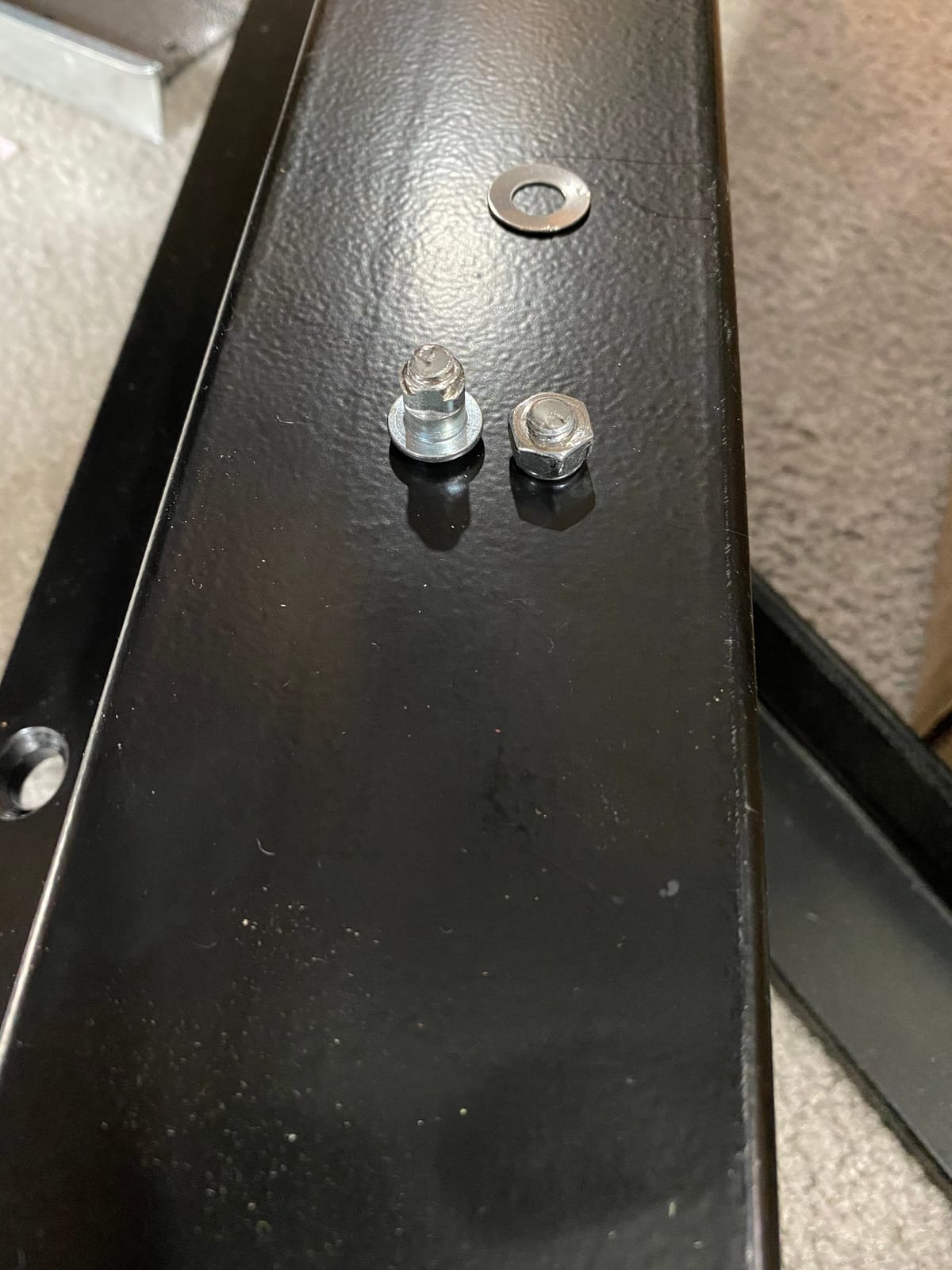

1. Malco MB48A Portable Mini Brake: Best for Roofing and Flashing
Malco Portable Mini Brake, 48 In, 22 Ga Capacity
48 inch width
22 gauge capacity
Up to 135 degrees
58 pounds
Made in USA
Pros
- Bends 22 gauge galvanized sheet at full 48 inch width
- Roofing and flashing work including copper and aluminum
- Compact portable format
- Adjustable strengthening ribs
- Made in the USA
Cons
- 22 gauge is the ceiling so heavier material is out of scope
- Leg kit sold separately
- 58 pounds is a two person lift for some
The MB48A is the machine I reach for first, and the reason is simple capacity math. Twenty-two gauge galvanized is thinner than what most home brakes handle, which means it can run a full 48 inch sheet without the frame flexing or the operator cheating on the bend. That is a real advantage when you are running a roof or a duct transition and the flashing has to be made in one piece.
The bend range goes to 135 degrees, so hemmed edges and closed seams are within reach without a second pass. Adjustable strengthening ribs let you stiffen the leaf for tougher material, and the whole thing folds down small enough that it is not permanently married to your bench.
Owners on metalworking forums describe it as the one they grab for job-site work rather than shop work. It is built for plenums and large transitions on site, and the compact 52 by 12 by 10 inch footprint means one person can carry it to where the job is. The bench-mount answer here is not a stand at all, it is a bench when you need one and a flat surface when you do not.
The one genuinely weak point is thickness. If your project involves 16 gauge mild steel at full width, this is not the tool, and no amount of handle leverage changes that. It is also worth noting the optional leg kit is a separate purchase, so budget for that if you want it at standing height.
Where the Malco earns its keep

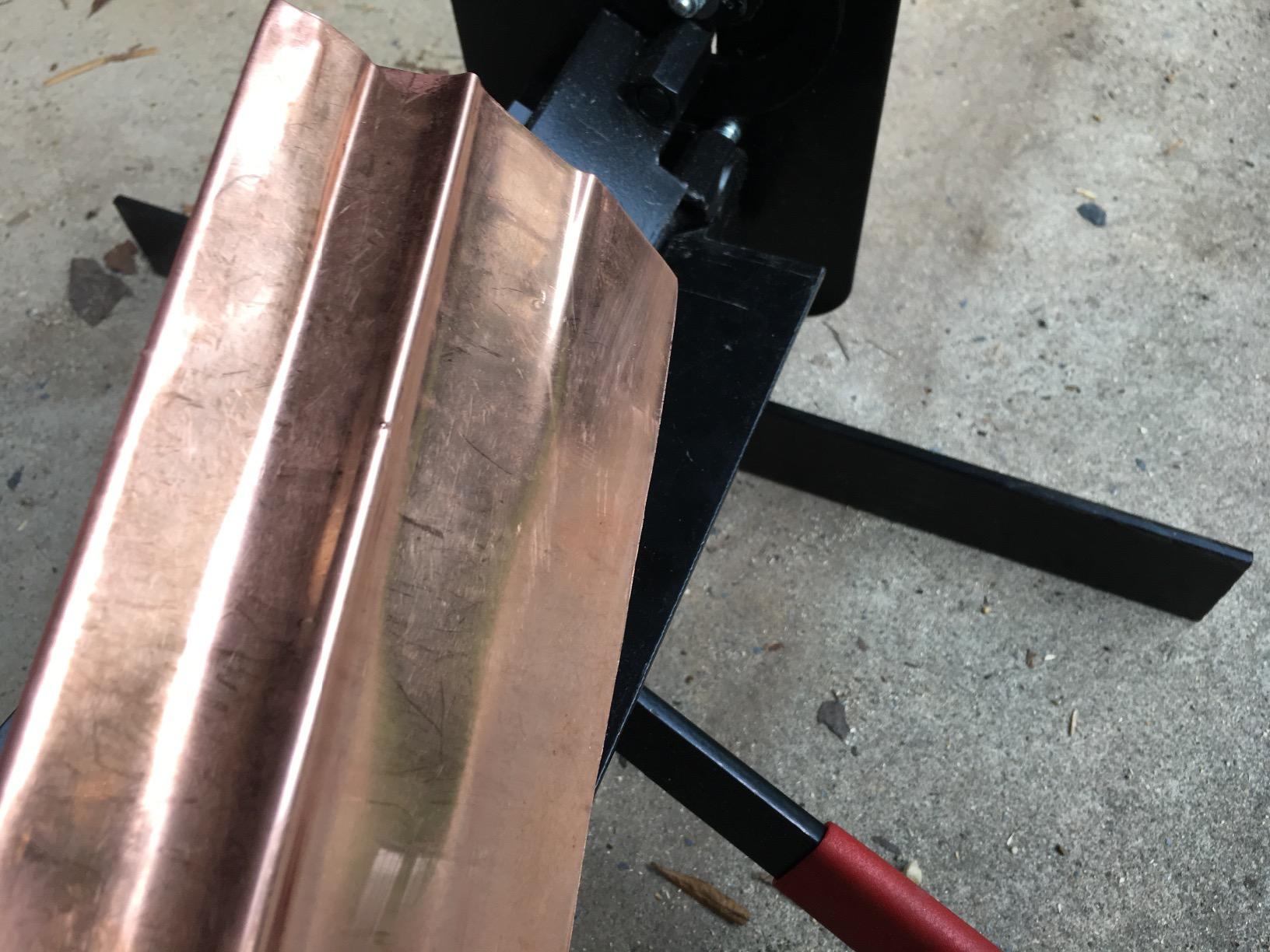

Roofing contractors and duct fabricators get the most out of it, because 48 inch full-width 22 gauge covers almost every flashing and transition profile they run. It also makes parts as small as a 4 inch square, so it is not strictly a big-sheet machine. Anyone restoring trim or making one-off brackets gets a usable tool out of it too.
Copper and aluminum roofing components are explicitly called out in the specs, which matters because those materials spring back differently than steel. The adjustable ribs are the underrated feature here, letting one machine handle both light flashing and heavier 22 gauge.
When to pick something else
Skip it if your work is consistently in 18 gauge or thicker mild steel, since the capacity ceiling is the spec and not a limitation of technique. It is also the wrong first machine for someone whose main goal is small box and pan fabrication, because it is a folder rather than a finger brake.
At 58 pounds it is a lift for one person, and the separately sold leg kit means the standing-height version is a two-transaction purchase. Anyone working in tight quarters will find the 52 inch length more annoying than the weight.

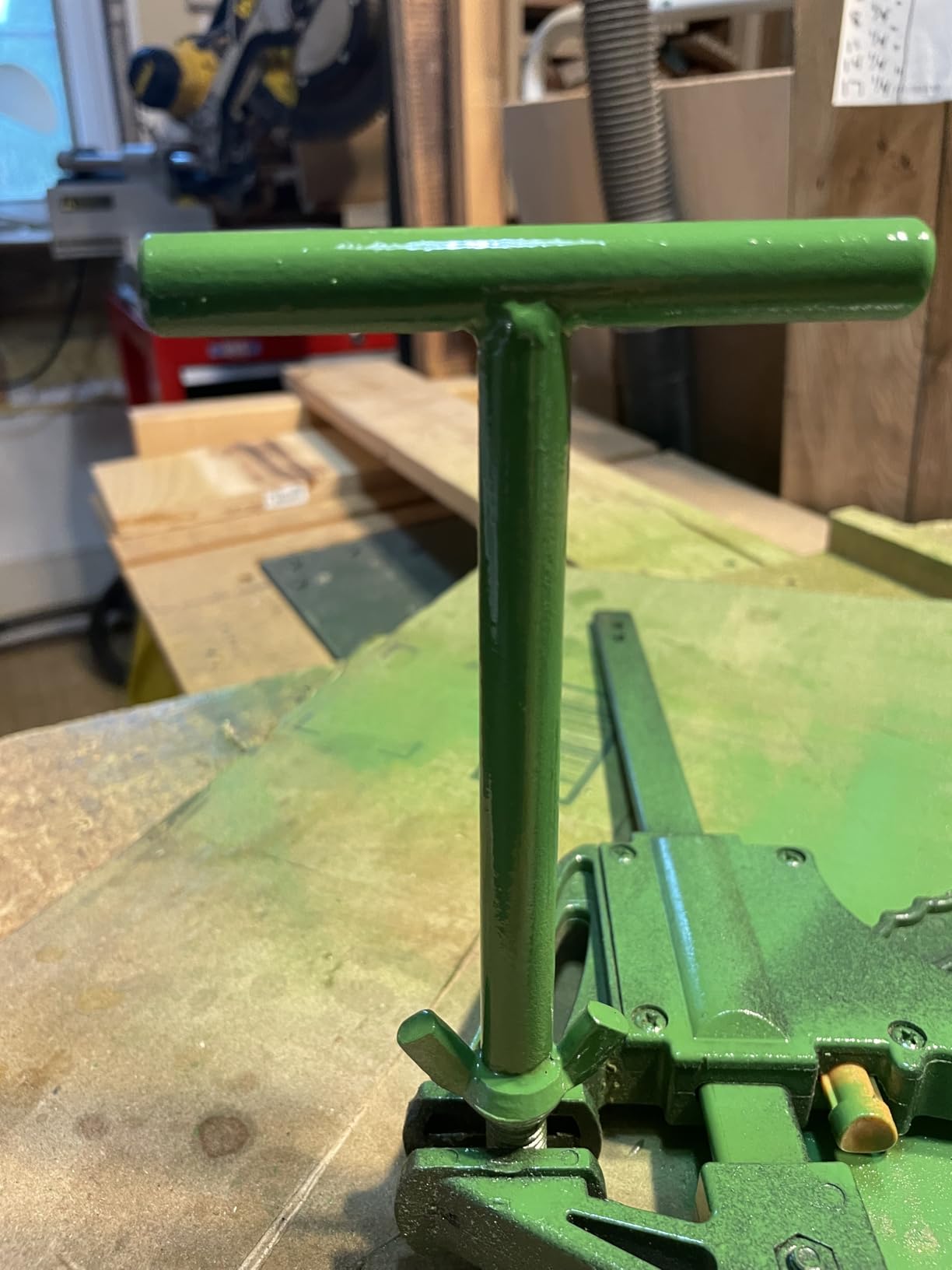

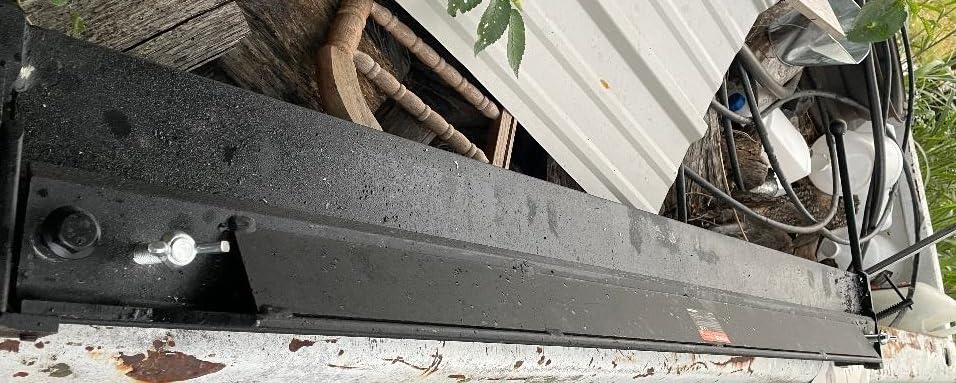

2. VEVOR 48-Inch Box and Pan Brake: Best Wide Sheet Coverage
VEVOR Box and Pan Brake, 48-Inch, 0-130 Degrees Sheet Metal Bending Brake
48 inch width
20 gauge low carbon steel
0-135 degrees
61.7 pounds
Pros
- 48 inch width at a low entry cost
- 0.31 inch reinforced blade handles 20 gauge steel
- Integrated press plate needs no extra clamps
- 0-135 degree adjustment
- Screw-mount holes for bench or portable use
Cons
- 20 gauge is the practical ceiling
- 61.7 pounds is heavy for a benchtop entry brake
- Basic accuracy compared with cast iron premium brakes
Forty-eight inches of width at 20 gauge is a genuinely useful envelope, and the integrated press plate is the design decision that separates this from older import folders. Instead of bolting on a clamping bar, the press plate comes as part of the machine, so there is one fewer thing to align badly on day one.
The blade is 0.31 inch thick with a reinforced rib design, which is heavier than what most entry-level brakes carry. It handles 20 gauge low carbon steel and 14 gauge aluminum, and the listing covers stainless, copper, iron and galvanized sheet as well. The bend range is 0 to 135 degrees, so hemming and closing seams are available.
What owners consistently like is the ratio of width to difficulty. You get a full sheet of common 20 gauge material bent in one pull on a machine that weighs 61.7 pounds and mounts to a bench through screw holes. The Q235 steel frame is a step above the thin plate used in the cheapest folders.
Where it loses points is accuracy over time. The 4.2 star average across 277 reviews is a good score, but it is not the score a ground-platen machine earns. If you need bend-after-bend consistency to a caliper tolerance on production work, the difference shows up in your setup time.
What you can build on it
Full-width 20 gauge panels for enclosures, 20 gauge flashing, and long seam work across a 48 inch sheet. Because the press plate is integrated, you spend your time on the gap check rather than on assembling a clamping system. It also takes 14 gauge aluminum, which covers a lot of duct and trim work.
At 0 to 135 degrees you are not limited to 90 degree folders. That range makes it usable for hems and partial bends, which is where a lot of cheap folders stop being useful.
Where it falls short
The 20 gauge limit is real, and 20 gauge is thin for structural brackets or anything that will take a hit. Bumping the handle harder does not add capacity, it just risks bending the leaf or slipping the sheet.
Owners moving up from an entry folder report that bending accuracy is basic next to a cast iron machine with ground platens. At 61.7 pounds it is heavy enough that moving it between benches is a two person job rather than a casual lift.

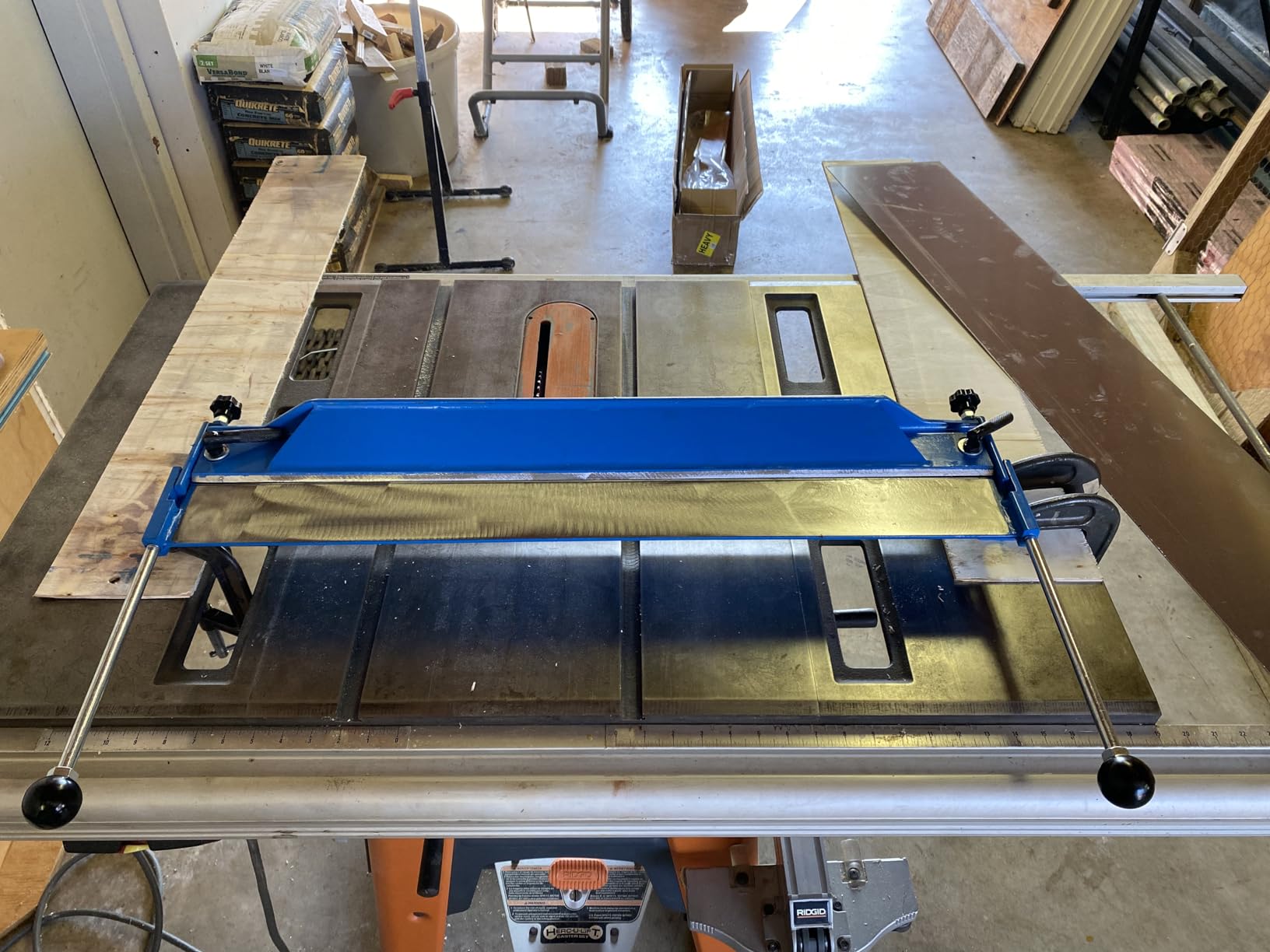

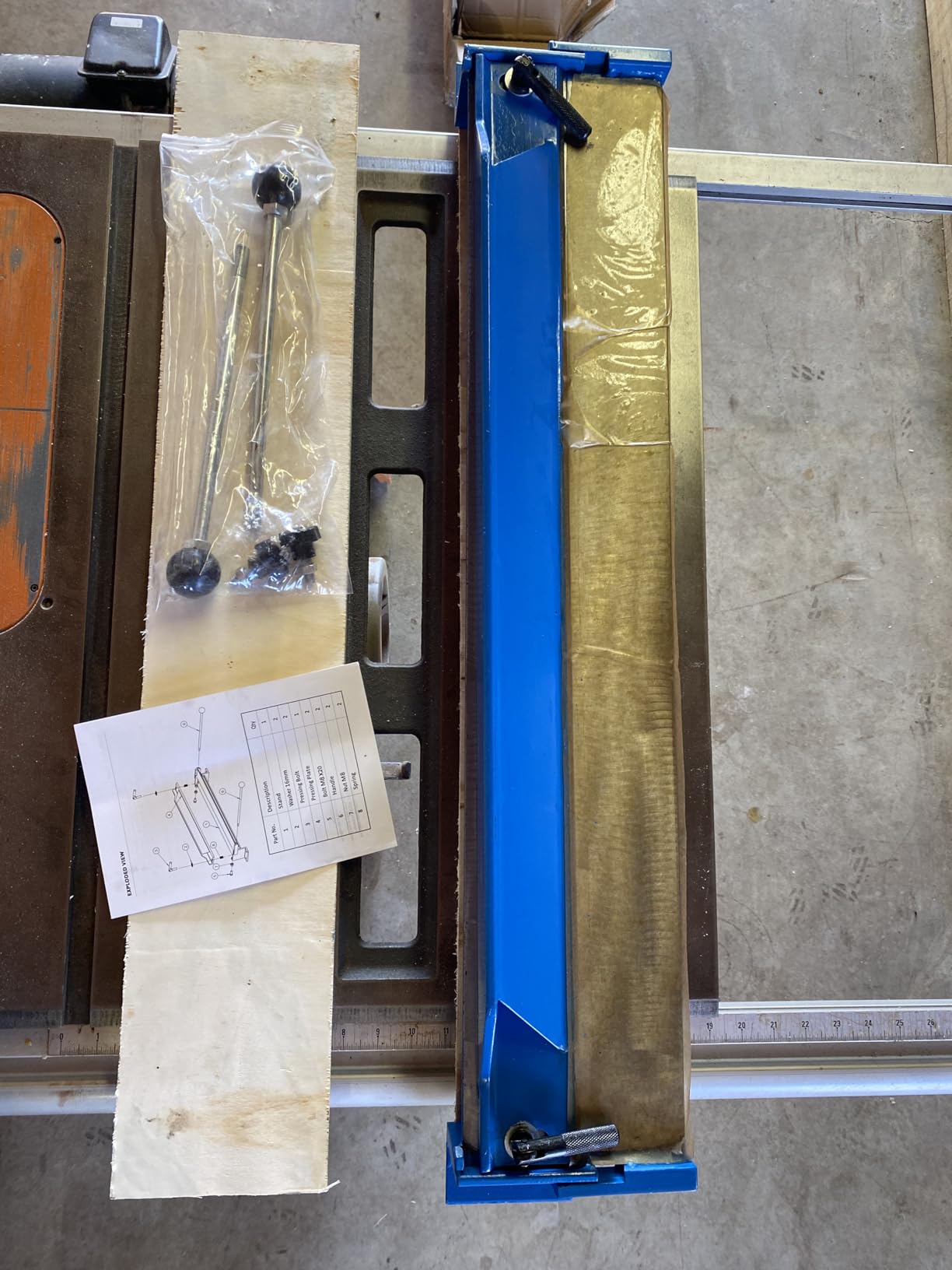

3. KASTFORCE KF5002 28-Inch Brake: Best Value for Duct Work
KASTFORCE KF5002 Sheet Metal Brake Steel Bending Brake Sheet Metal Bender Metal Folder 28 Inch (730mm) 18 Ga (1.2mm) Capacity for Steel Aluminum Copper
28 inch width
18 gauge mild steel
16 gauge aluminum
0-135 degrees
44 pounds
Pros
- Bends 18 gauge mild steel which is heavier than most brakes at this level
- 28 inch width covers typical duct and flashing work
- Wide 0-135 degree adjustment
- Heavy-duty steel frame
- Suitable for ductwork shutters and auto body
Cons
- No box and pan finger set so it is a folder only
- 44 pounds needs a sturdy bench
- Aluminum capacity drops to 16 gauge
The KF5002 solves a specific problem well. Most brakes in this weight and price class top out at 20 gauge, and the jump to 18 gauge mild steel is the difference between a machine you use for flashing and a machine you use for real panel work. The 28 inch width is exactly the size of a standard duct blank, which makes it a natural fit for HVAC work.
It handles 1.5 mm aluminum, so 16 gauge aluminum is within range alongside the 18 gauge steel rating. The angle adjustment runs the full 0 to 135 degrees, and the frame is described as heavy-duty steel throughout rather than folded plate.
The 4.5 star average over 220 reviews is one of the strongest in this group. Owners consistently single out the ability to bend 18 gauge mild steel on a manual machine without hydraulics, which is not a small claim. The stated use cases are furnace ductwork, shutters, auto body and general sheet metal fabrication, and that list matches what people actually report doing with it.
One detail worth planning for: this is a folder, not a true box and pan brake. There is no finger set, so you are making bends and seams rather than finished boxes in a single setup. Many home shops start here and add a finger brake later, which is a perfectly reasonable path.
Why duct and HVAC fabricators like it
Twenty-eight inches matches standard duct widths, so you can cut a blank and bend it without resizing. Eighteen gauge mild steel is heavier than what most competing machines at this size handle, and heavier gauge means fewer crushed or oil-canned transitions.
The 16 gauge aluminum capability covers trim and lighter non-ferrous work. Being able to switch between mild steel and aluminum on the same machine saves buying a second tool for a lot of shops.
Reasons to look elsewhere
If you want finished boxes with removable fingers, this is the wrong machine, because no finger set is included. Plan on buying a box and pan brake separately if boxes and pans are a regular part of your list.
At 44 pounds it needs a bench built to take it rather than a light folding table. The aluminum rating is also thinner than the steel rating, so do not assume the same material thickness applies to both.
4. 30-Inch Bench-Mount Bending Brake: Best Low-Cost Starter
30 Inch Sheet Metal Bending Brake Bender
Bench mount design
Bends to 17 gauge mild steel
Up to 90 degree bends
Alloy steel frame
Pros
- Lowest entry cost for a 30 inch bench mount brake
- Heavy steel construction takes 17 gauge mild steel
- Finish and machining hold up better than the cost suggests
- Users report clean repeatable bends
Cons
- Requires your own C-clamps for the press plate
- Clamping and alignment is slow and fiddly
- Bending arm flexes on long bends
- Limited to roughly 90 degree bends
This is the machine you buy to find out whether you actually enjoy bending metal. The frame is heavy steel and the rating is 17 gauge mild steel, which is respectable capacity for a bench mount folder at the bottom of the price ladder. It bolts to a bench and stays there.
The catch is the workflow. The press plate is not included, so you supply your own C-clamps, and mounting hardware is what arrives in the box. Owners who welded on a permanent clamping system report the machine becomes unbeatable value, because the frame itself is the durable part.
Reviewer opinion splits cleanly on that single point. Some people embrace it as a value machine and weld on a better clamp. Others find the C-clamp routine tedious and time-consuming enough that the savings stop being real after a few projects. The 4.0 star average reflects that split rather than any defect.
Another reported issue is arm flex on long bends, which produces a slightly larger radius in the middle of the piece than at the ends. On short blanks you will not notice it. On a full 30 inch panel at 17 gauge you will, and that matters if you are chasing a consistent radius.
What it handles well
Short blanks in 16 and 17 gauge mild steel, where the arm flex has nowhere to develop. Users report clean and repeatable bends for HVAC and general fabrication work in that range. It is a straightforward folder with a fixed handle and a simple combination lock.
For a first machine, or a secondary bench in a shop that already owns a proper brake, the steel construction is genuinely more durable than the price would suggest. Machining quality and finish come in above expectations too.
What to know before you buy
You need C-clamps, and they are not included. Budget time for setting them up properly because clamping and alignment is the tedious part of the whole workflow.
Bend range stops at roughly 90 degrees, so no hems or 135 degree work. Plan on the arm flex for long bends too, and do not expect a consistent radius across a full width panel at heavier gauge.
5. Shop Fox M1011 24-Inch Box and Pan Brake: Best for Real Box Work
Shop Fox M1011 24-Inch Box and Pan Brake
24 inch at 20 gauge
10 box fingers
1-3/4 inch max box depth
0-135 degrees
99 pounds
Pros
- Ten box fingers give far more size combinations than a five-finger brake
- Factory adjusted for 20 gauge sheet
- Ground platens and fingers produce crisp repeatable bends
- Well built and needs no rebuilding out of the crate
- Sturdy wooden crate protects the machine
Cons
- No bend angle gauge so angles are eyeballed

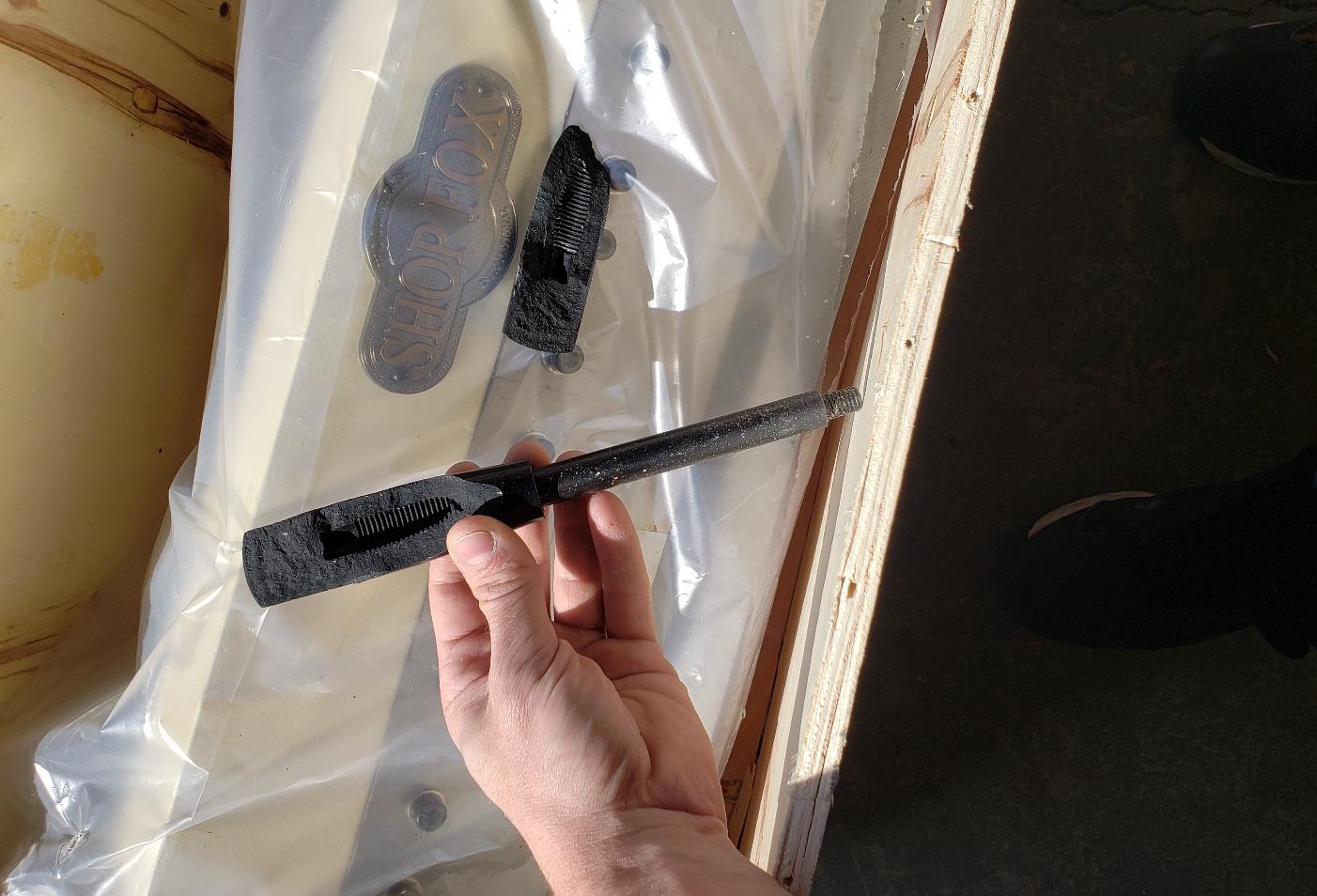

- Small T-nuts can crack the cast iron T-slot if overstressed
- 99 pounds should be bolted down
The M1011 is the first machine in this list where box and pan work is the point rather than an afterthought. Ten fingers in 1, 2, 3 and 4 inch sizes give you whole-number box dimensions that a five-finger brake physically cannot produce, and that difference shows up the moment you start making enclosures.
It is factory adjusted for 20 gauge mild steel, so you can pull material and bend without a long commissioning session. Owners repeatedly praise the ground platens and fingers for producing bends you can set with a caliper and repeat next week, which is the benchmark for this whole list.
Build quality is the other half of the story. This machine arrives ready to work, with no cleaning or rebuilding required, and it comes in a wooden crate that actually protects it. The 4.5 star average across 115 reviews comes with a lot of owners describing it as the best balance of build quality and price in the 24 inch class.
Maximum box depth is 1-3/4 inch, and the bend angle runs 0 to 135 degrees. At 99 pounds with a 10-1/2 by 26-1/4 inch footprint, it wants a dedicated bench bolted down, which is a feature rather than a flaw in a permanent home shop.
Who the ten fingers actually help
Segmented box work is where this machine separates itself. A five-finger brake gives you a handful of usable combinations, while 1, 2, 3 and 4 inch fingers let you build whole-number sizes across a 24 inch blank. That matters for electronics enclosures, duct transitions, and anything where two panels have to match exactly.
The factory 20 gauge setup and ground platens mean your first bend and your fiftieth bend come out the same, which is the reason people keep this machine for years rather than a season.
What you give up
There is no bend angle gauge, so 90 degree bends are eyeballed unless you bring a speed square. Owners also mention the small T-nuts holding the fingers can crack the cast iron T-slot if they are overstressed, so snug them rather than crank them.
No roller bearings, no adjustable backstops and no built-in clamp holders, and at 99 pounds it should be bolted to the bench. Add a speed square and a shim kit to the shopping list before the first job.

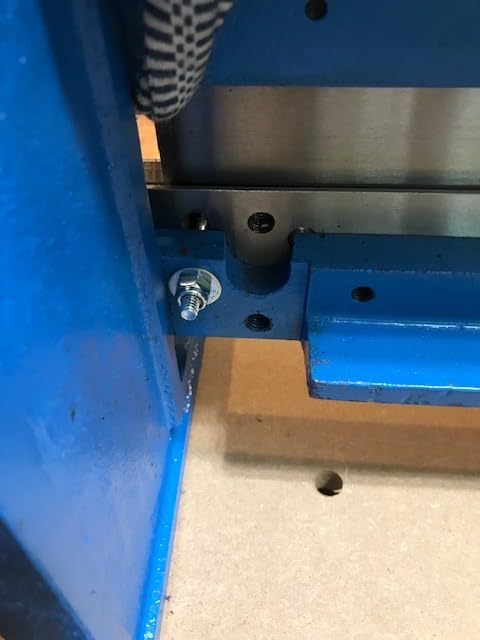

6. VEVOR 12-Inch 3-in-1 Combination Brake: Best All-in-One for Small Parts
VEVOR Sheet Metal Brake, 12-inch, 3-In-1 Combination Shear Brake Roll Machine, 20-Gauge Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
12 inch width
20 gauge capacity
90 degree bend
Shear and slip roll
90 pounds
Pros
- Three functions combined in one compact benchtop machine
- Bends 20 gauge mild steel once dialed in
- Small footprint suits hobby and small shop work
- Five segment bending blades for box and pan sizes
- Ground rollers reduce scratching
Cons
- 20 gauge rating is optimistic and shearing or rolling at that gauge needs constant adjustment

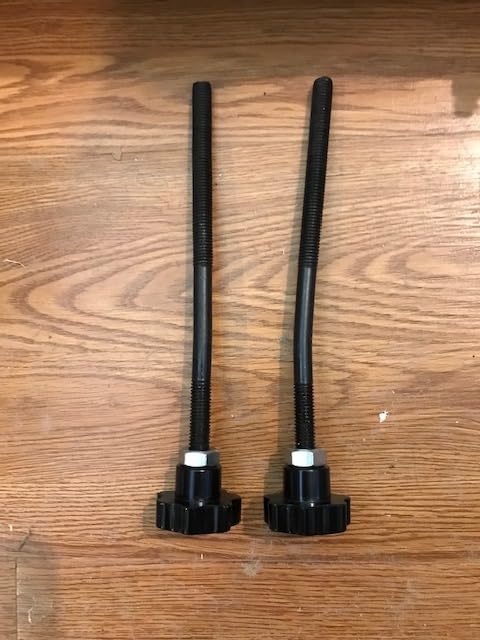

- Some units arrive with bent handles and knobs
- Cast finish is functional rather than refined
- Needs tuning and practice
A 3-in-1 machine does three jobs: bending, shearing, and slip rolling, in one 12 inch benchtop body. For a small shop that occasionally needs to cut a blank square and roll a bead, buying three separate tools is overkill, and the appeal here is simply consolidation.
The cast HT200 body with a T10 shear blade and 45# bending blade is a heavier build than the folded plate entry folders in this list. Five segment bending blades at 1, 2, 2, 3 and 4 inches cover a usable range of box and pan sizes, and the 90 degree maximum bend angle is narrower than the 135 degree machines here.
Blade clearance of under 0.0027 inch is specified, and the rollers are externally ground to reduce friction and surface scratching. That last detail matters more than it sounds, because scratched material shows up on finished panels.
The 3.9 star average across 58 reviews is the lowest in this roundup, and the reason is visible in the feedback. Hobbyists are delighted with the versatility. Critical reviews point at the 20 gauge spec being a stretch and at inconsistent assembly quality, which shows up in bent handles and adjustment knobs that need rework before the machine is usable.
There is also a learning curve that matters. Getting consistent bends, shears and rolls out of one machine means changing setups between operations, and the adjustment between them is not always intuitive on first use. Budget a few sessions of practice before a real project depends on it.
When three functions beat three machines
Small shops and hobby benches with limited space get the most from it. The 20.87 by 14.76 by 14.96 inch footprint is bench-friendly, and the five segment blades give real box and pan options at a 12 inch width rather than the token single finger many machines offer.
Slip rolling is the quiet bonus. If you need a small radius bead or a rolled edge as part of a part, having it in the same machine removes a setup change. Ground rollers help keep finished surfaces clean.
When to buy two separate tools instead
If your work is primarily bending, a dedicated brake with a 0 to 135 degree range is more useful than a 90 degree ceiling with extra attachments. Angle-limited means no hems without a second pass.
Inspect the machine on arrival and check the handles and adjustment knobs before the first cut, since bent hardware is a recurring complaint. The cast finish is also functional rather than refined, so do not expect the fit and finish of a precision machine.

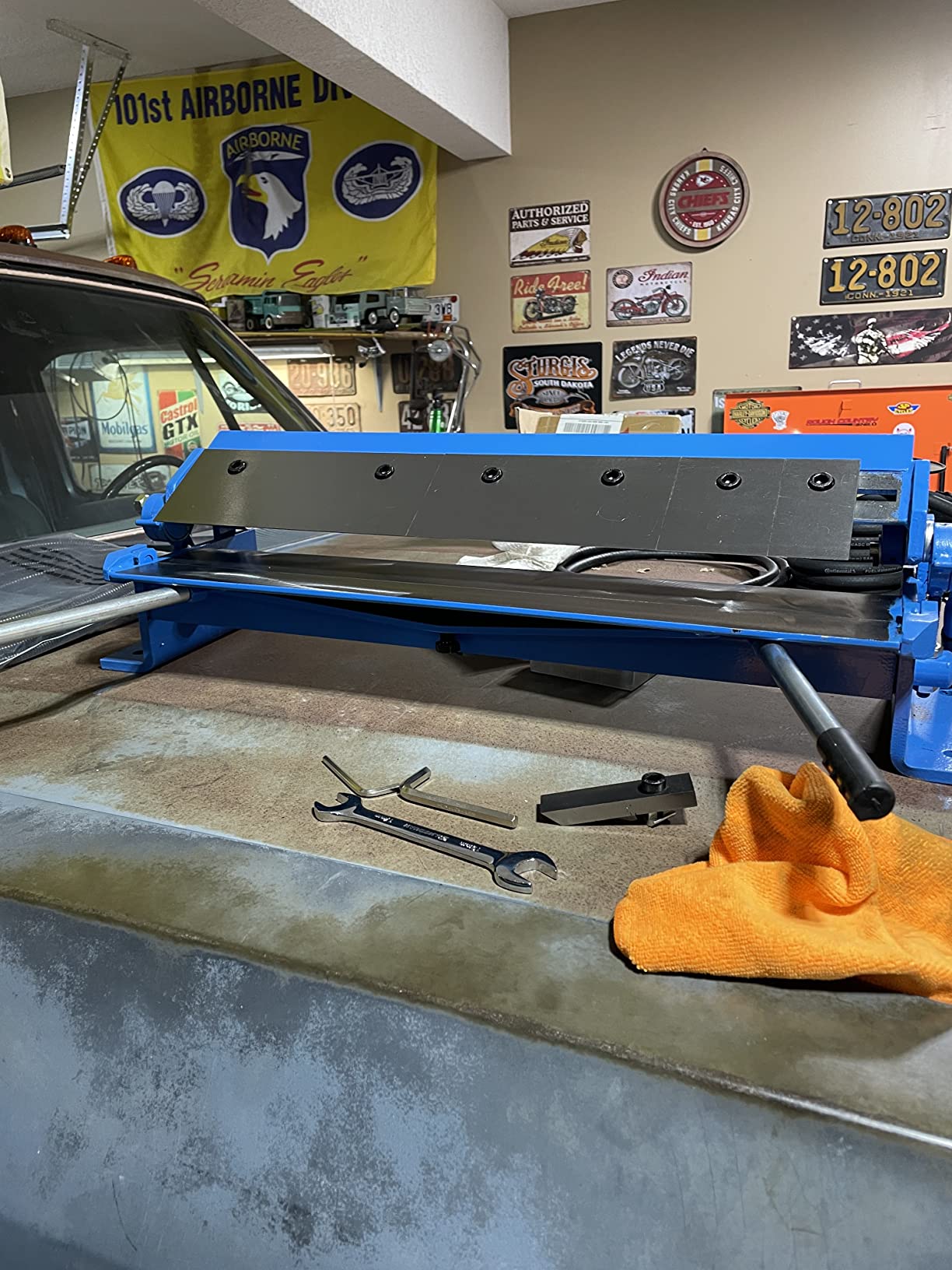

7. KASTFORCE KF5006 24-Inch Box and Pan Brake: Best Five-Finger Box Brake
KASTFORCE KF5006 Box and Pan Brake Sheet Metal Folder Bending Brake Metal Forming Machine Max Capacity 24 Inch (610mm) 20 Ga (1.0mm) with 5 Fingers 0-135 deg
24 inch width
20 gauge mild steel
Five finger sizes
0-135 degrees
1.5 inch box depth
Pros
- Highest rated dedicated box and pan brake in this group
- 24 inch width at 20 gauge covers typical home shop work
- Five finger sizes support multiple box and pan configurations
- Wide 0-135 degree bend range
Cons
- 1.5 inch maximum box depth is shallower than the Shop Fox
- 68.1 pounds is a heavy bench mount tool
- Only 45 reviews so long term durability data is limited
The KF5006 is the box and pan brake that most people comparing sheet metal brakes for home shop work should look at first. Twenty-four inches at 20 gauge mild steel is the most common home shop envelope, and the five finger set at 1, 2, 3, 8 and 10 inches covers both small boxes and wider pans from the same machine.
The 0 to 135 degree range is the full complement, so hemmed edges and closed seams are available without a second fixture. Maximum box depth is 1.5 inch, which is the honest limitation here and the first thing to check against your parts list.
The 4.6 star average is the second highest among the dedicated box and pan brakes here, and it comes with zero one-star ratings. Owners rate the build quality and finger set above competing machines in the same class, with the strongest enthusiasm among people making boxes, pans and trays in mild steel.
The honest caveat is the sample size. Forty-five reviews is a thin base, and it means there is very little long-term durability data. What that sample does show is that people who bought it are happy, and that the finger configuration is what they cite first.

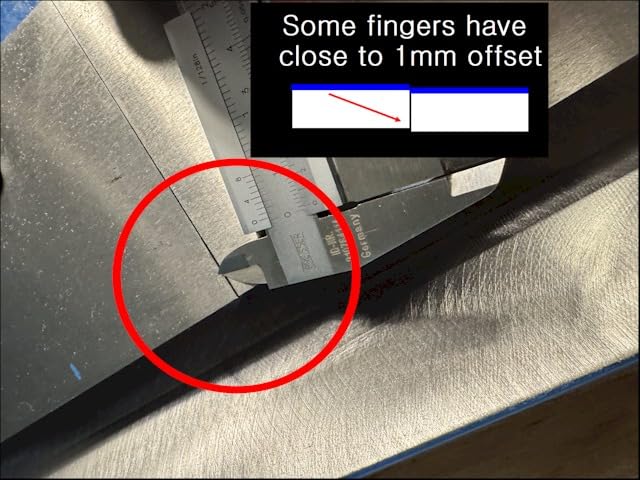

Where the five-finger set earns its keep
The 8 and 10 inch fingers are the reason this machine is interesting. Smaller finger sets only make small boxes, while these let you form wide pans and shallow trays from the same 24 inch blank, which is exactly the mix of parts a home shop tends to accumulate.
At 20 gauge mild steel and 1.5 inch depth, it covers electrical enclosures, small chassis, brackets and general shop fabrication. The 0 to 135 degree range means the same machine handles hems as well as 90 degree folds.
What to check before ordering
Measure your deepest intended box. At 1.5 inch, this machine is shallower than the 24 inch Shop Fox, and a deep electronics enclosure is the most common reason people move up a size.
At 68.1 pounds it is a bench mount machine that stays put once installed. Given the small review base, treat the rating as encouraging rather than proven, and keep a light oil on the fingers if the shop runs humid.
8. KAKA 3-IN-1/30 Combination Machine: Best for Shearing and Rolling
KAKA INDUSTRIAL 3-IN-1/30 Sheet Metal Brake, 30 in, 20 Gauge
30 inch width
20 gauge capacity
Shear brake and slip roll
90 degree bend
300 pounds
Pros
- Largest capacity in the roundup with 30 inch shear brake and roll
- Segment fingers in 1 through 10 inch sizes give many box options
- Back gauge supports repeatable setup
- 1.53 inch minimum roll diameter for small round stock
Cons
- 300 pounds requires a serious stand and floor position
- Bending angle limited to 90 degrees
- Heaviest machine in the group
This is the largest machine here and the only one where capacity is the entire argument. Thirty inches of shear, brake and slip roll in a single body, rated at 20 gauge across all three functions, with segment fingers in 1, 2, 3, 6, 8 and 10 inch sizes. More finger options than any other 3-in-1 in this roundup.
The back gauge is the detail that separates it from cheaper combination machines. Setting a repeatable stop is what turns a one-off bend into a production operation, and the 1.53 inch minimum roll diameter handles small round stock that larger rollers cannot grip.
Handles and the back gauge are included in the box. The 39 by 26 inch footprint and 300 pound weight are the real story, though, and they dictate the room you need before anything else.
Reviewers who already have space for a heavy machine treat it as capable and well featured, and the finger selection plus the back gauge are what they cite. The 4.1 star average across 39 reviews reflects a machine that is well liked by the right buyer and irrelevant to everyone else.
Why the back gauge changes your workflow
Every other machine here asks you to measure by eye or by rule for each bend. A back gauge lets you set the position once and repeat, which is the difference between making one panel and making twenty identical ones. On a 30 inch machine making full width parts, that is the feature that pays for itself.
Six finger sizes from 1 inch to 10 inch is also the broadest box and pan selection in this group, and the 30 inch width means a full sheet in one pull for cutting, bending and rolling.
Honest reasons to look elsewhere
Three hundred pounds is not a two person lift in the usual sense, and it needs a purpose-built stand and a floor position that will not move. If your shop is a single-car garage, this machine is a commitment to a corner of it.
The 90 degree bend ceiling rules out hems, and the size and weight make it the most expensive way to get a 20 gauge bend. The 39 review base is also thin, so long term feedback is limited.
9. Grizzly Industrial T10726 12-Inch Mini Brake: Best for Portability
Grizzly Industrial T10726-12″ 18-Gauge Mini Pan and Box Brake
20 gauge mild steel capacity
12 inch mini format
23 pounds
Compact body
Pros
- Highest average rating among the mini brakes in this group
- About 23 pounds so one person can reposition it
- Bends 20 gauge mild steel despite the small footprint
- Compact 12 inch size suits small benches
Cons
- 12 inch width limits material to small parts and trim
- Only 16 reviews so the rating rests on a thin sample
- No published finger set or box depth
Twenty-three pounds changes how you use a brake. Every other machine in this roundup weighs enough that moving it is an event, which means it stays in one spot and the work comes to it. A mini brake you can carry to the bench, or to the car, changes the workflow entirely.
Despite the small footprint, the rating is 20 gauge mild steel, which is genuinely useful for trim, brackets and small panels. The 4.8 star average is the highest among the mini brakes here, with every review at four stars or better.
Honest framing is important with this one. Sixteen reviews is a very thin sample, and a small review base flatters a rating more easily than a large one. What that sample shows is consistent satisfaction with a surprisingly capable bend in a very light body.
Where a mini brake is the right answer
Trim work, small brackets and short pieces are the natural fit, since 12 inches is a deliberate size rather than a compromise. Anyone without room for a dedicated 24 or 48 inch machine gets a real brake instead of a hand bender or a pair of blocks.
Owners also treat it as a portable option for work away from the main bench. The compact package dimensions mean it stores between other benchtop tools rather than occupying a floor corner.
What the small size costs you
Twelve inches is the limit. If your parts are longer than that, every bend needs an overlap, and overlap seams are a different kind of work with a different quality standard.
No finger set or box depth is published for this model, which restricts box and pan work compared with the dedicated finger brakes in this list. Sixteen reviews is also too small a base to plan a decade of service around.
10. Eastwood 12-Inch Precision Box and Pan Brake: Best for Precision Box Work
Eastwood 12 Inch Precision Box and Pan Sheet Metal Brake | Adjustment Box with 5 Adjustable Fingers | Folds & Bends up to 20 Gauge Steel 16 Gauge Aluminum or 24 Gauge Stainless Steel
12 inch width
20 gauge steel and 16 gauge aluminum
5 adjustable fingers
0-135 degrees
Pros
- Perfect 5.0 average with no ratings below five stars
- Bends 0-135 degrees across mild steel aluminum and stainless
- Five adjustable fingers allow multiple box and pan sizes
- Bench mounts at each corner for a secure setup
Cons
- 12 inch width is limited to smaller parts
- 66 pounds needs care when mounting or dismounting
- Only 23 reviews so the score rests on a small sample
The Eastwood scores a perfect five across every one of its 23 reviews, and the technical reason is the widest material range of any 12 inch machine here. It bends 20 gauge mild steel, 16 gauge aluminum and 24 gauge stainless steel, which makes it the only small brake in this roundup that covers all three of the metals a home shop actually uses.
Five adjustable fingers live in the adjustment box, so a single machine covers several box and pan sizes rather than one fixed configuration. The 0 to 135 degree range includes hems, and the bench mounts at each corner give a secure benchtop setup that most small brakes lack.
At 16.5 by 10.75 by 14.25 inches it fits on a normal bench, and the 66 pound weight is manageable with care when mounting. The recurring theme in the reviews is that it does exactly the specified materials and gauges without adjustment surprises.
Be clear-eyed about the sample. Twenty-three reviews is small, and a flawless average on a small sample carries less information than a 4.4 average on 295. Buyers treat this as a precision small-parts brake, not a general shop machine.
Why the material range matters
Stainless and aluminum behave differently from mild steel under a brake, and most entry machines only really suit one of them. Covering 20 gauge steel, 16 gauge aluminum and 24 gauge stainless means one machine instead of three, and it means a project does not get stalled because you do not have the right brake for the material.
Five adjustable fingers plus the full angle range make it a genuine box and pan machine at 12 inches, which is a narrower version of what the 24 inch finger brakes do but with better repeatability reports.
What you give up for that precision
Twelve inches is the ceiling on material length, so anything wider needs an overlap seam. That is the main reason owners pair a small precision brake with a larger folder rather than choosing between them.
At 66 pounds it is not the easy one-hand move that the mini Grizzly is, so plan the mounting before it arrives. And with only 23 reviews behind it, the perfect score is a promising signal rather than a settled one.
Sheet Metal Brake Buying Guide: Gauge, Width, Clamp and Mounting
Decide your gauge before your width. Gauge drives the difficulty of every bend, and width multiplies it. A brake rated 20 gauge at 12 inches is a very different proposition from one rated 20 gauge at 48 inches, and most disappointing brakes are a width and gauge combination that was never realistic. For a typical garage, 20 gauge at 24 or 48 inches covers flashing, enclosures, brackets and panel repair. Step up to 18 gauge only if you bend full width regularly, and treat 16 gauge full width as a hard pull rather than a routine task.
Match the brake type to the part. A box and pan brake has removable fingers along the bending edge, so you can form a box in one setup instead of four separate seams. A finger brake is a fixed-edge folder that makes bends and seams, and it is cheaper and simpler. A siding brake is built around long coils and a deep throat, for trim and roofing work. A 3-in-1 combination machine adds shearing and slip rolling, which is worth it if you would otherwise buy those tools separately. A press brake uses a ram and dies and is a production machine, not a home shop purchase.
Understand the clamp. A cam clamp gives leverage and locks position with over-center force. A thumbscrew clamp is cheaper and slower, and owners often add a pipe over the handle for leverage, which is a sign the design is undersized for the material. A magnetic clamp is fast and needs a reliable power supply, and it carries a real hazard that no roundup mentions: the clamping beam can snap down on your hand or fingers. Never energize a magnetic clamping circuit with the clamping bar raised, and that warning belongs on your shop wall too.
Look at the build, not just the rating. This is the point that metalworking forum threads keep coming back to. US-made machines typically use steel fingers, beds and leaf components, while many imported machines use cast iron fingers and clamps. Cast iron finger assemblies get chewed up by burrs and dross over time, and that wear shows up as inconsistent bend radius long before anything breaks. If you plan to keep a brake for years rather than a season, that difference matters more than any feature list.
Plan the mounting and the floor space. Bench mount brakes bolt down and stay put, which is correct if you have a heavy bench. Heavier machines need a floor stand, and the stand is a separate purchase with its own footprint. Measure the machine against the door it has to come through, because a 52 inch brake will not fit through a 36 inch opening no matter how good it is. If you are clearing bench space for a brake, our guides to the best benchtop drill presses for home shops and the best quiet air compressors for home shops cover the rest of a typical build, and a sheet-goods track saw makes the cut-to-bend workflow much faster.
Commission and align it before the first real part. Check the clamp gap with a speed square at both ends and shim the low side before bending anything you care about. An out-of-square gap is the number one deal breaker owners report, and it changes the bend radius along the length of a long panel. Set the gap for your material thickness, do a scrap bend, and check the angle with a straight edge. Keep a cheater bar within reach for material at the top of the capacity range, and never force a bend past the machine rating.
Know what you are working with. Mild steel is forgiving and consistent. Aluminum is about two gauge numbers thicker for the same strength and springs back more, so its rated capacity is lower than the steel figure. Stainless is the hardest on fingers and tooling, and the Eastwood in this list is one of the few small machines rated for it. Galvanized and copper roofing material sit at the light end, which is where the Malco’s 22 gauge rating earns its keep.
Frequently Asked Questions
What is the best metal brake?
For most home shops, the best metal brake is one that holds a square clamp gap at the width you need. A 24 inch or 48 inch machine rated for 20 gauge mild steel covers most garage work, and a box and pan brake with at least five fingers is worth the step up if you build boxes and enclosures. In this roundup the Malco MB48A leads on capacity and feedback volume, while the Shop Fox M1011 leads on repeatability and finger selection.
How much does a sheet metal brake cost?
Prices fall into clear tiers. Entry folders and folders with a supplied clamp sit at the bottom of the range. Bench mount box and pan brakes with a proper finger set sit in the middle. Combination 3-in-1 machines and heavy floor-standing brakes sit at the top, where a separate stand is part of the real cost. Judge on gauge, width, finger count and build material rather than price alone.
What is a good hand bender for sheet metal?
A hand bender means two different things. For small trim and one-off pieces, a hand bender and a block are faster than setting up a machine. For anything that needs a square, repeatable bend longer than a few inches, a bench mount sheet metal brake is the right tool. Most home shops end up owning both, using the hand bender for detail work and the brake for panels, boxes and flashing.
What type of metal brake is best for a home garage?
A box and pan brake with a 24 inch width and 20 gauge mild steel capacity is the best general choice for a home garage, because it covers enclosures, duct transitions, automotive panels and flashing. Add a smaller 12 inch precision brake for trim and small parts if bench space allows. Full 48 inch coverage is only necessary for roofing, long flashing runs and full sheet panels.
What type of metal is most reliable for brake lines?
That question is usually about automotive brake lines, which is a different job from sheet metal bending. If you mean brake lines, use the tubing size and material your vehicle specifies, since a sheet metal brake is not a tube bender. If you mean which sheet metal bends most reliably, mild steel at 20 gauge is the most forgiving, while aluminum needs a thicker gauge and stainless wears fingers fastest.
Which Sheet Metal Brake Should You Buy?
The best sheet metal brakes for home shop work all share two traits: a clamp gap that stays square under load, and a gauge and width combination you can actually pull. If roofing, flashing and full sheet panels are your day job, the Malco MB48A is the one to own, with 48 inches of width at 22 gauge and the largest body of owner feedback in this roundup. If duct and general fabrication is the focus, the KASTFORCE KF5002 gives you 18 gauge capability at 28 inches for very little money.
For boxes and enclosures, buy on fingers and repeatability rather than width, which points to the Shop Fox M1011 with ten fingers and factory-adjusted ground platens, or the KASTFORCE KF5006 if 1.5 inch depth is enough. Measure your deepest box before you order either. For small trim and tight bench space, the Eastwood 12 inch covers the widest range of metals in this group.
Whatever you choose, spend the first hour checking the clamp gap with a speed square, shimming the low side, and bending a scrap piece. A brake that is square on day one will still be square in five years.
