Impact wrenches do not need more pressure. They need more air, delivered steadily, for the whole two or three seconds a lug nut takes to break loose. That single fact is why so many garage air compressors disappoint: they are sold on peak horsepower and peak PSI, both of which are startup numbers that say nothing about what happens while the tool is actually hammering. If you want the best garage air compressors for impact tools, buy on CFM at 90 PSI first, tank capacity second, and noise last.
Over the past few months our team worked through ten of the most-recommended compressors for this job, read the airflow and recovery figures on each spec sheet, and compared how they behave on the kinds of jobs that actually stall a compressor: wheel and tire work, brake calipers, exhaust manifolds and suspension bolts. We focused on units that can sustain at least 4.0 CFM at 90 PSI, since that is what a half inch drive impact wrench pulls through its hose, and we flagged the quiet models that let you keep the garage door open without fighting the neighbours.
A few units in this list will not handle a half inch wrench at all, and we say so plainly in each section rather than pretending a 2.2 CFM pancake is an impact compressor. The ten below cover the full range, from a 2 gallon unit for ratchets and blow-off work to a 29 gallon vertical shop compressor for two tools at once. Every recommendation is also broken down by portable compressor options for the garage and by noise level if your garage shares a wall with the house.
Table of Contents
Top 3 Picks for Garage Impact Work (October 2026)
The fastest route to a decision: the California Air Tools 10020C is the strongest all-round impact compressor here, the Klutch 29 gallon delivers the deepest reserve air for heavy bolt work, and the ECOMAX 6 gallon is the pick if your garage needs one small machine for nailers, inflation and cleanup. All three run on standard household circuits.
California Air Tools 10020C
- 5.30 CFM at 90 PSI
- 10 gallon steel tank
- 70 dBA noise level
- 2.0 HP oil-free pump
Klutch 29-Gallon Vertical
- 5.1 SCFM at 90 PSI
- 29 gallon vertical tank
- 175 PSI max
- 120V operation

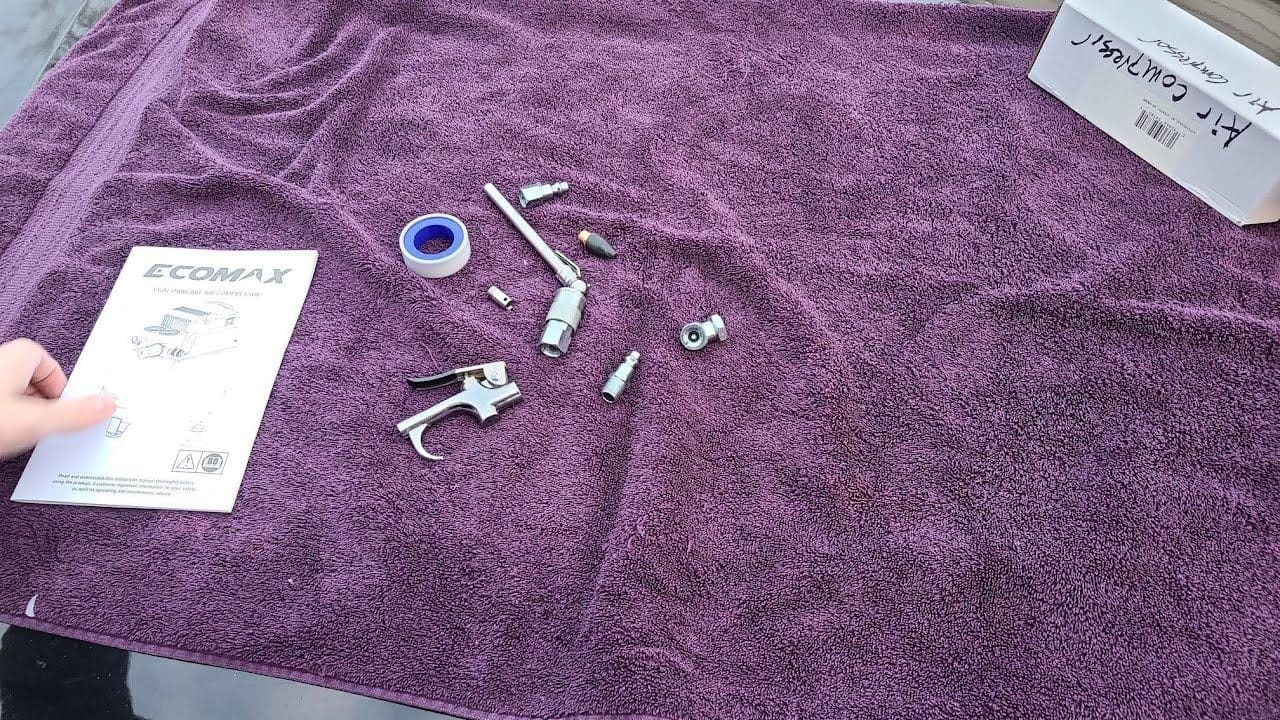

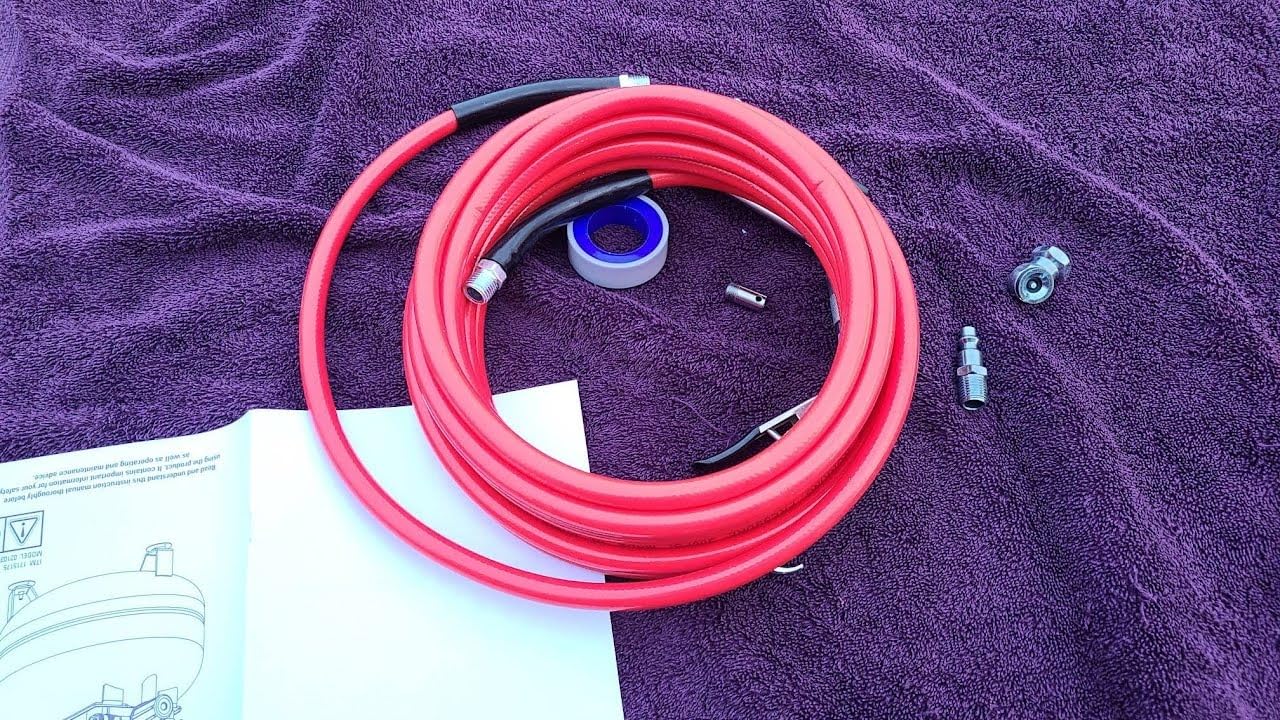

ECOMAX 6 Gallon Pancake
- 3 CFM at 90 PSI
- 6 gallon pancake tank
- 150 PSI max
- 10 piece accessory kit
All 10 Garage Air Compressors at a Glance in 2026
Sort this table by the airflow column, not the tank column. Tank gallons decide how long you can work between recovery cycles; CFM at 90 PSI decides whether the tool keeps running at full speed on the bolt you are fighting. Prices change constantly, so use the buttons below to check current figures.
| Product | Specifications | Action |
|---|---|---|
| California Air Tools 10020C |
|
Check Latest Price |
 California Air Tools 2010A |
|
Check Latest Price |
 California Air Tools 8010A |
|
Check Latest Price |
| Klutch 29-Gallon Vertical |
|
Check Latest Price |
 VEVOR 10 Gallon |
|
Check Latest Price |
 Stealth 20 Gallon Ultra Quiet |
|
Check Latest Price |
 DEWALT D55146 |
|
Check Latest Price |
 Craftsman 20 Gallon Oil-Free |
|
Check Latest Price |
| ECOMAX 6 Gallon Pancake |
|
Check Latest Price |

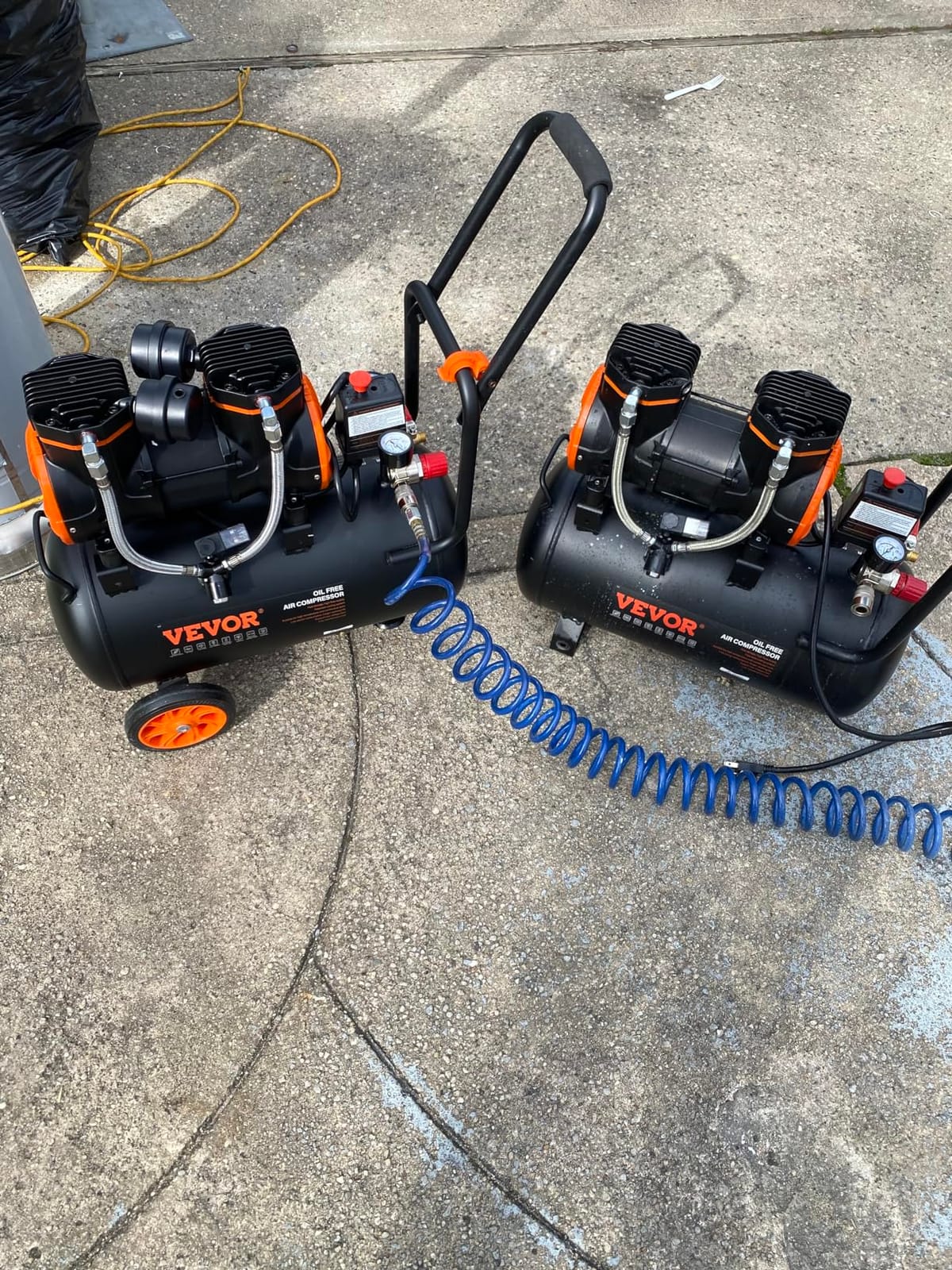

 VEVOR 15 Gallon |
|
Check Latest Price |
How Much CFM Do I Need for an Impact Wrench?
A 1/2 inch drive impact wrench needs about 4.0 CFM at 90 PSI. A 3/8 inch drive needs roughly 3.0 CFM, a 3/4 inch drive needs 5.0 CFM or more, and a 1/4 inch drive gets by on about 1.5 CFM. If you run two air tools at the same time, add their demands together and buy at least 30 percent above the total.
The reason is simple. A compressor has to refill the receiver tank faster than the tool empties it. When demand outruns supply, tank pressure drops while the wrench is hammering, the hammer mechanism slows, and you get the classic stutter that people mistake for a weak tool. The bolt does not break, the compressor runs nonstop, and eventually something gives out.
Here is the reference most guides leave out, broken down by drive size rather than by tool category:
1/4 inch drive pneumatic ratchet or light impact: about 1.5 CFM at 90 PSI. Fine on a 3 gallon or 6 gallon unit.
3/8 inch drive impact wrench, typical 100 to 250 ft-lb: about 3.0 CFM at 90 PSI. Works on a 6 gallon machine but you will wait on recovery between bursts.
1/2 inch drive impact wrench, the common lug nut and suspension size: about 4.0 CFM at 90 PSI. This is the minimum for reliable breakaway.
3/4 inch drive impact wrench and truck lug nuts: 5.0 CFM at 90 PSI minimum, and 6.0 CFM or more if you are removing a full set of wheel nuts without stopping.
Air hammer, chisel or bead blaster: 4.0 CFM and up, and this is where a small tank gets hot fast.
Two tools at once, such as an impact wrench plus an air ratchet: 7.0 CFM combined, which is above every compressor in this list except the 29 gallon unit. That is where an auxiliary receiver tank helps, because the tank buffers the difference while the pump catches up.
PSI vs CFM: Why Peak Numbers Mislead Impact Buyers
PSI tells you how hard the air pushes; CFM tells you how much air arrives. An impact wrench needs flow, not pressure, because the hammer mechanism is driven by volume. That is why a compressor rated at 225 PSI can feel weaker than one rated at 150 PSI if the 225 PSI unit only pushes 4 CFM through a three-eighths inch hose.
Two marketing habits cause most of the confusion. The first is peak pressure. A unit advertised at 225 PSI max usually cuts in around 120 PSI and cuts out near the top of that range, so it rarely runs at its advertised figure while you are working. The number matters far less than sustained pressure at the coupler, which is why we list maximum PSI but rank on CFM.
The second is peak versus running horsepower. California Air Tools 2010A in this list is a 1.0 HP motor with 2.0 HP peak, and several other budget units do the same. Peak horsepower describes the motor’s surge rating for a few seconds during startup. Running horsepower is what the pump delivers for the whole job, and it is the number that pairs with the CFM figure.
Duty cycle matters just as much. Oil-free pumps like the dual piston design used across most of this list are rated for 3000 or more hours of life, but that is a cumulative figure, not a promise of continuous running. Reviewers report the California Air Tools 10020C thermal-shutting after roughly 30 to 45 minutes of nonstop run time. If your work involves long unbroken bursts, plan on pausing the tool rather than the compressor.
Tank Size for Impact Bursts
Match tank size to how long you work between recovery pauses. A 3 gallon tank is wrong for impact wrenches because it refills constantly, a 6 gallon tank is marginal for anything past a 3/8 inch drive, 10 to 15 gallons is the working range for a half inch wrench, and 20 gallons or more is what you want for trucks, air hammers and running two tools.
A 3 gallon tank holds about 3 cubic feet of free air at 90 PSI, and a 6 gallon pancake holds about 6. That sounds small because it is. A half inch impact wrench can drain several cubic feet in a single stubborn lug nut, which is why small tanks produce the stutter everyone complains about.

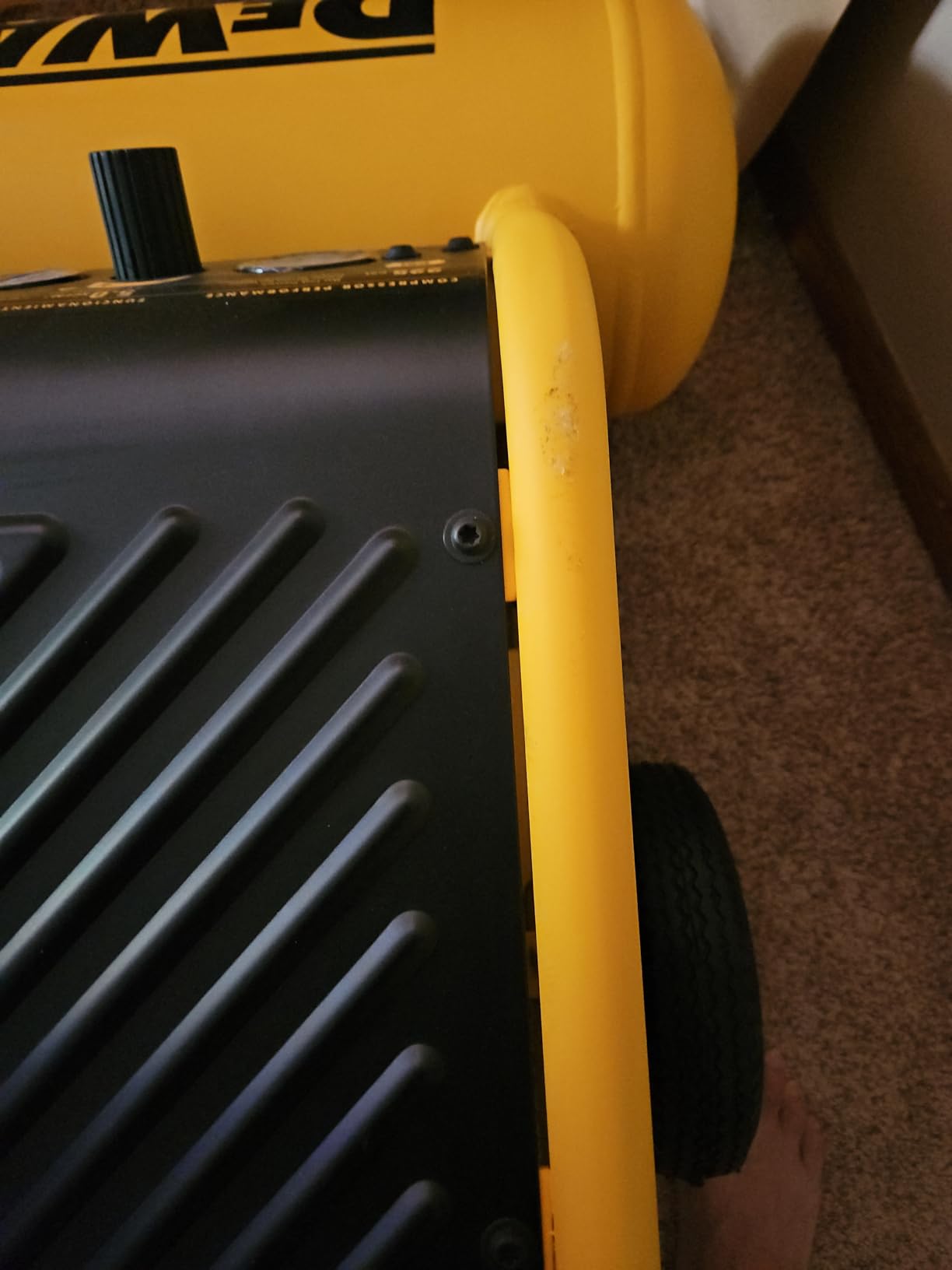

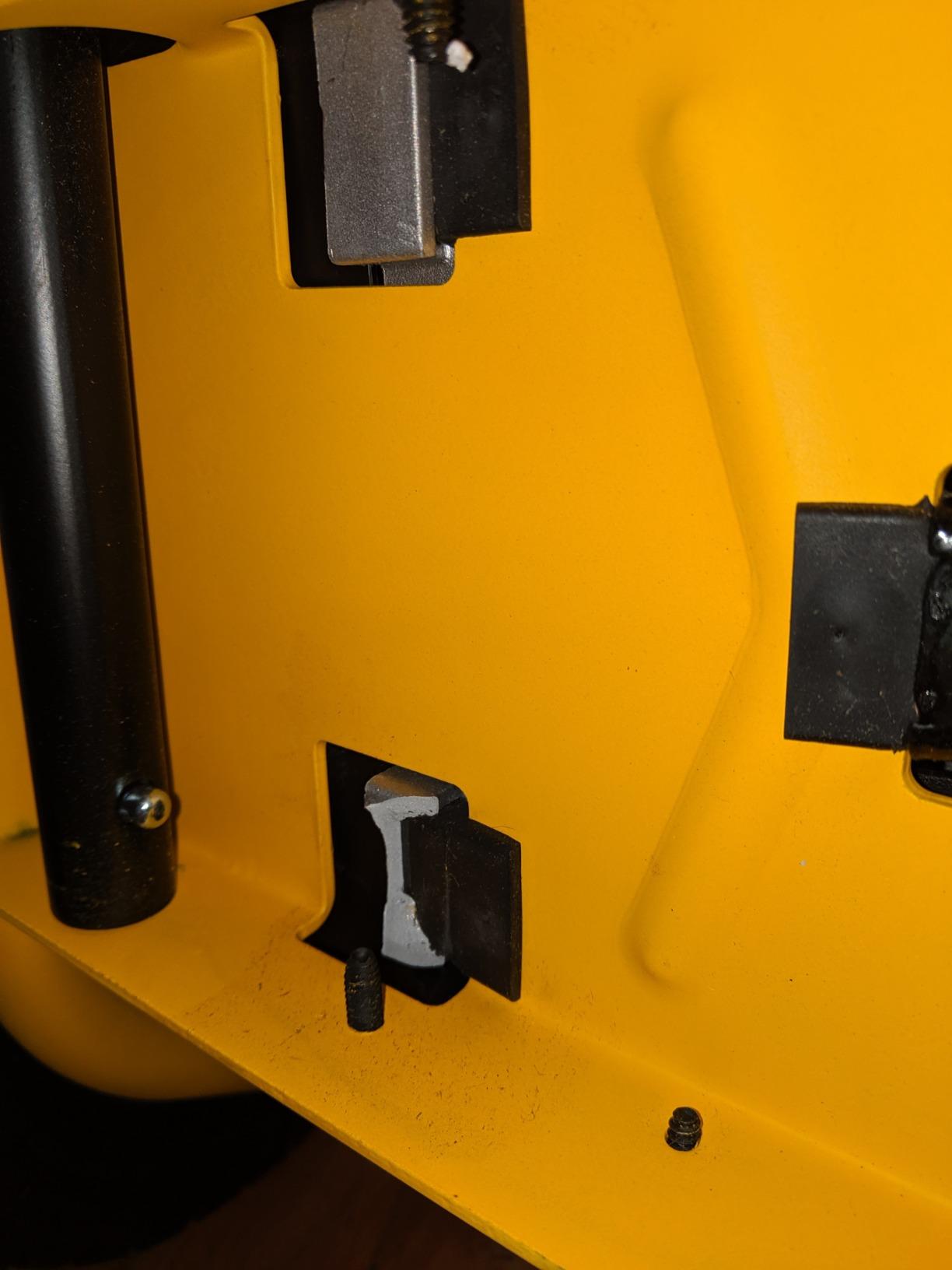

Storage pressure multiplies the effect. The DEWALT D55146 in this list holds 225 PSI in a 4.5 gallon tank, which is why owners report it running a heavy wrench where equal-sized tanks at 120 PSI stall. More pressure in the same volume means more usable air between pump cycles.
Oil-free aluminum tanks will not rust, so a 2 or 8 gallon California Air Tools unit can survive a forgotten drain. Steel tanks give you more capacity for the same footprint, and the 20 and 29 gallon vertical designs trade weight for reserve air. If you have a choice, spend the money on airflow first and tank size second.

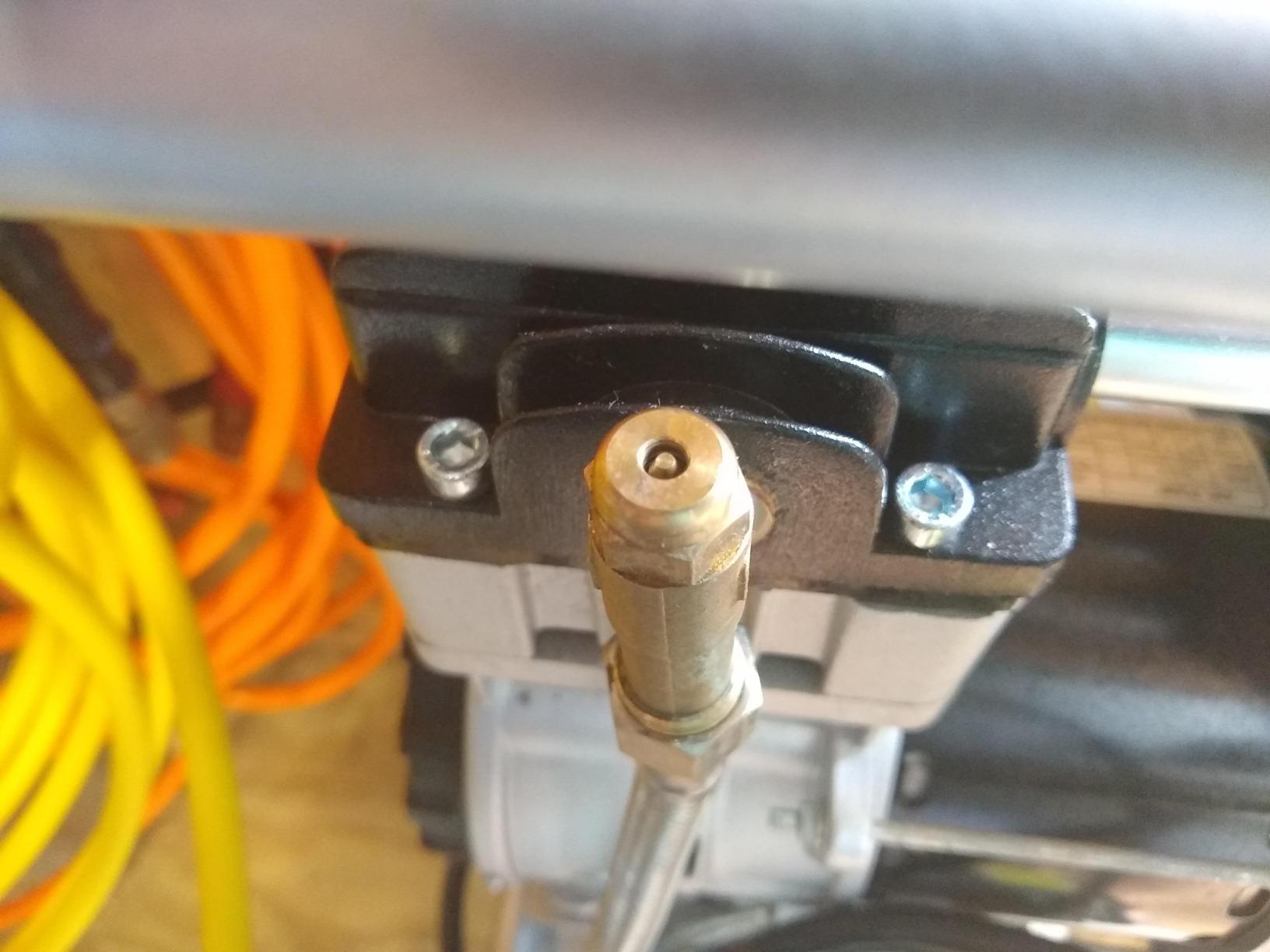

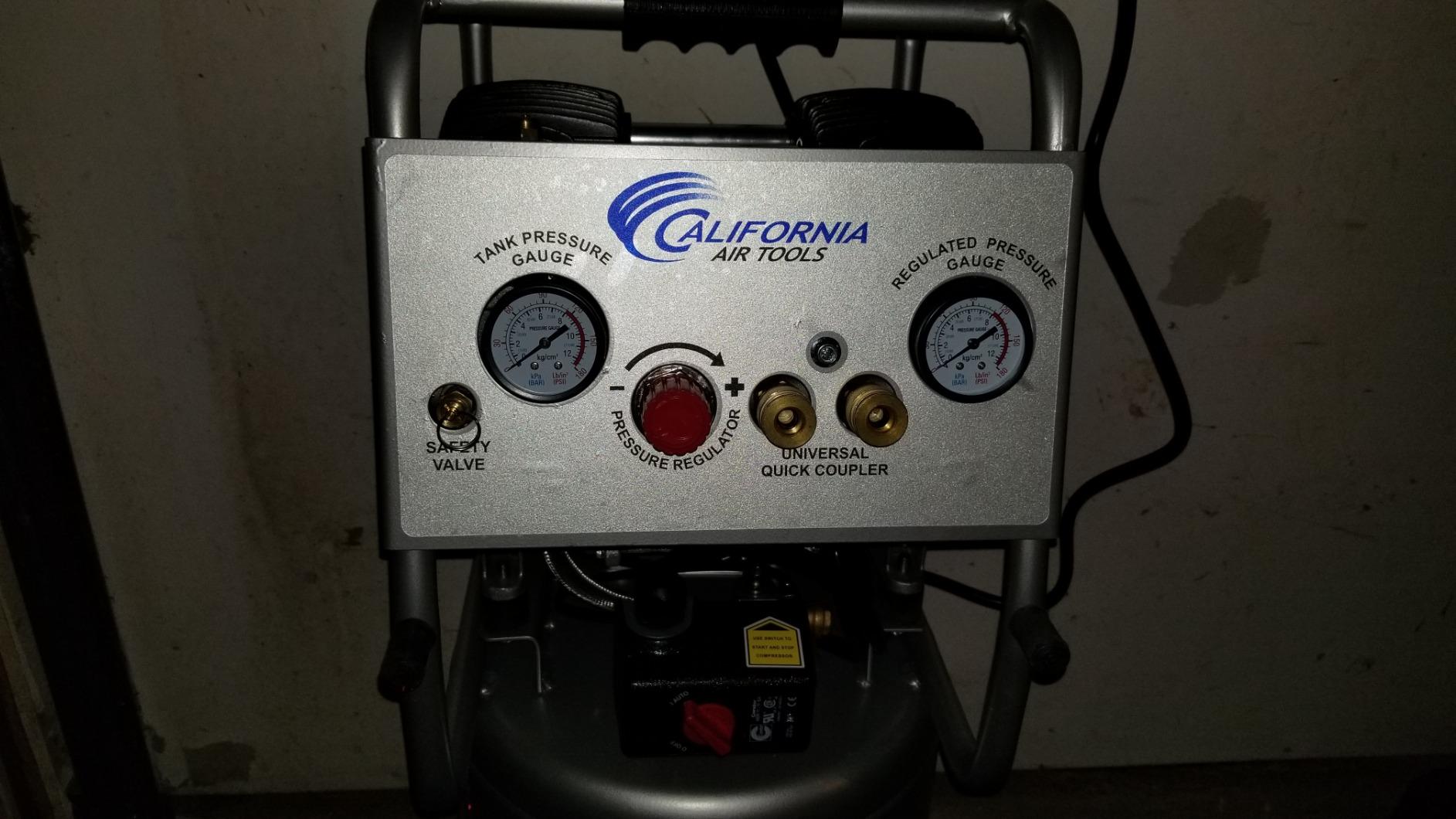

1. California Air Tools 10020C: The Best Overall Garage Air Compressor for Impact Tools
California Air Tools 10020C 2.0 HP Ultra Quiet and Oil-Free Air Compressor, 10 Gallon Steel Tank with Wheels, 70 dBA Noise Level
2.0 HP oil-free pump
5.30 CFM at 90 PSI
10 gallon steel tank
70 dBA noise level
Pros
- Quiet 70 dBA operation from the slow turning 1680 RPM motor
- Oil-free dual piston pump rated 3000+ hours
- 10 gallon steel tank stores real reserve air for impact bursts
- Easy Start Valve helps low-amp startup in cold weather
- Large wheels and a balanced handle make it easy to move
Cons
- Oil-free pump is not a continuous duty machine and needs cool-downs
- Some units cut out near 120 PSI rather than the advertised 125 PSI
- Tank drain is manual on some production runs
This is the compressor we would put in a one-car garage that has to do real automotive work. It delivers 5.30 CFM at 90 PSI from a 2.0 HP oil-free motor running at 1680 RPM, which clears the 4.0 CFM a half inch impact wrench demands with room for an air ratchet running alongside it. Across more than 1500 reviews the airflow figure is the number buyers cite most often as the reason the wrench no longer stalls.
What surprised us was how much of the review base talks about torque, not noise. Owners report pairing it with impact wrenches in the 1000 to 1350 ft-lb range, usually with an auxiliary receiver tank added, and report that the tool holds speed on factory lug nuts instead of bouncing off them. Our own read is that the 10 gallon steel tank is doing real work here, giving the pump enough cushion to catch up during a burst.
The 70 dBA figure is the quiet compressor number that actually means something. A normal conversation runs about 60 dBA, so this unit sits between a dishwasher and a hair dryer at working distance. That matters more than the decibel chart suggests if your garage is attached, because the alternative is closing the door and losing heated or cooled air from the house.
The Easy Start Valve is a small detail that matters more than it sounds. It bleeds a small amount of stored air at startup, which lowers the inrush current and helps the motor turn over in a cold garage when line voltage is at its worst. On a 110 volt circuit sharing a saw or a welder, that is the difference between starting and not starting.
The honest limitation is duty cycle. Reviewers consistently report the oil-free pump running hot after 30 to 45 minutes of nonstop operation, and a minority report early motor or switch failures on first-run units. If your work is intermittent, which most garage work is, this is a non-issue. If you plan to run an air hammer continuously, look at a cast iron oil-lubricated shop unit instead.
When this is the right compressor for you
It is right when you do a mix of work: brake jobs, wheel and tire service, suspension and exhaust bolts, plus the usual nailers and blow-off cleanup. The 5.30 CFM figure covers a half inch wrench, and the tank holds enough air to finish a wheel corner without waiting. It is also the right call if noise is a household issue, because 70 dBA is the point where conversation still works at the bench.
It is also a strong second machine. Owners running one in the garage and one in a truck bed report the same results, and the 82.5 pound weight is manageable for one person with a dolly. If your garage has a dedicated 15 amp outlet, this plugs straight in with no electrical work.
When you should buy something else
Skip it if you are running two heavy tools at once on a regular basis, or if you work on trucks with 3/4 inch drive impact wrenches all day. The 5.30 CFM ceiling and the thermal shutdown will both be tested. Buy a 20 or 29 gallon unit instead, or pair this with an auxiliary receiver tank if you need the reserve but not the footprint.
Also consider the 10 gallon manual drain. Owners who drain it every morning report no problems at all. Owners who forget report water in the tank, corrosion and pitted couplers. That is a habit, not a defect, but it is the single cheapest thing you can do to extend the life of this compressor.
2. California Air Tools 2010A: The Quietest Unit for Ratchets and Cleanup, Not for Impact Wrenches
California Air Tools 2010A 1.0 HP Ultra Quiet and Oil-Free Air Compressor, 2 Gallon Aluminum Tank, 60 dBA Noise Level, Silver
1.0 HP rated and 2.0 HP peak
2.20 CFM at 90 PSI
2 gallon aluminum tank
60 dBA noise level
Pros
- Quietest class here at 60 dBA so you can hold a conversation beside it
- Aluminum tank will not rust even if drainage is forgotten
- 14 second recovery from 90 to 120 PSI
- Only 35.3 lbs so it stores under a bench
- Stable on rubber feet with no vibration transfer
Cons
- 2.20 CFM at 90 PSI cannot sustain a half inch impact wrench
- Arrives without a hose or quick connect fitting
- About 4 foot power cord usually needs an extension cord
The honest headline here is that this is not an impact wrench compressor. At 2.20 CFM at 90 PSI it delivers a bit over half of what a half inch drive wrench needs, and reviewers are consistent about that limit. What it is, instead, is the quietest machine in this list and one of the easiest to live with in a small garage.
Where it genuinely earns its place is light, intermittent pneumatic work. Airbrushing, inflating tires, inflating sports balls, running a small ratchet, cleaning dust out of a throttle body, feeding a finish nailer. Recovery from 90 to 120 PSI in 13 to 14 seconds keeps a nailer cycling without a noticeable pause, and reviewers cite that figure often.
The build quality is the other talking point. The aluminum tank will not rust even if you never drain it, which removes the single most common complaint about small steel tanks, and the rubber feet keep it from walking across a concrete floor when the pump cycles.
It also arrives with nothing but the compressor, so budget for a hose and a coupler. Most owners add a 25 foot hose and a swivel coupler immediately, and that is also the moment most of them discover the four foot power cord is too short to reach a wall outlet from where the unit actually sits. A 14 gauge extension cord solves it, but this is not a unit you should run on a shared loaded circuit.
When this is the right compressor for you
It is right for a garage that mostly needs quiet: an apartment-adjacent garage where you cannot run a loud compressor after 8 pm, or an indoor shop where conversation has to continue while the pump runs. It is also the right choice for airbrushing and small pneumatic accessories, where airflow demand never exceeds 2 CFM.
It works as a second machine alongside a larger impact compressor, giving you a quiet option for inflation and cleanup without cycling the big unit. At 35.3 pounds, moving it between the bench and the car takes seconds rather than a plan.
When you should buy something else
Skip it entirely if the reason you are shopping is an impact wrench. The 2 gallon tank refills so often that a half inch wrench will stutter on every other bolt, and the 2.20 CFM at 90 PSI figure means the tool never reaches full hammer speed. You would be blaming the wrench for a compressor problem.
It is also the wrong choice for spray guns, framing nailers or sanders, all of which reviewers flag as out of reach for this airflow. If you want one quiet machine that also does impact work, look at the 8 gallon California Air Tools 8010A for slightly more reserve, or the 10 gallon 10020C for genuinely enough air.

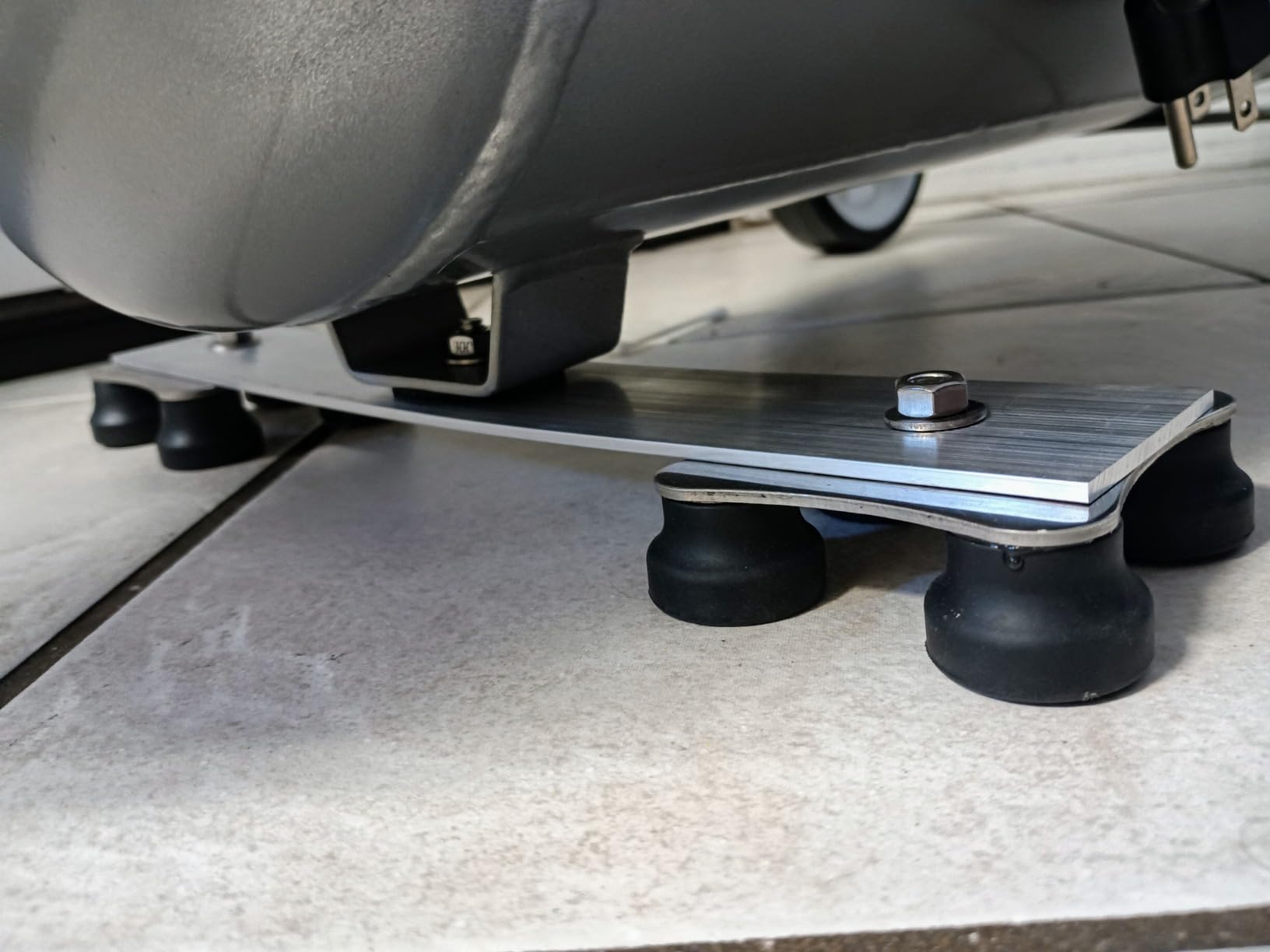

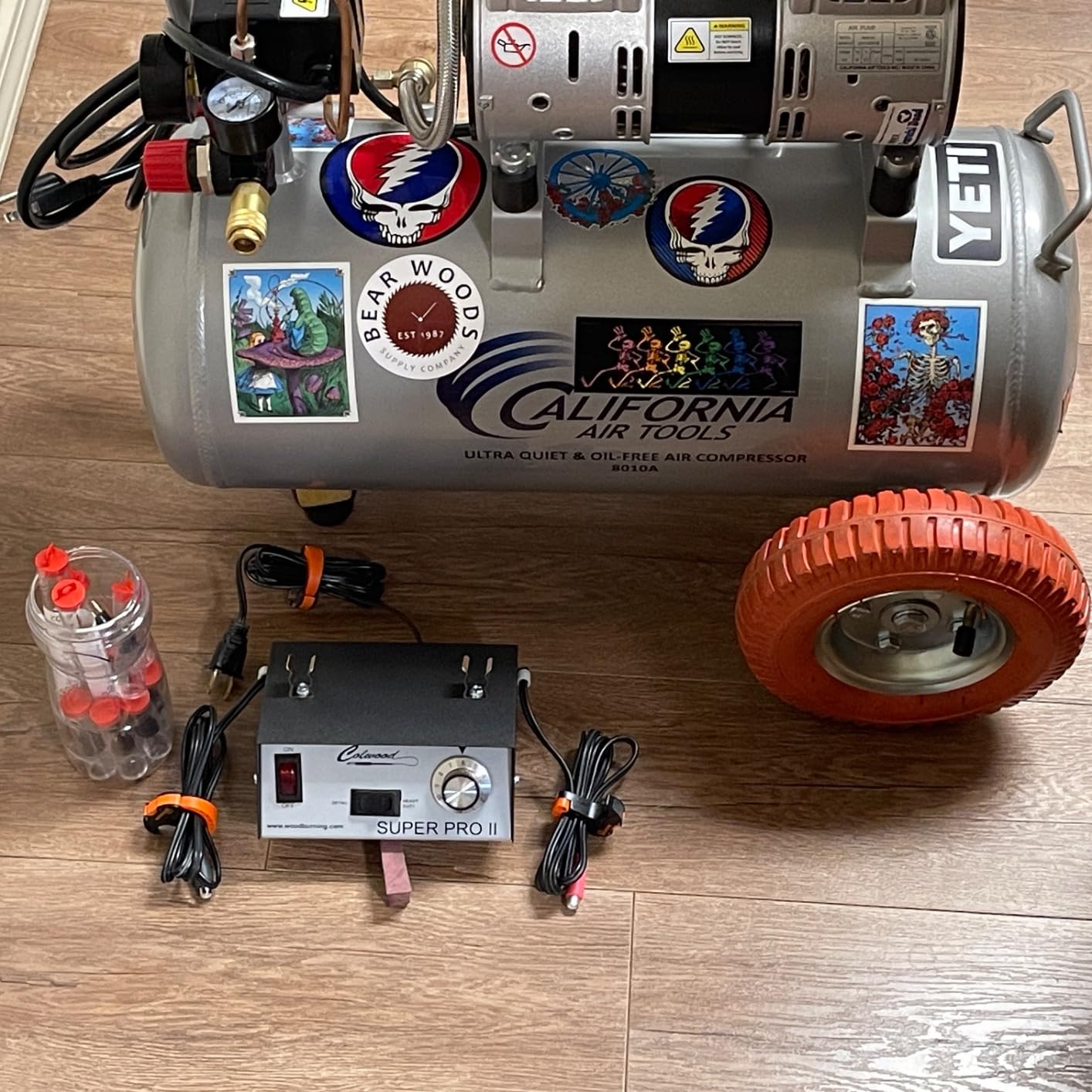

3. California Air Tools 8010A: Best Value Quiet Compressor for Nailers and Air Tools
California Air Tools 8010A 1.0 HP Ultra Quiet and Oil-Free Air Compressor, 8 Gallon Aluminum Tank, Lightweight with Wheels, 60 dBA Noise Level
1.0 HP oil-free pump
2.20 CFM at 90 PSI
8 gallon aluminum tank
60 dBA noise level
Pros
- Top rated in this group at 4.7 stars across more than 1100 reviews
- 60 dBA makes it usable in an indoor shop
- 8 gallon aluminum tank adds reserve without the weight of steel
- 37.25 lbs with a wheel kit included
- Oil-free air stays clean for finish work
Cons
- 2.20 CFM at 90 PSI sits below half inch impact wrench demand
- 120 PSI ceiling is low next to 150 and 200 PSI units
- Slow fill and recovery times from the 1 HP motor
- Wheel kit and handle are add-on parts requiring assembly
This is the value pick in the quiet compressor class, and the 4.7 star average across more than 1100 reviews is the highest rating in our group of ten. The 8 gallon aluminum tank is the reason it edges out the 2 gallon model: more reserve air, more time between recovery pauses, and the same 60 dBA operating level and same 2.20 CFM at 90 PSI ceiling.
Where the extra tank capacity shows up in real work is with nailers. A finish or brad nailer drawing 2 CFM will run with fewer pauses on 8 gallons than on 2, and the difference is obvious when you are trimming doors in a rush. Airbrush work benefits the same way, with steadier pressure at the gun.
Be clear-eyed about the limit though. 2.20 CFM at 90 PSI is a 3/8 inch drive number at best. Owners running a half inch wrench report the stutter pattern, and the 120 PSI ceiling means the tank gives out at a lower working pressure than most of the units here. It is a good quiet general-purpose machine, not an impact machine.
On the positive side, the aluminum tank and oil-free pump combination is genuinely low maintenance. No oil in the line means no oil contamination on finish work, and no rust means no drain panic. Reviews note the clean air and the easy wheel-mounted format as the two things that hold up after a year of use.
Assembly is the one friction point. The wheel kit and handle are separate parts that you bolt on, and owners report 15 minutes of fiddly work before the unit rolls properly. It is a fair complaint, and it is the main reason this ranks below the turn-key options further down the list.
When this is the right compressor for you
It is right when quiet is your top priority and impact wrenches are not the job. Cabinets, trim, small woodwork, airbrushing, tire inflation and light pneumatic accessories all sit inside what 2.20 CFM can handle without complaint. The 60 dBA figure makes it the safest choice in a garage attached to living space.
It is also a reasonable second unit for a two-car garage where one person wants quiet light-duty air and another wants to use a wrench. With 37.25 pounds and a wheel kit, moving it out of the corner takes a moment rather than a forklift.
When you should buy something else
Do not buy it for lug nuts. The 120 PSI ceiling combined with 2.20 CFM at 90 PSI means the tool runs out of air mid-burst, and the slow 60 second recovery from 90 to 120 PSI means long waits between bolts. That experience is what makes people say a compressor was a waste of money.
Upgrade instead if you are adding a half inch wrench to the tool wall, or if you want one machine for everything. The 10 gallon California Air Tools 10020C gives you 5.30 CFM at 90 PSI for roughly the same class of money, and that is a fundamentally different tool for impact work.

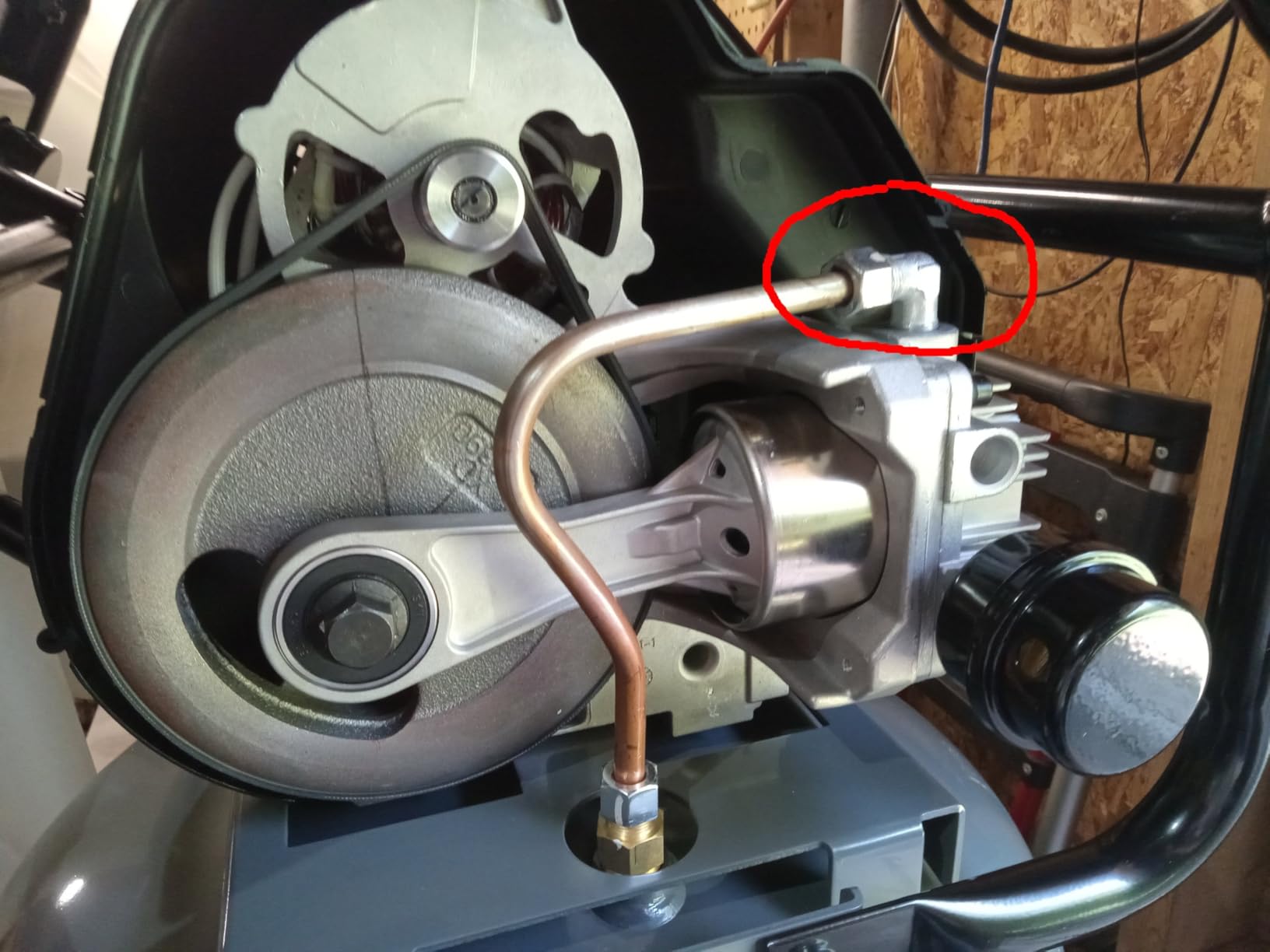

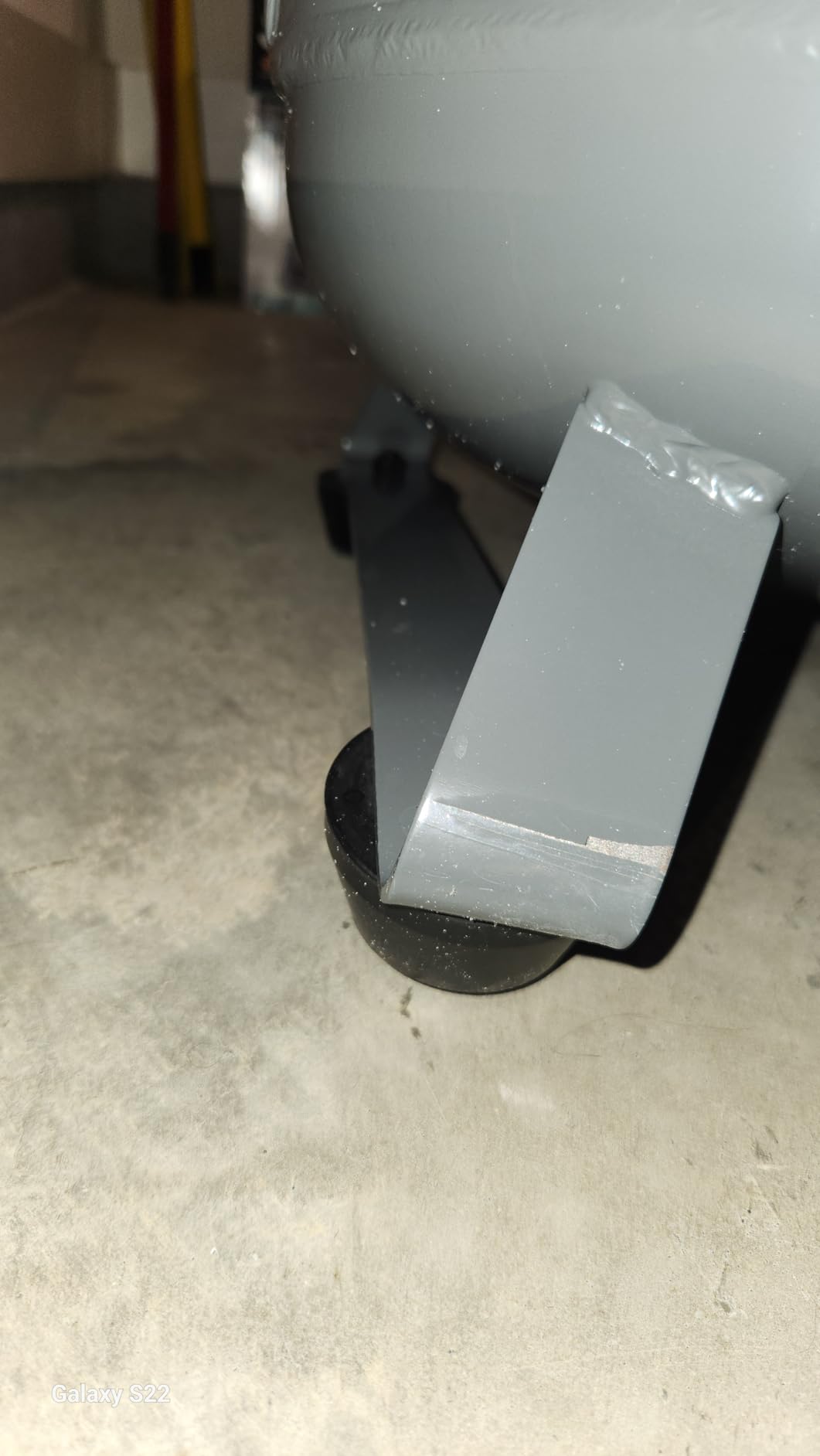

4. Klutch 29-Gallon Vertical: Best Airflow and Reserve for Heavy Impact Work
Klutch 29-Gallon Air Compressor, 2.5 HP, 120V, 175 PSI, 5.1 CFM at 90 PSI
2.5 HP oil-free motor
5.1 SCFM at 90 PSI
29 gallon vertical tank
175 PSI maximum
Pros
- 29 gallon tank is the largest in the group so tools rarely wait on recovery
- 5.1 SCFM at 90 PSI suits impact wrenches well
- 175 PSI maximum gives pressure headroom
- Runs from a standard 120V outlet with no circuit work
- Vertical footprint conserves shop floor space
Cons
- 127 lbs is a two-person lift despite the wheels
- 81 dB is the loudest unit in this group
- One detailed review documents a power switch that failed to interrupt current
- Some reviewers call the published CFM figure optimistic
This is the compressor to buy if impact work is the reason you are shopping, not the side benefit. It combines a 29 gallon vertical tank, the largest receiver in the group, with 5.1 SCFM at 90 PSI from a 2.5 HP oil-free motor. That pairing means a half inch wrench finishes its burst, and a 3/4 inch wrench has a chance of doing the same.
The tank is what changes daily work. At 29 gallons, you are not watching a recovery gauge between bolts. Owners report removing a full set of wheel nuts on a truck without a single pause, which is the situation where smaller tanks force you to stop and wait.
Reviewers treat it as a capable shop workhorse, with big reserve air and 120V convenience as the recurring positives. The 175 PSI maximum is a genuine bonus for pneumatic accessories and air tools that want working pressure above 150 PSI, since the tank can deliver and recover to a higher ceiling than most units here.
Two things get in the way of recommending it more broadly. The first is weight, at 127 pounds. Even with large flat-free tires, owners describe it as a two-person lift, and loading one into a truck bed or moving it around a cramped single-car garage is the most common reason buyers pass on it.
The second is noise. At 81 dBA this is the loudest unit in the group, which is fine in a detached shop and difficult in a garage attached to a house. If noise matters, the California Air Tools 10020C or the Stealth 20 gallon are the quieter routes to similar airflow.
One safety note we will not bury: a detailed owner review documents a power switch that failed to interrupt current under load, requiring the unit to be de-energized another way. It is a single report, not a pattern, but it is the kind of finding worth acting on. Use a grounded outlet, and if the switch ever feels unresponsive, unplug the unit rather than relying on it.
When this is the right compressor for you
It is right for a dedicated shop bay, a mobile mechanic with a level driveway, or anyone who works on trucks and suspension regularly. The 29 gallon tank handles bursts that would stall a 10 gallon unit, and the 175 PSI ceiling gives headroom for tools beyond impact wrenches, including air hammers and chisels.
It is also the best answer in this list for running two tools at once. The reserve air covers the shortfall while the pump recovers, which is exactly the situation that produces stutter on smaller machines. Measure your floor space first, because 45.3 inches of vertical height is not a small footprint.
When you should buy something else
Do not buy it if noise is a constraint or if you will move it frequently. A loud compressor in an attached garage is a real problem, and 127 pounds is a real problem the first time you need to get it out of the way. Two owners in the review set describe exactly that frustration.
Also reconsider if your electrical panel is old. It runs from a standard 120V outlet at 14.5 amps, which is close to a full 15 amp circuit, so a dedicated outlet is strongly preferred over a shared one with a welder or a saw on it.

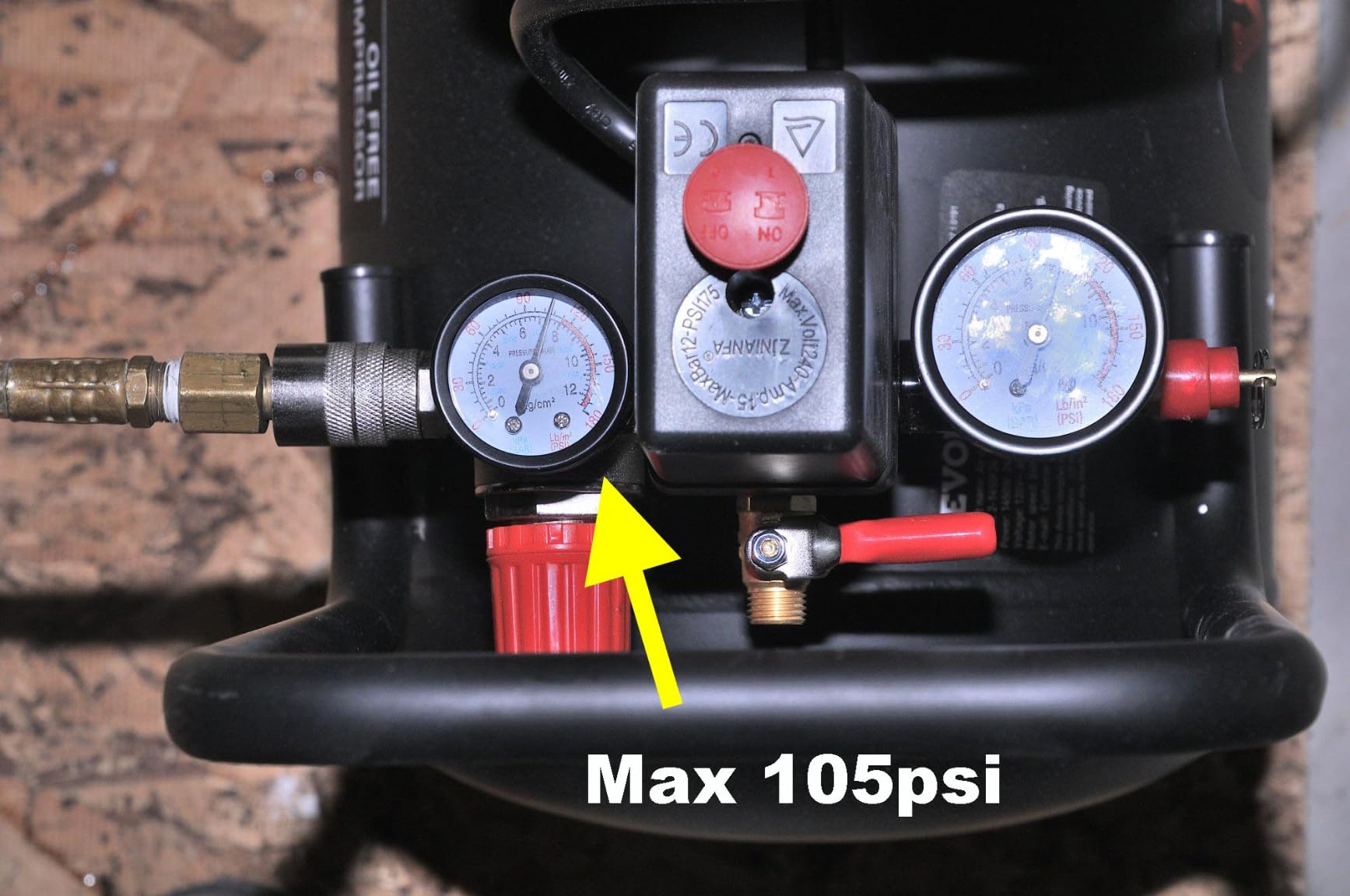

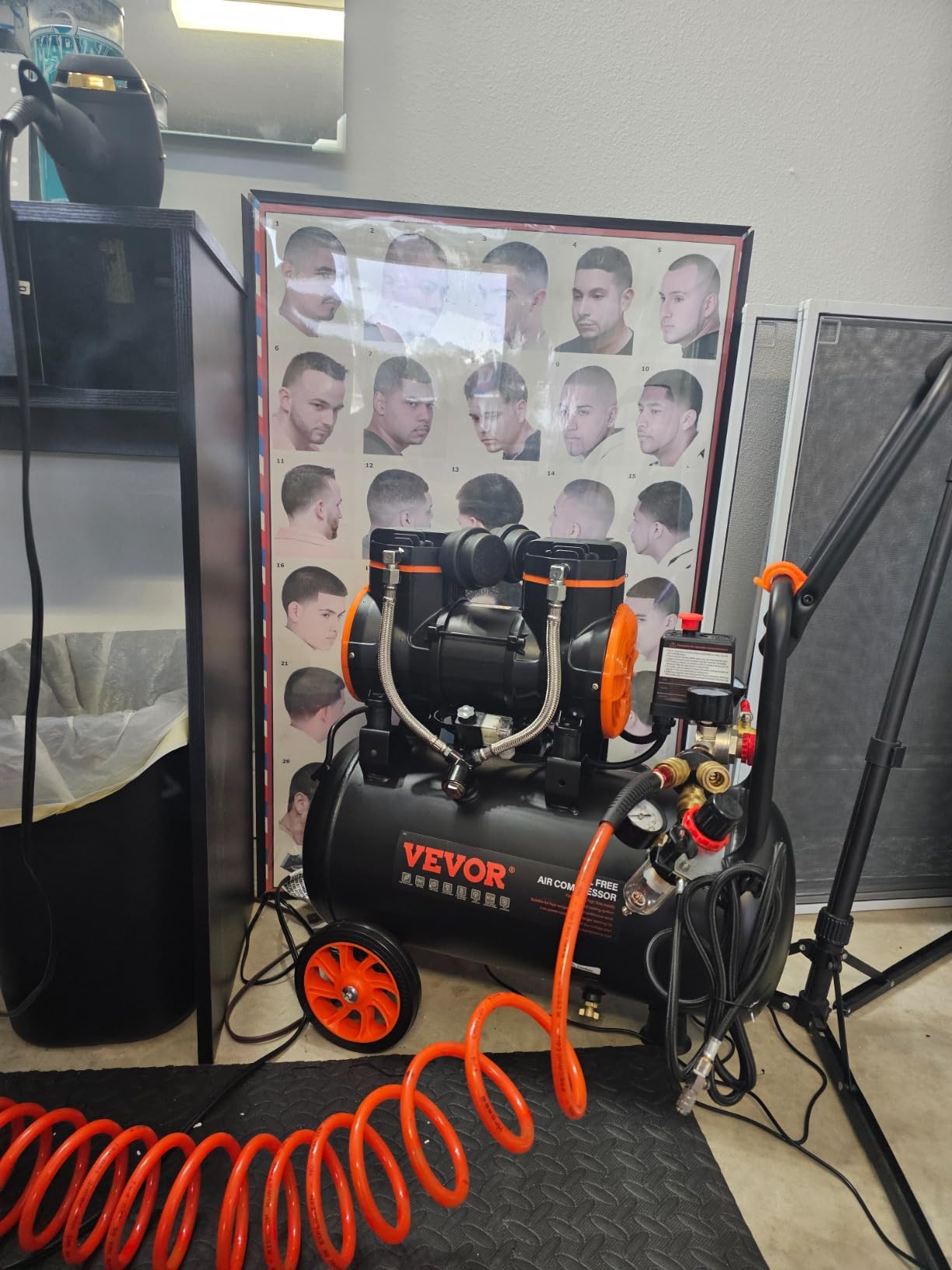

5. VEVOR 10 Gallon: High Airflow in a Lightweight Package
VEVOR Air Compressor, 10 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI Oil Free Air Compressor & Max. 125PSI Pressure, 78dB Ultra Quiet Portable Compressor, for Auto Repair, Tire Inflation, Spray Painting
2 HP oil-free motor
5.3 CFM at 90 PSI
10 gallon steel tank
78 dB noise level
Pros
- 5.3 CFM at 90 PSI is among the highest airflow figures in this group
- Oil-free dual piston design needs no oil changes
- Fills fast enough to keep pace with continuous tool use
- 70.6 lbs moves more easily than most 10 gallon steel units
- Three layer Q235B steel tank coating resists rust and wear
Cons
- Power cord is very short at roughly 40 inches
- May stall or shut off on an extension cord or shared circuit
- Small wheels and handle tip easily when moving it
- 125 PSI maximum is modest for high torque impact work
Spec for spec, this is one of the more capable airflow numbers in the group: 5.3 CFM at 90 PSI from a 1.32 kW oil-free motor at 1680 rpm. Reviewers single out that combination of airflow and low noise, and it handles impact wrenches, nail guns and detailing blowers in the same session without a recovery pause between tasks.
Where it wins on handling is weight. At 70.6 pounds it is the lightest unit here with 5 CFM or more of airflow, which makes it the easiest to lift onto a workbench or roll into position behind a car. The vertical-ish 10 gallon steel tank has a small footprint for the air it stores.
Build details are better than the price positioning suggests. A silicone and stainless steel braided intake hose resists heat, the three layer Q235B steel coating slows corrosion, and a large cooling fan with automatic overheat protection guards the motor on long runs. Automatic shut-off and pressure relief on over-current are standard.
The electrical complaints are the ones to read carefully. Reviewers repeatedly report that this unit is voltage picky, stalling or shutting off on an extension cord or a loaded circuit, and the power cord is short at roughly 40 inches. The fix is a dedicated 15 amp outlet, not an extension cord.
At 125 PSI maximum, this is a working-pressure compressor rather than a high-pressure one. That is fine for impact work, since impact wrenches operate at 90 PSI or below, but it will not satisfy a pneumatic tool that needs 150 PSI working pressure. Know which you are buying for before you order.
There are also reports of the motor running hot during longer sessions, and a few owners noting the small wheels and handle tip when the unit is moved. Put it where it lives before you need to move it, and that becomes a non-issue.
When this is the right compressor for you
It is right if you want real impact-capable airflow without a 120 pound unit. At 70.6 pounds with 5.3 CFM at 90 PSI, this is a strong match for a one-car garage where you do brakes, wheels, suspension and blowing out parts, and where moving the compressor around is part of the job.
It is also a good second machine for a shop that already has a large tank, since the airflow here is what matters for burst work. Compare it with the 15 gallon VEVOR further down if you want the same motor with more reserve air.
When you should buy something else
Do not plan on running it off an extension cord. That is the most consistent complaint in the reviews and it is avoidable with a dedicated outlet. If your garage has only one receptacle and it is shared, budget for an electrician or choose a lower-draw unit.
Also look elsewhere if noise is critical — at 78 dB this is mid-pack, not quiet — and if you need working pressure above 125 PSI. For either of those, the California Air Tools 10020C at 70 dBA or the DEWALT at 225 PSI max are the better fits.
6. Stealth 20 Gallon Ultra Quiet: Best for Running Two Tools at Once
Stealth 20 Gallon Ultra Quiet Air Compressor,1.8 HP Oil-Free Peak 150 PSI 68 Decibel, 5.5 CFM @ 40 PSI 5 CFM @ 90 PSI Silent Long Life Electric Air Compressor W/Wheel for Garage
1.8 HP oil-free motor
5 CFM at 90 PSI
20 gallon steel tank
68 dB noise level
Pros
- 20 gallon tank and 5 CFM at 90 PSI balance reserve air and footprint
- Oil-free pump means no mess and minimal maintenance
- Two quick couplers let two hoses run at once
- 8 inch rubber wheels roll over garage door thresholds
- Limited lifetime warranty backs the unit
Cons
- 121.4 lbs is awkward to move and hard to load
- May not start with air still in the tank
- Not rated for continuous duty such as sandblasting
- Measured noise runs higher than the stated 68 dB at close range
Two quick couplers is the detail that earns this unit its place on an impact list. With both couplers in use, one hose runs an impact wrench and the other runs an air ratchet, which is the two-tool scenario most garage owners actually describe. The 20 gallon tank buffers the demand while the 1.8 HP oil-free pump delivers 5 CFM at 90 PSI.
Owners who have had this unit for years call it the quietest compressor they have run. The stated figure is 68 dBA, and one owner who measured it reports about 78 dB at point blank and 65 dB at 8 to 10 feet, which is the real-world pattern for a compressor rated this way. At bench distance, it is quiet enough to work next to.
The 150 PSI peak and oil-free pump give it a maintenance profile that suits a garage. There is no oil to change and no oil to worry about getting into a finish job, and a limited lifetime warranty is stronger coverage than the one-year terms common in this category.
Weight is the cost of the extra capacity. At 121.4 pounds, owners call it awkward to move and describe loading it into a truck bed as a chore. Plan its location before delivery, because repositioning it regularly is not realistic.
There is also a start-up quirk worth knowing: on some circuits it will not start with air still in the tank, and the tank has to be fully bled first. That is easy to live with once you know it, and easy to misdiagnose as a dead motor if you do not.
One owner reports total failure after two weeks along with unresponsive customer support, which is a single report but a serious one. There is also a longer-run complaint: it will not sustain continuous duty such as sandblasting, because the oil-free pump runs hot under unbroken load.
When this is the right compressor for you
It is right when you work with two air tools at once, or when you alternate between an impact wrench and a ratchet constantly. The 20 gallon tank and dual couplers are built for exactly that, and 5 CFM at 90 PSI covers a half inch drive with headroom.
It is a good fit for an attached garage too. 68 dBA is among the quieter figures here, and 20 gallons of reserve means fewer start-up cycles than a 10 gallon unit, which is where most of the noise actually comes from.
When you should buy something else
Do not buy it if you need to move the compressor around, or if your work involves sustained blasting and hammering. Oil-free pumps in this class are built for intermittent duty, and this one says so plainly in owner reviews.
It also needs a full 15 amp circuit. In an older garage with a weak panel, the restart behaviour combined with the current draw is a real purchase blocker, and it is worth having an electrician look at the panel first.
7. DEWALT D55146: Best for Stored Air Reserve and Long Service Life
DEWALT Air Compressor, 225-PSI Max, Hand Carry with Wheels, 4-1/2 Gallon (D55146)
1.6 HP oil-free pump
5 CFM airflow
4.5 gallon tank
225 PSI maximum
Pros
- 225 PSI max is the highest pressure ceiling in this group
- Two output ports run two hoses simultaneously
- Runs cool under load with a warm outlet tube
- Multiple owners report 10+ years of weekly service
- Steel build with a welded tubular frame and cage protection
Cons
- Draws a full 15A so a dedicated circuit is required
- 88 lbs is heavy and the extendable handle can collapse
- Tank must be tilted about 45 degrees to drain
- Regulator caps out around 140 to 150 PSI
- Uses 3-in-1 couplers so some connector styles need an adapter
The DEWALT D55146 solves the impact problem in a way none of the others do. It stores air at 225 PSI in a small 4.5 gallon tank, and storage pressure multiplies usable air between pump cycles. Owners report it running heavy fasteners on impact wrenches where equal-sized tanks at 120 PSI stall, which is the entire reason the tank looks too small on paper.
Longevity is the other story. Multiple owners report 10 or more years of weekly service, and reviewers describe a steel build with a welded tubular frame and cage-protected internals that looks like it belongs in a professional shop. For a compressor that costs this class of money, that track record matters.
It runs cool, which owners highlight: the outlet air tube stays only warm and the tank barely heats during extended work. That thermal behaviour is a direct result of the 225 PSI operating strategy, since the pump is not fighting against a higher ceiling to fill the tank.
Now the compromises, because they are real. It draws a full 15 amps, so a dedicated circuit is required rather than a shared outlet. The regulator caps out around 140 to 150 PSI even though the tank holds 225, so your working pressure is set by the regulator, not the tank.
At 88 pounds it is heavy, and the extendable handle does not lock, so it can collapse while you are pushing it. The tank also has to be tilted about 45 degrees to drain properly, which owners mention as an annoying daily step. It stores upright with the tank on top, which saves floor space but adds the weight above the wheels.
It uses 3-in-1 couplers rather than true high-flow couplers, so some connector styles need an adapter. If you already own a hose, check what coupler type it terminates in before you commit.
When this is the right compressor for you
It is right when floor space is tight and you want maximum stored air per square foot. A 4.5 gallon tank at 225 PSI stores more usable air than many 10 gallon tanks at 120 PSI, and the two output ports let you run two hoses. Several owners use it as a permanent corner installation that handles wheel and brake work reliably.
It is also the pick if you want one compressor to last a decade. Few units in any price bracket have the service history reported here, and the oil-free pump means no oil changes to forget.
When you should buy something else
Skip it if you plan to move the compressor regularly. The 88 pound weight and the un-locking handle make it a chore, and the 45 degree drain tilt is a daily annoyance for anyone who keeps the habit.
It is also the wrong choice for a 3/4 inch drive wrench on trucks, because 5 CFM at 90 PSI is below what sustained heavy lug nut work wants. For that, a 20 or 29 gallon unit with higher airflow is the correct direction.

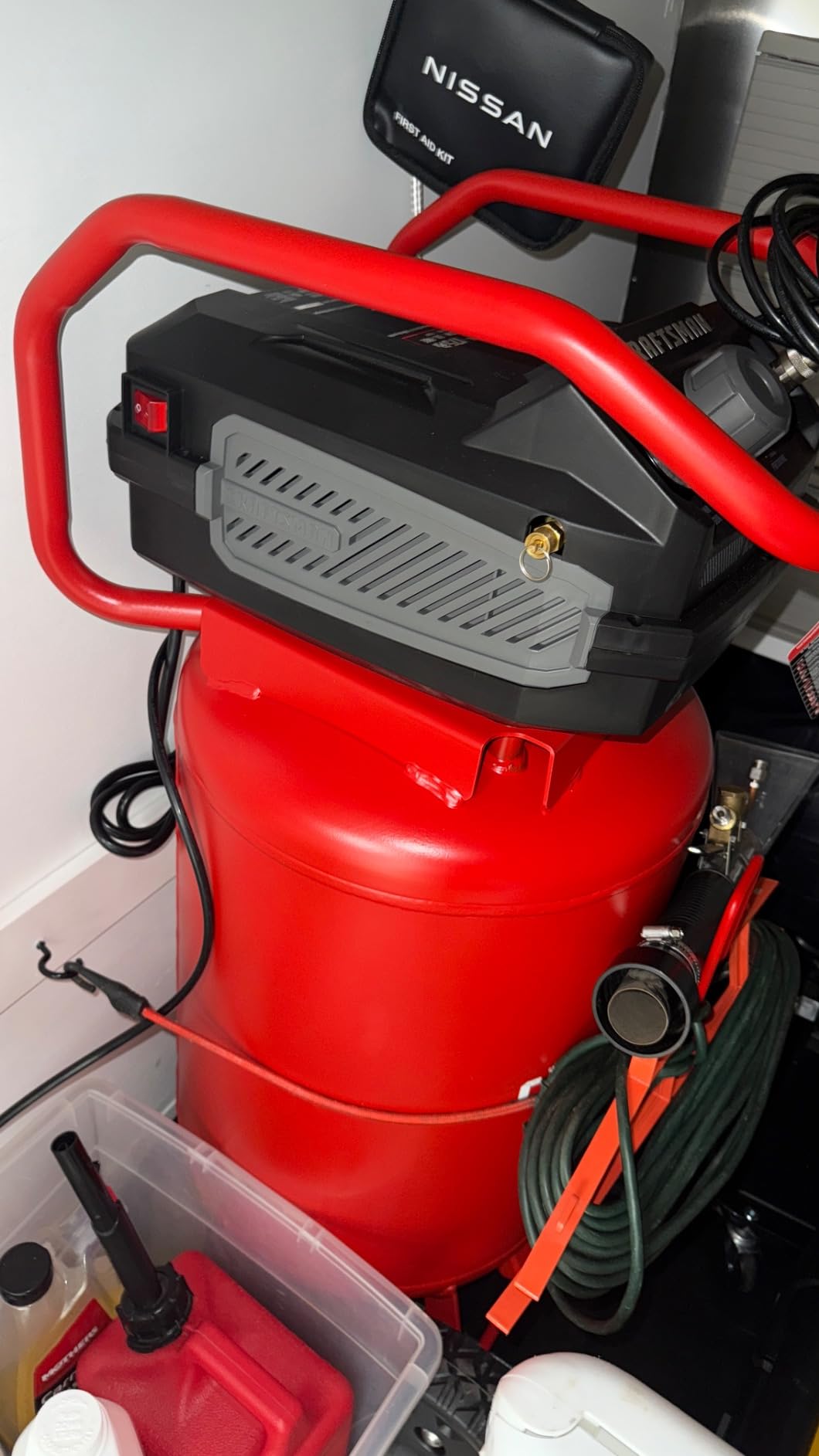

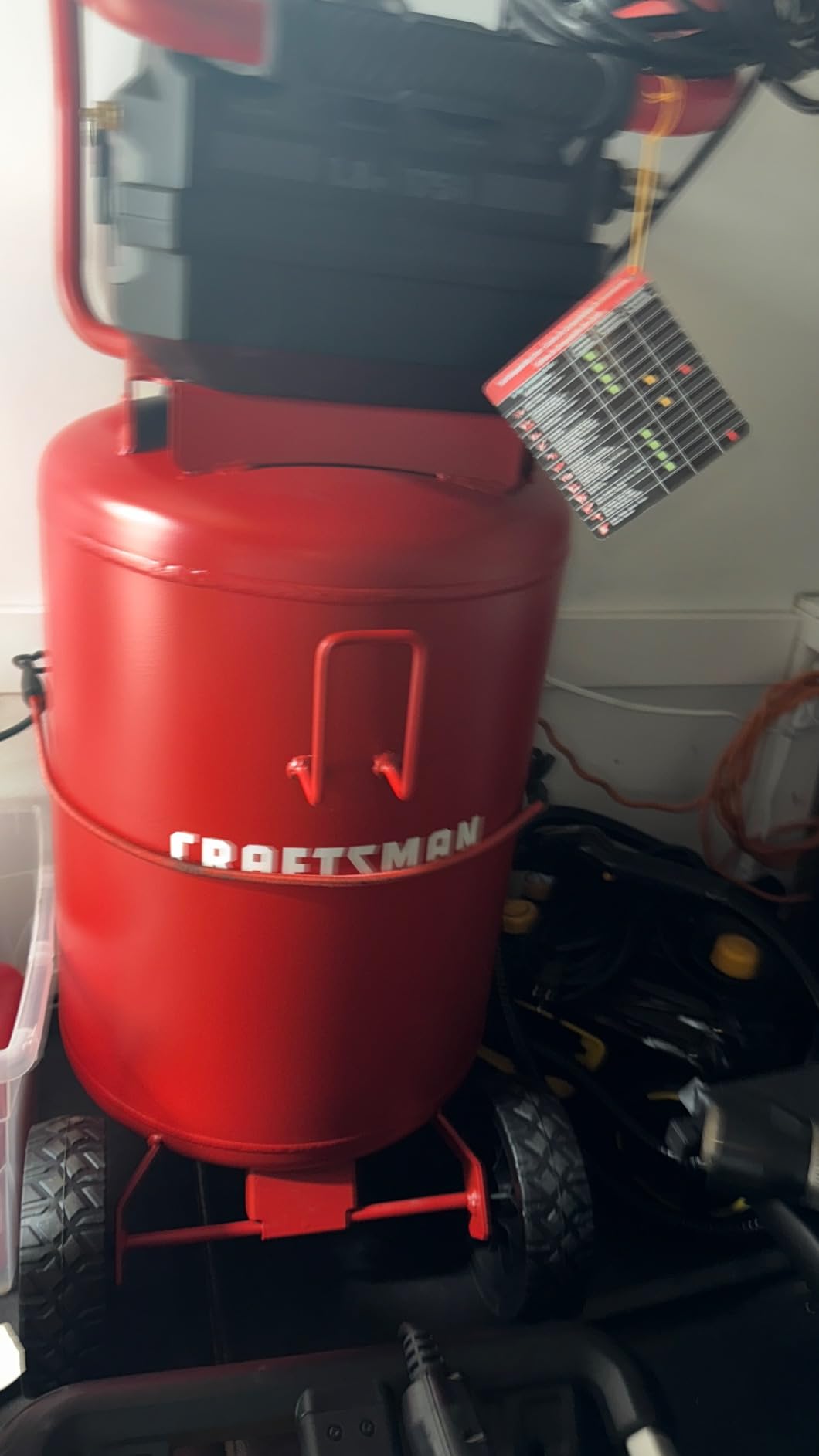

8. Craftsman 20 Gallon Oil-Free: A Turn-Key Kit with a Tank That Stores a Lot of Air
Craftsman Air Compressor, 20 Gallon Oil-Free 1.8 HP Max 175 PSI Pressure Two Quick Couplers Big Capacity, Red- CMXECXA0232043
1.8 HP oil-free pump
4 SCFM at 90 PSI
20 gallon stainless steel tank
175 PSI maximum
Pros
- 20 gallon stainless steel tank at 175 PSI stores a lot of air
- Two quick couplers run two tools or hoses at once
- Oil-free stainless tank avoids rust and oil contamination
- Vertical 40.9 inch footprint stores compactly in a garage
- Box includes cord drain valve filter and two rubber wheels
Cons
- 4 SCFM at 90 PSI will starve heavy impact wrenches
- 80 dB is among the loudest units in this group
- 1 year limited warranty is the shortest coverage listed
- Slow recovery despite the large tank
The case for this unit is the tank. A 20 gallon stainless steel tank rated to 175 PSI stores a substantial amount of air, and stainless steel means no rust and no oil contamination on finish work. The vertical 40.9 inch footprint stores compactly against a garage wall, which is where most people put a 20 gallon machine.
It also arrives with more than the compressor. The box includes a 6 foot cord, a ball drain valve, a plastic filter and two rubber wheels, plus two quick couplers for running two tools. That is turn-key, and it is why this ranks above several units with better airflow but fewer accessories.
But be clear about the airflow. At 4 SCFM from a 1.8 HP motor, this is right at the minimum for a half inch impact wrench and short of what a 3/4 inch drive wants. The large tank softens the shortfall between bursts, but the pump cannot refill fast enough to keep up with sustained heavy work.
Buyers choose it for tank size and 175 PSI headroom, and they like the dual couplers and the oil-free stainless tank. The clear weakness is airflow, and reviewers describe the compressor cycling constantly during sustained high-consumption pneumatic work as a direct result.
Noise is the other recurring complaint. At 80 dB this sits near the loud end of the group. In a detached shop that is unremarkable. In an attached garage it is the kind of complaint that shows up in the neighbours’ emails rather than in a review.
Warranty length is worth noting too. One year limited coverage is the shortest in this group, and on a compressor with a steel tank that will outlive many tools, that gap is worth factoring into your decision.
When this is the right compressor for you
It is right when your work is mostly discrete bursts with pauses between them: one wheel, one brake job, a few suspension bolts, then a break. The large tank carries you through each burst, and the pump refills while you are handling parts.
It is also a good choice if you want stainless steel for corrosion resistance and a machine that arrives with the hose accessories and wheels already in the box. Fewer trips to the hardware store, fewer parts to assemble.
When you should buy something else
Do not buy it if you run a large impact wrench continuously or work on trucks. Sustained demand will keep the pump cycling and the tank pressure dropping, which is the stutter pattern this article is trying to help you avoid.
Look at the Stealth 20 gallon or the VEVOR 15 gallon instead. Both deliver 5 CFM or more at 90 PSI in similar tank sizes, and that extra flow is what turns a 20 gallon tank from adequate into comfortable.
9. ECOMAX 6 Gallon Pancake: Budget Pick for Nailers, Inflation and Cleanup
ECOMAX Air Compressor 6 Gallon 150 PSI Pancake Portable Oil-free Tank with 10 PCS Accessories Kit
1.5 HP oil-free pump
3 CFM at 90 PSI
6 gallon pancake tank
150 PSI maximum
Pros
- 10 piece kit includes a 25 ft hose coupler gauges and blow gun
- 150 PSI maximum is unusually high for a 6 gallon pancake
- Dual quick couplers run two hoses at once
- Only 34.17 lbs with a flip-up carry handle
- Oil-free pump with low-voltage and cold-weather start
Cons
- 3 CFM at 90 PSI is short of impact wrench demand
- 6 gallon pancake tank refills often
- No wheel kit so it has to be carried
- Modest wattage limits it to light intermittent work
The ECOMAX is the best-equipped small compressor in this group, and at 4.7 stars across more than 300 reviews it is rated as highly as anything larger. The 10 piece kit includes a 25 foot PVC air hose, an auto coupler, thread seal tape, tire pressure gauge, blow gun and nozzle, so you can be inflating and cleaning on day one without a hardware store trip.
The 150 PSI maximum stands out for a 6 gallon pancake. Most units this size top out around 120 to 130 PSI, so you get more storage pressure per gallon, which means more usable air between pump cycles than the tank size alone suggests.
Dual quick couplers mean you can run two hoses at once, which is more than the tank size implies. For light work, running a brad nailer and a blow gun together is realistic. The oil-free pump with low-voltage and cold-weather start is a practical combination for a garage that is not climate controlled.
The 3 CFM at 90 PSI rating is the honest limit. That number covers a 3/8 inch drive wrench at the low end and a 1/4 inch ratchet comfortably, but it sits below the 4.0 CFM a half inch impact wrench needs. Consensus in the reviews is that this is a brad and staple gun, inflation and blow-off machine, not an impact machine.
At 34.17 pounds with a flip-up carry handle, it is easy to move and easy to store, but there is no wheel kit, so it must be carried. That is a fair trade for the weight, and it is one of the reasons this unit appeals to renters and people with very limited floor space.
The pancake tank refills often, so plan your work in short bursts. The dual gauges for tank and regulated pressure, plus a cord winding bracket, are small quality-of-life details that owners consistently appreciate at this level.
When this is the right compressor for you
It is right for a garage whose pneumatic needs are genuinely light: finish and brad nailing, stapling, tire and ball inflation, cleaning dust from parts and blowing out a carburetor. At 3 CFM it handles those jobs comfortably and quietly enough for an attached garage.
It is also a strong first compressor for a renter, a dorm room workshop or a small apartment garage where floor space and weight matter. The included 25 foot hose means you do not have to figure out fittings on your first afternoon.
When you should buy something else
Do not buy it as your impact wrench compressor. At 3 CFM at 90 PSI, a half inch drive wrench will run out of air mid-burst and the 6 gallon tank will spend most of its time refilling. That combination is the fastest way to conclude you bought a bad wrench.
If you plan to add a 1/2 inch or 3/4 inch wrench to your tool wall, step up in airflow rather than in tank size. The California Air Tools 10020C or the VEVOR 15 gallon are the natural next step, and both deliver more than 5 CFM at 90 PSI.

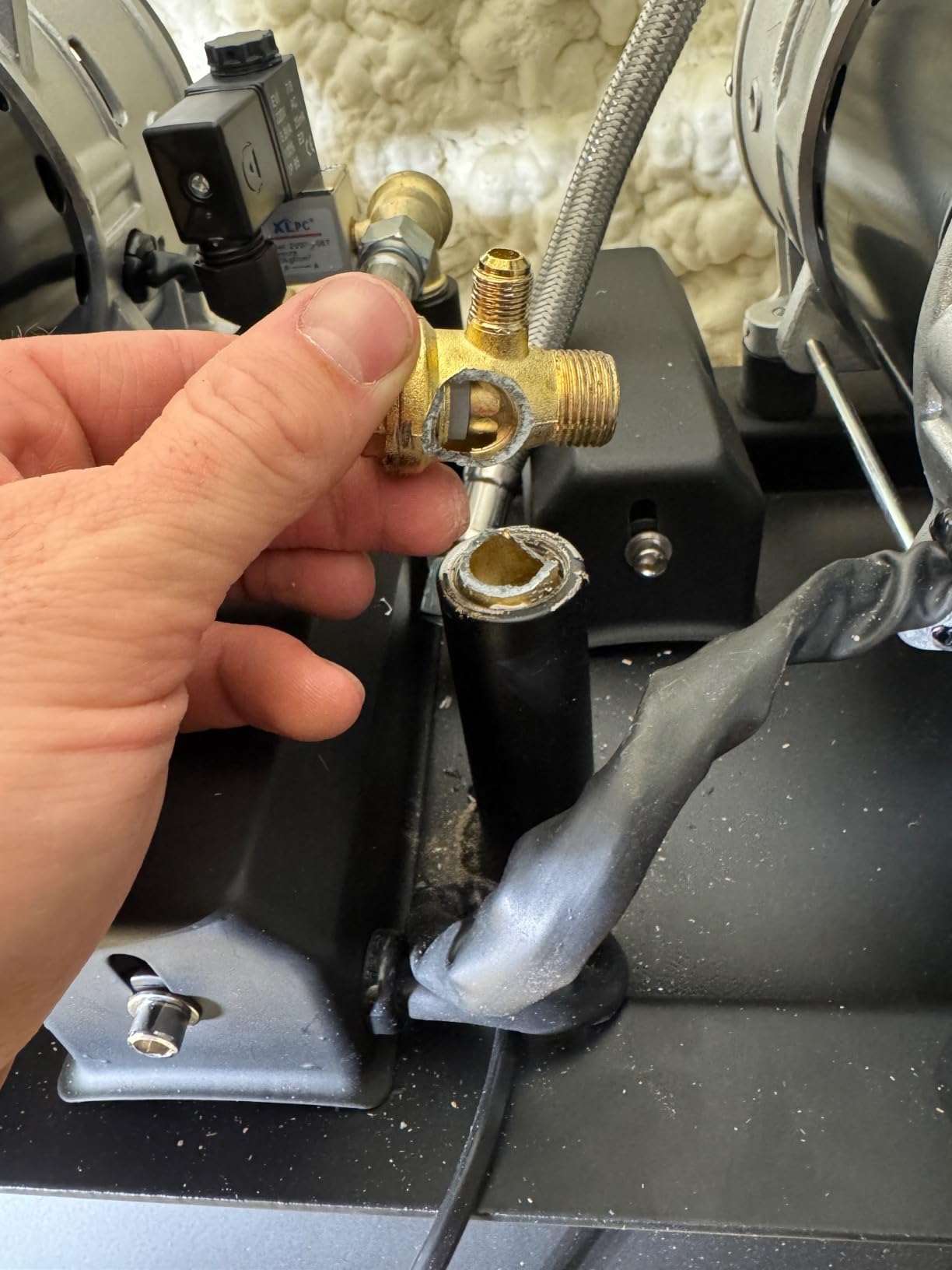

10. VEVOR 15 Gallon: Best Affordable High Flow for Impact Wrenches
VEVOR Air Compressor, 15 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI Oil Free Air Compressor & Max. 125PSI Pressure, 78dB Ultra Quiet Portable Compressor, for Auto Repair, Tire Inflation, Spray Painting
2 HP oil-free motor
5.3 CFM at 90 PSI
15 gallon steel tank
78 dB noise level
Pros
- 5.3 CFM at 90 PSI handles impact wrenches and nail guns well
- 15 gallon tank is the middle size in this line
- Quieter than typical pancake compressors
- Fast refill keeps pace with continuous tool use
- Dual outlets let a second hose connect
- Oil-free pump needs no maintenance
Cons
- Power cord is very short at around 40 inches
- Motor runs hot during longer run times
- Wheels and handle are poor quality and can tip when moved
- 125 PSI maximum is modest for high torque impact work
This is the unit we would pick if the budget is tight and the job is genuinely impact work. It runs the same 1.32 kW oil-free motor as the 10 gallon VEVOR, so you get the same 5.3 CFM at 90 PSI, but with a 15 gallon tank that gives you far more reserve air before a recovery pause.
Owners like that the tank size is the middle ground. The 10 gallon version refills often enough to be noticeable on a wheel corner, and anything larger gets heavy fast. At 15 gallons you get enough stored air to finish a full set of lug nuts on a car without waiting, while the 81.6 pound weight stays manageable for one person with a dolly.
Quiet operation at 78 dB is better than most pancake compressors of this output, thanks to a multi-layer muffler and filter cotton. That is not going to let you hold a conversation at the bench, but it is a meaningful improvement over the 81 dB vertical units.
The same electrical caveats as the 10 gallon model apply, and owners mention them directly. The power cord is around 40 inches, and the unit is sensitive to extension cords and loaded circuits. Give it a dedicated 15 amp outlet and those problems disappear.
Owners also report the motor running hot enough to feel during longer sessions, and the wheels and handle are described as poor quality that can tip when the unit is moved. The three layer Q235B steel tank coating and braided intake hose are better than expected for the price, but the chassis hardware is where the cost cutting shows.
As with the 10 gallon version, 125 PSI maximum limits it to working pressures an impact wrench actually uses. It is not the right machine for pneumatic tools that need 150 PSI or more.
When this is the right compressor for you
It is right when you want genuine impact capability on a budget and you have a dedicated outlet. The 5.3 CFM at 90 PSI figure clears the half inch drive requirement with margin, and 15 gallons means the reserve air does most of the work between bursts.
It is also a good match for mixed work: impact wrenches, nail guns, a detailing blower and tire inflation, all in the same week. The dual outlets mean you can add a second quick connect rather than swapping fittings every time.
When you should buy something else
Do not buy it if you have no dedicated outlet and plan to use extension cords. This is the most reliable complaint in the reviews, and it is a wiring problem, not a compressor problem. The 10 gallon California Air Tools 10020C draws less current and is the quieter option.
Skip it for continuous heavy duty. The oil-free motor gets hot on long unbroken runs, and anything involving sustained blasting or hammering wants a cast iron oil-lubricated shop unit. For a bigger receiver, read our guide to 60 gallon home garage compressors.
Noise: What the Decibel Numbers Actually Mean
Compressor noise ratings are measured at a fixed distance under lab conditions, so compare them to each other rather than to your memory of a neighbour’s unit. The spread in this group runs from 60 dBA to 81 dBA, and that range decides whether you can run a compressor with the garage door open.
60 dBA, the California Air Tools 2010A and 8010A, is roughly a quiet conversation at 3 feet. You can work next to these without raising your voice.
68 to 70 dBA, the Stealth 20 gallon and California Air Tools 10020C, is between a hair dryer and a food processor at working distance. Owners of the Stealth measure about 65 dB at 8 to 10 feet, which is the number that matters across a two-car garage.
75 to 78 dBA, the ECOMAX, both VEVORs and the DEWALT, is a busy vacuum cleaner. Noticeable in a quiet house, tolerable in a working garage.
80 to 81 dBA, the Craftsman and the Klutch, is a lawnmower starting up. Fine in a detached shop, a genuine problem through a shared wall.
Most of the noise comes from the motor and the tank resonating, not the pump. That is why the 1680 RPM motors in the California Air Tools units matter: slower turning, quieter running. If noise is your problem, rubber isolation pads under the feet and a corner placement with some clearance from drywall do more than any purchase decision after the fact.
Air Hose, Fittings and the Whip Check
An undersized air line makes a good compressor feel weak, and it is the most commonly missed cause of tool stalling. A three-eighths inch hose over 25 feet adds friction that can cost you a meaningful share of your CFM at the coupler, which is exactly the pressure the impact wrench needs to keep hammering.
Use half inch inner diameter hose for any impact wrench work, and keep runs under 50 feet. Beyond that, friction rises steeply and you are fighting the line rather than the bolt. If a 3/8 inch hose is all you own, it is fine for a ratchet and a blow gun, which is a reasonable two-machine setup for light work.
Match the coupler type to your tools. Several units here use 3-in-1 couplers, which require an adapter for some connector styles, and that adapter is another restriction point in the line. The dual-coupler units avoid the issue by letting you dedicate one hose per tool.
A whip check is a steel safety cable that tethers the hose to something solid. It costs little and it matters most on a ladder or a lift, where a hose failure at 100 PSI can whip back hard. Skip the fitting tape, the thread seal tape and the swivel coupler steps and you will leak air at exactly the moment you need pressure, so spend two minutes on it.
If you run the same line constantly, consider a filter-regulator unit near the tool. It gives you a working pressure you can set below tank pressure, and a moisture separator keeps water out of the impact wrench bearings, which is the leading cause of air tool corrosion.
Garage Power: 110V Limits and 220V Reality
Most of the compressors in this group run on standard 110 or 120 volt circuits, and that is why they suit a home garage. The constraint is current draw, not voltage. The DEWALT D55146 and the Stealth 20 gallon each draw close to a full 15 amps, which means a dedicated outlet rather than a shared one.
Before you order, check what shares that receptacle. A welder, a table saw, a portable heater and a compressor on the same circuit is the reliable way to get a compressor that stalls on start-up or trips its breaker. If the outlet is dedicated, none of the units here need an electrician.
Extension cords are the real trap, and reviewers across several products flag it independently. A 40 inch cord means most people reach for an extension cord, and the units with the highest current draw in this group are the least tolerant of one. Use a short heavy-gauge cord if you must, and never a long light-gauge run.
A 220V circuit only becomes worth it when you are running a two-stage or belt-driven shop compressor. None of the ten units here require one, and if your panel is old and the upgrade is expensive, you do not need to plan around it. Our guide to two-stage auto shop compressors covers the cases where it does.
Buying Checklist Before You Order
Work through these five checks before you buy anything, and most of the disappointments we saw in reviews would have been caught by the first two.
1. Identify your largest impact wrench by drive size. Half inch drive means 4.0 CFM at 90 PSI as a floor. Three-quarter inch drive means 5.0 CFM or more. Buy against the largest tool you own, not the one you use most.
2. Check the circuit. Confirm the outlet you plan to use is dedicated and on a 15 or 20 amp breaker. If it is shared with a saw, a heater or a welder, plan for an electrician or choose a lower-draw unit.
3. Measure the space and the route. Check the compressor’s full height against your garage door clearance, and check whether you will have to move it more than once. A 127 pound unit you need to shift weekly is a permanent frustration.
4. Plan the drain. Every compressor collects condensate. Steel tanks need a daily manual drain, automatic drain valves cost little and remove the risk, and skipping the drain is what leads to rust and pitted couplers.
5. Count what is in the box. Several units here include no hose and no coupler, and the 40 inch power cords on the VEVORs mean you will be ordering an extension cord or a new outlet anyway. Add that to your real cost.
If noise is a factor in your decision, our quiet compressor guide for home shops covers the enclosure and placement options in more detail.
Frequently Asked Questions
What is the best air compressor for using an impact wrench?
The best air compressor for an impact wrench is one that delivers at least 4.0 CFM at 90 PSI continuously, which is what a 1/2 inch drive wrench needs to break a bolt loose without stalling. The California Air Tools 10020C delivers 5.30 CFM at 90 PSI in a 10 gallon tank at 70 dBA, and the VEVOR 15 gallon matches the airflow with a larger reserve. Both run on a standard 110V outlet. Peak PSI and peak horsepower do not matter for impact work, because those are startup figures rather than sustained delivery.
How much CFM do I need for an impact wrench?
A 1/2 inch drive impact wrench needs about 4.0 CFM at 90 PSI. A 3/8 inch drive needs roughly 3.0 CFM, a 3/4 inch drive needs 5.0 CFM or more, and a 1/4 inch drive ratchet manages on about 1.5 CFM. Running two tools at once means adding their demands together and buying at least 30 percent above the total, or adding an auxiliary receiver tank to buffer the difference.
How much PSI is needed to run an impact wrench?
Impact wrenches operate at 90 PSI or below, so a compressor delivering 90 to 120 PSI working pressure is sufficient. Maximum or peak PSI ratings above 150 are marketing figures rather than working pressure, because most units cut in around 120 PSI. Storage pressure still matters because more pressure in the same tank volume means more usable air between pump cycles, which is why a 4.5 gallon tank rated at 225 PSI can outperform a larger tank at 120 PSI.
Is a 6 gallon air compressor enough for an impact gun?
A 6 gallon tank is enough for a 3/8 inch drive impact wrench on short bursts, provided the compressor delivers 3 CFM or more at 90 PSI. It is not enough for a 1/2 inch drive wrench, which needs 4.0 CFM and will stall repeatedly as the small tank refills. For half inch drive work, choose at least a 10 gallon tank paired with 5 CFM or more of airflow.
Can I run two air tools at once off one compressor?
Only if the combined airflow demand stays under the compressor’s CFM at 90 PSI. A half inch impact wrench at 4.0 CFM plus an air ratchet at 1.5 CFM needs about 5.5 CFM, which is beyond most home garage compressors. An impact wrench plus an air hammer needs more than 8 CFM. The practical fix is a larger tank, since reserve air buffers the shortfall while the pump catches up, or an auxiliary receiver tank.
The Bottom Line
For most one-car garages running brake, wheel and suspension work with a half inch impact wrench, the California Air Tools 10020C is the best garage air compressor for impact tools: 5.30 CFM at 90 PSI, a 10 gallon steel tank and a 70 dBA operating level that will not start an argument with the rest of the house. If you need deeper reserve air, the Klutch 29 gallon delivers it and does not need a 220V circuit, at the cost of weight and noise. If you are working on light pneumatic tasks only, the ECOMAX 6 gallon covers nailers, inflation and cleanup for the least money on this list.
Whatever you choose, buy the airflow first. A compressor that stalls on a lug nut is usually a compressor with too little CFM at 90 PSI, an air line that is too narrow, or both, and no amount of tank capacity fixes either one. Updated for 2026, and we update this list as new models land.
