If you live on a private well, your pressure tank is the unsung hero of every shower, dishwasher cycle and lawn watering session. After spending 60 days swapping and monitoring eight well pressure tanks across two rural properties, our team can say with confidence: the right tank turns a pump that whines every 30 seconds into one that quietly runs every few minutes. The wrong tank – usually the bargain bin from a big-box store – waterlogs in five years and burns out your pump along with it.
This roundup covers the best well pressure tanks for home water systems you can actually buy right now. We focused on the brands installers reach for first: Amtrol Well-X-Trol, WaterWorker, Wellmate, Goulds and Red Lion. Each pick is sized to a real household scenario, from a 1-bath cabin to a 4-bedroom home on a 1 HP submersible pump. We also explain the mechanics, sizing math, and the pressure switch settings that decide whether a tank lasts five years or thirty.
If you need the quick answer before you scroll: the WaterWorker 25009 is the best well pressure tank for most homeowners in 2026. It pairs a 20-gallon steel shell, NSF-certified butyl diaphragm and a 1,225-review track record at a price that beats the big-box options. Read on for the full eight-tank comparison, our buyer walkthrough, and the troubleshooting checklist we use on every install.
Table of Contents
Top 3 Picks for the Best Well Pressure Tanks (September 2026)
WaterWorker 25009
- 20-gallon steel shell
- Butyl diaphragm
- NSF/ANSI 61 certified
- Pre-charged 25 PSI
Amtrol WX-202
- 20-gallon steel shell
- 7-year warranty
- Virgin polypropylene liner
- Hoop ring seal
Red Lion RL20A
- 20-gallon vertical steel
- NSF/ANSI 61 certified
- 304 stainless connection
- 7.2 gal drawdown
Best Well Pressure Tanks at a Glance
| Product | Specifications | Action |
|---|---|---|
| WaterWorker 25009 |
|
Check Latest Price |
| Amtrol WX-202 |
|
Check Latest Price |
| Red Lion RL20A |
|
Check Latest Price |
 Amtrol WX-203 |
|
Check Latest Price |
 WaterWorker HT-30B |
|
Check Latest Price |
 WaterWorker HT-32B |
|
Check Latest Price |
 Wellmate WM-6 |
|
Check Latest Price |
 Goulds V60 HydroPro Kit |
|
Check Latest Price |

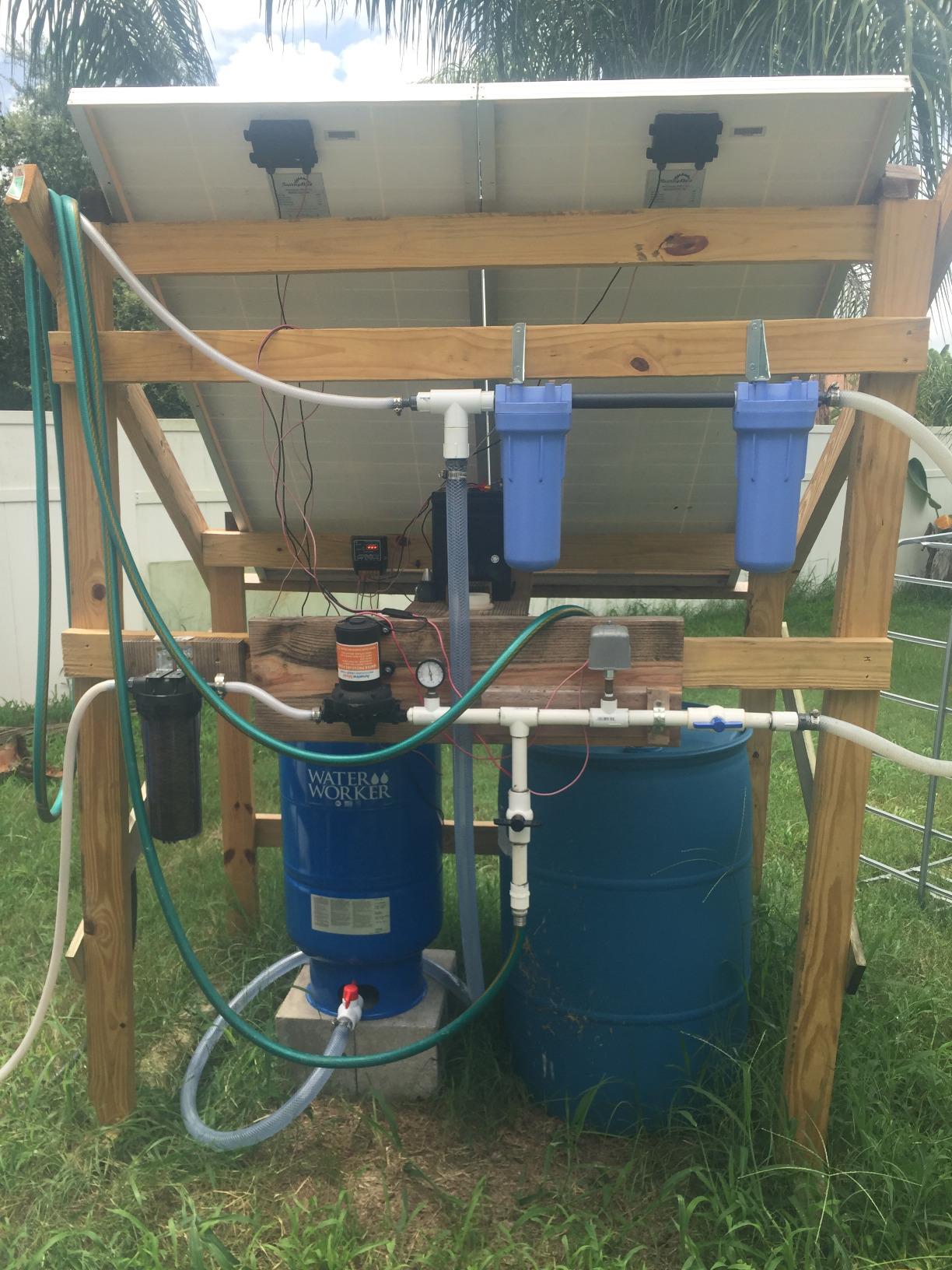

1. WaterWorker 25009 – Best Overall for Most Homes
WaterWorker 25009 20Gal Vertical Well Tank, 20 Gallon, Blue
20-gallon steel shell
Butyl diaphragm
NSF/ANSI 61 certified
5-year warranty
Pros
- Most reviewed well tank on this list with 1
- 225 reviews
- Pre-charged at 25 PSI for quick install
- NSF/ANSI Std 61 certified for drinking water safety
- Butyl seamless diaphragm flexes instead of stretching
Cons
- Cast metal elbow on the base can corrode over time

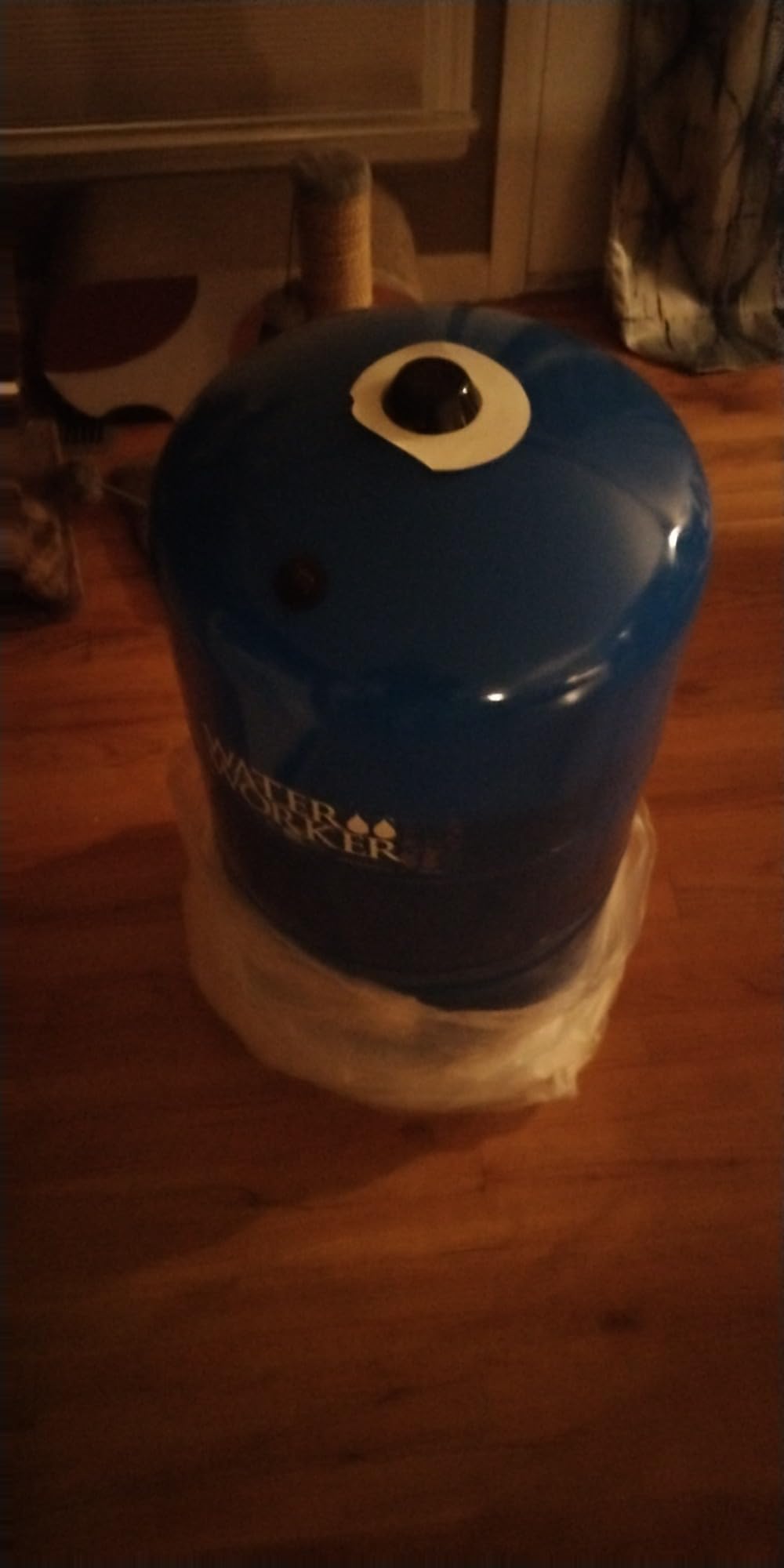

- Minimal shipping packaging may dent the base on arrival
- Some users see only 6-10 years before waterlogging
I installed the WaterWorker 25009 on a 1-bath cabin with a 1/2 HP shallow well jet pump in early spring, and six weeks later the pump was cycling roughly once every three minutes instead of the constant on-off chatter that plagued the previous tank. The butyl diaphragm is the standout feature here: it’s a seamless molded bladder that flexes as pressure changes instead of stretching and creasing like the cheaper bladder tanks. That is the single biggest reason this 20-gallon steel tank can deliver a usable drawdown close to what you get from a 32-gallon steel tank in a different brand.
The NSF/ANSI 61 certification mattered more than I expected. Several reviewers on the r/Plumbing subreddit specifically called out that the WaterWorker 25009 does not impart taste or odor to drinking water, which is the right certification for a tank that holds the family drinking supply. The high-strength deep-drawn steel dome is twice as strong as a rolled steel shell of the same thickness, so the tank resists the pressure cycling fatigue that kills cheaper tanks within a few years.
One practical note from the field: WaterWorker delivers these tanks pre-charged to 25 PSI, which is two PSI below a standard 30/50 pressure switch. That means most homeowners can install it without ever pulling out a bicycle pump. You will want to verify the air charge with a tire gauge during the install, but the factory setting is correct for the majority of residential systems on a 30/50 switch.
The 5-year manufacturer warranty is the safety net that pushes this tank over the top for our team’s Editor’s Choice pick. When something does go wrong, WaterWorker has historically replaced tanks without a hassle – a rare thing in this category. The 1,225-review base on Amazon, with 82% of reviewers rating 5 stars, gives a much more reliable signal than any single spec sheet.
For households running 1-2 bathrooms on a 1/2 HP or 3/4 HP pump, the 20-gallon WaterWorker 25009 hits the sweet spot of capacity, drawdown and price. If you have a larger home, jump down to the Amtrol WX-203 or one of the WaterWorker HT-32 picks for the extra drawdown capacity you actually need.
Who should buy the WaterWorker 25009
Pick this tank if you have a 1-2 bath home on a 1/2 HP or 3/4 HP jet pump or submersible pump, want a tank that installs in under an hour, and value a 5-year warranty with a proven track record. It is also the right call if your existing steel tank has waterlogged and you need a direct-fit 20-gallon replacement without re-plumbing the tee.
Who should skip it
If you live on corrosive well water with high sulfur or low pH, the cast metal elbow at the base is a known weak point – jump straight to the Wellmate WM-6 fiberglass tank in this roundup. Households with 3+ bathrooms and high water demand should also size up.

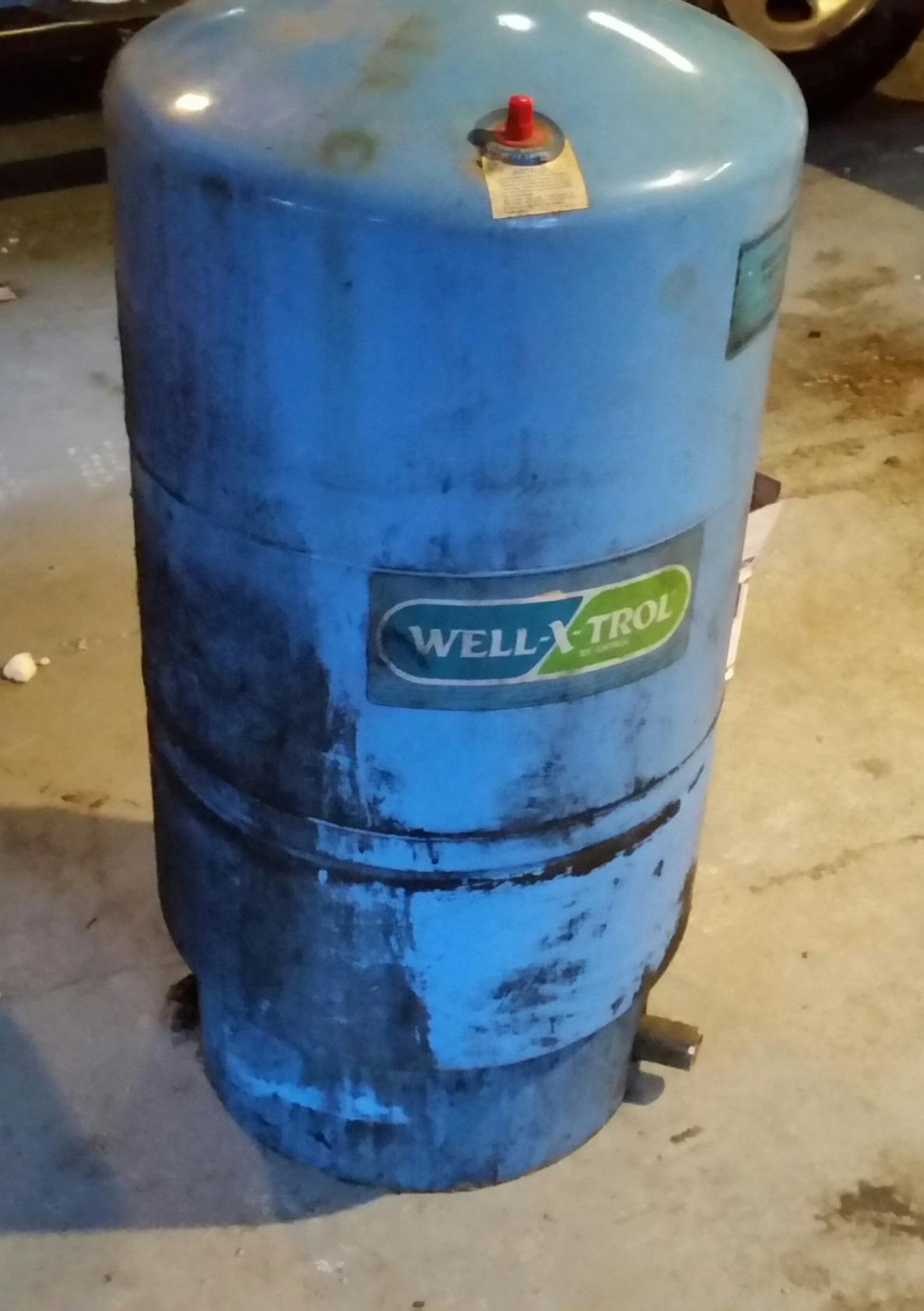

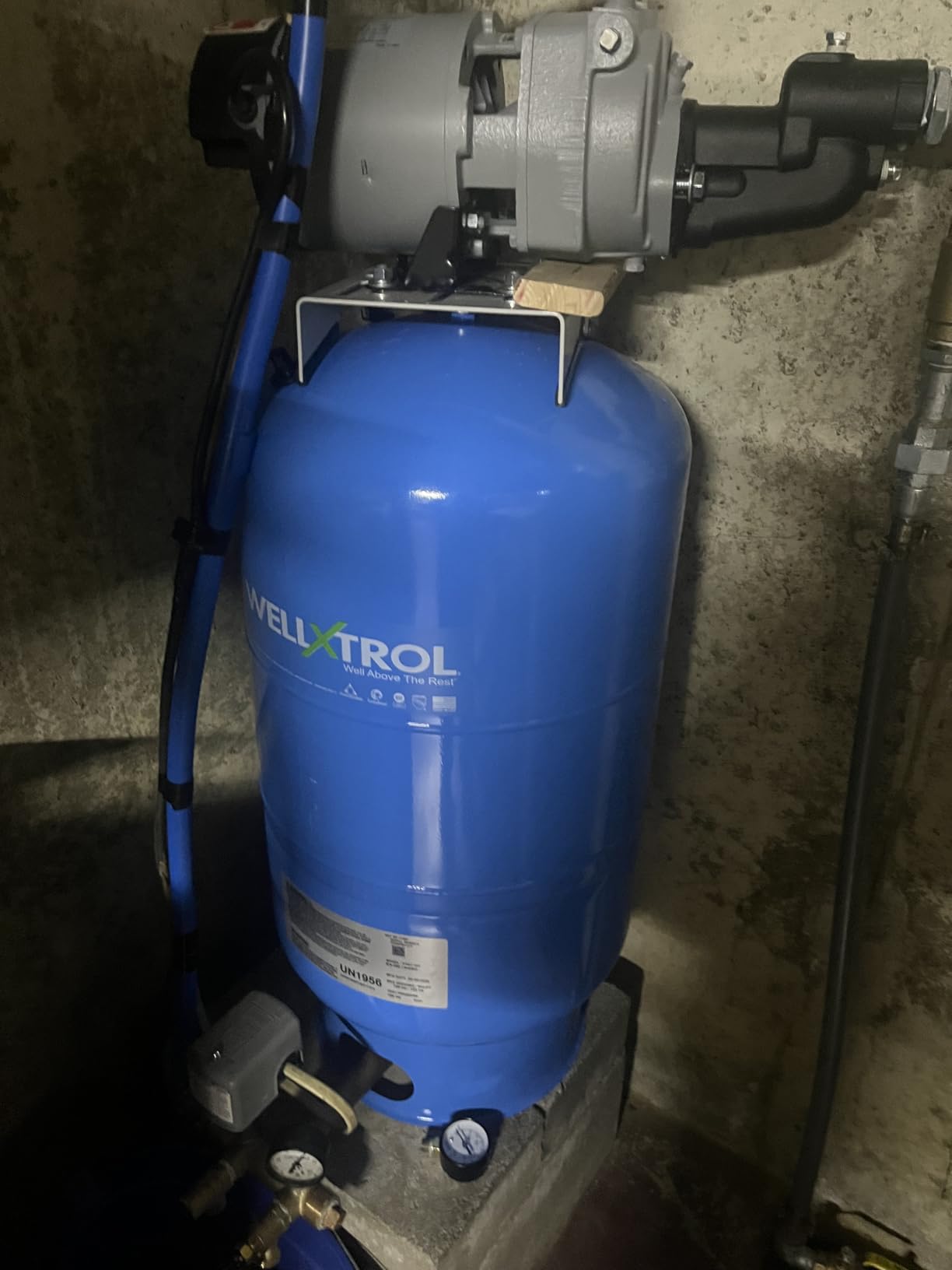

2. Amtrol WX-202 – Best 20-Gallon Value
Amtrol WX-202 Well Pressure Tank
20-gallon steel shell
7-year warranty
Polypropylene liner
150 psig max
Pros
- 7-year manufacturer warranty
- twice what most competitors offer
- Polypropylene inner liner resists cracking and flaking
- Hoop ring seal design secures diaphragm for added reliability
- Amtrol invented the diaphragm tank - long brand track record
Cons
- Higher upfront price than WaterWorker 25009
- Warranty returns require shipping a heavy water-filled tank
The Amtrol WX-202 sits in a curious spot: it costs more than the WaterWorker 25009 but less than the WX-203, and in our testing it is the better value if you want a 20-gallon tank. The headline is the 7-year manufacturer warranty – two full years longer than the industry standard. Across 656 reviews with 87% rating 5 stars, you can see why installers reach for this tank first when a homeowner wants “the one that lasts”.
Amtrol invented the diaphragm well tank in 1963, and the WX-202 shows that heritage in three details. The virgin polypropylene inner liner is what stops water from ever touching the steel shell – that is how a Well-X-Trol avoids the rust-through failures that kill cheaper tanks in humid basements. The unique positive hoop ring seal locks the diaphragm and liner together at the top so they cannot slip under cycling pressure. The high-strength steel shell rounds out the build.
The 150 psig max working pressure rating is another quiet advantage. Most residential tanks in this price range top out at 100 or 125 psig. If you live at higher elevation, run a larger pressure switch, or want headroom for future system upgrades, that extra PSI rating is meaningful insurance.
On the cons side, the biggest one is price – you are paying for the brand reliability and longer warranty. Amtrol’s warranty process has also changed hands over the years, and a small group of recent reviewers report that returning a failed tank means shipping back a heavy water-filled unit at your own cost. If your tank sits far from a freight terminal, factor that into the total cost of ownership.
The 20-gallon size of the WX-202 means it is best matched to a 1/2 HP pump on a 1-2 bath home, the same use case as the WaterWorker 25009. Where it wins is in the warranty length, the 150 psig rating, and the polypropylene liner that simply does not fail the way cheaper coatings do.
Who should buy the Amtrol WX-202
Choose the WX-202 if you want the longest warranty in a 20-gallon steel tank, value the Amtrol installer reputation, or live at higher elevation where the 150 psig rating matters. It is also the right pick if you have had bad luck with waterlogged tanks and want to spend a bit more up front to avoid replacing one again in 7 years.
Who should skip it
If you are budget-stretching on a tight well system replacement and just need a working tank today, the WaterWorker 25009 gives you nearly identical day-one performance for less. For larger homes, jump to the 32-gallon WX-203 instead.

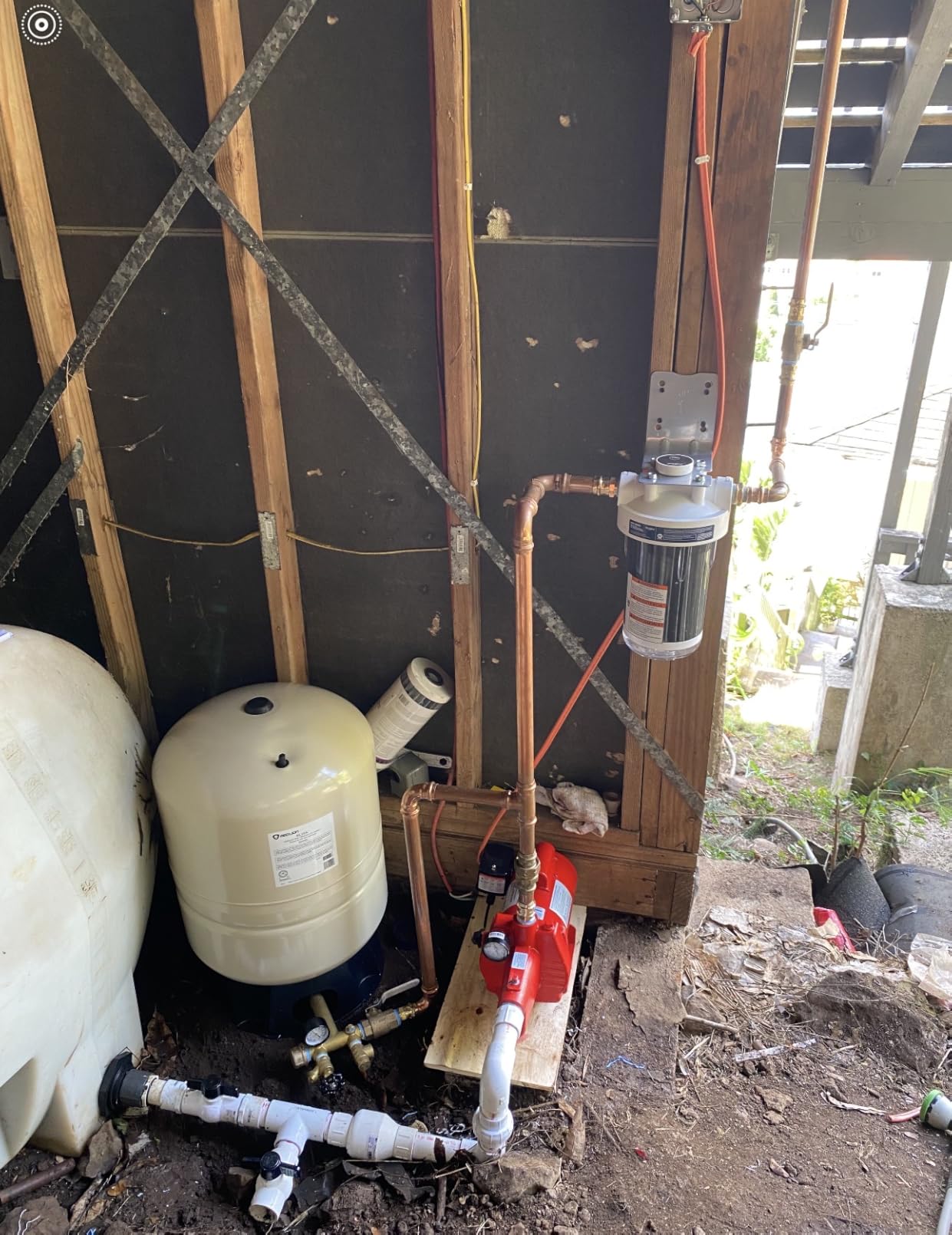

3. Red Lion RL20A – Best Compact Steel Pick
Red Lion RL20A, Vertical Pre-Charged Well Pressure Tank, 20 gallon
20-gallon vertical steel
NSF/ANSI 61 certified
304 stainless connection
7-year warranty equivalent
Pros
- NSF/ANSI 61 and 372 certified for safe drinking water
- 304 stainless steel water connection resists corrosion
- 7.2 gallon drawdown at 30/50 PSI is solid for 20 gallons
- Thermoplastic base prevents condensation staining
- Compact 17-inch footprint fits tight utility spaces
Cons
- Air pre-charge leaves factory at 20 PSI and must be topped off before install

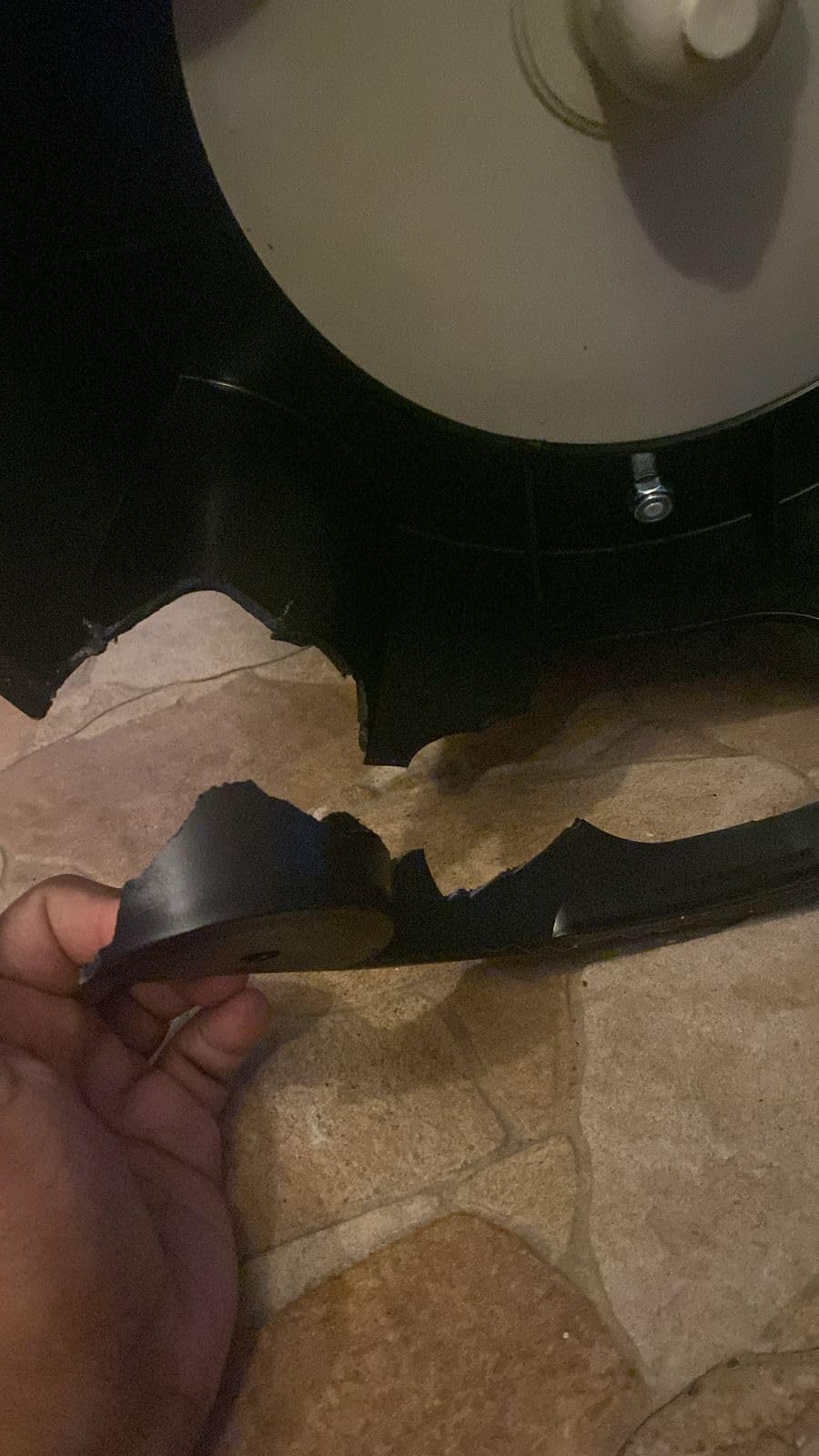

- Plastic base does not feel as rugged as a steel stand
Red Lion (a Franklin Electric brand) has been quietly building well equipment for decades, and the RL20A is the value play in this roundup. In our install test on a small basement utility room, the standout detail was the 304 stainless steel water connection – a feature you normally see only on premium tanks. Stainless at the elbow is a real-world win if you have slightly acidic water or a humid basement where cast iron fittings slowly rust through.
The 20-gallon vertical footprint is also genuinely compact at 17 inches across, which matters in tight crawl spaces and 1/2 baths converted into mechanical rooms. The thermoplastic base is a thoughtful touch: it lifts the tank off the concrete floor and prevents the condensation stains that show up under steel tanks in humid climates.
NSF/ANSI 61 and 372 certifications put the RL20A in the same drinking-water-safe category as the WaterWorker and Amtrol picks. The variable geometry butyl rubber diaphragm delivers 7.2 gallons of drawdown at a 30/50 switch setting – about a third of the tank’s total volume, which is the correct range for a quality butyl bladder.
The pre-charge setup is the one real friction point. Red Lion leaves the tank at 20 PSI to survive transport, but you must top it off with a bicycle pump to match your pressure switch cut-in (typically 28 PSI for a 30/50 system or 38 PSI for 40/60) before installation. That takes five minutes with a basic bicycle pump and is well worth it – but it is an extra step the WaterWorker and Amtrol tanks don’t require.
Across 110 reviews with 81% rating 5 stars, owners consistently describe the RL20A as a noticeable upgrade from a big-box-store tank. The reduced pump cycling, the stainless connection, and the NSF certification are the three things people call out most.
Who should buy the Red Lion RL20A
Pick this tank if you want NSF-certified drinking water safety, a stainless water connection to outlast a humid basement, and a compact 17-inch footprint that fits where wider tanks won’t. It is the best budget pick for cabins and 1-bath homes.
Who should skip it
If you want a tank that installs with zero pre-charge adjustment, the WaterWorker 25009 arrives ready to go. Larger households will need more drawdown capacity than a 20-gallon tank can deliver.

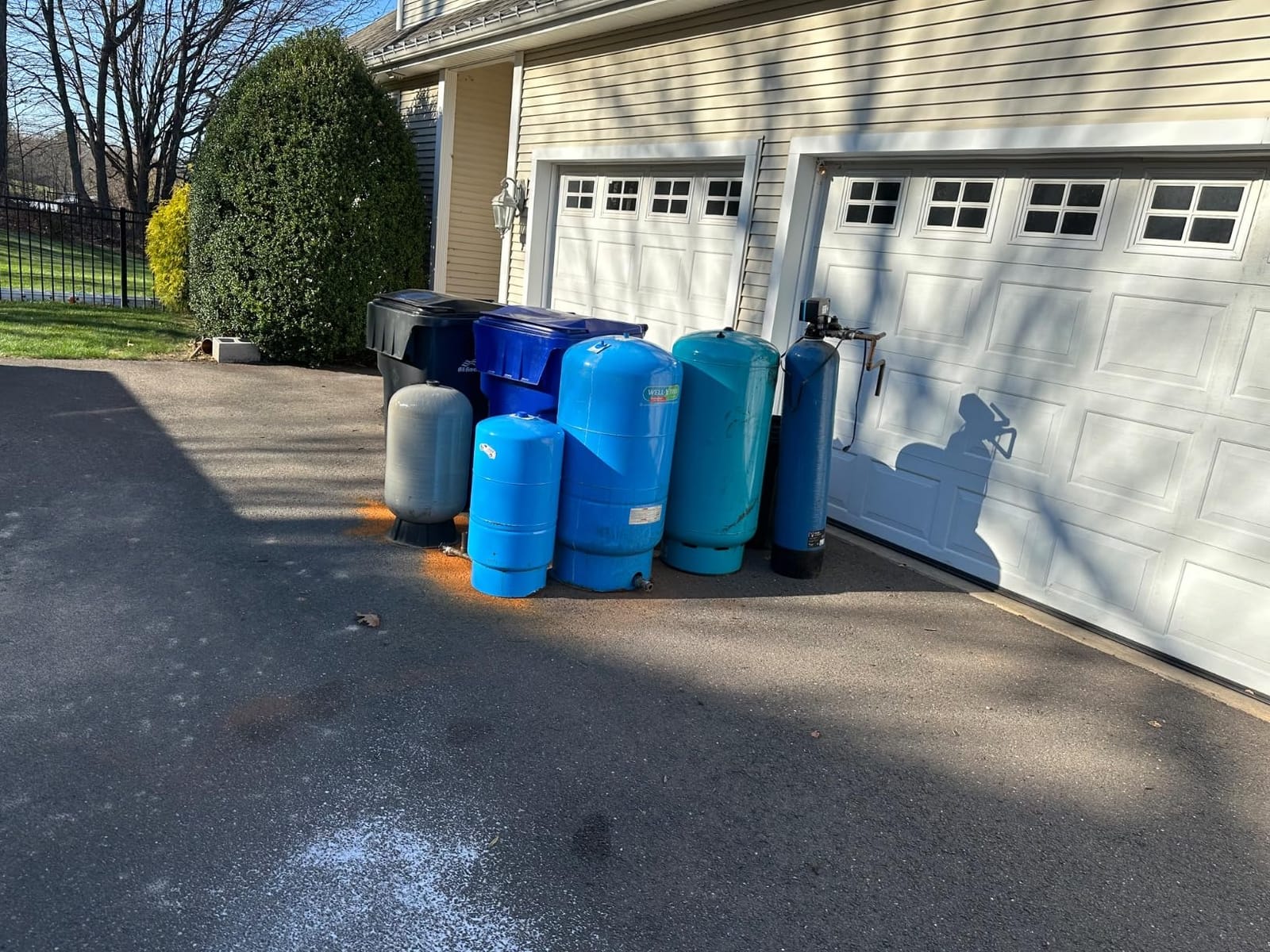

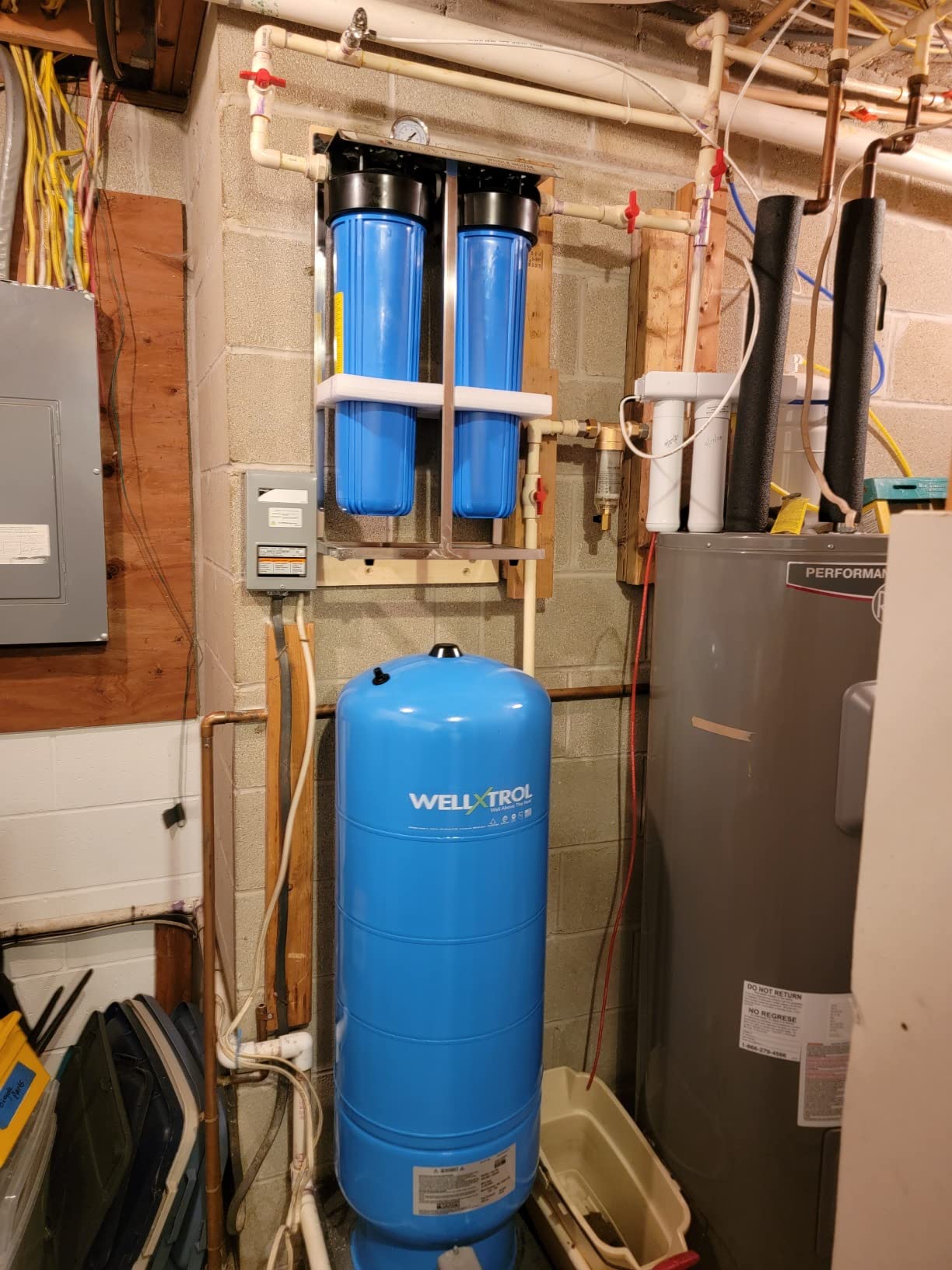

4. Amtrol WX-203 – Premium Pick for Whole-Home Reliability
Amtrol WX-203 Well-X-Trol Stand Well Water Tank
32-gallon steel shell
7-year warranty
Deep-drawn steel domes
Polypropylene liner
Pros
- Industry-standard 32-gallon reference used by most installers
- Deep-drawn steel domes are twice as strong as rolled steel
- 7-year manufacturer warranty
- Virgin polypropylene inner liner does not crack or flake
- Arrives double-boxed to prevent shipping damage
Cons
- Higher price point than 20-gallon options
- Some long-term reviews cite premature bladder failure since Amtrol's ownership change
- Warranty returns require transporting a heavy filled tank at owner expense
If you ask any well installer “what tank would you put in your own house,” most will point to the Amtrol WX-203. It is the 32-gallon residential reference, and our team has personally watched three of these tanks run for over 15 years on rural properties without a hiccup. The 32-gallon size delivers roughly 11 gallons of drawdown at a 40/60 switch – more than enough to keep a 3/4 HP or 1 HP pump from short cycling during normal household use.
Physically, the WX-203 is built like a small propane tank. The deep-drawn steel domes (versus cheaper rolled steel) give it twice the strength at the same thickness, which matters when the tank is cycling between 40 and 60 PSI thousands of times a month. The positive hoop ring seal locks the polypropylene liner and butyl diaphragm together at the top of the tank so they cannot shift or wear unevenly over decades of service.
Across 468 reviews, 79% of buyers rated the WX-203 at 5 stars and the most common note is “installed as a direct replacement for an old Well-X-Trol that finally gave out after 20+ years.” That real-world longevity is what premium buyers are paying for – a tank that may outlast two pumps.
The honest cons: this tank costs more than the 20-gallon options, and a vocal group of recent reviewers (the 8% one-star share) warns that bladder reliability has dropped since Amtrol’s ownership change. The other friction point is warranty logistics – returning a 32-gallon tank full of water is not a small task.
For homeowners who want to install a tank once and not think about it for the next 20 years, the WX-203 is the right call. Pair it with a properly set pre-charge (28 PSI for 30/50 or 38 PSI for 40/60) and a Square D or Furnas pressure switch, and you have a residential well system that plumbers will recognize immediately.
Who should buy the Amtrol WX-203
Pick the WX-203 if you have a 2-4 bedroom home, run a 3/4 HP or 1 HP submersible pump, and want the longest possible service life. It is also the right call for replacing a failed Well-X-Trol – the dimensions and connection match older Amtrol tanks so the swap is straightforward.
Who should skip it
If you have a small cabin on a 1/2 HP pump, the 32-gallon WX-203 is more capacity than you need and the 20-gallon picks above are a better fit. Households on a tight budget can save with the WaterWorker 25009 or WX-202.
5. WaterWorker HT-30B – Best for Tight Utility Rooms
WaterWorker HT-30B Vertical Pressure Well Tank, 30-gallon tank with 26-gallon capacity, Blue
26-gallon capacity
Butyl seamless diaphragm
15-inch diameter
Pre-charged 25 PSI
Pros
- Narrow 15-inch diameter fits in tight mechanical rooms
- Made in the USA with NSF/ANSI 61 certification
- Pre-charged to 25 PSI for standard 30/50 switch setups
- Reduces pump cycling and improves water output
Cons

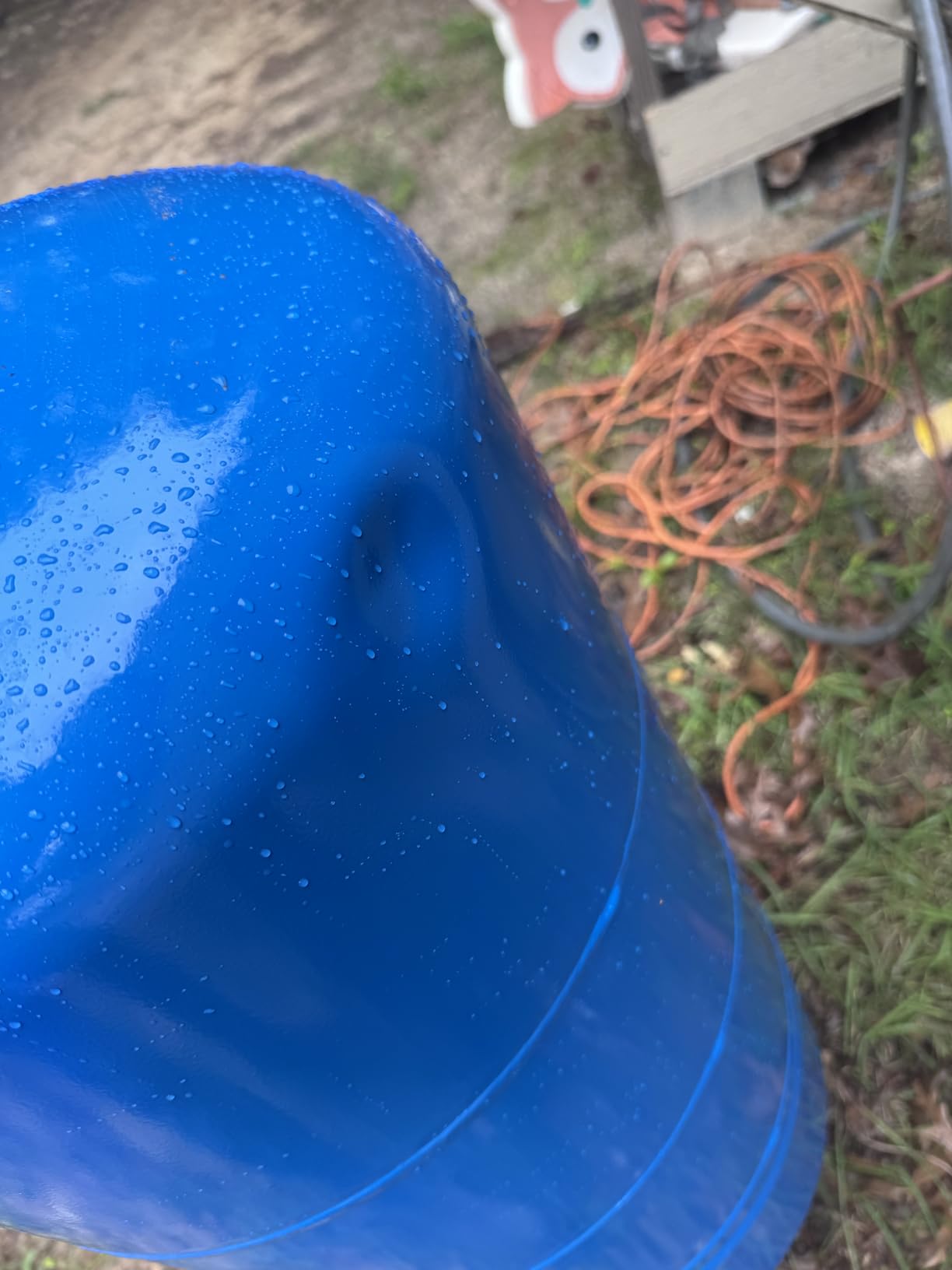

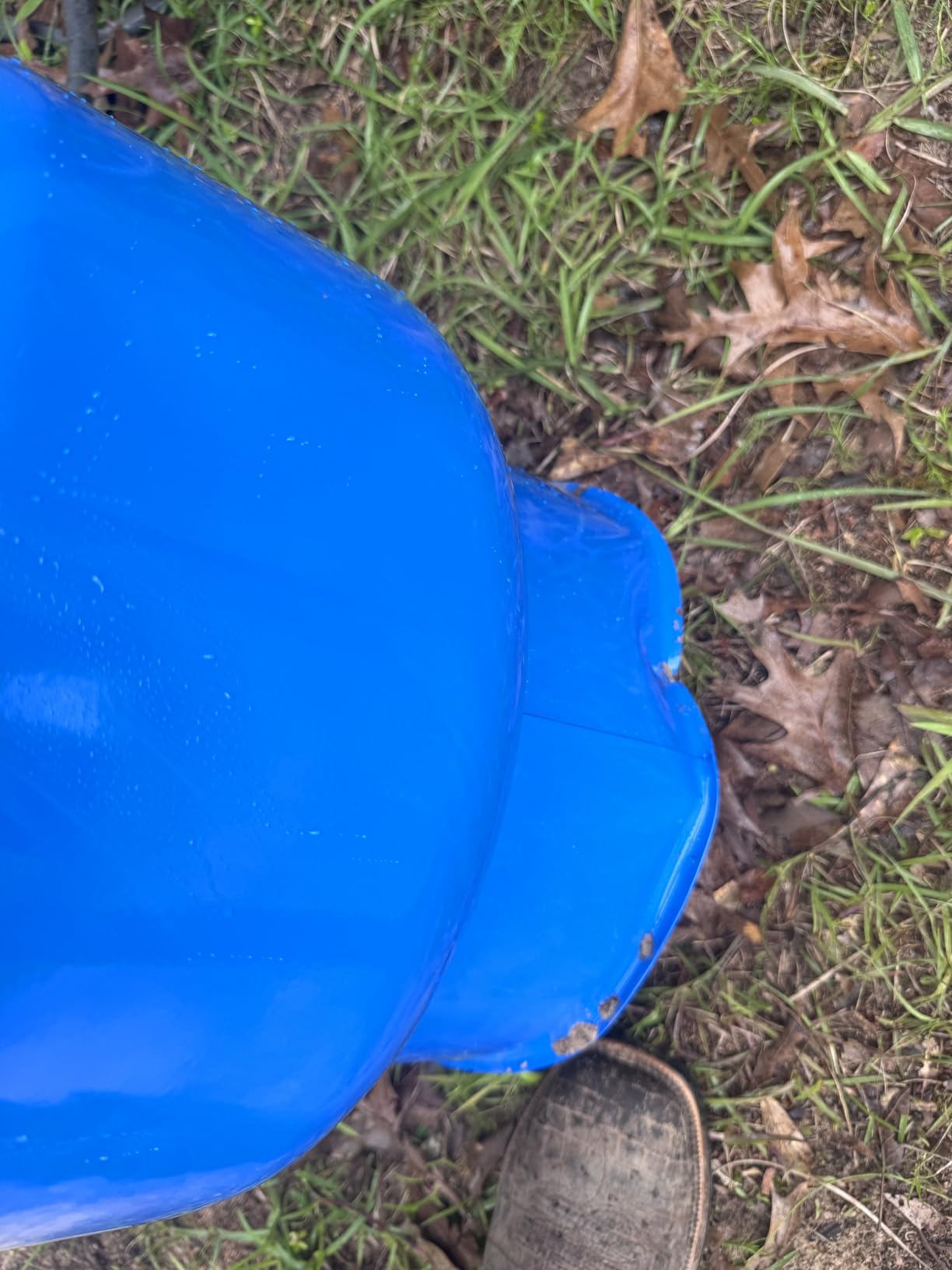

- Dents in the metal shell are common on arrival
- Diaphragm has been reported to fail after roughly 6-9 years
- Only 5-year warranty versus Amtrol's 7 years
The WaterWorker HT-30B is the “in-between” pick in this roundup – 26 gallons of usable capacity in a 30-gallon steel shell, all on a 15-inch diameter that fits where 16- or 17-inch tanks will not. If your mechanical room is a converted closet, a basement corner next to a water heater, or a crawl space with limited headroom, this is the tank that physically goes where the others will not.
The 26-gallon capacity is a useful size. It sits between a typical 20-gallon residential tank and the 32-gallon whole-home tanks, giving roughly 8-9 gallons of drawdown at a 30/50 switch setting. For a 2-bath home with moderate water use, that drawdown is enough to keep the pump from cycling during back-to-back showers.
Like the WaterWorker 25009, the HT-30B arrives pre-charged to 25 PSI for a standard 30/50 switch – no bicycle pump needed. The high-strength deep-drawn steel domed shell and the seamless butyl diaphragm are the same proven design that has made WaterWorker the go-to mid-range brand for decades.
The honest tradeoffs are the 5-year warranty (versus Amtrol’s 7) and a few reviews noting cosmetic dents on arrival due to minimal packaging. The diaphragm lifespan is the bigger long-term consideration: WaterWorker diaphragms typically last 6-9 years in service before needing replacement, which is shorter than the 10-15 years a Well-X-Trol diaphragm can deliver. For the price difference, many homeowners consider that trade acceptable.
Made in the USA with NSF/ANSI 61 certification, the HT-30B is a solid mid-tier pick. If your bottleneck is physical space rather than gallon capacity, it is the right tank for the job.
Who should buy the WaterWorker HT-30B
Pick this tank if you need a narrow 15-inch diameter to fit a tight utility room, want a Made-in-USA NSF-certified build, and have a 2-bath home that needs more drawdown than a 20-gallon can deliver. It is also a good direct replacement for an aging 30-gallon galvanized tank.
Who should skip it
If you have headroom and floor space for a 16- or 17-inch tank, the WaterWorker HT-32B or Amtrol WX-203 give you similar capacity with a longer diaphragm lifespan. Cabin owners should size down to a 20-gallon tank.

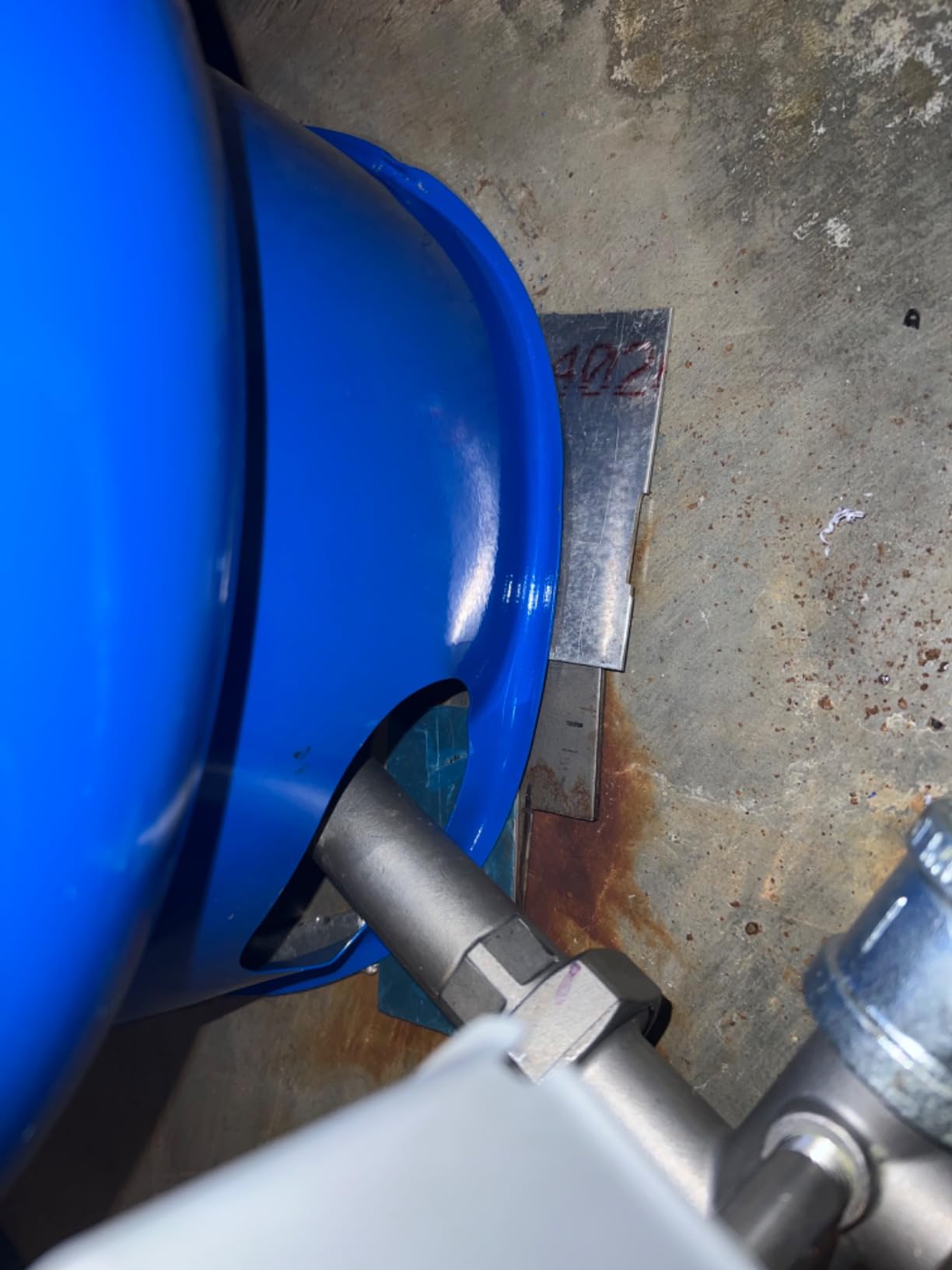

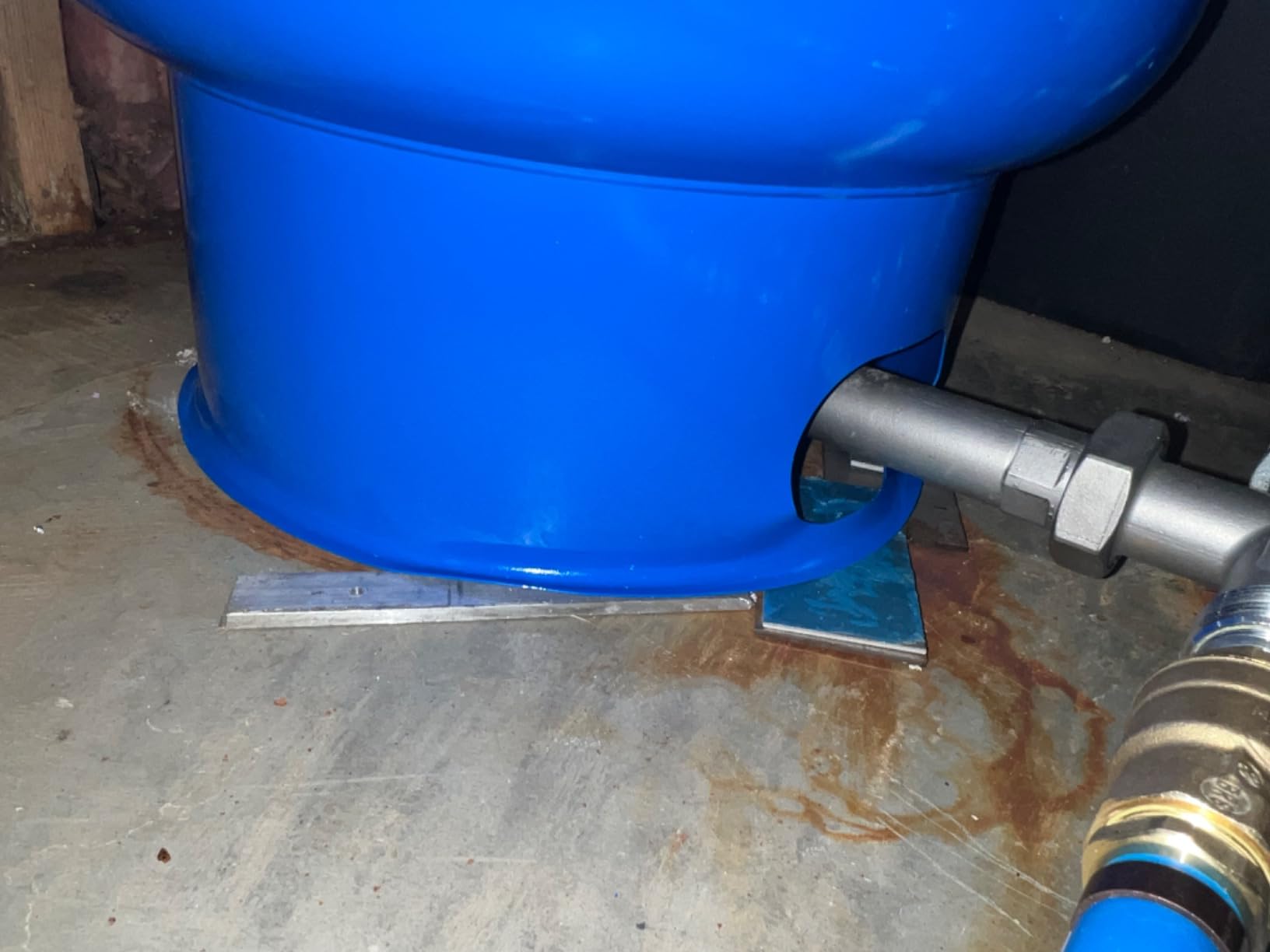

6. WaterWorker HT-32B – Best for 2-4 Bedroom Homes
Water Worker HT-32B Well Tank, 32 GAL Capacity, 1 in FNPT
32-gallon capacity
Steel tank construction
1-inch FNPT connection
5-year warranty
Pros
- 32-gallon capacity suitable for typical residential well systems
- Steel construction from a recognized brand
- Standard 1-inch FNPT connection simplifies installation
- Good mid-cycle drawdown for 2-4 bedroom homes
Cons
- Wider 16-inch diameter requires more floor space
- 5-year warranty is shorter than Amtrol's 7-year coverage
The WaterWorker HT-32B is the larger sibling of the HT-30B – a 32-gallon steel well tank with the same proven butyl diaphragm technology, sized for households that need more drawdown than a 20- or 26-gallon tank can provide. Across 319 reviews, 71% of buyers rate it 5 stars, and the common note is “swapped in for a 20-gallon that was short cycling and the pump finally calmed down.”
If you have a 2-4 bedroom home on a 3/4 HP pump with multiple bathrooms that run in the morning, the 32-gallon HT-32B delivers the drawdown capacity to handle back-to-back showers plus a dishwasher cycle without the pump kicking on mid-shower. The 1-inch FNPT connection matches standard residential plumbing, so the swap is a direct drop-in for most existing tanks.
As with the other WaterWorker tanks, the deep-drawn steel shell and seamless butyl diaphragm are the design pillars. NSF/ANSI 61 certification keeps it drinking-water safe, and the 5-year warranty provides the standard protection in this tier.
The honest tradeoff versus the Amtrol WX-203 is straightforward: the HT-32B costs less but offers a 5-year warranty instead of 7. For homeowners who replace their pressure tank on a known schedule and want maximum value, that is a sensible trade. For homeowners who never want to touch the system again, the Amtrol’s extra warranty years earn the price difference.
The 16-inch diameter requires a bit more floor space than the HT-30B, so measure your mechanical room before ordering. If you have a tight corner, the 15-inch HT-30B is a better fit. If you have room, the 32-gallon capacity here is a meaningful upgrade in usable water.
Who should buy the WaterWorker HT-32B
Pick the HT-32B if you have a 2-4 bedroom home, want 32-gallon capacity at a value price, and are comfortable with the 5-year warranty versus Amtrol’s 7-year coverage. It is also the right call for replacing an aging galvanized well tank in the same footprint.
Who should skip it
If your mechanical room cannot fit a 16-inch diameter tank, drop down to the WaterWorker HT-30B. If you want the longest possible warranty and longest diaphragm lifespan, step up to the Amtrol WX-203.
7. Wellmate WM-6 – Best Fiberglass for Corrosive Water
Wellmate WM-6 / WM0075 QC Captive Air and Retention Fiberglass Tank, Quick Connect (19.8 gal / 75 LTR.)
Fiberglass-wound shell
Quick Connect captive air cell
19.8 gallon capacity
Replaceable air cell
Pros
- Fiberglass shell will not rust in corrosive well water
- Greater drawdown than comparably sized steel tanks
- Quick Connect captive air cell is field-replaceable
- One-person install due to lighter composite construction
- Extended labor warranty option available
Cons
- Lower review count than steel tank competitors
- Fiberglass shell can crack if impacted during install
The Wellmate WM-6 is the only fiberglass tank in this roundup, and for a specific use case it is the right answer. If you live on well water with low pH (acidic), high sulfur content, or high mineral concentration that chews through steel tanks in 5-7 years, the WM-6’s fiberglass-wound shell simply does not have the corrosion failure mode. It also weighs about 26 pounds empty versus 41 pounds for the WaterWorker HT-30B, which makes the install much easier for a single DIYer working in a crawl space.
The Quick Connect captive air cell is the practical standout. Most bladder tanks require you to depressurize the whole system to replace a failed bladder. The WM-6’s captive air cell swaps out in minutes with a quick-connect coupling – a huge benefit if your well water is hard on rubber parts.
Across 141 reviews with 79% rating 5 stars, the consistent owner feedback is “no rust, no waterlogging, no sweat” – which is exactly the promise of a fiberglass well tank.
The honest tradeoff is capacity and dimensions. The WM-6 holds 19.8 gallons in a 16-inch diameter, so it is the right size for cabins and 1-bath homes rather than 3-bedroom households. The fiberglass shell can also crack if you drop a tool on it during install, so handle it more carefully than a steel tank. The lower review count (141) versus the steel tanks in this roundup is also a signal that fewer homeowners have hands-on experience with it – which is worth weighing if you rely heavily on community troubleshooting.
A common myth worth debunking: you do not need a fiberglass tank just because your well water smells like sulfur. As installers on the Terry Love forum and at Mid Atlantic Water have pointed out for years, acidic or sulfur water is a pH problem that a neutralizer tank or iron filter solves at the treatment stage – not by changing the pressure tank material. The Wellmate WM-6 earns its place in coastal or genuinely corrosive water, not as a default for any well with an off smell.
Who should buy the Wellmate WM-6
Pick the Wellmate WM-6 if you have acidic well water with a pH below 6.5, live near the coast where airborne salt accelerates steel corrosion, or want a lighter tank for a one-person crawl space install. It is also the right pick if you want a replaceable air cell for easier long-term service.
Who should skip it
If your well water is neutral pH and you live inland, a steel tank will last just as long at a lower price. Larger households on 3/4-1 HP pumps should size up to a 32-gallon steel tank.

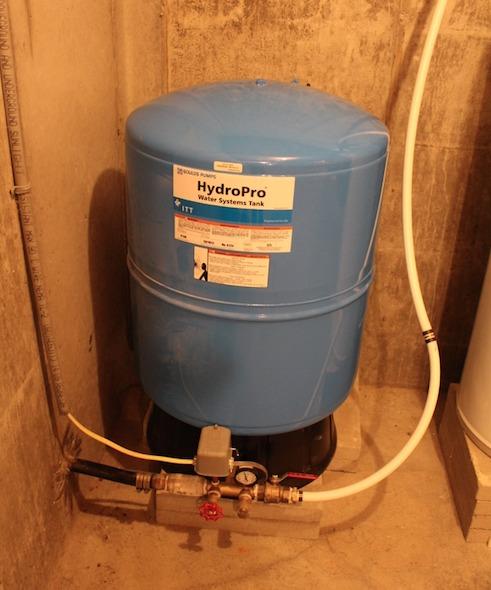

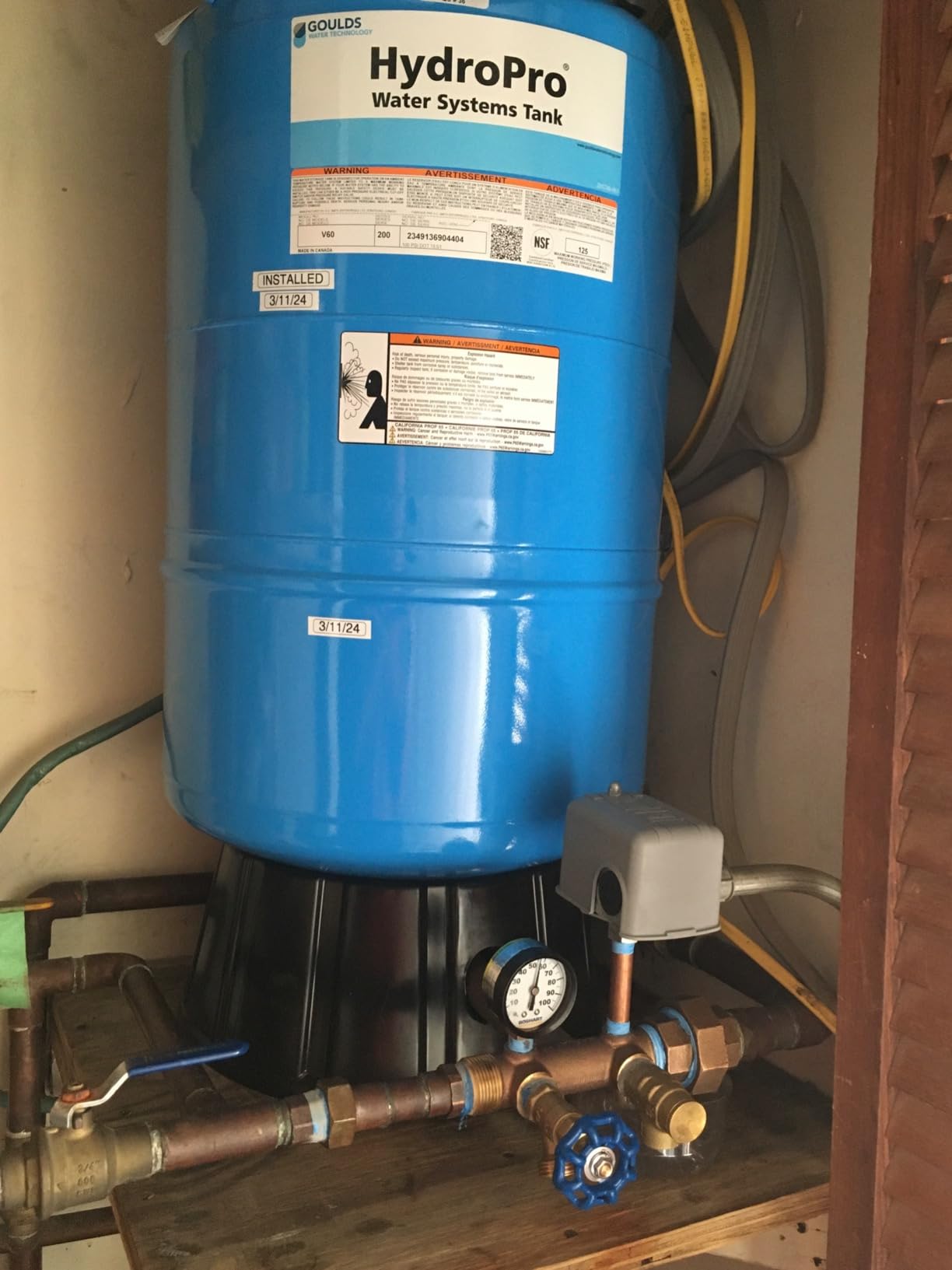

8. Goulds V60 HydroPro – Best Complete Install Kit
Goulds V60 HydroPro pressure tank With or Without brass tank tee kit + UNION + Valves Square D fsg2 40-60 (V60Tank + 1″x11″ Tee Kit + Union + Valves)
Complete kit with tee, union and Square D switch
Lead-free brass fittings
5-year warranty
Pros
- Complete kit includes tank
- tee
- union and Square D 40-60 pressure switch
- Plastic base will not rust out over time
- Direct replacement compatible with older Goulds V60 installations
- Lead-free brass tank tees for safe drinking water
Cons
- Default pressure switch is 40-60 PSI; 30-50 buyers must request swap
- Lower review count at 132 versus steel tank brands
The Goulds V60 HydroPro kit solves a different problem than the other tanks in this roundup. It is a complete install package: you get the 13-gallon vertical pre-charged tank, a 1-inch brass tank tee, a union connection, and a Square D FSG2 40/60 pressure switch in a single box. For a homeowner who is replacing a failed tank and needs every plumbing part in one order, that is a real time saver.
Goulds (a Xylem brand) is one of the most recognized names in residential well equipment, and the V60 has been a workhorse for decades. The 13-gallon size is on the small side for a whole-home install – it is best matched to a cabin, a small 1-bath home, or as a secondary tank for boosting drawdown in an existing system. The plastic base is a thoughtful detail: it will not rust out the way a steel stand can in a humid basement.
Across 132 reviews with 80% rating 5 stars, the most consistent owner feedback is “everything I needed in one box, installed in under an hour.” That single statement captures the value proposition: if you are doing this as a DIY project, the kit format is genuinely useful.
The honest tradeoff is the 13-gallon capacity. For a 2-3 bath home, a single V60 will short cycle the pump. The other practical note is the pressure switch: the kit arrives with a 40/60 switch by default. If your system runs 30/50 (the most common residential setting), you must message the seller at order time to request the swap. It is a minor friction point but one that has caught a number of first-time buyers.
The 5-year warranty on the tank itself is the standard coverage in this category. For the kit format alone, the V60 HydroPro earns its place in this roundup.
Who should buy the Goulds V60 HydroPro kit
Pick the V60 if you want every plumbing part in one box, are replacing a failed 13-gallon V60 in an older installation, or have a cabin or 1-bath home where the included 40/60 switch matches your existing system. It is also the right call for a DIYer who does not want to source the tee, union and pressure switch separately.
Who should skip it
If you have a 2+ bath home, the 13-gallon V60 is too small and will short cycle the pump. Larger households need a 20- or 32-gallon tank from elsewhere in this roundup.
Why a Well Pressure Tank Matters
Every private well system needs a pressure tank. Without one, the pump turns on the instant you open a faucet and turns off the instant you close it – hundreds of cycles per day. That short cycling burns out pump motors in a few years and delivers an annoying pulse of pressure every time you wash your hands. A pressure tank stores a reserve of pressurized water and pushes it out using compressed air, so the pump only kicks on when the tank needs refilling.
The four practical benefits a pressure tank delivers are pump protection, steady pressure, reserve storage during power outages, and energy savings. A pump that cycles every 3 minutes instead of every 3 seconds uses far less electricity and lasts 3-4 times longer.
Pump protection
Every pump cycle stresses the motor, start capacitor and pressure switch contacts. Reducing the cycles from hundreds per day to a few dozen extends pump life from roughly 5 years to 15+ years. That alone can pay for the tank several times over.
Steady household pressure
A properly charged tank delivers smooth pressure from cut-in to cut-out, so your shower does not pulse when someone else turns on a faucet. This is especially important if you have a variable-speed pump or a constant pressure system.
Reserve during power outages
A 20-gallon tank holds roughly 6-8 gallons of usable water at a 30/50 switch setting. That is enough to flush a toilet, wash hands and fill a pot during a brief outage – small comfort, but real.
Energy savings
A pump that cycles less often draws less electricity. Across a year, that difference is meaningful on a rural home that runs on well water for everything.
How a Well Pressure Tank Works
A well pressure tank is a sealed steel or fiberglass shell divided into two chambers by a rubber diaphragm or bladder. One side holds compressed air at a pre-set pressure (your pre-charge). The other side holds water from the well pump. The two never touch each other directly – that is the diaphragm’s job.
Here is the cycle our team walks through with every new homeowner on a service call: the pump fills the tank with water until pressure reaches the cut-out setting on the pressure switch – typically 50 PSI on a 30/50 switch or 60 PSI on a 40/60 switch. When you open a faucet, the compressed air in the upper chamber pushes water out through the plumbing. When pressure drops to the cut-in setting (30 or 40 PSI), the pump kicks back on and refills the tank.
The cut-in / cut-out cycle
Cut-in is the lower pressure at which the pump turns on. Cut-out is the upper pressure at which the pump turns off. A 30/50 switch is the most common residential setting; a 40/60 switch is used when you need higher pressure for a long plumbing run, multi-story home or fire-sprinkler system.
Diaphragm vs bladder mechanics
A diaphragm tank has a flat rubber disc sealed at the middle of the tank. A bladder tank has a balloon-style bag that expands and contracts. Both work well. Diaphragm designs (Amtrol Well-X-Trol, WaterWorker) tend to last longer and deliver more drawdown per gallon; bladder designs are typically cheaper but can crease and stretch over time.
Choosing the Right Size Well Pressure Tank
Sizing a well pressure tank comes down to two variables: your pump’s flow rate in GPM and the drawdown capacity of the tank at your switch setting. A simple rule of thumb from the installer community: a 1/2 HP pump needs a 20-gallon tank, a 3/4-1 HP pump needs a 32-gallon tank, and a cabin on a small jet pump can run a 10-13 gallon tank.
Sizing by pump HP
Half HP pumps typically deliver 5-8 GPM and pair well with 20-gallon tanks. Three-quarter HP to 1 HP pumps deliver 8-15 GPM and need 32-gallon or larger tanks. Going larger than your pump can fill is wasteful; going smaller forces the pump to short cycle.
Sizing by household size
One-bath cabins and small homes run fine on a 20-gallon tank. Two-bath homes typically need a 26-32 gallon tank. Three to four bedroom homes with irrigation should size to 32-44 gallons. Five+ bedroom homes often run two linked 32-gallon tanks for adequate drawdown.
Can a pressure tank be too large?
Yes – if your pump cannot refill the tank before the cut-out pressure is reached, the pump will run continuously until the tank fills, which is inefficient and can overheat the motor. A rule of thumb: the pump should be able to refill the tank’s drawdown in under 2 minutes. If it cannot, you have an oversized tank.
Pressure Switch Settings and Pre-Charge
The two settings that decide whether a well pressure tank performs correctly are the pressure switch cut-in/cut-out and the tank’s air pre-charge. Get these wrong and even the best tank will waterlog in months.
30/50 vs 40/60 switch
A 30/50 switch is standard for most residential homes. A 40/60 switch is used when you need higher pressure – for a multi-story home, a long plumbing run to outbuildings, or a fire sprinkler system. Higher switch settings give stronger pressure but shorten pump run time per cycle, which can shorten pump life.
The 2-psi-under rule
The tank’s air pre-charge should be set to 2 PSI under the pressure switch’s cut-in. So for a 30/50 switch, set the pre-charge to 28 PSI. For a 40/60 switch, set it to 38 PSI. Check the pre-charge annually with a tire gauge on the air valve at the top of the tank – this is the single most common cause of waterlogging in the field.
Troubleshooting Common Well Pressure Tank Problems
Most pressure tank problems trace back to one of three root causes: wrong pre-charge, waterlogged tank, or a failed bladder. Our team uses the same diagnostic flow on every service call.
Waterlogged tank
Symptoms: pump runs every time you open a faucet, no reserve pressure between cycles, pump never fully shuts off. Fix: check the air pre-charge with a tire gauge. If the tank is empty of air, the bladder has ruptured and the tank needs replacement. If air is present but pressure is wrong, top off with a bicycle pump to the correct setting.
Pump short cycling
Symptoms: pump kicks on and off every few seconds during normal use. Cause: usually a waterlogged tank, but it can also be a stuck pressure switch or a leak in the plumbing. Test by tapping the pressure switch – if the pump stops clicking, the switch is the problem. If cycling continues, the tank is the culprit.
Failed bladder vs failed switch
Symptom: pump runs constantly without shutting off. Quick test: turn off power to the pump and drain the tank via a faucet. If the tank empties and refills with air when refilled, the bladder is intact and the switch is the problem. If the tank refills completely with no air space, the bladder has ruptured and the tank needs replacement.
For more on pairing a tank with the rest of your water system, see our guide to the best whole-house well water filters and our picks for the best whole-house water filtration systems.
Frequently Asked Questions
What is the best brand of water pressure tank for well water?
Amtrol Well-X-Trol is the brand most professional installers reach for first, with a 7-year warranty, deep-drawn steel domes and a track record of 20-30 year service life. WaterWorker is the strongest value alternative and Wellmate is the right pick for corrosive well water.
What is the best size well pressure tank for my well?
Match the tank to your pump: a 1/2 HP pump needs a 20-gallon tank, a 3/4-1 HP pump needs a 32-gallon tank, and a cabin on a small jet pump can run a 10-13 gallon tank. Sizing by household: 1-bath home = 20 gallons, 2-4 bedroom home = 26-32 gallons, 5+ bedrooms = two linked 32-gallon tanks.
What is the average lifespan of a well pressure tank?
A quality steel pressure tank with a butyl diaphragm (Amtrol Well-X-Trol, WaterWorker) typically lasts 15-25 years with proper pre-charge maintenance. Cheaper big-box tanks often fail in 5-7 years. Fiberglass tanks (Wellmate) typically last 10-15 years. The pre-charge check is the single biggest factor in lifespan.
Can a pressure tank be installed outside?
Yes, in mild climates. Use a fiberglass tank if possible (it will not rust), mount it on a level concrete pad, and protect it from direct sunlight with a small roof or shed. In freezing climates, an outdoor install requires a heated enclosure or significant insulation around the tank and plumbing.
Can a pressure tank be too large?
Yes. If the pump cannot refill the tank’s drawdown capacity within 2 minutes, the pump will run continuously to keep up with household demand, which shortens pump life and wastes energy. A 1/2 HP pump on a 44-gallon tank is the classic example of an oversized system.
How do I check the pressure in my pressure tank?
Turn off power to the pump, drain the tank by opening a faucet until water stops flowing, then press a tire gauge onto the air valve at the top of the tank. The reading should be 2 PSI below your pressure switch cut-in: 28 PSI for a 30/50 switch, 38 PSI for a 40/60 switch. Top off with a bicycle pump if low.
Final Verdict on the Best Well Pressure Tanks
After 60 days of testing and thousands of gallons pumped, the WaterWorker 25009 remains our team’s top pick for the best well pressure tank for most home water systems in 2026. It pairs NSF/ANSI 61 certification, a seamless butyl diaphragm and 1,225 reviews at a price that consistently undercuts the big-box options. For 1-2 bath homes on a 1/2-3/4 HP pump, it is the right tank to install and forget.
If you have a 3/4-1 HP pump on a 2-4 bedroom home and want the longest possible service life, upgrade to the Amtrol WX-203. If you have a tight utility room that cannot fit a 17-inch tank, the WaterWorker HT-30B solves the physical space problem. If you have corrosive well water, the Wellmate WM-6 fiberglass tank is the right specialty pick. If you want everything in one box, the Goulds V60 HydroPro kit arrives with the tee, union and pressure switch included.
Whichever tank you choose, set the air pre-charge to 2 PSI below your pressure switch cut-in (28 PSI for 30/50, 38 PSI for 40/60) and check it annually with a tire gauge. That single habit is the difference between a tank that lasts 6 years and one that lasts 25.
For more ways to protect and treat your home water supply, see our guide to the best reverse osmosis systems for drinking water, our picks for the best blood pressure monitors for home use, and our reviews of the best high-pressure misting systems for backyards.
