A tire pressure monitoring system, or TPMS, is a battery-powered sensor mounted on each wheel’s valve stem that wirelessly reports tire pressure and temperature to the truck’s receiver, warning the driver before a blowout. A TPMS sensor does not stop a leak. It tells you about one early enough to do something about it.
That distinction matters more on a truck than on a sedan. Your factory TPMS light typically stays dark until a tire is roughly 25% under-inflated, which on a heavy half-ton is already a long way past the point where you would have felt it through the wheel. Trucks also run higher pressures, carry heavier loads, and see more temperature swing between a highway run and a cold trailhead. A live PSI readout catches what a warning lamp cannot.
We spent 2026‘s season comparing the best TPMS sensors for trucks currently on the market, focusing on the two things that actually decide whether a sensor works on your rig: frequency match and how much programming the sensor demands. This guide covers 12 sensors split into three groups. Pre-programmed direct-fit replacements that bolt into an OE wheel position and pair themselves. Programmable and dual-frequency sensors for shops and owners with a scan tool. And complete external monitoring systems for duallys, fifth wheels and tandem-axle trailers where the factory system cannot follow.
If you replace only the failed sensor, you can usually skip ahead to the product reviews. If you own no scan tool, or you tow, start with the room temperature sensor guide analogy later on in the buying guide, because calibration accuracy is the same problem in a different housing. We earn a commission, at no additional cost to you, when you buy through links on this page.
Table of Contents
Top 3 Picks for Best TPMS Sensors for Trucks (October 2026)
CDWTPS 315MHz GM Set of 4
- Pre-programmed for GM after 2006
- 315MHz
- Up to 10 year battery
- Set of 4
Autel MX-Sensor 315+433MHz
- Dual frequency in one sensor
- Unlimited cloning
- Interchangeable valves
- 2 year warranty
TireMinder i10 with 4 Transmitters
- Up to 40 tires
- 0-199 PSI range
- 3.15 inch color LCD
- Screw-on external transmitters
All 12 TPMS Sensors Compared in 2026
Every sensor below sits in one of the three buckets above. The single most important column to check before anything else is frequency: a 315MHz sensor on a 433MHz truck will never pair, no matter how good the rest of the spec sheet looks.
| Product | Specifications | Action |
|---|---|---|
| CDWTPS 315MHz GM Set of 4 |
|
Check Latest Price |
 MORESENSOR Signature 315MHz 4-Pack |
|
Check Latest Price |
 RENECTIV 433MHz Sensor for Ram |
|
Check Latest Price |
| TireMinder i10 RV TPMS with 4 |
|
Check Latest Price |
 CDWTPS 433MHz Ram Set of 4 |
|
Check Latest Price |
| Autel MX-Sensor 315+433MHz Set |
|
Check Latest Price |
 Masoll GM Set with Relearn Tool |
|
Check Latest Price |
 GUTA GT30 10-Sensor Trailer TPMS |
|
Check Latest Price |
 A-Premium 433MHz GM 4-Pack |
|
Check Latest Price |
 PUMBOAT 433MHz GM 4-Pack |
|
Check Latest Price |
 YYDZSMDM 315MHz GM 4-Pack |
|
Check Latest Price |
 Marsflex Ford 315MHz 4-Pack |
|
Check Latest Price |

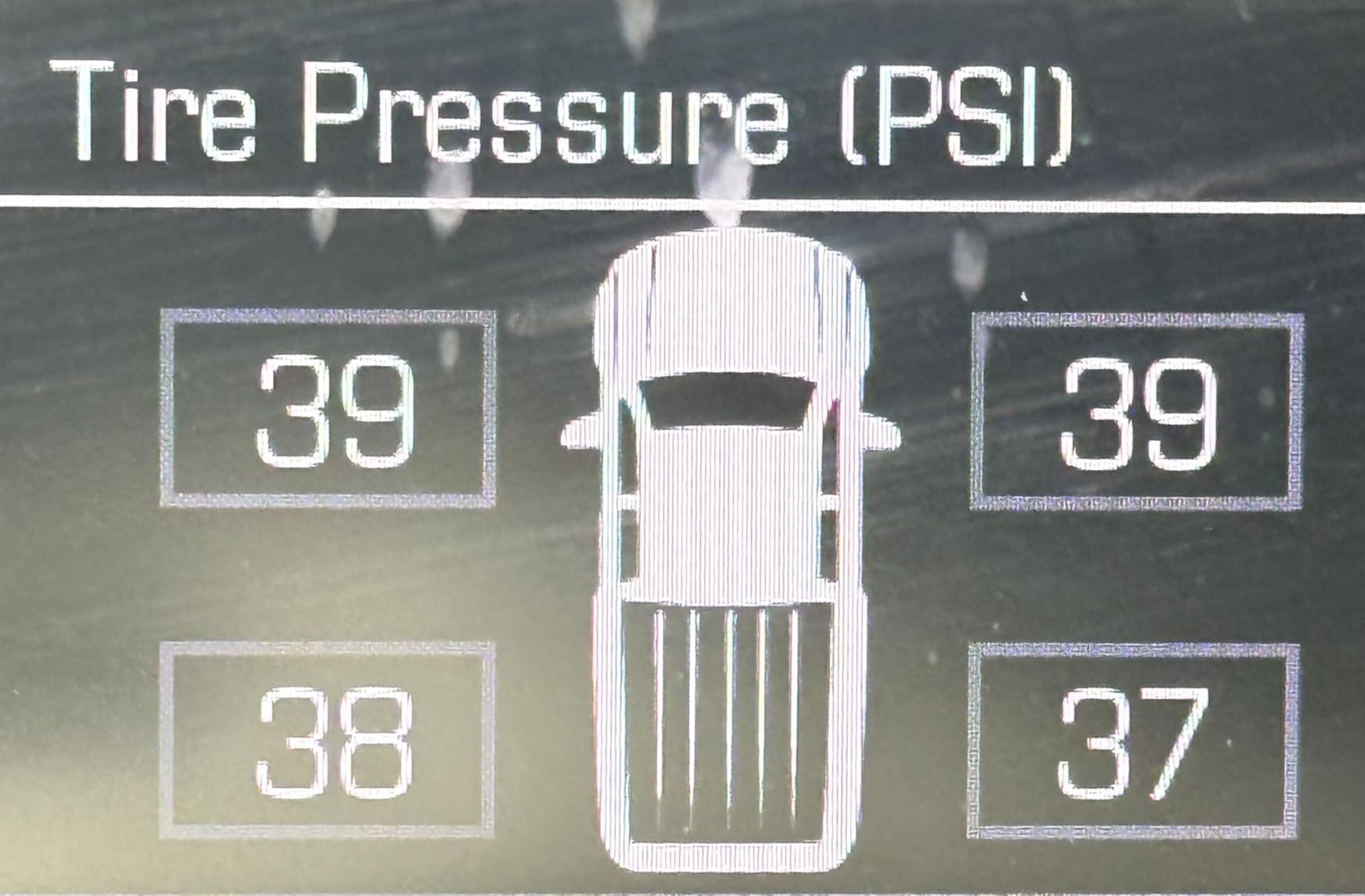

1. CDWTPS 315MHz GM Set of 4 – Best Overall Replacement Sensor
CDWTPS TPMS Sensors,GM 315Mhz Tire Pressure Monitoring Sensor
Set of 4
Pre-programmed for GM after 2006
315MHz
Up to 10 year battery
Pros
- Pre-programmed so only activation is needed
- Covers most GM trucks and SUVs after 2006
- Same parts and process as OE
- Large review base for real failure data
Cons
- 315MHz only so it skips 433MHz trucks
- Still needs a scan tool to activate after mounting
With more than 5,300 reviews behind it, this is the set we kept coming back to. It replaces OE numbers 13586335, 13598771 and 13598772 across Chevrolet, GMC, Cadillac and Buick trucks built after 2006, which covers a huge slice of the Silverado and Sierra population still on the road.
The sensors arrive pre-programmed, so you are not writing IDs onto them. You still have to activate them, which is a different job and the single biggest reason owners end up with a light that stays on.
Reported accuracy lands at plus or minus 1.5% with a usable temperature range from minus 40 to 125 degrees C, and the manufacturer claims a battery rated for up to 10 years of normal use. Across 5,354 reviews the average lands at 4.3, with most owners reporting accurate readings and working auto-relearn after activation.
The fitment list is wide but not universal. It is a 315MHz part, so any truck running 433MHz is excluded outright, and older vehicles outside the post-2006 GM window are not covered. Check your OE number before you order, not after.
Check the OE number before you buy
This is the cheapest possible insurance. Read the number molded into your old sensor or stamped on its body, and confirm it appears in the replacement list. A mismatched OE number is the number one reason a swap looks successful but the light never goes out.
What the reviews do not fix for you
Activation is not optional. If you have no scan tool and no access to a shop with one, you will be doing the relearn yourself later. Plan for that, or factor in the shop labor.
2. MORESENSOR Signature 315MHz 4-Pack – Best Value Pre-Programmed Set
MORESENSOR Signature Series 315MHz Pre-Programmed TPMS Tire Pressure Sensor 4-Pack | Clamp-in | Compatible with Select 500+ American Brand Models 20925924 20922900 15268606 | NX-S024-4
4 pack
315MHz pre-programmed
Metal clamp-in valve
5-8 year battery
Pros
- Reprogrammable with ATEQ VT56 and Mobiletron tools
- Metal stems look better on aftermarket wheels
- 5-8 year claimed battery life
- Step-up build versus budget no-name sets
Cons
- Fixed at 315MHz only
- Many tire shops refuse to relearn non-OEM sensors
This is the one we recommend to owners who want a metal valve stem on aftermarket wheels and do not want to think about programming. It is pre-programmed and relearn-ready, so a standard learn tool handles the pairing step.
Owners installing on GM trucks and Corvettes with a basic learn tool report accurate readings and cleared warning lights. The rating sits at 4.4 across 1,687 reviews, and the build quality reads as a step up from budget no-name sets.
It is also the only set in this guide that is genuinely reprogrammable rather than just pre-set, using an ATEQ VT56 or Mobiletron PT46/47. That means you can reuse the sensor on a different vehicle later instead of discarding it, and it is backed by a longer warranty than the one-year cover most budget sets carry.
The catch is frequency, again. This is 315MHz only, which rules out newer 433MHz applications. The second catch is social rather than technical: plenty of tire shops will not relearn a non-OEM sensor, so you may end up doing the learn yourself.

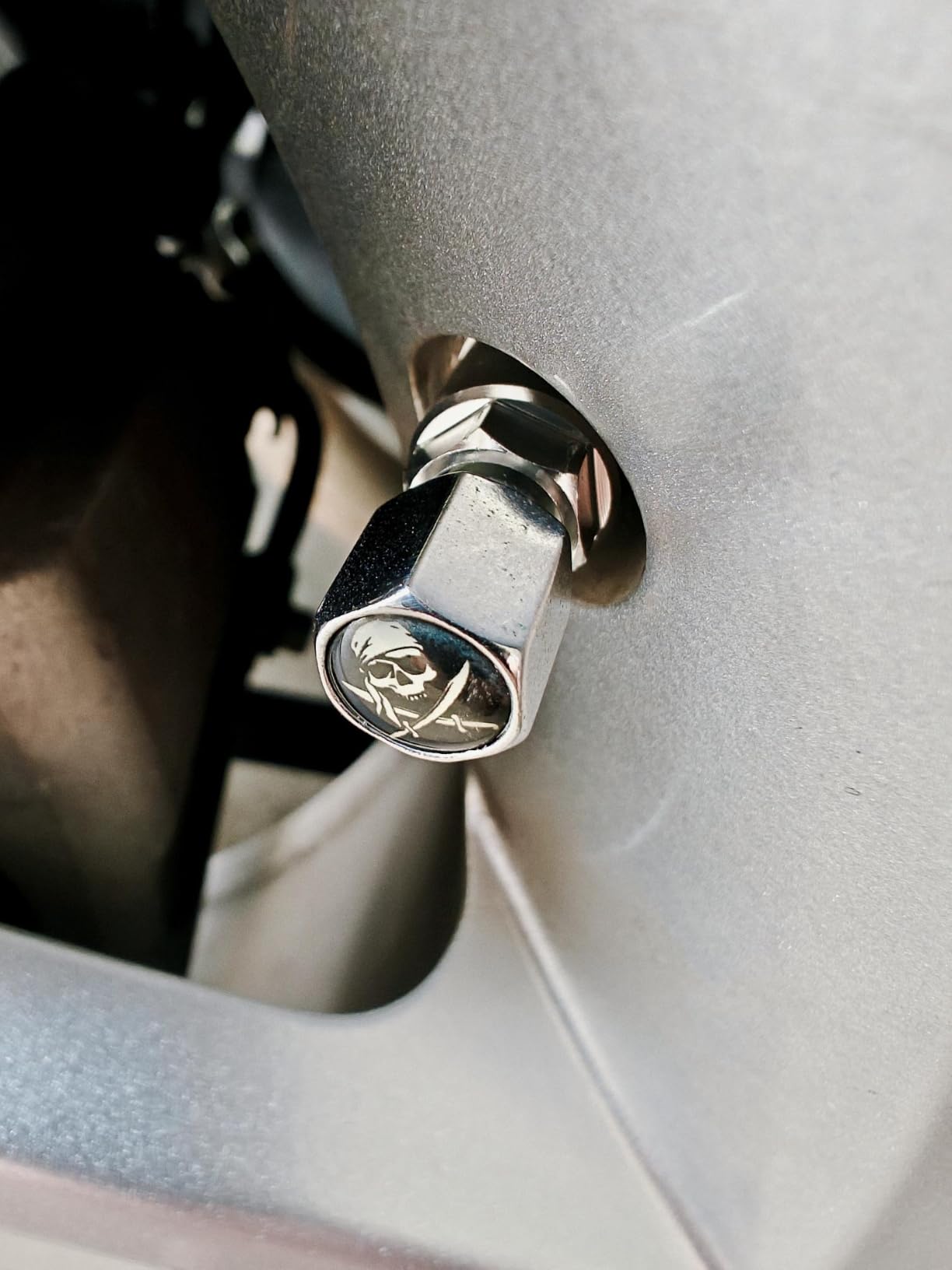

When the metal stem matters most
If your truck is on 20-inch-plus aftermarket wheels, a metal clamp-in stem is the right call. Rubber press-in stems are fine on stock rims but are the first thing to crack on a heavy truck running 35s or larger.
Why the shop may push back
Some shops treat non-OEM sensors as a liability and decline the relearn. Ask before you book, or learn to do the pair yourself with a budget learn tool. Confirm the sensor reads its ID, frequency, battery level and PSI before you mount it.

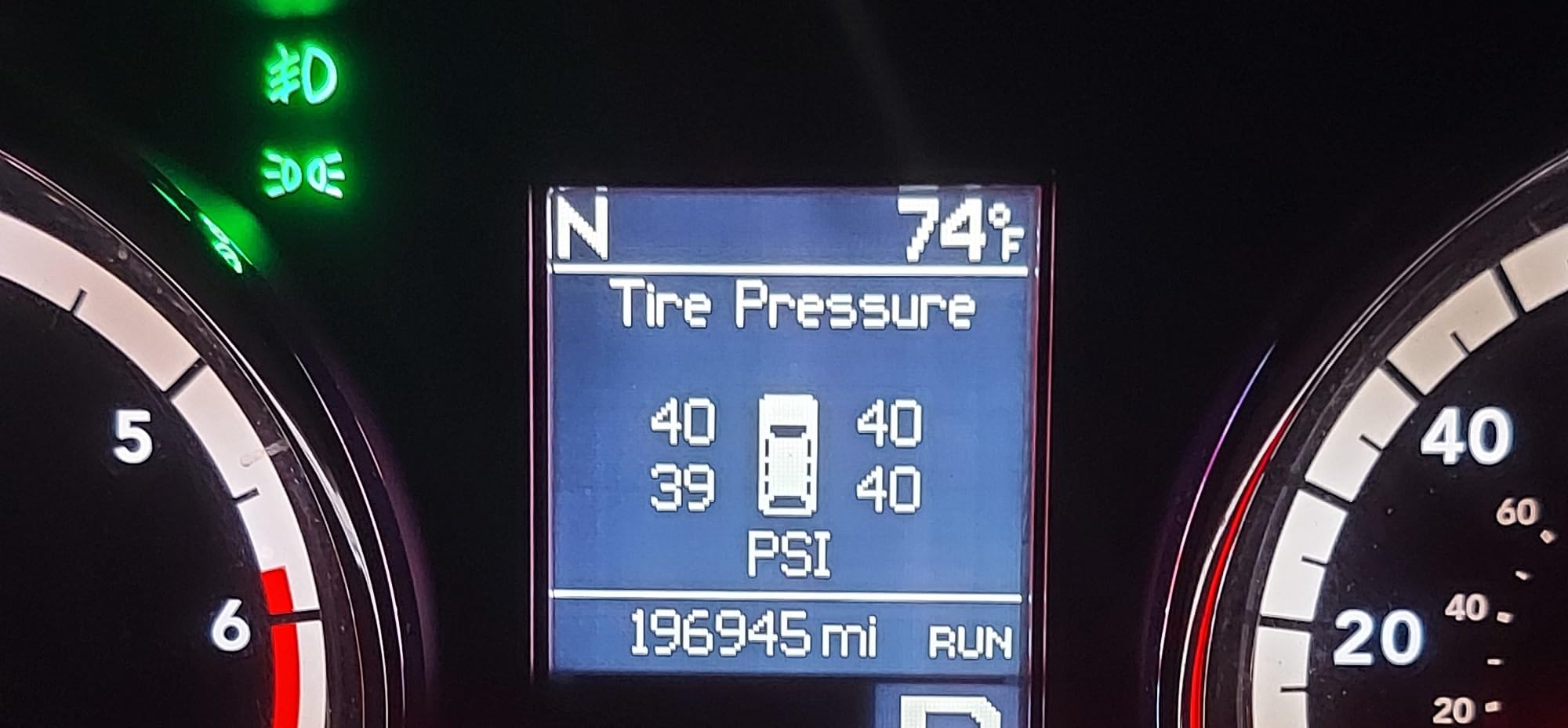

3. RENECTIV 433MHz Sensor for Ram – Best for Ram, Dodge and Jeep
RENECTIV TPMS Sensor,433Mhz Tire Pressure Monitoring Sensor
433MHz
Pre-programmed with auto-relearn
Reads to 110 PSI
CR2 battery included
Pros
- Auto-relearns after a 20-30 minute drive
- 433MHz matches Ram Dodge Jeep and Chrysler
- Reads to 110 PSI or higher
- One year warranty
Cons
- Fitment limited to 2010-2022 listed model years
- Fixed OE part numbers so no cross-brand use
Ram, Dodge, Jeep, Chrysler and Fiat have run 433MHz, and this set is built for exactly that group. It replaces 56029398AA, 56029398AB, 68241067AA, 68402371AA and several related numbers, which covers a large share of Ram 1500 through 5500 coverage.
Unlike a plain pre-programmed sensor, this one pairs itself. Owners report the sensors auto-relearn after a 20-30 minute drive with no separate tool, which removes the single most common reason a swap leaves a warning lamp glowing.
Pressure readings run to 110 PSI or higher across a minus 40 to 125 degree C range, so it is not limited to half-ton pressures. The battery is rated for more than five years of normal use. The 4.4 rating across 1,178 reviews comes almost entirely from Ram and Dodge owners.
Negative feedback clusters in one place: vehicles outside the listed year range. Because the sensor is pre-programmed for fixed OE part numbers, it will not adapt to a truck the chart does not name. Verify your year before ordering.
Best when you want zero tool involvement
Auto-relearn means no scan tool, no OBD dance, no shop appointment. Mount them, drive 20-30 minutes, and the truck finds them. For a weekend owner with a Ram, that is worth more than any spec on the sheet.
Where the year range bites
The coverage stops at 2022 for most of the listed applications. If you own a newer Ram, treat this as a no and look at a dual-frequency part or an external system instead of hoping the ECU will accept it.

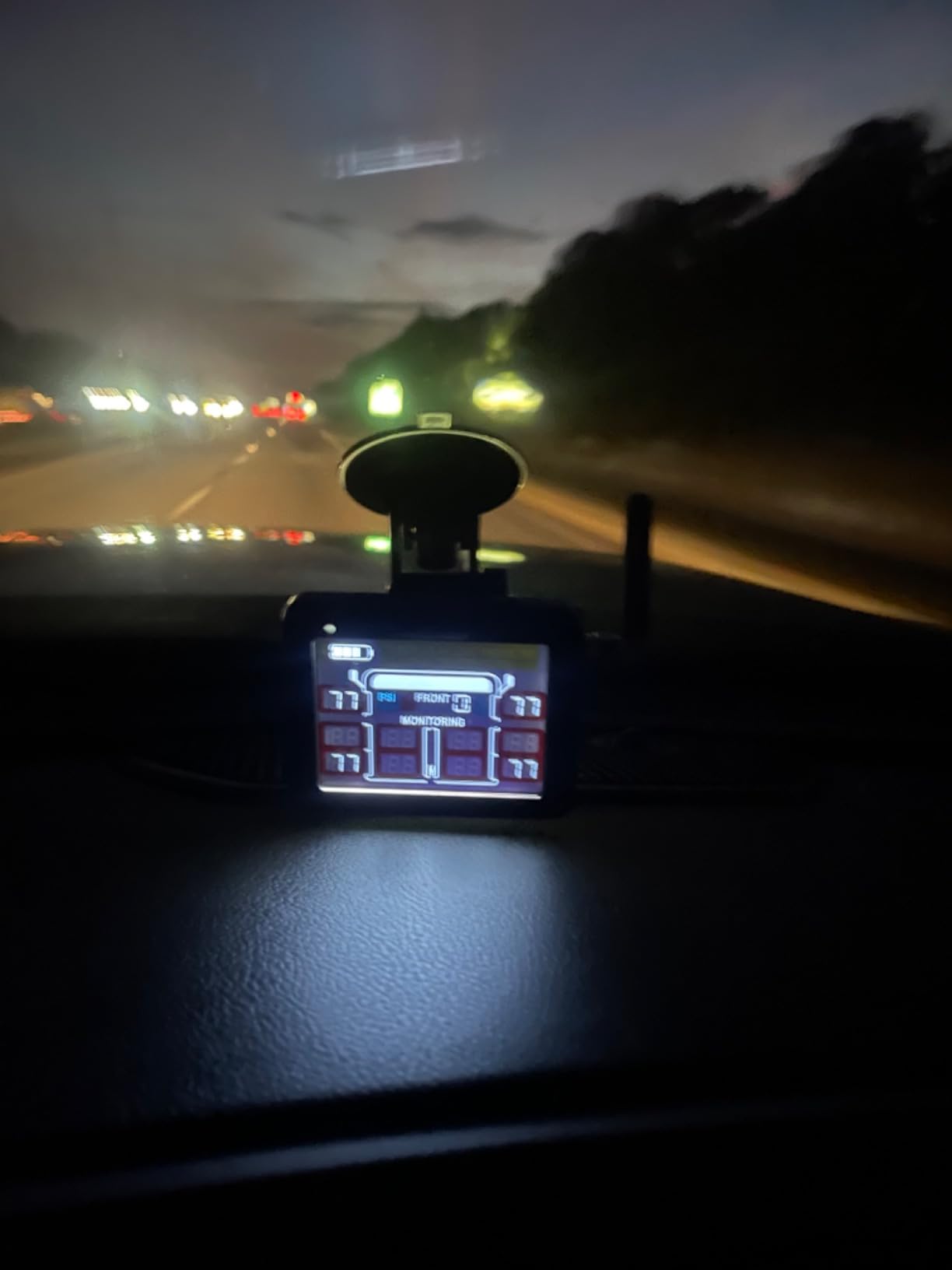

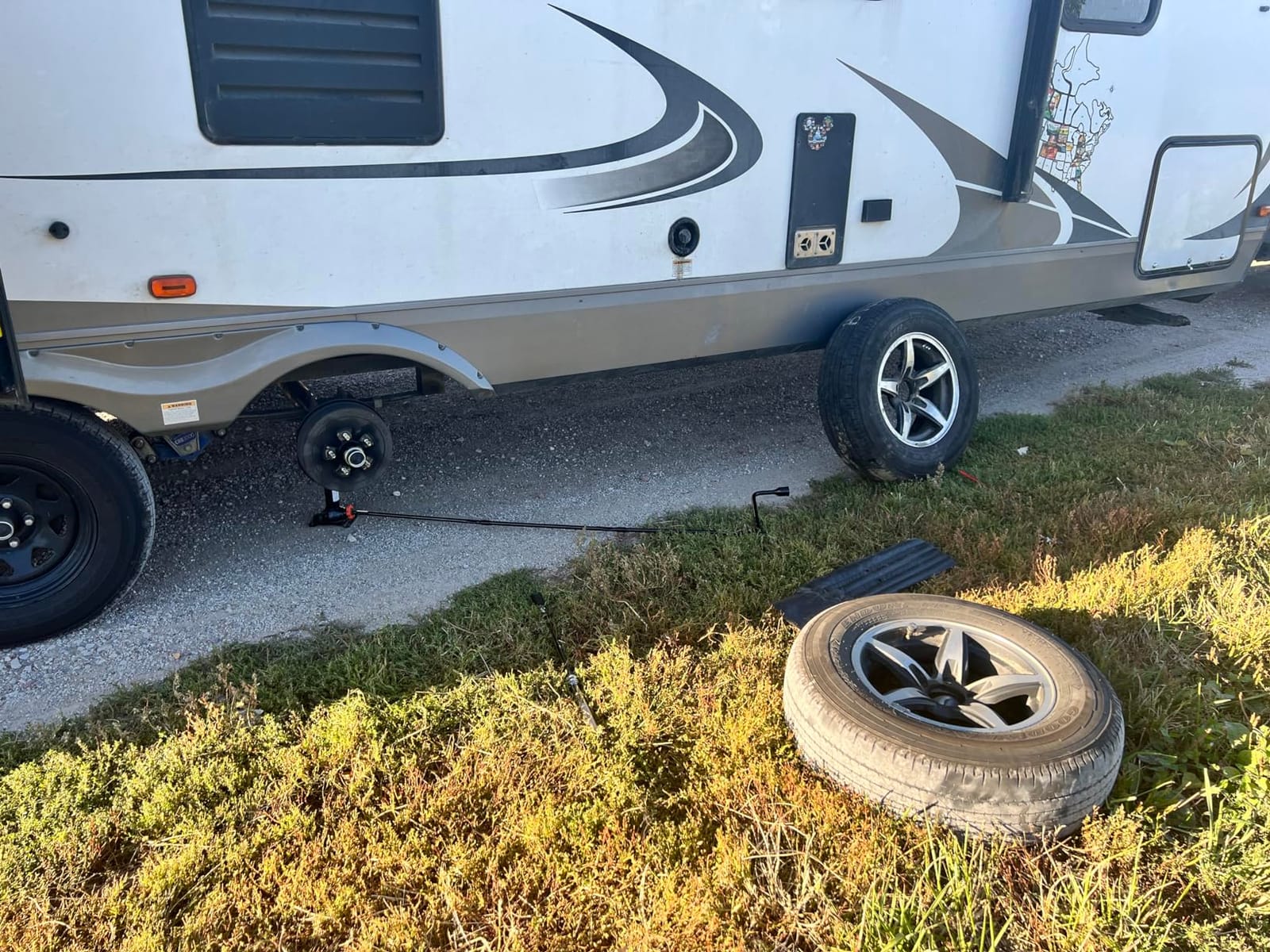

4. TireMinder i10 RV TPMS – Best for RVs and Trailers
TireMinder i10 RV TPMS with 4 Transmitters, Black
4 transmitters
Up to 40 tires
0-199 PSI at plus or minus 1 PSI
3.15 inch color LCD
Pros
- Monitors up to 40 tires at 0-199 PSI
- 3.15 inch color LCD with PSI or temperature
- Six second scan catches slow and fast leaks
- Independent of the truck TPMS
Cons
- Standalone system rather than an OE replacement
- Higher outlay than a set of four replacement sensors
Stop thinking of this as a sensor replacement and start thinking of it as a monitoring system. The i10 stands entirely on its own: screw-on external transmitters, their own display, their own alarms. Nothing pairs to your truck’s receiver, and nothing depends on the truck’s TPMS working at all.
It monitors up to 40 tires from 0 to 199 PSI with plus or minus 1 PSI accuracy, on a 3.15-inch color LCD that shows simultaneous PSI or temperature. The scan interval is six seconds, which is fast enough to catch a slow leak before it becomes a roadside event.
Owners of Class C RVs, motorhomes and fifth-wheel trailers rate it 4.4 across 1,050 reviews, and the recurring praise is a readable display and a dependable signal on long rigs. What separates it from cheaper kits is the tire count and the pressure ceiling, not the sensor itself.
The 199 PSI ceiling matters if you run Load Range E or F trailer tires, because many budget systems stop at 87 PSI and simply cannot read a commercial trailer tire. Setup does have a learning curve, and transmitter placement decides whether the signal is clean.
Right choice for a rig the truck cannot see
A factory TPMS monitors the truck’s own four tires and stops there. Trailer and dually tires are invisible to it unless the trailer has its own system. The i10 covers up to 40 tires, so one display can watch the truck, the trailer and the spare.
Where budget kits fail instead
Signal degradation is the reason cheaper systems frustrate owners on long combinations. Metal-sided trailers and a long fifth-wheel neck are exactly where a low-cost external system starts dropping readings, so transmitter placement is most of the fix.

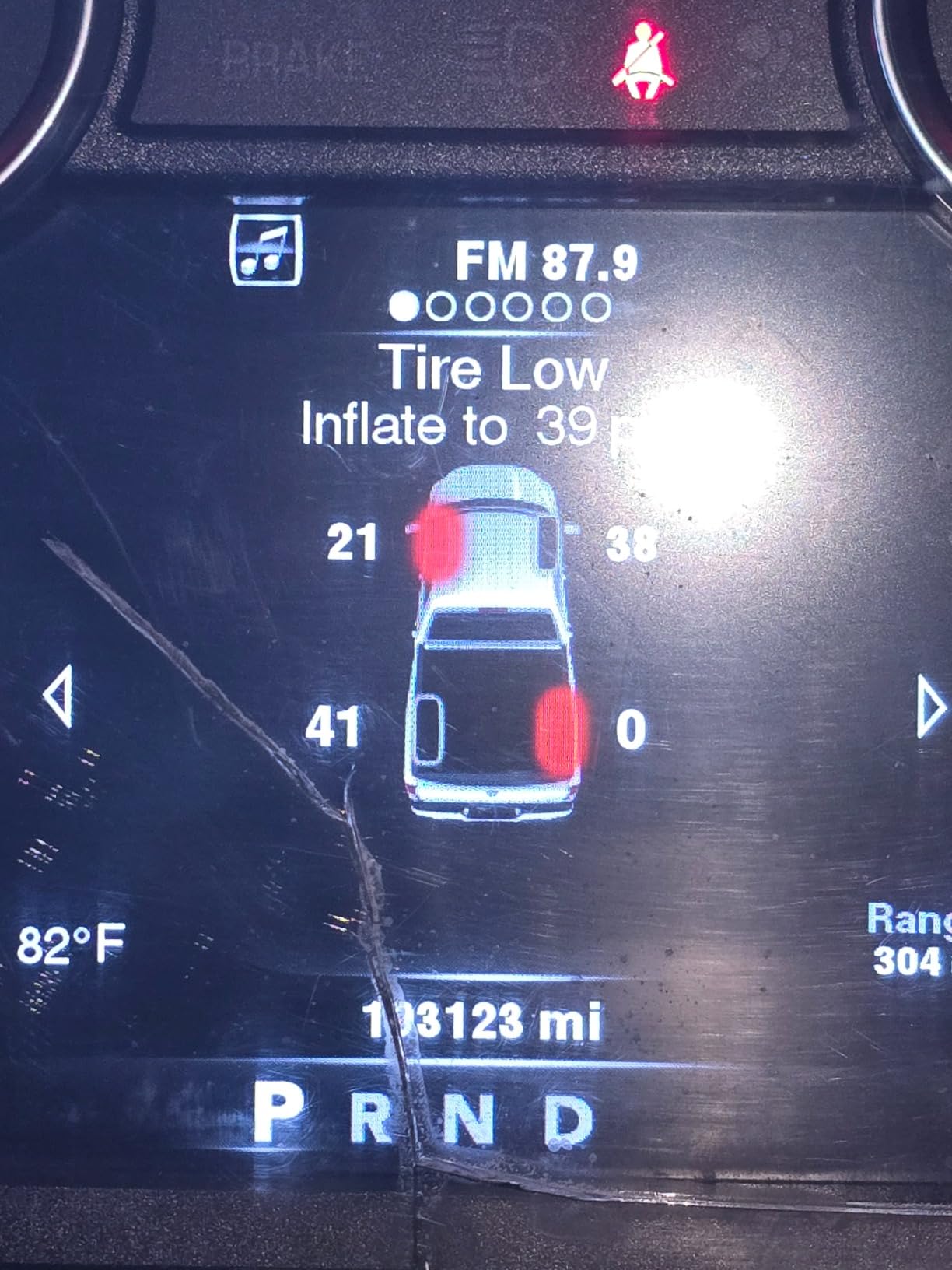

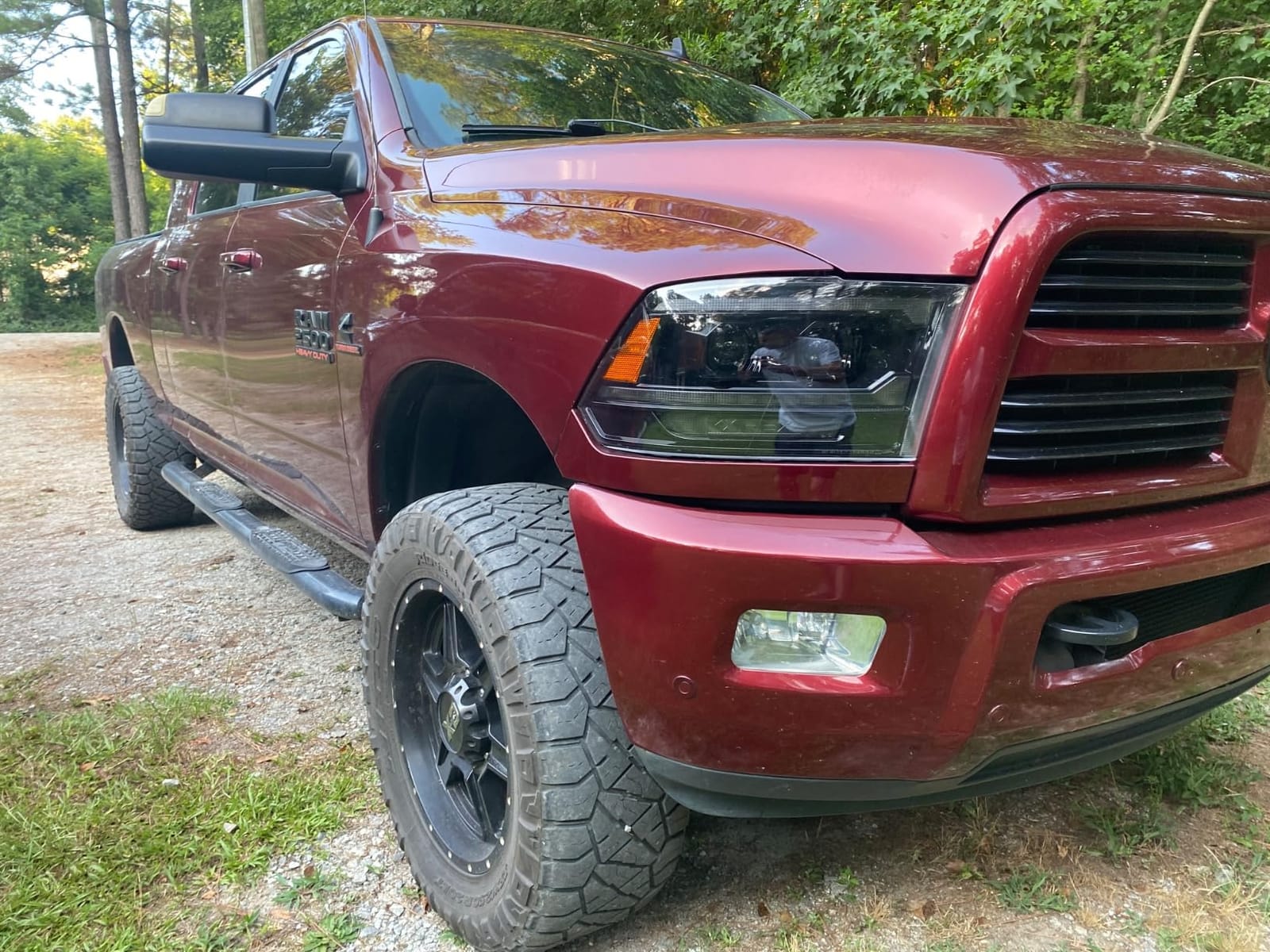

5. CDWTPS 433MHz Ram Set of 4 – Best for Fifth-Generation Ram
TPMS Sensor for Dodge Ram,433Mhz Set of 4 Tire Pressure Monitor Sensors
4 pack
433MHz for 2014-2022 Ram
Factory tested units
One year guarantee
Pros
- Direct fit for 2014-2022 Ram 1500 to 5500
- Self-registers after a test drive
- Each unit factory tested
- Pre-programmed OE replacement
Cons
- Will not fit 2019-2022 Ram 1500 DT 6-lug
- Does not communicate with 2024 and newer Ram BCMs
This is the narrowest and most confident set in the guide. It targets 2014-2022 Ram 1500 DS and DX five-lug, 2500, 3500, 4500 and 5500, plus the 2014-2021 Jeep Cherokee, replacing 68249197AA, 68239720AA and a list of related numbers.
It registers itself to the truck after a test drive, so a scan tool is not strictly required on supported trucks. That makes it a reasonable choice for an owner who wants a direct OE-style replacement without buying a programming tool.
Each sensor is factory tested before it leaves the building, and the set ships with a one-year guarantee. The rating is 4.2 across 718 reviews, with fifth-generation Ram owners reporting self-registration within a few miles and correct readings.
Two hard exclusions are worth stating plainly. It will not fit 2019-2022 Ram 1500 DT six-lug models, and it does not communicate with 2024-and-newer Ram body control modules even though the sensor is transmitting. Check your model year and lug pattern together.
Verify lug pattern and model year together
The DT six-lug exclusion is the trap here, because those trucks are otherwise inside the listed range. Cross-check the OE number on your failed sensor rather than the year alone.
What the 4.2 rating is telling you
The score is dragged down almost entirely by buyers on 2024-and-newer trucks, not by core function. If you are inside the supported range, the pattern in the reviews is favorable.

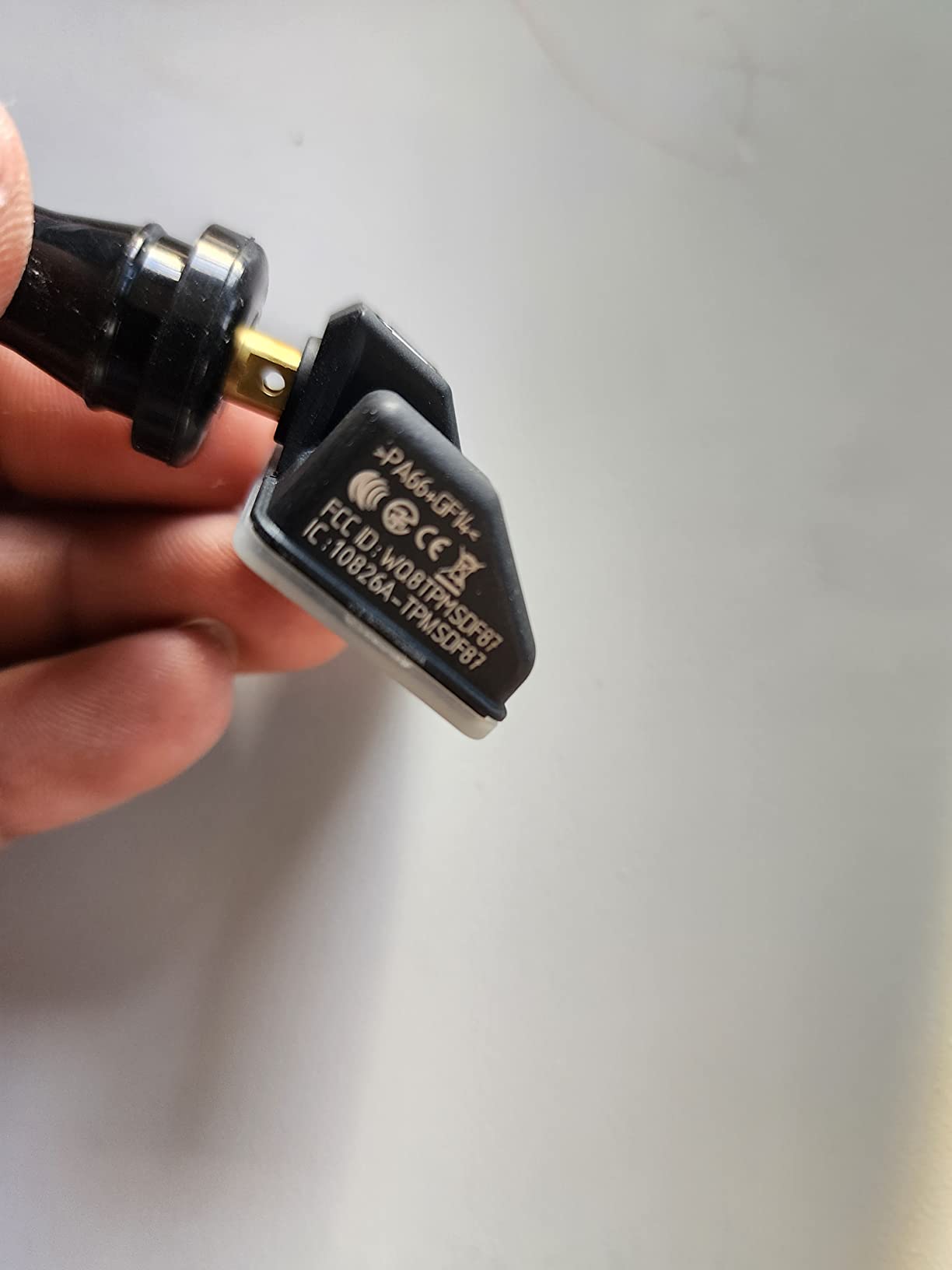

6. Autel MX-Sensor 315+433MHz Set of 4 – Best Programmable Sensor
Autel TPMS Sensors Set of 4, MaxiTPMS MX-Sensor 315+433MHz OE Quality
4 pack
315MHz plus 433MHz
100 percent clonable
13.6g sensor body
Pros
- One SKU covers 315MHz and 433MHz
- Unlimited reprogramming and ID cloning
- Interchangeable rubber and metal press-in valves
- 2 year warranty with free replacement
Cons
- Requires an Autel TPMS tool to program
- Not for 12V or 24V commercial vehicles or Bluetooth TPMS
For anyone who owns a programming tool, this is the one we recommend. A single 315MHz plus 433MHz body removes the frequency guesswork entirely and covers nearly every TPMS-equipped pickup in service, which matters if you own more than one truck or run a small shop.
Programming is unlimited and the sensors are fully clonable, so you can copy an original sensor’s ID and position rather than relying on a relearn. That is how you keep a winter set in a second truck without a dealer visit.
The hardware is good, not just the software story. The sensor body weighs about 13.6 grams, ships with both rubber and metal interchangeable valve stems, and carries a two-year warranty with a three-month free replacement policy plus round-the-clock tech support. The rating is 4.5 across 672 reviews, the joint-highest in this guide.
The limitation is real and it is not small: these require an Autel MaxiTPMS tool, and third-party scan tools cannot program them. They are also not compatible with 12V or 24V commercial vehicles or Bluetooth-based systems such as Tesla.
When one sensor for all brands pays off
Cloning turns this into the cheapest long-run option for a mixed fleet or a hobbyist with three trucks. Buy a single SKU, clone whatever ID each wheel needs, and the same box fits a Silverado and an F-150.
What you give up without an Autel tool
You cannot program these with anything else, and they will not work on commercial chassis or Bluetooth TPMS. If your rig is a 24V straight truck, this is the wrong product regardless of how good it is on a half-ton.

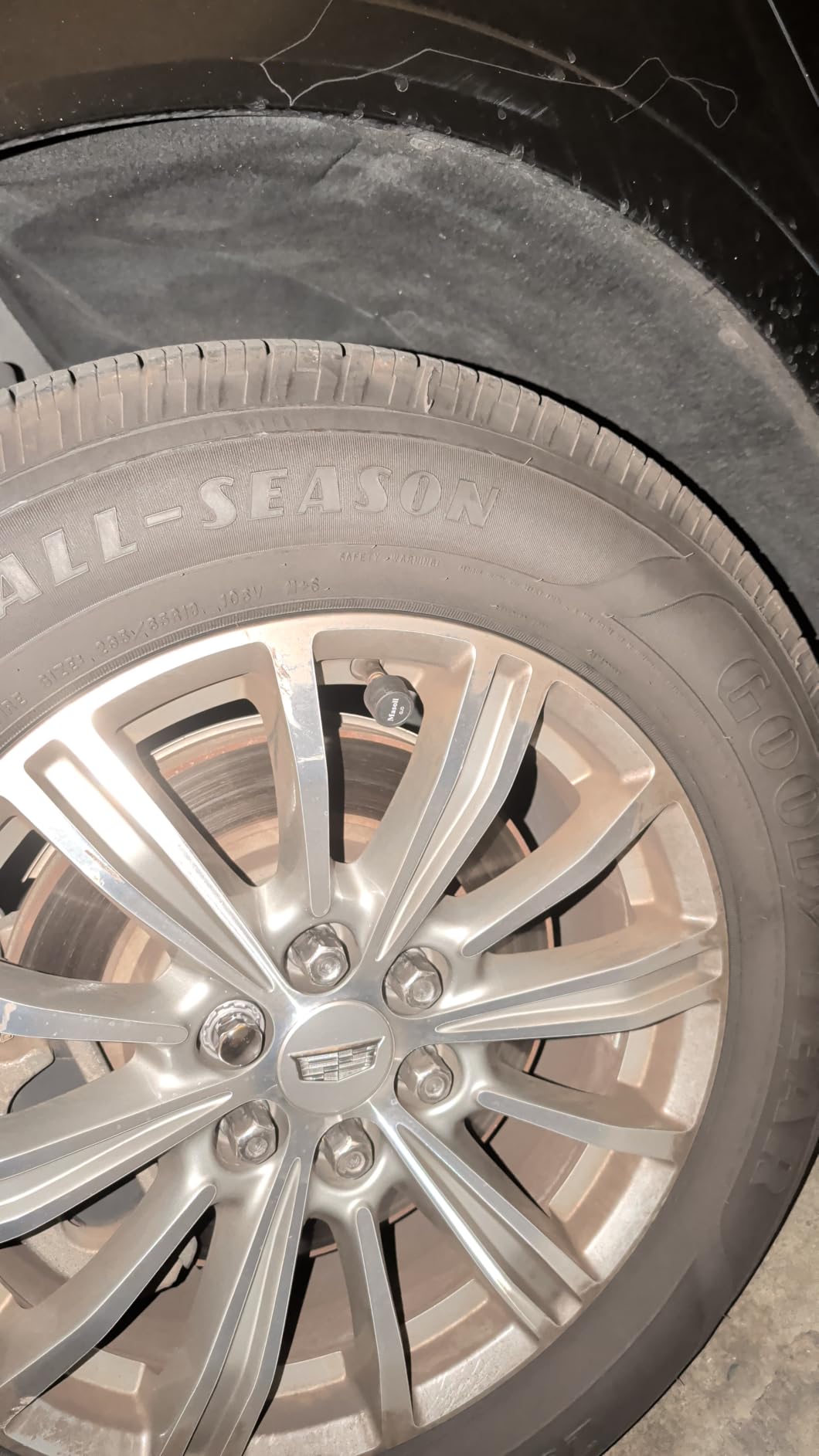

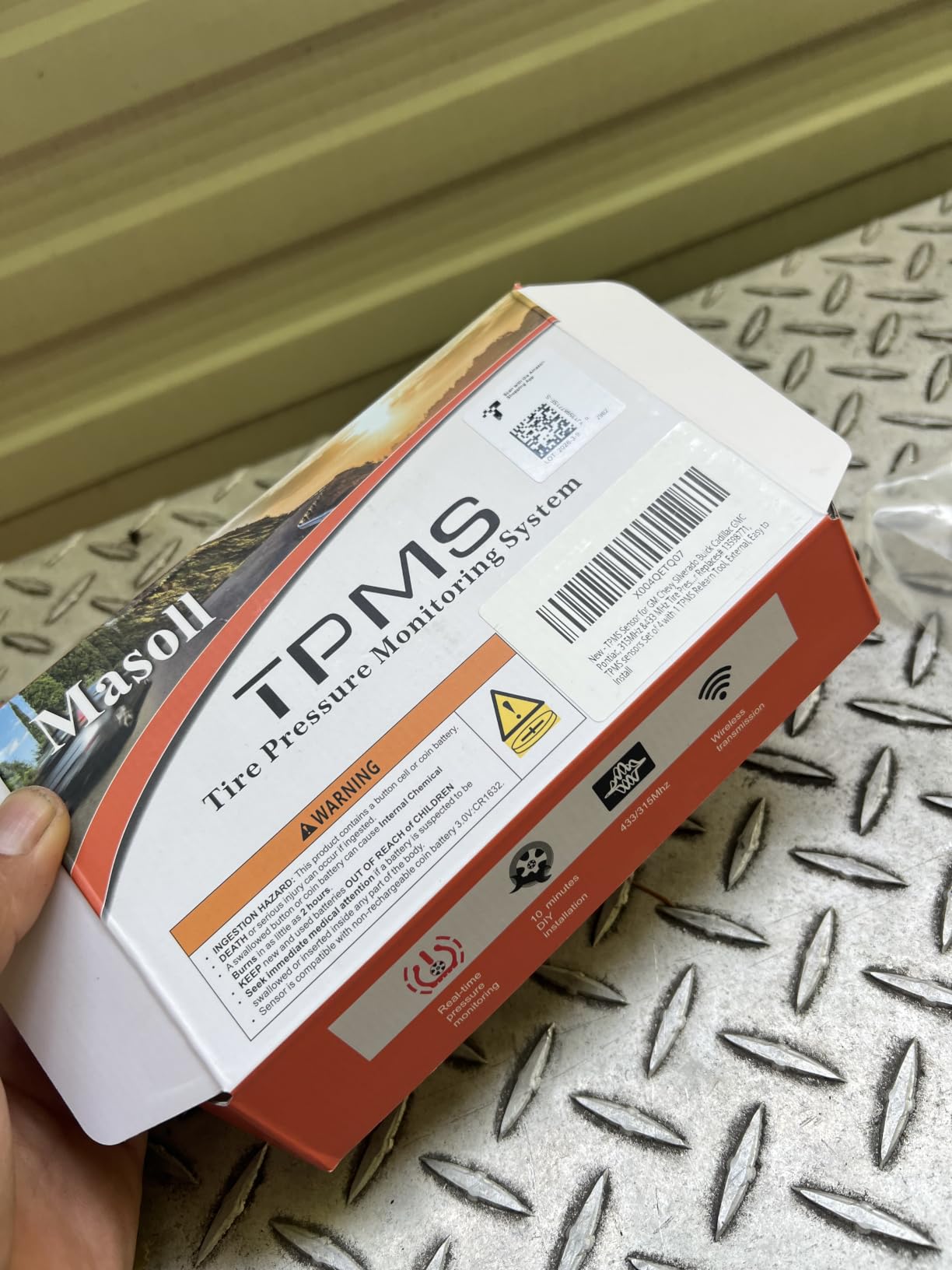

7. Masoll GM Set with Relearn Tool – Best DIY Kit for GM Trucks
Masoll TPMS Sensor for GM Chevy Silverado Buick Cadillac GMC, DIY Install
4 sensors plus relearn tool
Dual 315 and 433MHz
Plus or minus 1.5 PSI
Gen 2 design
Pros
- Dual 315MHz and 433MHz in one sensor
- Relearn tool included so no extra purchase
- 1.5 PSI accuracy over 0-100 PSI
- Factory-tested units
Cons
- Battery life about 2 years with a replaceable cell
- Coverage limited to GM-branded vehicles after 2006
This is the kit we recommend to a GM owner with no scan tool who does not want to buy one. Four sensors ship with an EL-50448 TPMS relearn tool in the box, and the sensors combine 315MHz and 433MHz, so the frequency question disappears.
Buyers installing on Silverado and Sierra report syncing to the ECU at home in about five minutes, which is the entire pitch. The rating is 4.5 across 622 reviews, tied for the highest here.
Accuracy is quoted at plus or minus 1.5 PSI over a 0-100 PSI range with factory-tested units, and the Gen 2 design claims a stronger transmission signal specifically for pickups. It screws onto the valve and pairs, with no balance or dismount required.
The reservation owners repeat is battery life. At roughly two years with a replaceable cell, it is well short of the 5 to 10 year claims from other brands, and you will be opening the valve again when it goes. Fitment is also limited to GM-branded vehicles after 2006.
Best fit for a GM owner with no tools
Including the relearn tool is unusual at this level, and it removes the most common reason a swap leaves a light on. Dual frequency on a Silverado is the other half of why this kit works so easily for a first-timer.
Watch the battery, not the accuracy
A two-year replaceable battery means one more valve visit per wheel over a typical ownership window. If you plan to keep the truck long-term, weigh that against a sealed 5-year sensor before deciding.

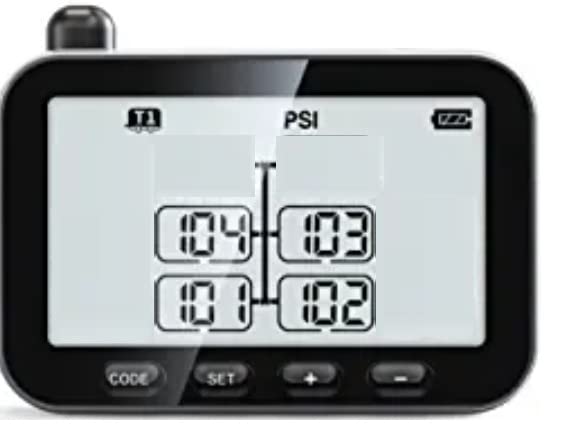

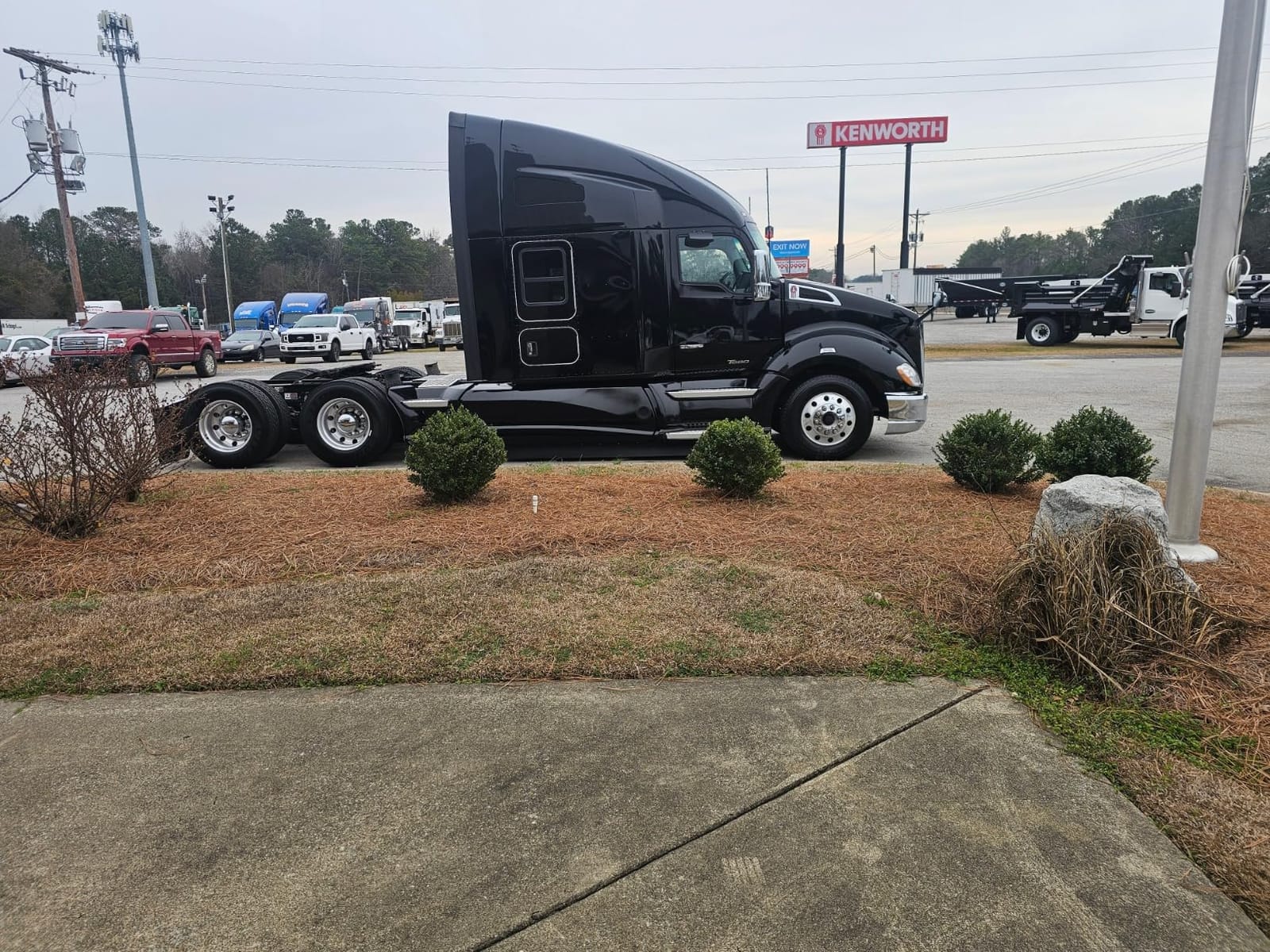

8. GUTA GT30 10-Sensor Trailer TPMS – Best for Heavy-Duty Hauling
GUTA GT30 Trailer Tire Pressure Monitoring System, RV TPMS with 10 Sensors
10 sensors
Up to 10 tires per page
Wireless programming
Large color display
Pros
- Reads up to 10 tires of data per page
- Wireless programming before mounting
- Alerts for leaks and low sensor battery
- Large display with auto front and rear switching
Cons
- Manufacturer recommends metal valve stems
- Loses charge faster than a hardwired unit
The GUTA GT30 is built for a rig, not a daily driver. Ten sensors land in a truck plus tandem-axle trailer configuration, and the pressure ceiling is the headline spec: it is aimed at commercial Load Range E and F tires that most budget systems cannot measure at all.
Wireless programming means you assign sensors to positions before mounting, which removes the awkwardness of programming cap sensors while they are halfway up a lift. Up to 46 tires are viewable, ten per screen, with automatic front and rear switching.
Alerts cover high and low pressure, high temperature, fast leak, missing sensor signal and low sensor battery, with both visual and audio warnings. A signal booster is offered separately for long trailers where the display sits far from the sensors.
The rating is 4.4 across 617 reviews from trailer and RV owners. Two things to plan for: the manufacturer explicitly recommends metal valve stems for reliable performance, and a battery-powered monitor will lose charge faster than a hardwired unit on a long haul.
Read the PSI ceiling first
If your trailer tires run 110 PSI or above, a system capped at 87 PSI is not a budget option, it is incompatible. This one is specced for the pressure range commercial haulers actually run, which is the reason it makes our list for hauling.
Metal stems are not optional here
The maker is direct about installing cap sensors on metal valve stems. Screwed-on sensor weight plus centrifugal force is what cracks rubber stems on a working truck, so plan the stem swap into the install.
9. A-Premium 433MHz Pre-Programmed 4-Pack – Widest GM Fitment List
A-Premium 433MHz Pre-programmed TPMS Sensor Tire Pressure Monitoring Sensor
4 pack
433MHz
Plus or minus 0.06 Bar
Aluminum valve -40 to 120 C
Pros
- Broad GM fitment across Silverado Sierra Blazer and Tahoe
- High-precision NXP chip with SAE J2657 testing
- Aluminum valve pairs with OE rubber valves
- Long reference OE number list
Cons
- Relearn still required despite being pre-programmed
- Some 2021+ Blazer and Yukon XL buyers report no detection
The A-Premium list is the longest in this guide, covering Silverado 1500 through 5500, Sierra 1500 through 3500, Blazer, Traverse, Acadia, Tahoe, Escalade, XT4, XT5, XT6, CT6 and more. If you own a late GM truck and want one part number to cover it, this is the candidate.
Build detail is better than the price suggests: an aluminum-nylon valve body, a high-precision NXP chip, FCC and IC certification, SAE J2657 in-house testing, and a long-life battery rated from minus 40 to 120 degrees C.
Accuracy is quoted at plus or minus 0.06 Bar, the tightest tolerance on our list, and it pairs with a budget relearn tool on GM trucks. The 4.3 rating comes from 498 reviews.
Two cautions. Pre-programmed does not mean auto-pairing, so a relearn or reset procedure still applies. And a consistent minority of 2021+ Blazer and late-model Yukon XL buyers report the module will not detect the sensors at all, despite the published fitment list.
When the long fitment list earns its keep
If you rotate a Silverado and a Traverse, or you own a Blazer and an Acadia, one part number covering all of them is genuinely useful. The reference numbers span 13516165, 13522631, 13528563, 13598773 and more.
Where the accuracy claim gets tested
One reviewer measured these about 2.5 PSI low against two gauges and the original OE sensors. Tolerance is not accuracy, so treat the plus or minus 0.06 Bar figure as a lab number and verify with your own gauge after installation.

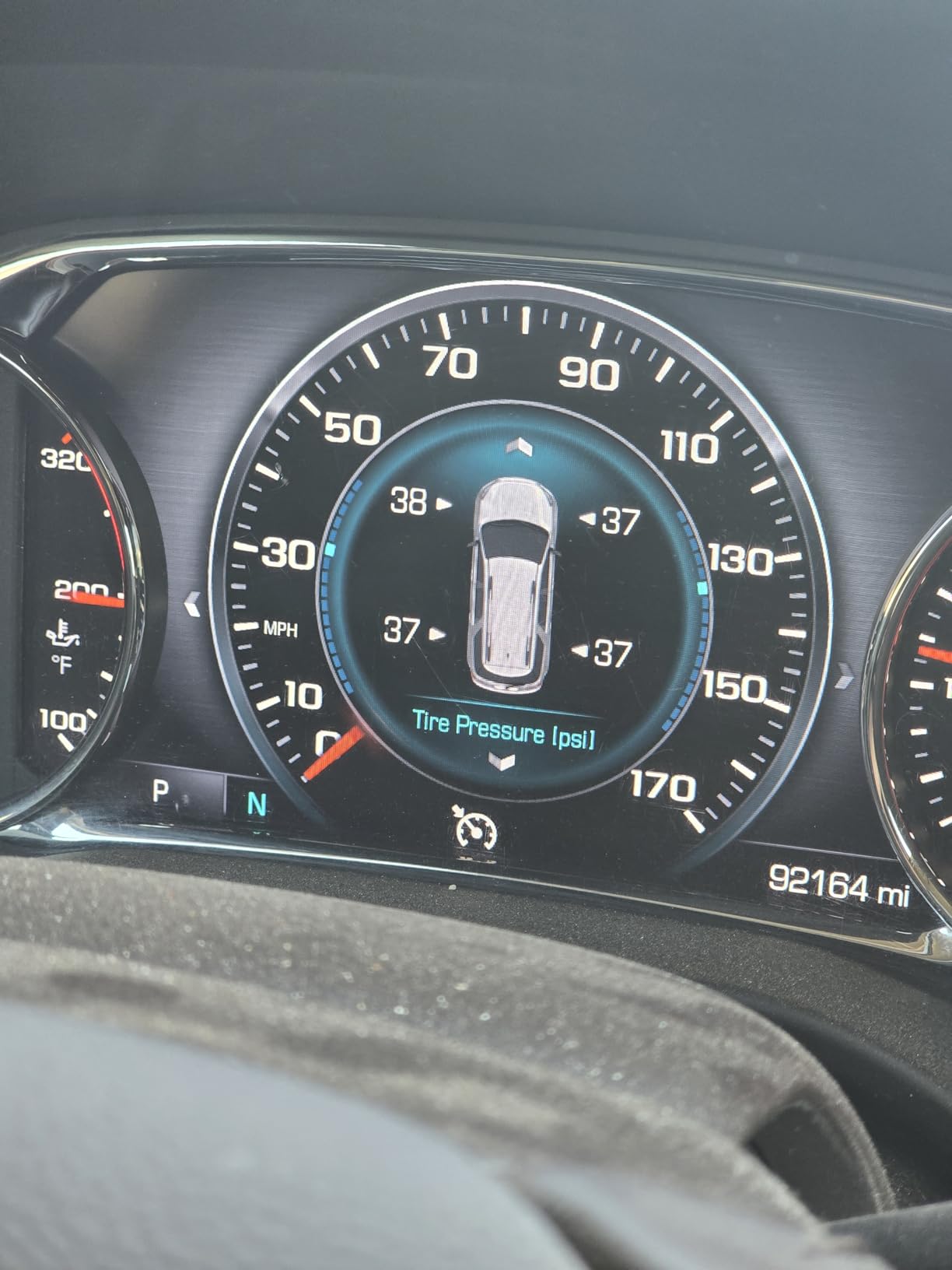

10. PUMBOAT 433MHz GM 4-Pack – Best Match for 2019-2025 Silverado and Sierra
TPMS(Tire Pressure Sensor) 433MHz FIT Silverado/Traverse/Sierra/Blazer 4pcs
4 pack
433MHz
30 second rapid sync
Sub-one-second alerts
Pros
- Pre-programmed for 2019-2025 Silverado and Sierra
- 30 second sync and sub-second alerts
- Rated minus 40 to 125 degrees C
- Factory pre-programmed from the OE
Cons
- Relearn still needed via infotainment or OBDII
- Some reports of early sensor failure
Newer GM trucks moved to 433MHz, and this set is built for that generation specifically. It covers Silverado 1500 from 2019-2025, Silverado 2500 and 3500 from 2020-2025, plus Sierra 1500, 2500 and 3500 across the same span.
Speed is the differentiator on this listing. A 30-second rapid sync and sub-one-second alert response mean you are not waiting on a slow handshake to find out a tire is down, and the operating range runs from minus 40 to 125 degrees C.
The OE cross-reference is wide, covering 13598773, 13589601, 13506028, 13594222, 13512347 and 13516165. The accuracy figure is plus or minus 0.87 PSI, and it carries a one-year manufacturer warranty.
The rating is 4.2 across 485 reviews. Owners on Silverado and Sierra report a clean OBD relearn and correct readings. A smaller group reports a sensor failing within hours or the dash light returning after two months, and the maker warns that reprogramming factory pre-programmed units can void them.
Why sync speed is not a gimmick
A 30-second sync matters when a blowout is in progress rather than on a Sunday drive. Faster handshake means the alarm reaches you while there is still a shoulder to pull onto.
Read the reprogramming warning carefully
These come pre-set from the factory. The manufacturer explicitly warns against reprogramming them, so a generic scan tool can lock you out of a working sensor. Use the infotainment relearn or an OBDII relearn instead.
11. YYDZSMDM 315MHz GM 4-Pack – Best for 2007-2019 GM Trucks
TPMS(Tire Pressure Sensor) Fits Silverado.Impala.Tahoe.Suburban 4pcs 315Mhz
4 pack
315MHz
Broad GM coverage
Replaces many OE numbers
Pros
- Broad Chevrolet GMC Cadillac and Buick coverage
- Factory pre-programmed so no programming needed
- Covers Silverado Tahoe Impala and Sierra
- Replaces 13586335 and 15268606 among others
Cons
- Still needs an OBDII relearn to pair
- Unbranded maker with limited long-term verification
This set fills a specific gap: 315MHz GM trucks from the 2007-2019 era. It fits Silverado 1500, 2500 and 3500 across those years, Tahoe and Suburban from 2007-2020, and Impala from 2006-2020, replacing 13586335, 13598771, 13598772, 15268606 and 13516164.
The rating is 4.5 across 218 reviews, with roughly 80% five-star and 9% four-star. The coverage extends well past trucks into Equinox, Malibu, Traverse, Camaro, Sierra, Yukon, Escalade and more, so it is a broad GM basket rather than a truck-only part.
The sensor is factory pre-programmed, which is the headline convenience, and it is sold as a four-piece set at a price that undercuts most name-brand equivalents. Fitment is broad, but the accuracy and battery figures printed on budget sets of this type are worth verifying with your own gauge after the first drive.
The honest caveat is the word pre-programmed. The maker recommends an OBDII relearn as the most stable pairing method, and buyers without scan tool access can end up with sensors that never talk to the ECU. This is also an unbranded manufacturer with limited independent long-term verification.
Best for older single-axle GM trucks
If you are on a 2007-2019 Silverado and want the tire monitored for a long time, the factory pre-programmed IDs and the broad OE number coverage are the reasons to pick it. Older rubber stems are the other reason to consider a metal-stem alternative.
Verify the sensor before it goes in the tire
The maker’s own guidance is to stop the install if a TPMS tool cannot read the sensor’s ID, frequency, battery level or PSI. Checking all four on the bench takes less time than a dismount later.
12. Marsflex Ford 315MHz 4-Pack – Best for Ford F-150 and Super Duty
Marsflex TPMS Sensors Fit for Ford F150 F250 F350 Escape, OE 9L3Z-1A189-A
4 pack
315MHz for Ford
CR2050HR battery
2 year coverage
Pros
- Wide Ford Lincoln Mercury and Mazda fitment
- Replaces 9L3Z-1A189-A and DE8T-1A180-A
- CR2050HR battery rated 5-8 years
- Pre-programmed to OEM specification
Cons
- Requires an Autel MaxiTPMS or similar scan tool
- Some reports of leaking valve cores and dead on arrival units
Ford is the one major truck brand in this guide without a strong option in our set, and this is the closest thing to one. It covers 2009-2014 F-150, 2009-2016 F-250 and F-350 Super Duty, plus Escape, Explorer, Transit, Expedition, Mustang and a long list of Ford and Lincoln nameplates.
It is pre-programmed and activates quickly once a scan tool is used. The CR2050HR battery is rated for 5-8 years across a minus 40 to 125 degree C range, and the coverage list of OE numbers includes 9L3Z-1A189-A, DE8T-1A180-A and CM5T-1A180-AA.
The 4.0 rating across 224 reviews is the lowest here, and the reviews explain why. The critical pattern is activation: these do not self-pair, so a TPMS scan tool such as an Autel MaxiTPMS is required. A failed pairing leaves the low-pressure lamp on, and some buyers reported dead units on arrival.
There is also a smaller but real group reporting valve core leaks within a few hundred miles. Check for a leak after mounting, and note that the warranty covers product value only, not installation labor or towing.
Buy it only if you already have a tool
The fitment breadth is genuinely useful for a mixed Ford and Lincoln household. Without a scan tool in your kit, though, this becomes a box of four sensors that cannot be activated.
Watch for a slow leak right after install
Two failures inside roughly 400 miles are reported, and a leaking valve core is a five-minute fix if you catch it. Re-check pressure with your own gauge after the first drive rather than trusting the sensor alone.
How to Choose a TPMS Sensor for Your Truck
Programmable, pre-programmed, or complete system
Programmable sensors ship blank and get written with a TPMS scan tool such as an Autel TS508 or an ATEQ VT30. They are the shop and enthusiast answer because one part number fits many vehicles, and cloning an original sensor ID means no relearn at all.
Pre-programmed sensors arrive holding OE IDs and pair with the truck, usually during a 12-30 minute drive above 15 mph. They are cheaper and simpler, but each one is locked to specific makes, model years and frequencies. Complete external systems skip the truck entirely: screw-on transmitters, their own display, their own alarms, nothing to relearn.
315MHz or 433MHz: the one spec that decides everything
Frequency is the make-or-break spec. GM, Toyota and most Honda and Subaru applications run 315MHz. Ford, Ram, Dodge, Jeep, Chrysler and Fiat run 433MHz. A wrong-frequency sensor transmits perfectly and pairs never.
Five steps to check yours:
1. Read the OE part number molded into your current sensor and search that number for a frequency. 2. Look at the replacement chart for your specific year and trim, not the brand generally. 3. If the truck is a 2020 or newer GM, assume 433MHz. 4. If it is a Ford, Ram, Dodge, Jeep or Chrysler, assume 433MHz. 5. Confirm with a TPMS tool before mounting, since a cheap relearn tool reads frequency directly.
PSI range and the Load Range E problem
Most budget external systems cap at 87 PSI, which is fine for a half-ton on its original tires and useless for a commercial trailer. Load Range E and F trailer tires run 110 PSI and above, so if you tow commercially you need a system that reads to at least 120 PSI. Read the ceiling on any system you are considering before you mount a single transmitter.
Internal replacement sensors are less of a concern here, since they inherit whatever range the OE part specified. This matters most for the external systems and for trucks running 35s and larger.
Internal versus external sensors
An internal sensor lives inside the wheel, sees accurate pressure with no stem failure point, and reports to the truck’s own dashboard. It needs the wheel balanced, it is nearly invisible, and it cannot be removed without a dismount. An external screw-on sensor installs in minutes, covers the trailer and spare, and shows live PSI on its own screen, but it is exposed to theft and sits where a rubber stem can crack.
Valve stem type matters on a truck
On factory rims, rubber press-in stems are usually fine. On a truck running aftermarket wheels or larger tires, a metal clamp-in or adjustable-angle stem is the better call, because a screw-on sensor’s weight plus centrifugal force is what cracks rubber stems over time. Several systems in this guide explicitly require metal stems, and the maker says so.
What accuracy to expect
Published tolerances across this guide run from plus or minus 0.06 Bar on the high-spec GM sets to plus or minus 1.5 PSI on budget kits, and real-world accuracy is looser than the lab figure. One reviewer measured a set about 2.5 PSI low against two gauges and the original OE sensors. Treat the number on the box as a tolerance, not a promise, and verify with your own gauge after the first week.
This is the same calibration problem we run into with any wireless sensor, and the reasoning is identical. Our wireless temperature sensor guide makes the same point: consistency over time matters more than a headline spec, because every radio-transmitted reading drifts with temperature and the device decides how to compensate for it.
Why the TPMS light stays on after you replace the sensor
Because the new sensor has not been activated, or the truck still expects the old ID at that wheel position. This is the most repeated complaint across truck forums, and it is usually not a defective sensor. The fix is a relearn:
1. Verify the sensor reads its ID, frequency, battery level and PSI on a TPMS tool before it goes in the rim. 2. Mount it, inflate, and rebalance the wheel. 3. Run the vehicle-side relearn from the truck’s infotainment menu or with a scan tool. 4. Drive 12 to 30 miles above 15 mph without stopping so the truck cycles all four sensors. 5. If the light persists, check the tire pressure placard value, because an alarm threshold set too high will trigger a lamp on a correctly inflated tire.
One more forum-reported cause worth naming: plastic protective film left on the sensor by the tire shop. It is an easy fix and an easy miss, and a shop that leaks air through a sensor six times is the exception rather than the rule.
Why aftermarket alarms fire in rain or on cold mornings
This is usually physics rather than a defect. Tire pressure drops roughly 1 PSI per 10 degrees Fahrenheit of ambient temperature change, so a tire inflated to spec on a warm afternoon sits well under spec on a cold morning. External systems with narrow alarm windows react to that real change, and heavy rain cools a hot brake rotor and the air around the wheel fast enough to trigger some systems.
The fix is not a different brand, it is setup. Set your reference pressures from the placard value for your load, widen the low-pressure alarm window, and check readings against a gauge rather than reacting to the alarm alone. If the readings you doubt are moisture rather than pressure, our humidity sensor guide covers the same class of radio-transmitted measurement and the same habit of verifying against a reference device.
Frequently Asked Questions
Are truck TPMS sensors 315MHz or 433MHz?
Both exist, and it depends entirely on the make. GM, Toyota and most other Asian brands use 315MHz, while Ford, Ram, Dodge, Jeep, Chrysler and Fiat use 433MHz. Newer GM trucks from roughly 2020 onward moved to 433MHz, so the model year matters as much as the badge. A sensor on the wrong frequency will transmit fine and never pair. Check the OE part number on your failed sensor, or read the frequency with a basic TPMS tool before mounting.
Why is my TPMS light on even after replacing the sensors?
In most cases the new sensor was never activated or the truck still has the old ID stored at that wheel position. Verify the sensor reads its ID, frequency, battery level and PSI on a tool before mounting, run the vehicle-side relearn from the truck infotainment menu, then drive 12 to 30 miles above 15 mph without stopping so the truck cycles all four positions. A tire shop that left protective plastic on the sensor, or an alarm threshold set above your placard pressure, produces the same symptom.
Do aftermarket TPMS sensors need to be programmed or relearned?
It depends on the type. Fully programmable sensors arrive blank and must be written with a TPMS scan tool such as an Autel TS508 or ATEQ VT30 before they will pair. Pre-programmed sensors already hold OE IDs and pair on their own, usually after a 12-30 minute drive above 15 mph, though some brands still recommend an OBD relearn for a more stable connection. External screw-on systems need no programming at all, because each sensor is paired to its own display from the box.
Do I need metal valve stems to use a TPMS?
On stock rims, rubber press-in stems are usually fine. On a truck running aftermarket wheels or larger tires, a metal clamp-in or adjustable-angle stem is the better choice, because the weight of a screw-on sensor plus centrifugal force is what cracks rubber stems over time. Some external systems, including the GUTA GT30, explicitly require metal stems for reliable performance, so check the installation instructions before you order stems separately.
How accurate are aftermarket TPMS sensors?
Published tolerances run from plus or minus 0.06 Bar on high-spec GM sets to plus or minus 1.5 PSI on budget kits, and real-world accuracy is looser than the lab figure. One reviewer measured a set about 2.5 PSI low against two independent gauges and the original OE sensors. Check a new install against your own gauge after the first week, and treat the printed number as a tolerance rather than a guarantee.
What PSI range do I need for a heavy-duty truck or trailer TPMS?
For a light-duty pickup on its original tires, a system that reads to 87 PSI is adequate. For a commercial trailer on Load Range E or F tires running 110 PSI and above, you need a system rated well past that, because an 87 PSI cap is not a cheaper option, it is an incompatible one. Always read the stated pressure ceiling of any external system before you buy, since that single number rules out a lot of budget kits.
Why do my aftermarket TPMS sensors show a low-pressure alarm in the rain?
Usually because of real physics, not a faulty sensor. Tire pressure falls roughly 1 PSI for every 10 degrees Fahrenheit of ambient temperature change, so a tire inflated to spec on a warm afternoon sits under spec on a cold morning, and heavy rain cools the air around a hot brake rotor quickly enough to trigger some systems. Widen the low-pressure alarm window, set your reference pressures from the placard value for your actual load, and confirm with a gauge before assuming a fault.
Bottom Line: The Best TPMS Sensors for Trucks in 2026
For most owners replacing one failed OE sensor, the CDWTPS 315MHz GM set of four is the pick. It has the deepest review base in the guide, pre-programmed IDs, and a fitment list covering the largest share of post-2006 GM trucks.
If you own a Ram and want no tools involved, the RENECTIV 433MHz set auto-relearns during a 20-30 minute drive. If you already have an Autel TPMS tool, the MX-Sensor 315+433MHz removes the frequency question and clones to any ID you need. If you tow, the TireMinder i10 or GUTA GT30 adds coverage for trailer tires your factory system cannot see, and the PSI ceiling is what separates a real hauling kit from a budget one.
Whatever you choose, verify the frequency, confirm the sensor reads on a tool before it goes in the rim, and give the truck a proper drive cycle after installation. Those three steps solve most of the “TPMS light is still on” problems we see in 2026, and they cost nothing.
