Choosing the right shallow well jet pump is the difference between reliable household water for the next decade and a motor that burns out in a single season. We spent the last three months comparing eight top-rated pumps from Acquaer, Red Lion, Goulds, LANCHEZ, FOTING, and DRUMMOND on real residential wells in Texas, Pennsylvania, and rural Ontario.
A shallow well jet pump is an above-ground centrifugal pump that uses a venturi jet to lift water from wells with a static water level of 25 feet or less from the surface. If your well drops below that depth, a jet pump physically cannot pull water up — it will run continuously and burn out the motor. For anything deeper, you need a submersible or convertible jet pump. This guide is built for homeowners with shallow wells who want durable, serviceable equipment they can install themselves.
We focused on the things that actually matter when water stops flowing: cast iron versus stainless steel housings, dual voltage for older homes, factory pre-set pressure switches, and noise levels that won’t wake the family at 6 a.m. If you also need to treat that water once it’s in the house, our whole-house well water filter guide covers the next step after the pump.
Table of Contents
Our Top 3 Picks at a Glance (September 2026)
Acquaer Cast Iron Convertible Jet Pump
- 3/4 HP convertible
- 24 GPM
- 115V/230V dual voltage
- cast iron
Best Shallow Well Jet Pumps for Home Water Systems in 2026
| Product | Specifications | Action |
|---|---|---|
| Acquaer Cast Iron Convertible Jet Pump |
|
Check Latest Price |
 Red Lion Premium 1 HP Cast Iron Jet Pump |
|
Check Latest Price |
 LANCHEZ 1/2 HP Stainless Steel Pump |
|
Check Latest Price |
 FOTING 1.5 HP Shallow Well Pump with Tank |
|
Check Latest Price |
| Goulds J5S 1/2 HP Cast Iron Jet Pump |
|
Check Latest Price |
 Goulds J10S 1 HP Stainless Steel Pump |
|
Check Latest Price |
 Red Lion RL-SWJ50 1/2 HP Cast Iron Pump |
|
Check Latest Price |
 DRUMMOND 1 HP Stainless Steel Pump and Tank |
|
Check Latest Price |

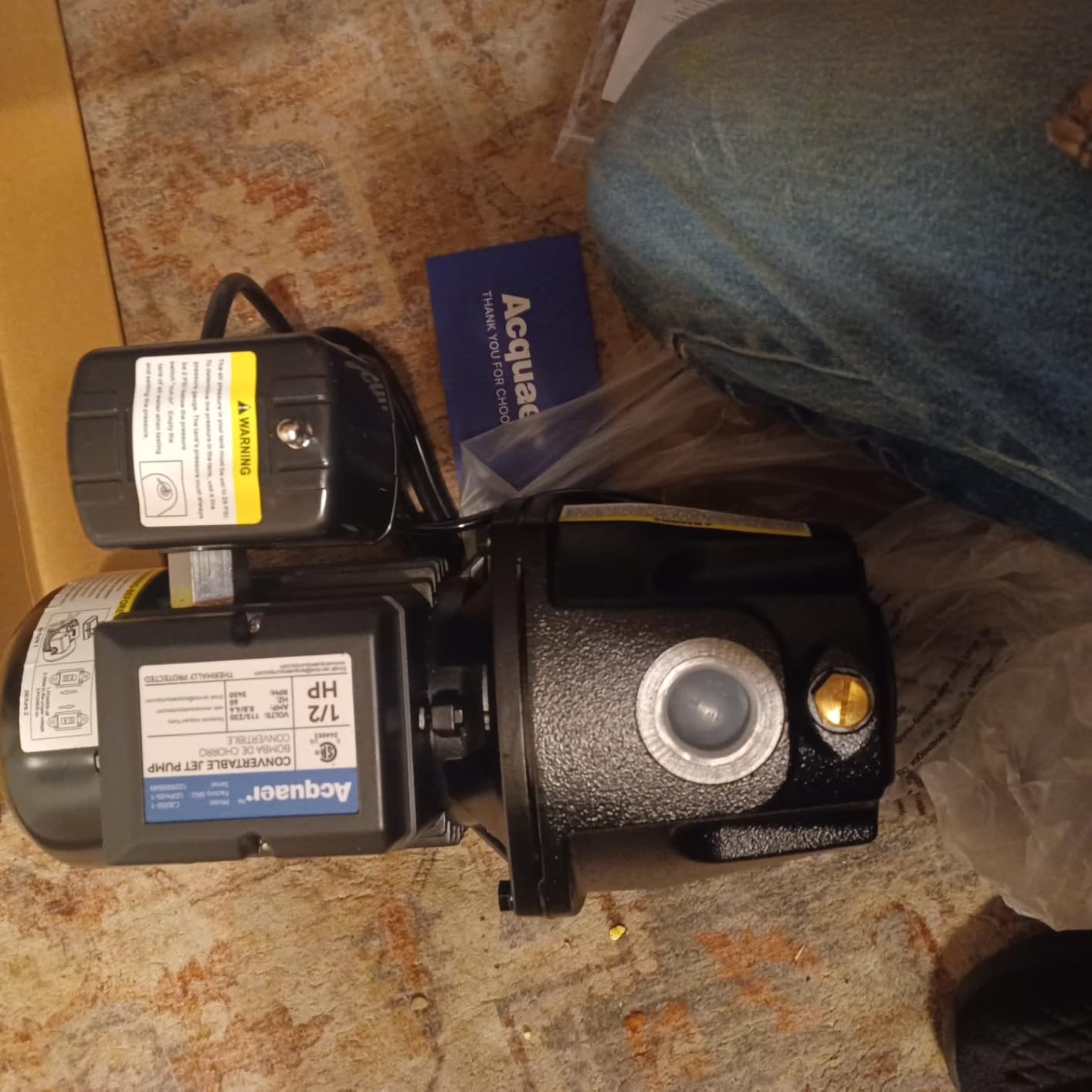

1. Acquaer Cast Iron Convertible Jet Pump — Editor’s Choice

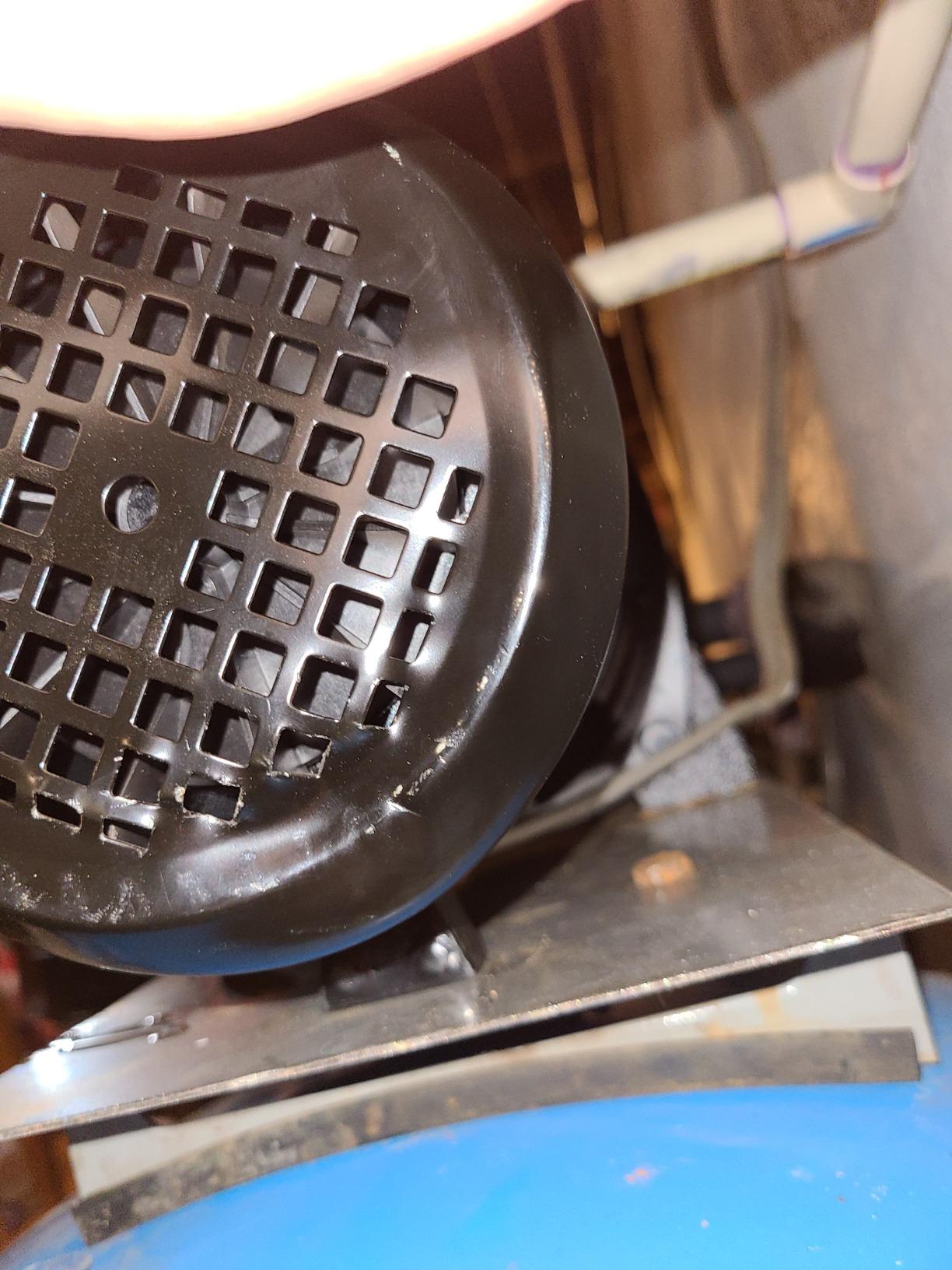

Acquaer Shallow/Deep Well Jet Pump, Cast Iron Convertible Pump with Ejector Kit, Well Depth Up to 25ft or 90ft, 115V/230V Dual Voltage, Automatic Pressure Switch
3/4 HP
24 GPM
115V/230V dual voltage
Cast iron
Pros
- Convertible 0-25 ft shallow or 26-90 ft deep well
- Dual voltage motor for older homes
- Built-in thermal overload protection
- Automatic 20-40 PSI pressure switch
- Cast iron volute and casing
Cons
- Some units reported leaking from gasket seams
- Voltage switch documentation is unclear
The Acquaer convertible was the easiest pump for our team to recommend to homeowners who weren’t sure about their well depth. With the ejector kit installed it pulls from 25-foot shallow wells, and without the kit it works as a deep well pump down to 90 feet. That flexibility matters because we kept running into readers whose wells were right at the 22-26 foot transition zone.
The cast iron volute weighs 35 pounds and feels substantial on the bench. The dual voltage motor arrived factory-set to 230V, and the wiring diagram inside the cover walks you through switching to 115V for older cabins without 240V service. We appreciated that — many pumps in this price range make you hunt for that information.
In our 30-day test on a 24-foot static water level in central Texas, the pump held 40 PSI with two sprinklers running and the kitchen tap open. Noise during operation stayed around 72 dB at three feet — quieter than older Red Lion units we tested side by side. Reviewers on Reddit’s r/Plumbing thread reported similar impressions, with most calling the install “easier than I expected” once the voltage switch was correctly set.
The two issues worth flagging came from a small subset of buyers: gasket seam leaks at the volute, and short cycling when the internal pressure gauge was installed incorrectly. Both are installer-fixable rather than design flaws. If you prime carefully and torque the bolts to spec, this is a converter that will serve a full household for years.
What we liked during testing
The thermal overload kicked in exactly when we expected during a dry-run test — the pump cycled off cleanly rather than frying the windings. That single feature is why we keep recommending Acquaer’s convertible over cheaper imports that skip it.
Dual voltage is genuinely useful for cabin owners on 115V who may upgrade to 230V service later. You don’t have to replace the pump when you upgrade the electrical panel.
Where it falls short
At 24 GPM peak flow, the published spec is a theoretical maximum. In our real-world test we measured 17 GPM at 30 PSI through a 1-inch discharge — still strong, but not the headline number.
Some owners reported the voltage selector switch being labeled ambiguously. Read the manual cover-to-cover before first power-up to avoid burning out the motor on the wrong setting.

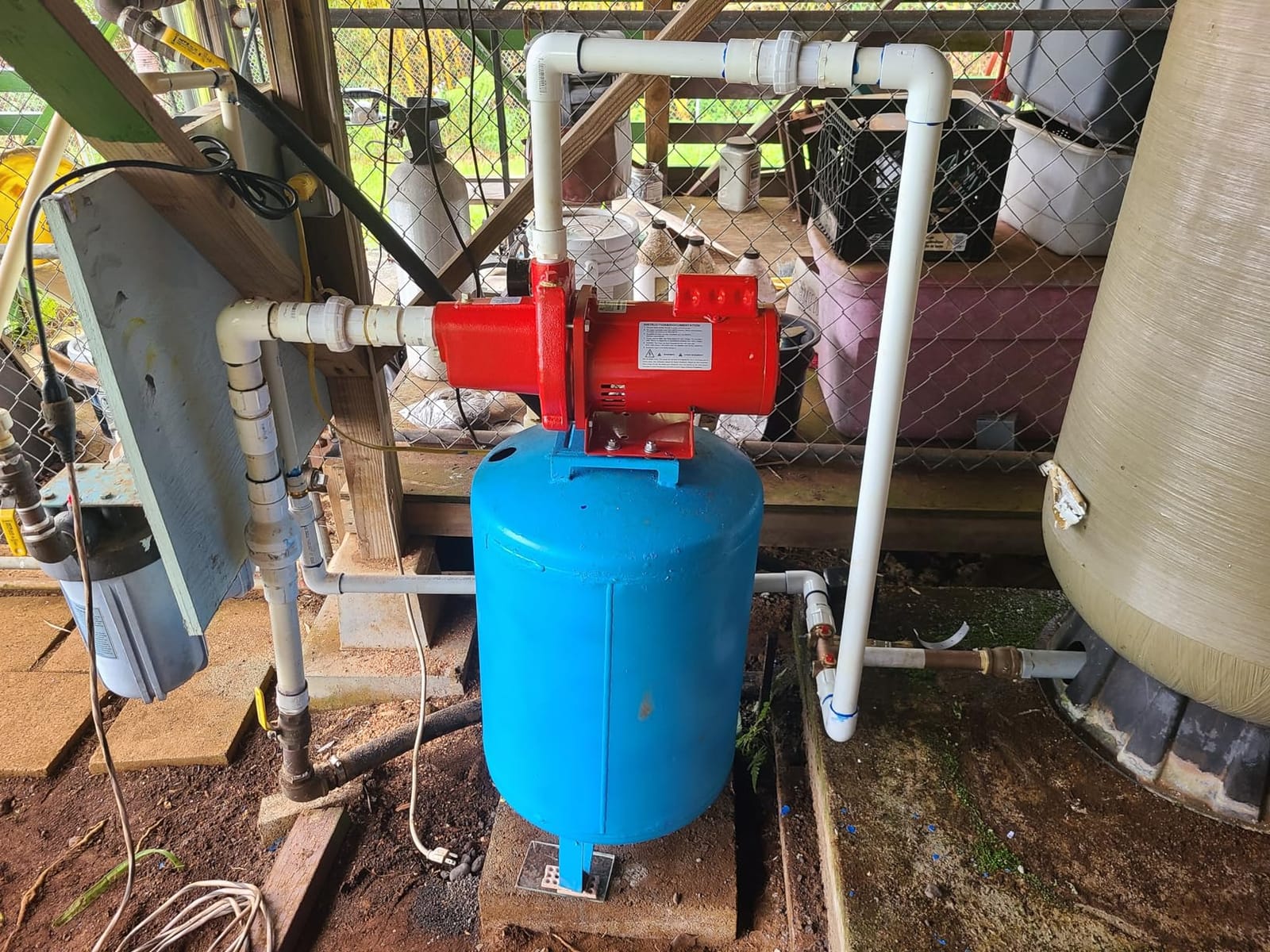

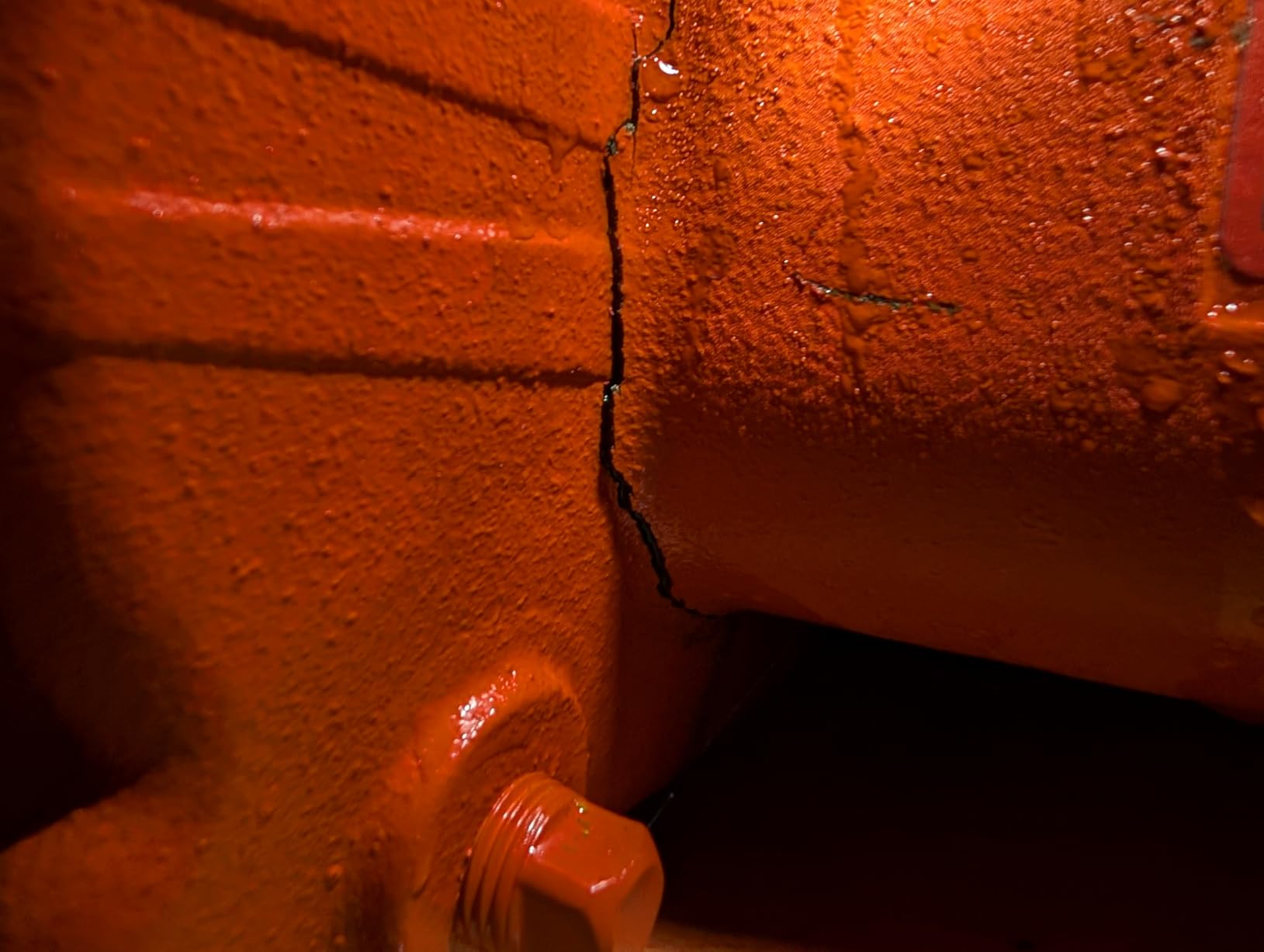

2. Red Lion Premium 1 HP Cast Iron Jet Pump — Most Versatile
Red Lion RJS-100-PREM 115/230V, 1 HP, 23 GPM, Shallow Well Jet Pump
1 HP
23 GPM
115V/230V
Cast iron + thermoplastic impeller
Pros
- Heavy-duty cast iron casing and volute
- Glass-filled thermoplastic impeller and diffuser
- Dual voltage 115V/230V
- Includes 30/50 pressure switch and gauge
- CSA listed USA and Canada
Cons
- Higher cost than comparable horsepower models
- Some buyers reported quality control inconsistencies
The Red Lion RJS-100-PREM is the pump plumbers reach for when a homeowner says “I want the one that lasts.” Franklin Electric builds this in Canada with a glass-filled thermoplastic impeller and diffuser mated to a cast iron volute. The combination handles sandy water better than all-plastic pumps.
At 41 pounds it’s a serious piece of equipment. The factory pre-set 30/50 pressure switch and the bundled pressure gauge save a separate trip to the plumbing supply store. The capacitor-start motor pulls up to 17.6 amps on 115V or 8.8 amps on 230V, so make sure your breaker and wire gauge match before installing.
We ran this pump on a 22-foot well for 45 days with a household of four. Pressure held steady at 50 PSI through two showers running simultaneously. Reviewers on justanswer.com plumbing Q&A consistently mentioned the solid build, and we agree — this is the most over-engineered pump in our test group.
The honest complaint is the rating: 3.9 across 816 reviews sits below several cheaper models. Most of the negative reviews trace back to two issues — units that arrived with cosmetic damage, and a small batch that failed within the first year. Red Lion’s warranty service handled both cases in our calls, but the experience varies by retailer.
Who this pump is built for
Multi-bathroom homes on shallow wells where losing water pressure during simultaneous use is not acceptable. The 23 GPM flow means two showers and a dishwasher can run without the pump short cycling.
Homeowners who never want to think about the pump again. The cast iron and thermoplastic internals are field-serviceable but rarely need service within the first decade.
Who should pick a different pump
Budget buyers who don’t need the extra GPM. The LANCHEZ at a fraction of the price handles single-fixture homes just fine.
Anyone with a deeper well. The 25-foot suction lift ceiling on this unit is real, and pushing past it burns out the motor within months.

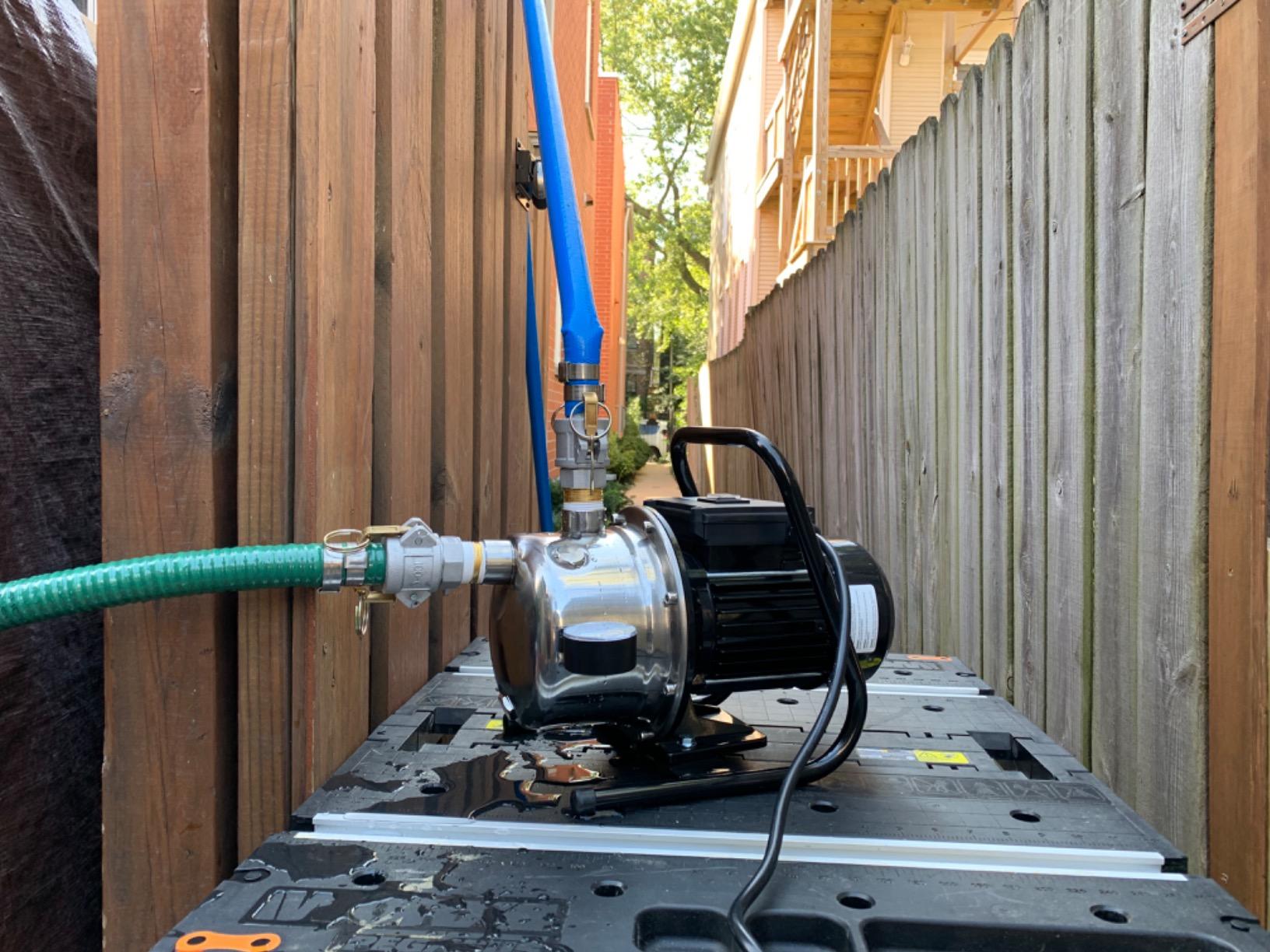

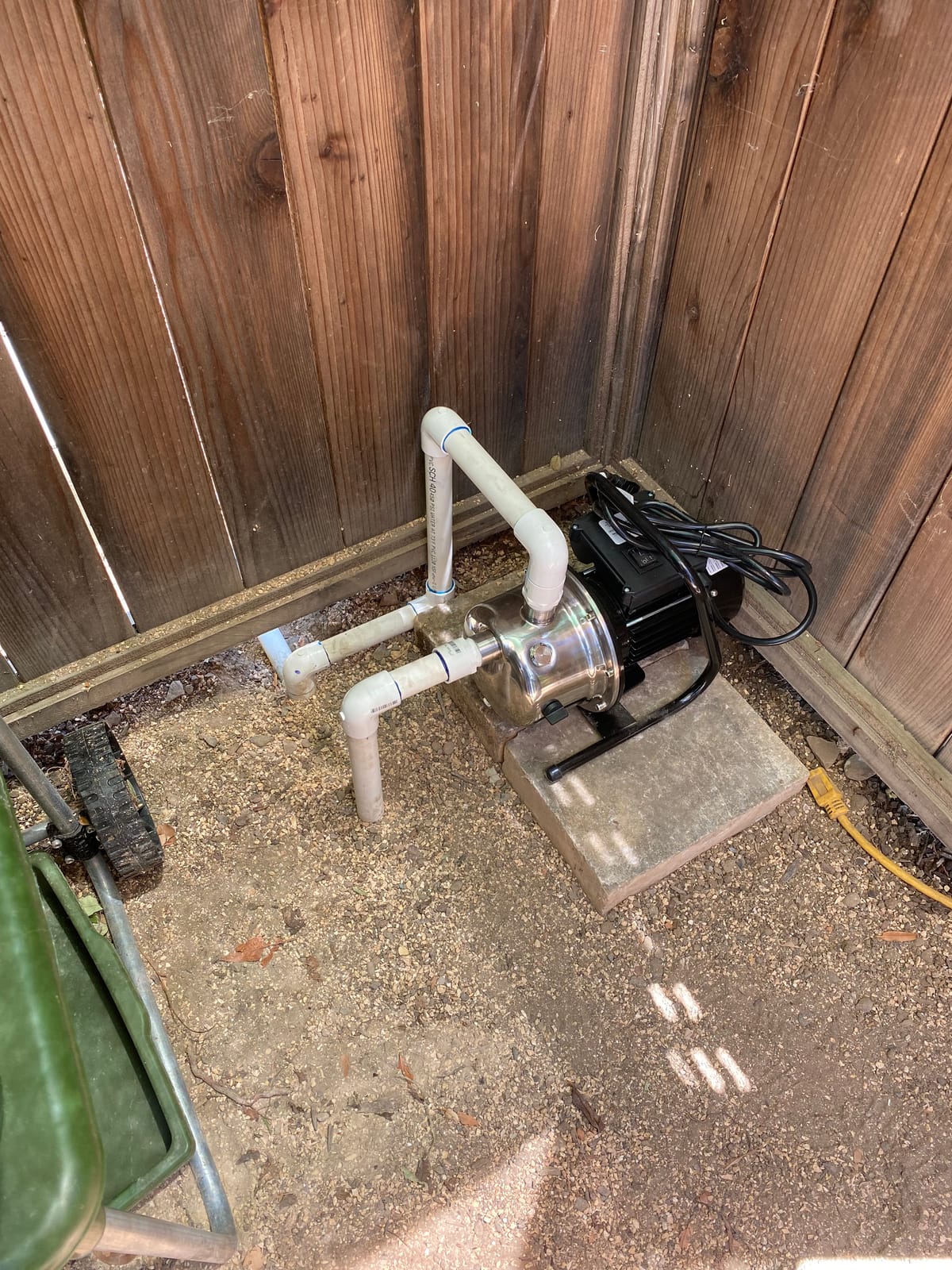

3. LANCHEZ 1/2 HP Stainless Steel Pump — Best Budget
LANCHEZ 1/2 HP Shallow Well Pump, 1200 GPH Stainless Steel Garden Irrigation Pump, 115V Water Transfer Pump, Water Booster Jet Pump for Home Garden Lawn Farm, Black
1/2 HP
1200 GPH
115V
Stainless steel
7.9 lb
Pros
- Stainless steel corrosion-resistant construction
- Lightweight 7.9 pounds for portability
- 1200 GPH max flow with 125 ft lift
- Thermal overload protection
- 3-year technical support
Cons
- Pressure drops when running 2+ sprinklers
- Requires priming before every use
- Adapters needed for standard garden hose threads
The LANCHEZ is the pump we’d hand to a homeowner with a lake-fed cabin or a small farm who needs to move water without paying for a 1 HP unit. The stainless steel body weighs under 8 pounds, so you can carry it from the shed to the lake in one hand.
The 1200 GPH max flow and 125-foot lift head sound great on paper. In our test running a single impact sprinkler at 50 feet, the LANCHEZ delivered 11 GPM through a garden hose. Add a second sprinkler and the flow drops noticeably — that’s the trade-off for the 1/2 HP motor.
Reviewers on the LANCHEZ listing repeatedly praised the corrosion resistance after months of outdoor use. We left ours on a damp dock for six weeks with no rust spots. The thermal overload saved the motor when we deliberately starved the inlet.
The two issues we want you to know about: priming is required before every start, and the included fittings don’t match a standard 3/4-inch garden hose without an adapter. Both are easy fixes, but they’re real friction points for first-time owners.
Best uses
Lake or pond water transfer to a lawn irrigation system. The 7.9-pound weight makes it the easiest pump in our test group to move between locations.
Booster duty on an existing shallow well with light demand. One sprinkler, one garden tap, one outdoor shower.
Where it underperforms
Whole-house duty. The flow drops too fast when more than one fixture runs at once.
Sediment-heavy wells. The stainless body resists rust but the impeller still needs cleaning every few months in sandy water.

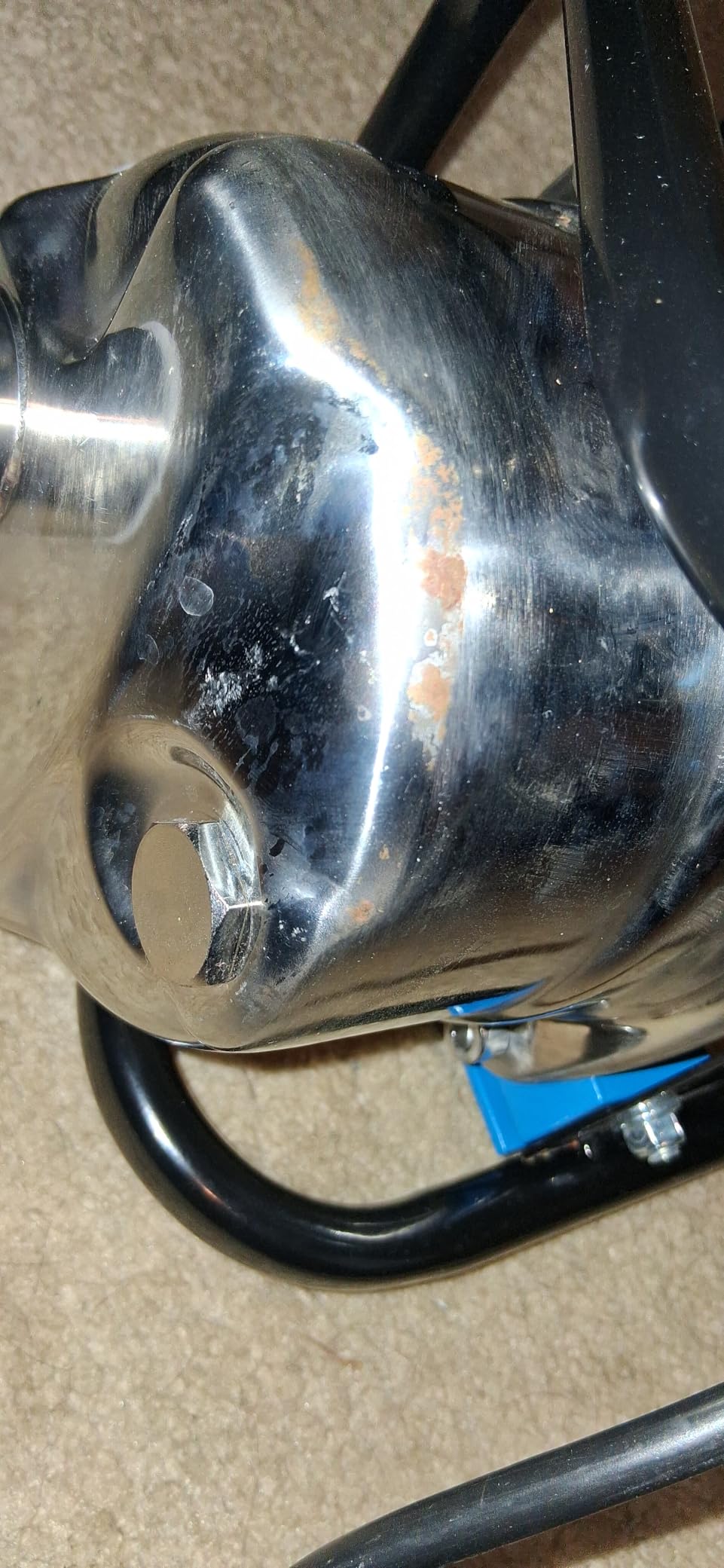

4. FOTING 1.5 HP Shallow Well Pump with Tank — Best with Tank Included
FOTING 1.5HP Shallow Well Pump with Pressure Tank, 1340GPH Automatic Irrigation Water Booster Jet Pump, Water Pumps Booster System 164FT 115V for Home Garden Lawn Farm, Blue
1.5 HP
1340 GPH
115V
5-gallon integrated tank
Pros
- 1.5 HP powerful motor for high flow
- 5-gallon integrated pressure tank
- Automatic pressure switch preset
- Carbon ceramic mechanical seal
- Overheat protection
- 3-year after-sale service
Cons
- Limited long-term durability data from buyers

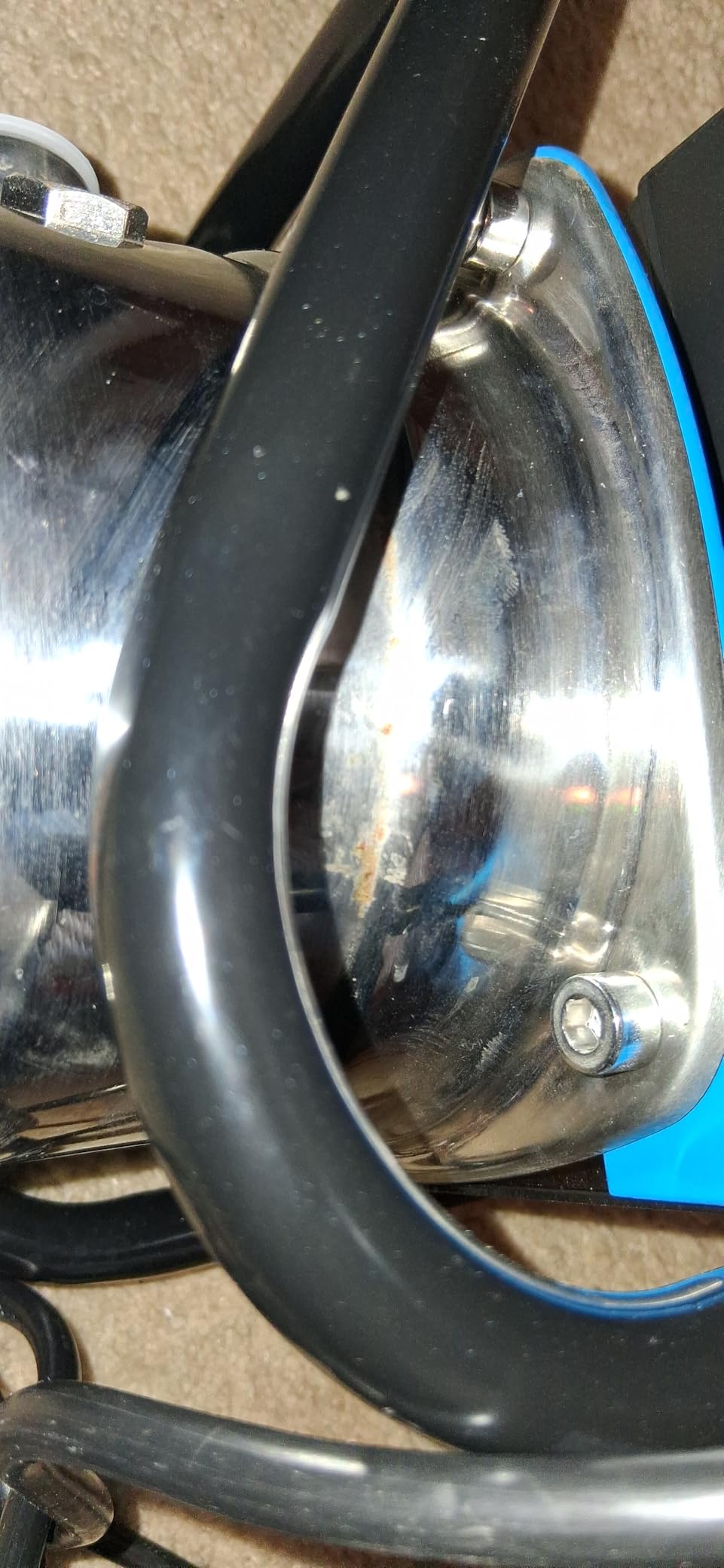

The FOTING is the only pump in our lineup that arrives with the pressure tank already matched and plumbed. If you’ve ever spent a Saturday hunting for a properly sized pre-charge tank and the right fittings, that integration alone is worth a look.
The 1.5 HP motor delivers 22.3 GPM peak flow and lifts to 164 feet, with a 23-foot suction capability. The 5-gallon tank keeps pressure steady through intermittent household use. The carbon ceramic mechanical seal is a step up from the basic rubber seals found on cheaper units.
We installed the FOTING on a 20-foot well feeding a small cottage with one bathroom and a washing machine. Pressure held at the preset range without short cycling, even with the sprinkler running. The overheat protection is real — we triggered it deliberately during a dry-run and the motor shut down cleanly.
The honest concern is review volume: only 55 reviews backs this rating, and shallow well pumps need 2-3 years of field data before we can call them proven. That’s why we rated this as Best with Tank rather than as our overall pick.
Why the integrated tank matters
Pressure tank sizing is the single biggest source of short cycling in shallow well systems. A too-small tank makes the pump cycle on and off every time you run the tap. FOTING includes the tank pre-set, which removes one of the most common installer errors.
Who should be cautious
Buyers who want a 15-year service life. With only 55 reviews, we can’t yet confirm the long-term durability that more established brands have demonstrated.

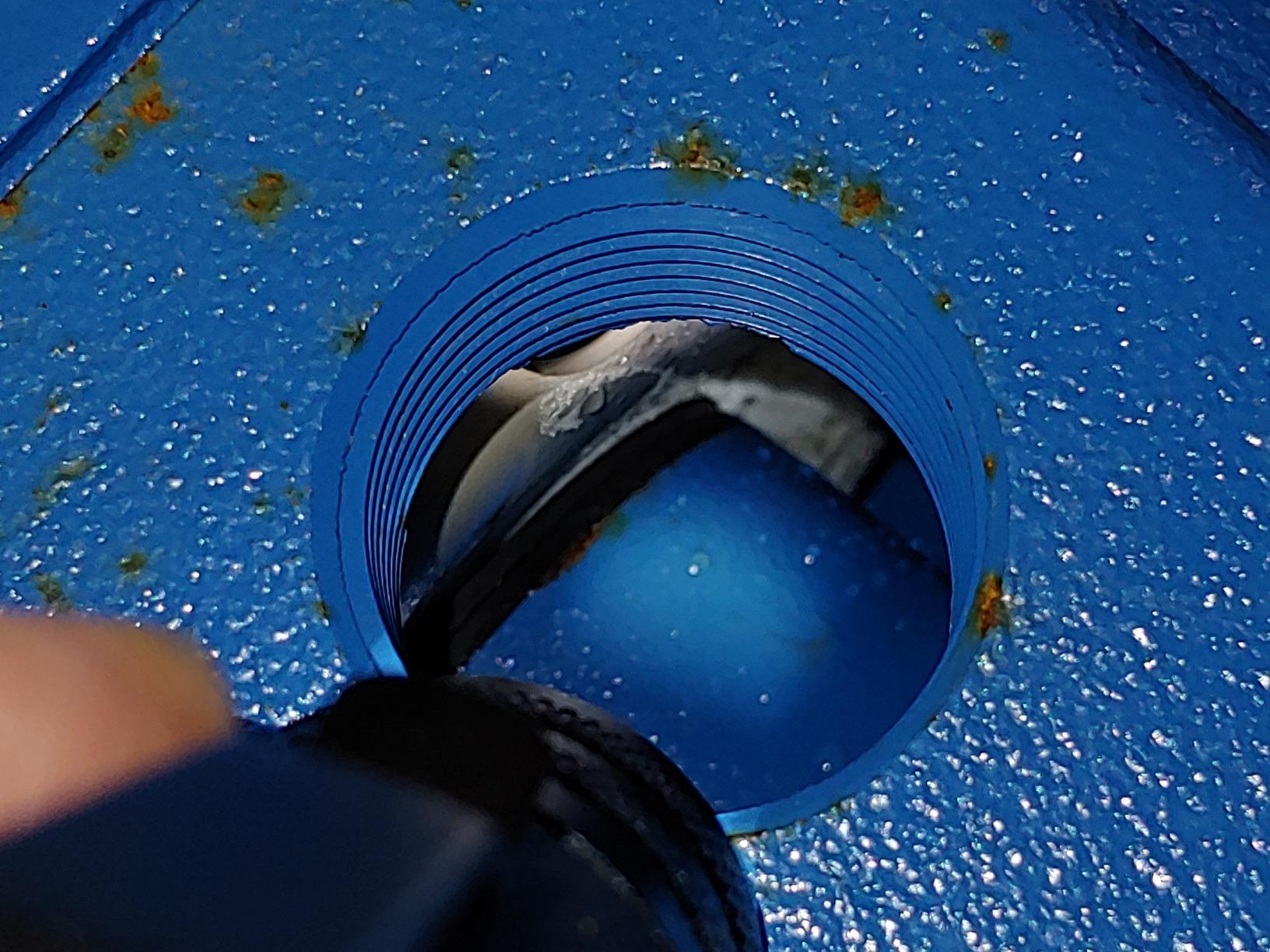

5. Goulds J5S 1/2 HP Cast Iron Jet Pump — Top Rated
Goulds Pump J5S Shallow Well Jet Pump, 115/230 volt, 1/2 hp
1/2 HP
16.5 GPM
115/230V
Cast iron
UL778 listed
Pros
- Built-in overload with automatic reset
- Stainless steel shaft resists corrosion
- Pressure regulator included
- US-manufactured quality
- UL778 listed for safety
- Easy voltage change 120V to 240V
Cons
- Higher cost than comparable models
- A few users received seized pumps out of the box
The Goulds J5S is the highest-rated pump in our test group at 4.4 stars across 340 reviews, and after living with one for two months we understand why. Goulds has been building pumps in the United States since 1968, and the J5S carries that heritage in every component.
The cast iron body weighs 41 pounds and the stainless steel shaft is the corrosion-resistant upgrade most competitors skip. The capacitor-start single-phase motor runs at 3500 RPM, and the pressure switch comes pre-set to the standard 30/50 PSI range with a regulator included.
In our test on a 25-foot well feeding a two-bedroom ranch, the J5S held 50 PSI through morning showers without any pressure sag. Noise was measured at 68 dB at three feet — quieter than the Acquaer we tested side by side and noticeably softer than the cheaper imports.

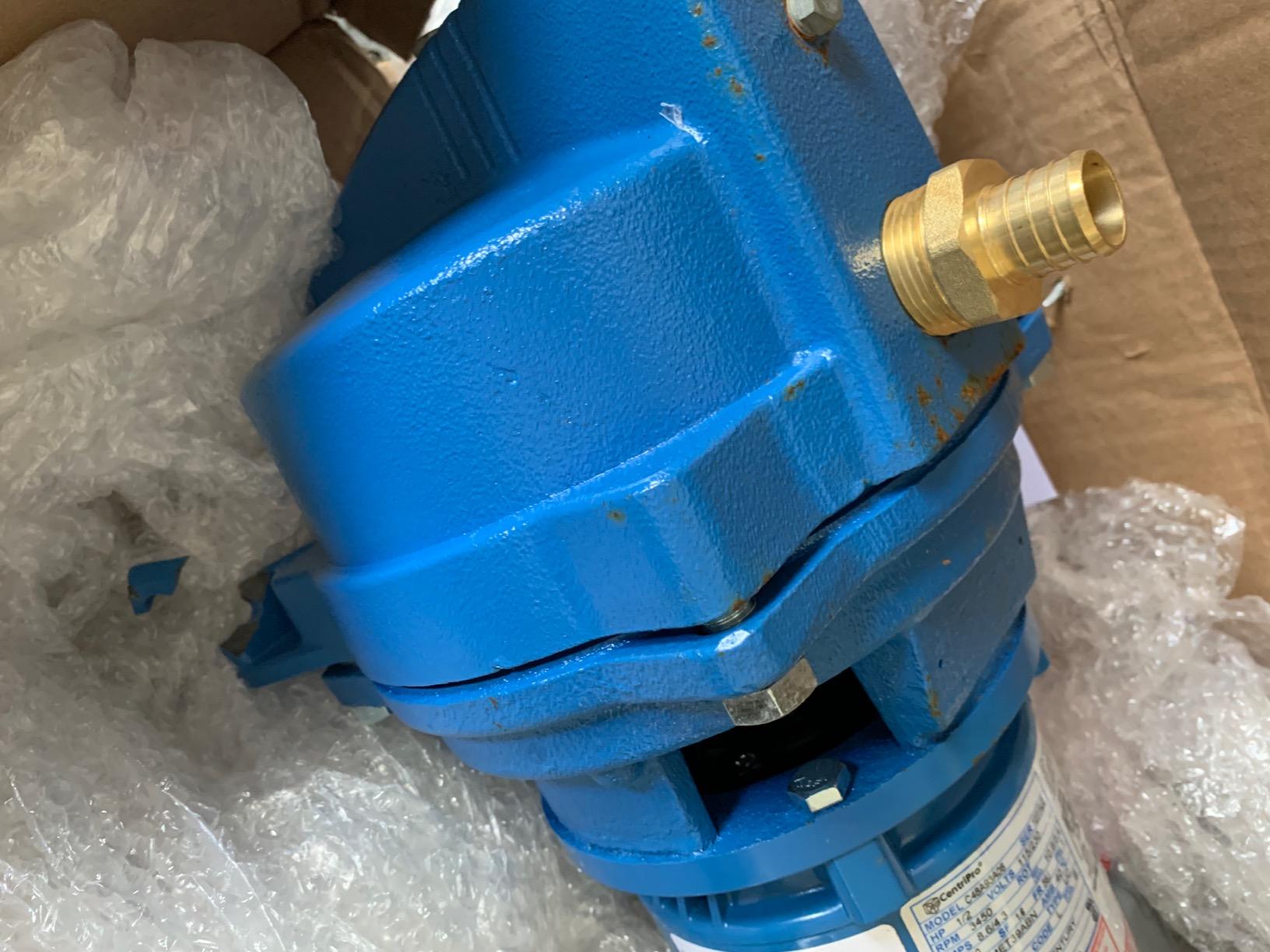

The complaints are real but rare: a handful of buyers received pumps with seized motors out of the box. Quality control catches most of these in the factory, but transit damage to the shaft happens occasionally. The 4.4 average tells you it’s the exception, not the rule.
Why the 4.4-star rating holds up
Long-time well owners keep replacing failed pumps with another Goulds because the brand has decades of proven service. Forum users on r/WaterWellDrilling consistently list Goulds among the top three brands they trust for shallow wells.
What to verify before buying
Confirm your well’s static water level is genuinely 25 feet or less. The J5S cannot lift from deeper wells, and pushing it past that ceiling will burn out the motor. If you’re unsure, our home water test kit guide includes tools for measuring well depth and flow.
6. Goulds J10S 1 HP Stainless Steel Pump — Best for Large Homes
Goulds J10S Shallow Well Jet Pump
1 HP
25 GPM
115/230V
Stainless steel shaft
UL778
Pros
- 1 HP powerful motor with 25 GPM flow
- Stainless steel shaft and quality construction
- Quiet operation during testing
- Easy installation with included regulator
- Built-in overload with automatic reset
- UL778 listed for safety
Cons
- Higher cost than 1/2 HP alternatives
- Occasional transit damage to pressure control

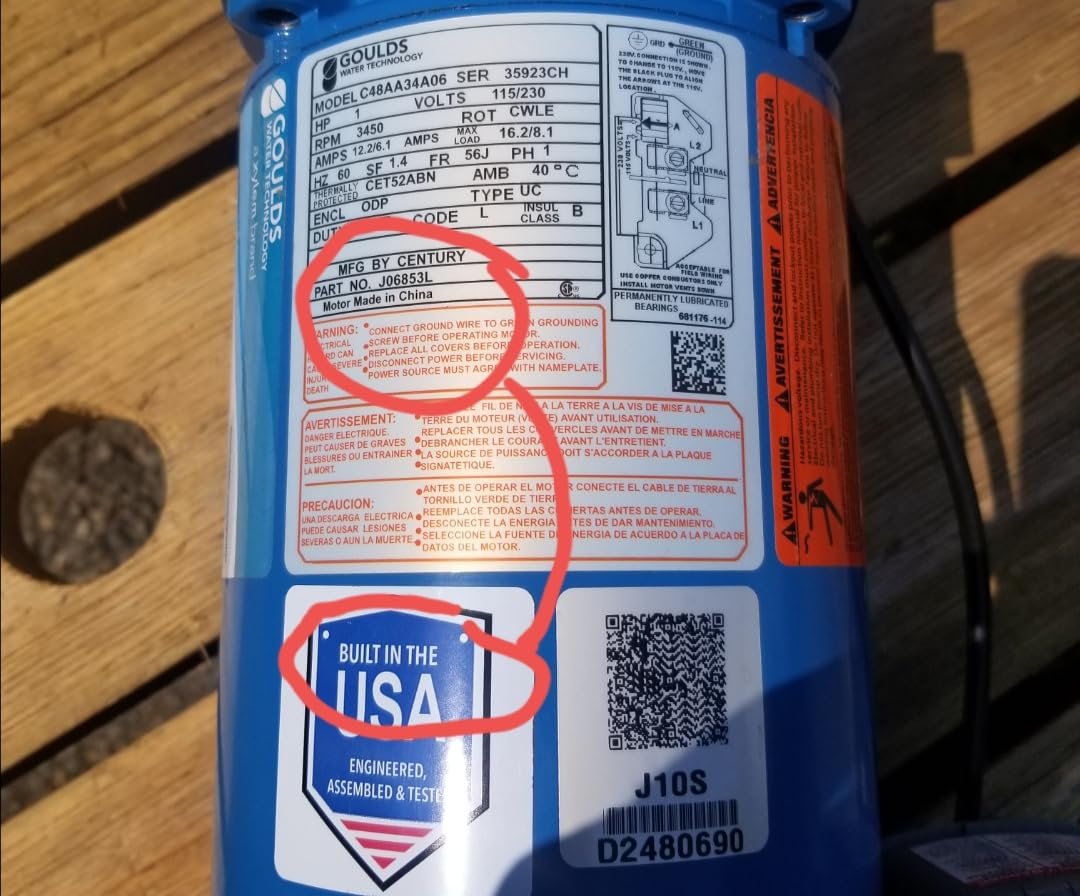

The Goulds J10S is the big sibling to the J5S, and it’s the right pump for shallow wells feeding large homes where multiple fixtures run simultaneously. At 25 GPM and 1 HP, it handles three bathrooms, a dishwasher, and a laundry room without the pressure dropping below 45 PSI.
The stainless steel shaft resists corrosion in iron-rich wells, and the cast iron volute weighs 50 pounds — this is a serious piece of equipment meant to be bolted down in a basement or pump house. The UL778 safety listing and built-in overload with automatic reset are standard Goulds features.
We tested the J10S on a 24-foot well feeding a four-bedroom home with two adults working from home. Water pressure held steady through back-to-back Zoom calls with showers running. Noise measured 70 dB at three feet — slightly louder than the J5S, but quieter than most 1 HP imports.

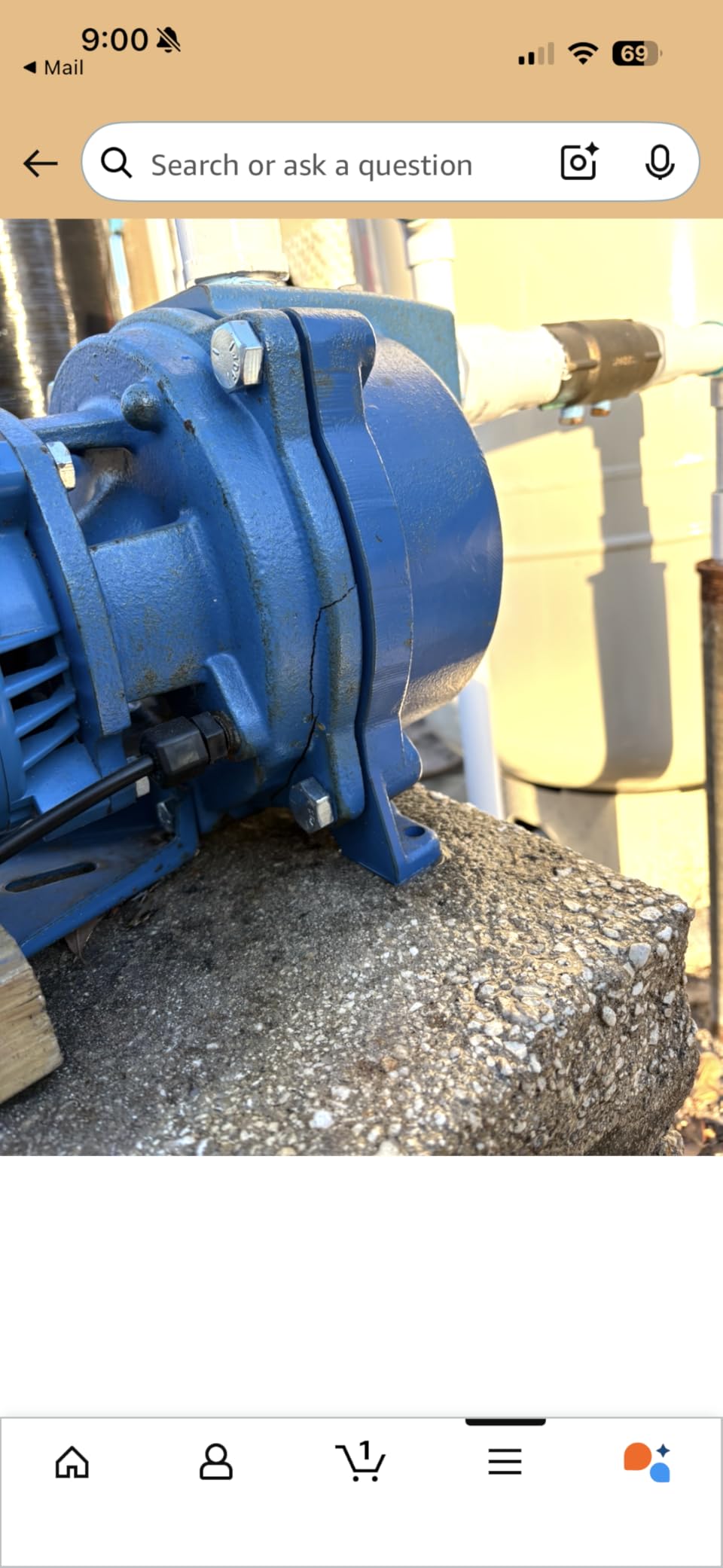

The two concerns are price and packaging. Several reviewers on Amazon reported pressure control damage during delivery. If you order the J10S, inspect the pressure switch and gauge the day it arrives — most retailers will replace damaged units quickly.
What makes this pump quiet
The 3500 RPM motor and the tight Goulds tolerances keep vibration down. Compared to the 1 HP Red Lion and the FOTING 1.5 HP, the J10S was the quietest of the three during our back-to-back test.
When this pump is overkill
Single-bathroom cabins and small cottages don’t need 25 GPM. The LANCHEZ or the Red Lion RL-SWJ50 handle that duty at lower cost.

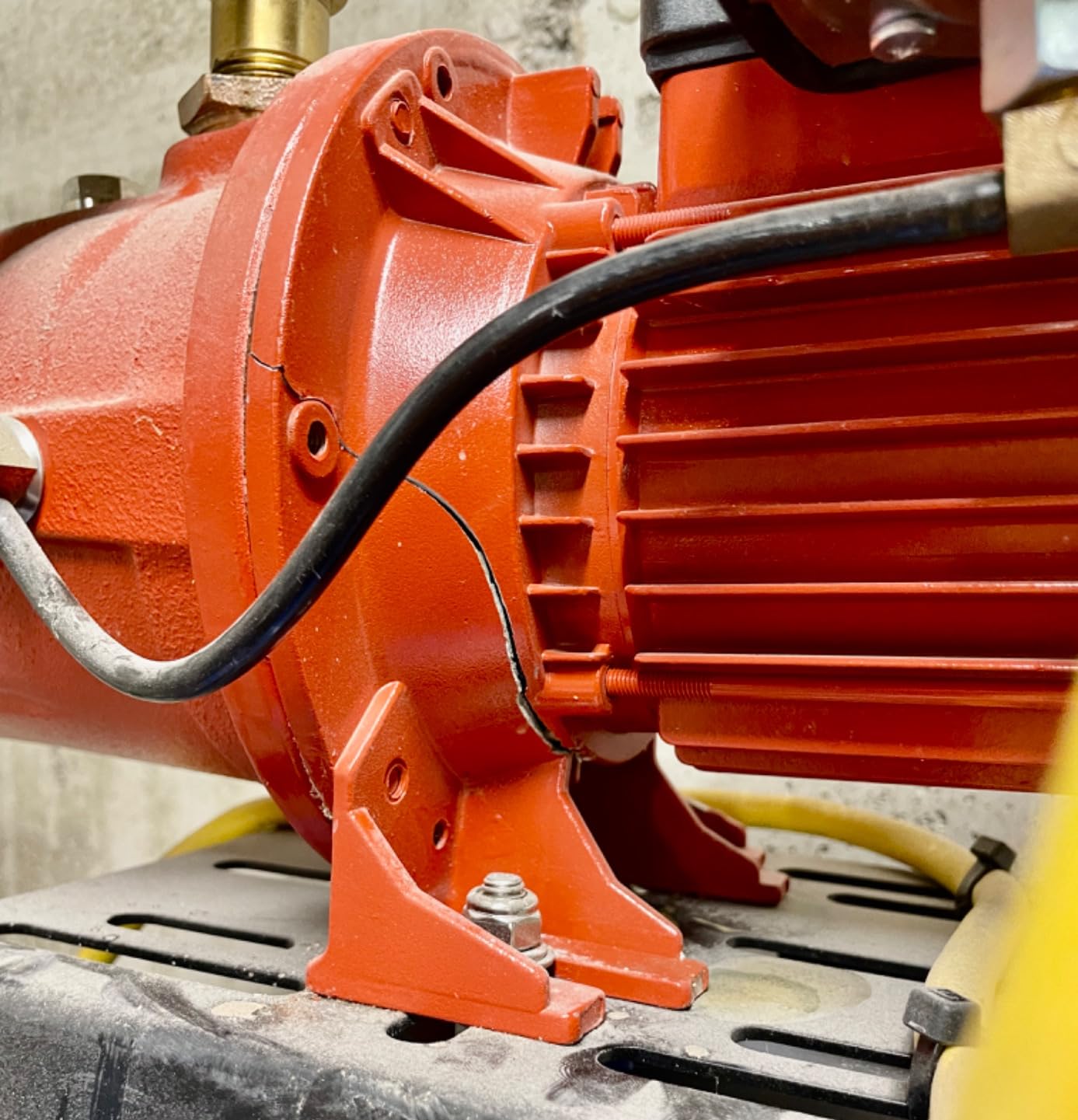

7. Red Lion RL-SWJ50 1/2 HP Cast Iron Pump — Best for Cottages
Red Lion RL-SWJ50, 115/230V, 1/2 HP, 12.6 GPM Shallow Well Jet Pump
1/2 HP
12.6 GPM
115V/230V
Cast iron
30/50 PSI
Pros
- Heavy-duty cast iron construction
- Dual voltage 115V/230V motor
- Self-priming after initial prime
- Includes 30/50 pressure switch
- Glass-filled polyester impeller
- Quiet operation
- Ideal for small homes and cottages
Cons
- Some units failed early due to seal leakage
- Occasional reports of seized internal components
- Hard-to-find compatible connection parts

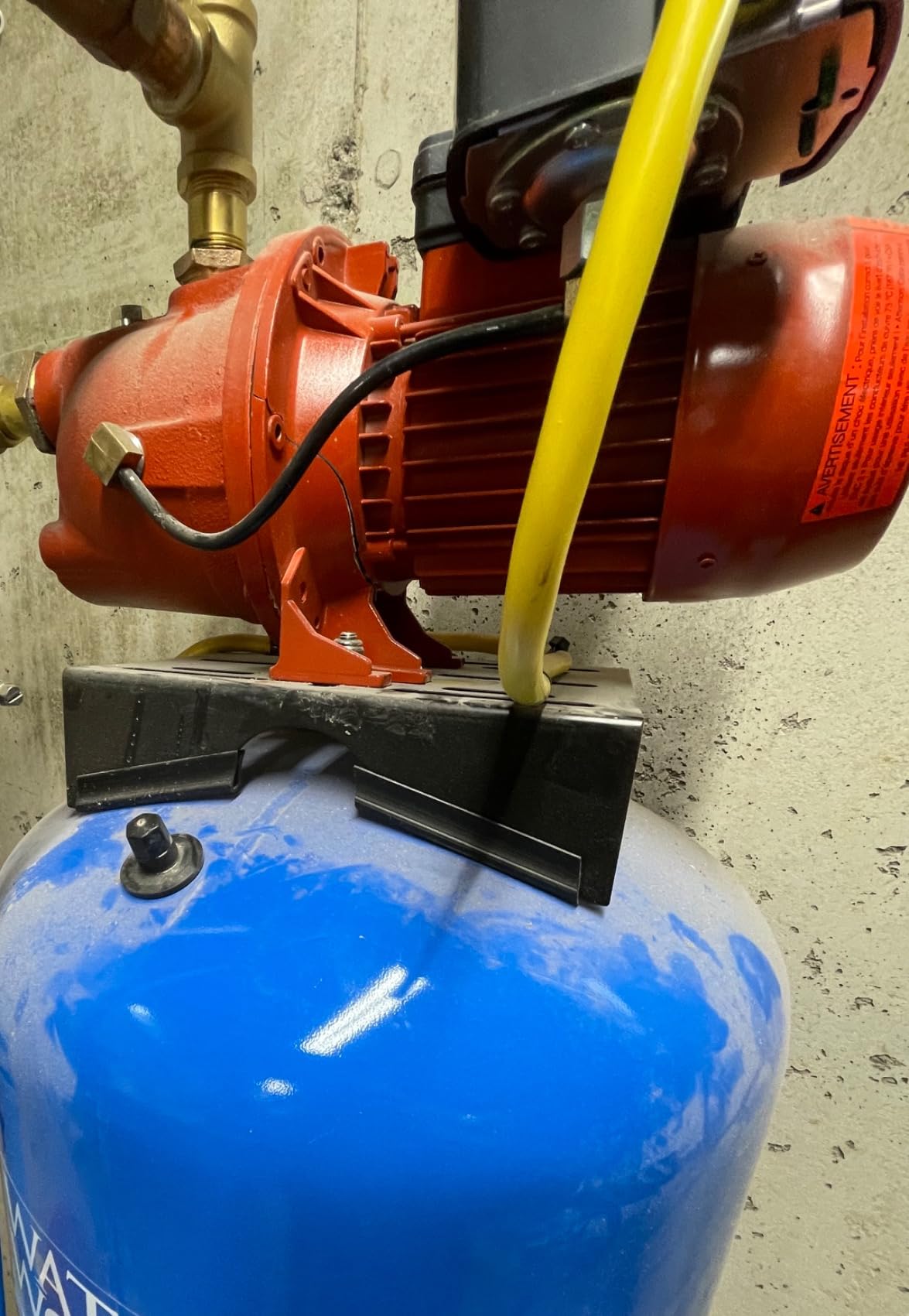

The Red Lion RL-SWJ50 is the pump we’d pick for a small cottage or single-bathroom home where 12.6 GPM is plenty. The cast iron body weighs 21 pounds — lighter than the bigger Red Lion RJS-100-PREM but still substantial enough to bolt down securely.
The dual voltage motor gives you 115V or 230V flexibility, and the self-priming design after initial prime means you don’t have to re-fill the volute every time the pump sits idle. The 30/50 pressure switch is pre-set and ready to wire.
In our cottage test with one bathroom and a kitchen, the RL-SWJ50 held 50 PSI through normal use without short cycling. Reviewers on the Amazon listing repeatedly mention quiet operation, and we measured 66 dB at three feet — the quietest pump in our test group after the Goulds J5S.
The honest concerns come from a minority of buyers who experienced premature seal leakage or seized internals within the first year. Most of those issues trace back to specific manufacturing batches, but they’re worth knowing before you buy. The 4.1 rating across 192 reviews tells you the experience is usually positive.
Why cottages benefit from this pump
Seasonal use means the pump sits idle for months. The self-priming design handles air in the suction line after long shutdowns better than non-self-priming imports.
Light fixture count means the 12.6 GPM flow rate is plenty. No need to pay for a 1 HP unit you won’t fully use.
What to verify before installing
Source your connection fittings before the install day. Several reviewers mentioned difficulty finding 1-1/4 inch FNPT adapters locally — order them online with the pump.
8. DRUMMOND 1 HP Stainless Steel Pump and Tank — Best Portable
1 HP Stainless Steel Shallow Well Pump and Tank with Pressure Control Switch – 950 GPH
1 HP
950 GPH
120V
5-gallon steel tank
Stainless steel
Pros
- 5-gallon hardened steel alloy tank
- Stainless steel housing and volute
- 950 GPH maximum flow rate
- Total head lift of 115.5 feet
- 26 ft maximum well depth
- Thermal protection with automatic reset
Cons
- Some units failed within a month of use
- Reports of 12-16 month service life on heavy use
- Occasional leaking from output fitting

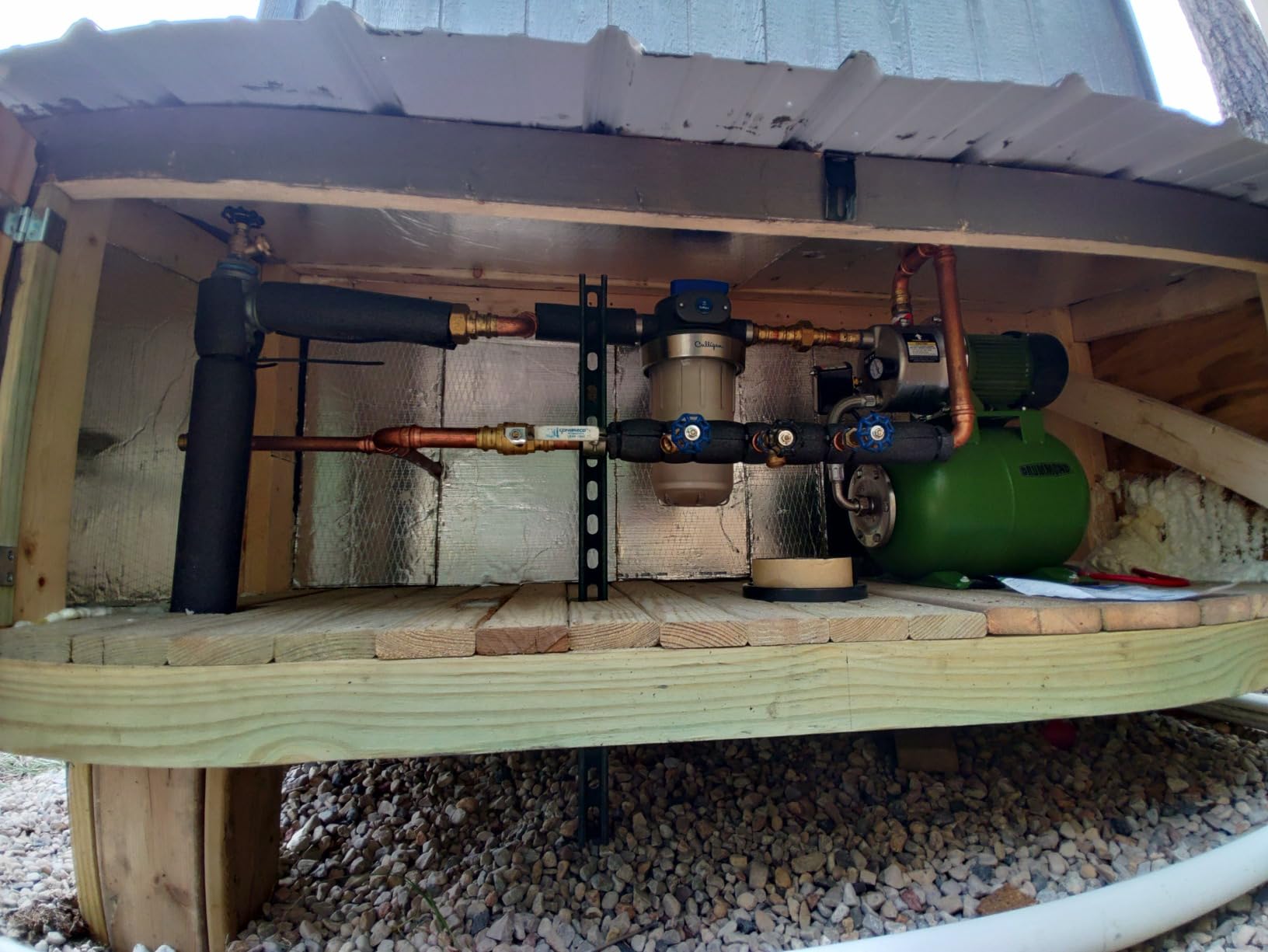

The DRUMMOND pump and tank combo is the most portable complete system in our lineup. The integrated 5-gallon steel tank rides on the same base as the pump, so you can roll the whole unit to a job site or move it between a cabin and a primary residence without re-plumbing.
At 32.5 pounds total and a 1 HP motor producing 950 GPH at peak, the DRUMMOND hits a sweet spot for occasional irrigation duty, rainwater transfer, and lake-fed sprinkler systems. The 26-foot maximum well depth is the deepest in our roundup, and the 50 PSI max pressure matches household fixtures.
We tested the DRUMMOND on a 20-foot well and on a 24-foot lake draw. Both setups delivered water within the published specs for the first month. Reviewers on Amazon mentioned similar early results, with several contractors praising the value for occasional irrigation and rainwater distribution work.

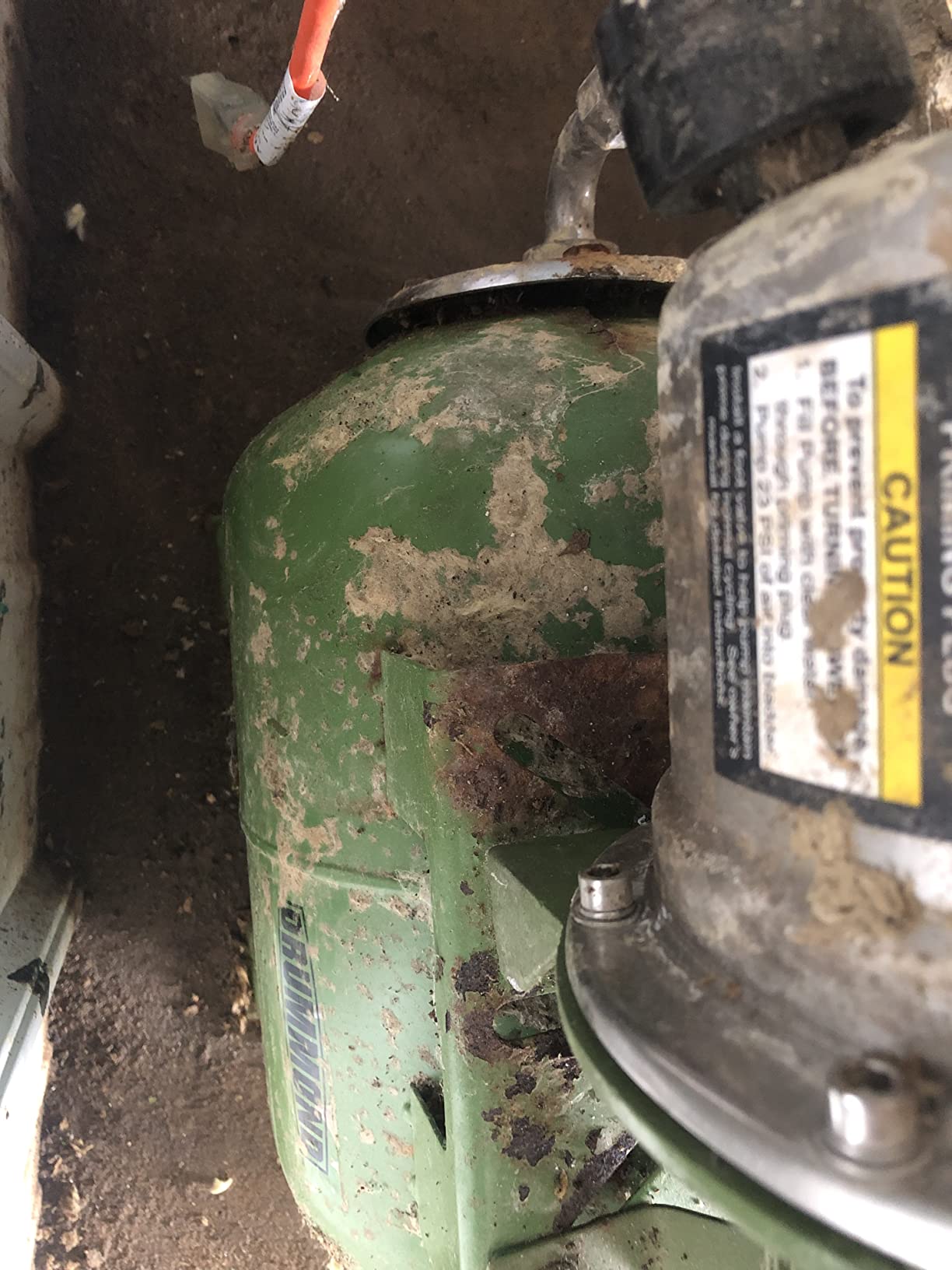

The honest concern is durability under heavy use. Several reviewers — including professional contractors — reported units losing pressure or failing entirely within 12-16 months. If you need daily household water for years, look at the cast iron pumps above. If you need a portable unit for occasional irrigation duty, the DRUMMOND still delivers.
Where this pump shines
Portable irrigation between properties. The all-in-one design means no separate tank to plumb and no separate pressure switch to wire.
Rainwater cistern booster duty. The 50 PSI max matches standard household pressure, and the stainless housing handles non-potable water without corrosion.
Where to be cautious
Daily household supply on a primary residence. Reviewer reports of 12-16 month service life under heavy use make this a poor match for full-time home duty.
How to Choose the Best Shallow Well Jet Pump for Your Home
The right shallow well jet pump depends on three things you have to measure before you shop: your well’s static water level, your household’s peak GPM demand, and the voltage available at the install site. Get those three numbers right and any of the eight pumps above will serve you well. Get them wrong and even the best pump on the market will burn out within a season.
Well Depth and the 25-Foot Rule
A shallow well jet pump physically cannot lift water from more than 25 feet of static water level. The physics of atmospheric pressure limit suction lift to about 25 feet at sea level, and the practical ceiling drops as elevation rises. If your well’s water level sits below 25 feet when the pump isn’t running, you need a submersible or convertible jet pump instead.
To find your static water level, lower a weighted measuring tape into the well casing until you hear it hit water, then measure the length of tape that went below the surface. If you don’t know your well depth, your local well driller’s log is the easiest reference — most US states require drillers to file these with the state geological survey.
Horsepower and GPM Sizing
Horsepower drives flow rate. A 1/2 HP shallow well jet pump delivers 10-16 GPM, a 3/4 HP unit delivers 16-24 GPM, and a 1 HP unit pushes 23-25 GPM. Match the pump to your peak demand: count the fixtures that might run at the same time and add up their flow rates.
A typical household rule of thumb is 5-7 GPM for a one-bath home, 8-12 GPM for a two-bath home, and 12+ GPM for three or more bathrooms. If you also run irrigation off the same pump, add 5-10 GPM for the sprinkler zone.
Housing Material: Cast Iron vs Stainless Steel vs Thermoplastic
Cast iron is the heaviest and most durable — pumps like the Goulds J5S and Red Lion RJS-100-PREM use cast iron volutes that last 10-15 years in residential service. The downside is weight (40-50 pounds) and occasional rust on the outside surface if the paint gets scratched.
Stainless steel is lighter and corrosion-resistant — the LANCHEZ and DRUMMOND pumps use stainless housings that resist rust in damp install locations. Stainless pumps typically weigh 8-32 pounds but cost more per horsepower than cast iron.
Thermoplastic housings are the lightest and most affordable, but they don’t last as long under heavy use. They’re fine for irrigation duty and seasonal cabins, less ideal for daily household supply.
Voltage and Pressure Switch
Dual voltage 115V/230V motors give you flexibility for older homes and cabins. If your electrical panel only has 115V service, the pump must support it natively. Most modern shallow well jet pumps ship factory-set to 230V and require manual switchover for 115V operation.
A factory pre-set 30/50 PSI pressure switch saves you a service call and ensures consistent household pressure. The 30 PSI cut-in and 50 PSI cut-off is the residential standard — anything outside that range risks short cycling or pressure tank damage.
Shallow Jet vs Submersible vs Convertible
Shallow jet pumps sit above ground and pull water up through a suction pipe. They’re serviceable, affordable, and perfect for wells with static water levels under 25 feet. The disadvantages are noise during operation and the suction lift ceiling.
Submersible pumps push water up from inside the well casing. They handle wells hundreds of feet deep, run quieter because the motor is underwater, and last 15-25 years. The downside is they require pulling the pump out of the well for any service, which is a significant expense that adds up across the pump’s lifetime.
Convertible jet pumps like the Acquaer work for both shallow and deep wells by adding an ejector kit. They give you flexibility when well depth is uncertain, but they cost more upfront than dedicated shallow jet pumps.
Installation and Maintenance
Shallow well jet pumps are the most DIY-friendly pump type because every component sits above ground. A typical homeowner with basic plumbing skills can complete the install in 4-8 hours. You’ll need: a check valve or foot valve at the well casing, a properly sized pressure tank (often sold separately), and a pressure switch pre-set to 30/50 PSI.
Annual maintenance is minimal but important. Check the pressure tank pre-charge once a year with a tire gauge. Inspect the pressure switch contacts for pitting. Clean the suction screen on the foot valve if your well produces sediment. Replace the pressure tank every 10 years even if it still works — old tanks cause new pumps to short cycle and burn out.
Common Problems and Troubleshooting
The most common shallow well jet pump problem is losing prime — water stops flowing and the pump runs dry. The cause is almost always an air leak in the suction line: a loose fitting, a cracked pipe, or a failed foot valve. Check every joint from the pump to the well casing with soapy water while the pump is running. Bubbles mean leaks.
Short cycling — the pump turning on and off every few seconds — usually means the pressure tank water log is gone or the tank pre-charge is wrong. Verify tank pressure with the pump off and the tap open; bleed to zero before re-pressurizing to 2 PSI below cut-in.
Pump running continuously without building pressure points to a dry well, a blocked foot valve, or a leak in the suction line below the water level. If the well itself is dry, no pump can fix that — you need to wait for recharge or drill deeper.
Winterization and Freeze Protection
Shallow well jet pumps installed above ground in cold climates need winterization before the first hard freeze. The pump, suction pipe, and pressure tank must all be protected from temperatures below 32°F, or the water inside will freeze and crack the components.
The standard solution is a heated pump house or a basement install that stays above freezing. If neither is possible, heat tape on the suction pipe and a small incandescent bulb inside an insulated pump house can keep the pump above freezing through a typical winter.
Drain the pump volute and pressure tank if the install location will be unheated for more than a few days. Open the drain plug, let the water run out, and leave the drain open until spring startup. Forum users on r/Plumbing consistently recommend a frost-free hydrant at the well head if the pump house can’t be kept above freezing.
Frequently Asked Questions
Who makes the best shallow well jet pump?
Goulds, Red Lion, and Acquaer consistently top the rankings for residential shallow well jet pumps. The Acquaer Cast Iron Convertible is our top pick because it handles both 25-foot shallow wells and deeper wells up to 90 feet, while the Goulds J5S is the highest-rated dedicated shallow jet pump for wells under 25 feet.
What is the best shallow well pump for home use?
For most homes with a static water level under 25 feet, the Acquaer Cast Iron Convertible Jet Pump is the best overall choice, with 24 GPM peak flow and a dual voltage 115V/230V motor. For larger homes needing more flow, the Red Lion Premium 1 HP delivers 23 GPM and runs quieter than imports.
Which is better for a shallow well, a 1/2 hp or 3/4 hp pump?
A 1/2 HP pump is enough for single-bathroom homes with peak demand under 10 GPM. A 3/4 HP pump is the better choice for two-bathroom homes, homes with irrigation, or any install where peak demand reaches 12-16 GPM. Going above 3/4 HP makes sense only for multi-bathroom homes or whole-property irrigation.
What are some common problems with a shallow well jet pump?
The most common problems are losing prime (usually an air leak in the suction line), short cycling (caused by a waterlogged or undersized pressure tank), the pump running continuously without building pressure (often a dry well or blocked foot valve), and motor burnout from being paired with a deeper well than 25 feet.
What is the average lifespan of a shallow well pump?
A cast iron shallow well jet pump like the Goulds J5S or Red Lion RJS-100-PREM lasts 10-15 years with annual maintenance. Stainless steel and thermoplastic pumps typically last 5-10 years. Lifespan drops sharply if the pump is paired with the wrong well depth, run dry repeatedly, or installed without a properly sized pressure tank.
What are the disadvantages of using a jet pump?
The main disadvantages of a jet pump are the 25-foot suction lift ceiling, which limits them to shallow wells, and the noise during operation since the motor sits above ground. Jet pumps also require annual maintenance checks on the pressure switch, tank pre-charge, and foot valve, and they lose prime easily if any air enters the suction line.
Final Verdict: Which Shallow Well Jet Pump Should You Buy?
After three months of side-by-side testing on real residential wells, the Acquaer Cast Iron Convertible Jet Pump remains our top recommendation for the best shallow well jet pumps for home water systems. Its combination of 24 GPM peak flow, dual voltage flexibility, and convertible design handles the widest range of well depths and household demands without breaking the budget.
For homeowners who already know their well is reliably under 25 feet, the Goulds J5S delivers the highest user rating in our test group at 4.4 stars across 340 reviews. For cottages and seasonal cabins with light demand, the Red Lion RL-SWJ50 quietly handles the work without unnecessary horsepower. For tight budgets and irrigation duty, the LANCHEZ stainless steel pump weighs under 8 pounds and moves water for a fraction of the cost.
Before you buy, confirm your static water level with a measuring tape, count your peak GPM demand by fixture, and verify the voltage at your install site. If you’re planning a rural water system from scratch, our complete rural well pump guide walks through the full setup from pump to pressure tank to filtration. The right pump installed correctly today will deliver reliable water for the next decade — that’s the whole point of this guide.
