Nearly every pickup has the same problem: the space behind the rear seat is deep enough for a cable bundle and nothing else. A shallow mount subwoofer is a passive driver built with a reduced mounting depth, usually under 4 inches, so it can live in that cavity where a standard 5-to-8-inch-deep sub physically cannot go. The trade is lower output below 40 Hz and less thermal headroom, not sound quality.
This roundup covers the best shallow mount subwoofers for trucks in 2026 using eight drivers that actually ship with published mounting depth, cutout diameter, and RMS numbers. We sorted them by the criteria that actually decide whether an install works: depth against your seat rail, whether usable box volume exists behind the seat, voice coil configuration, and how cleanly the impedance matches a monoblock.
Modern shallow drivers are audibly competitive at 10 and 12 inches. What they give up is excursion and low-frequency extension, which means a truck cab gets less below 40 Hz than a sedan with a full-depth driver. Installers on r/CarAV and F150Forum repeat the same lesson: a small sealed box with a correctly amplified shallow driver beats a rattling ported box every time.
Two numbers explain most of the disappointment people report. First, cabin gain: a pickup cab adds roughly 12 dB/octave of reinforcement below 70-90 Hz, so a modest driver sounds far stronger in a truck than an open test measurement suggests. Second, the peak wattage printed on the box is marketing, not a spec. The RMS number is the only figure that predicts whether the voice coil survives.
Table of Contents
Top 3 Shallow Mount Subwoofers for Trucks (October 2026)
MB Quart DS1-254 10-Inch Shallow
- 2.95 inch mounting depth
- 200W RMS
- Dual 4-ohm voice coils
- 9.13 inch cutout
Rockford R2S-1X12 Loaded 12
- Pre-loaded sealed wedge
- 250W RMS
- 2-ohm load
- 3.25 inch top depth
Rockford Fosgate R2SD4-10 10-Inch
- 200W RMS
- 3.417 inch depth
- 4-ohm dual voice coils
- 9.125 inch cutout
Quick Overview: Best Shallow Mount Subwoofers for Trucks in 2026
| Product | Specifications | Action |
|---|---|---|
| MB Quart DS1-254 10-Inch Shallow |
|
Check Latest Price |
| Rockford Fosgate R2S-1X12 Loaded 12 |
|
Check Latest Price |
| Rockford Fosgate R2SD4-10 10-Inch |
|
Check Latest Price |
 Pioneer TS-A2500LS4 10-Inch |
|
Check Latest Price |
 KICKER 43CWRT102 CompRT 10-Inch |
|
Check Latest Price |
 Rockford Fosgate P3SD4-10 10-Inch |
|
Check Latest Price |
 CT Sounds Hydro 10 Dual 4-Ohm |
|
Check Latest Price |
 KICKER 46L7T102 L7-Thin 10-Inch |
|
Check Latest Price |
Everything below the table is ordered by fitment, not by sticker appeal. The 10-inch drivers occupy five of the eight slots because a 10 is the size that actually fits most half-ton rear seats with a usable box volume, while a 12 only works where the cavity is deep and wide enough to hold a real box.

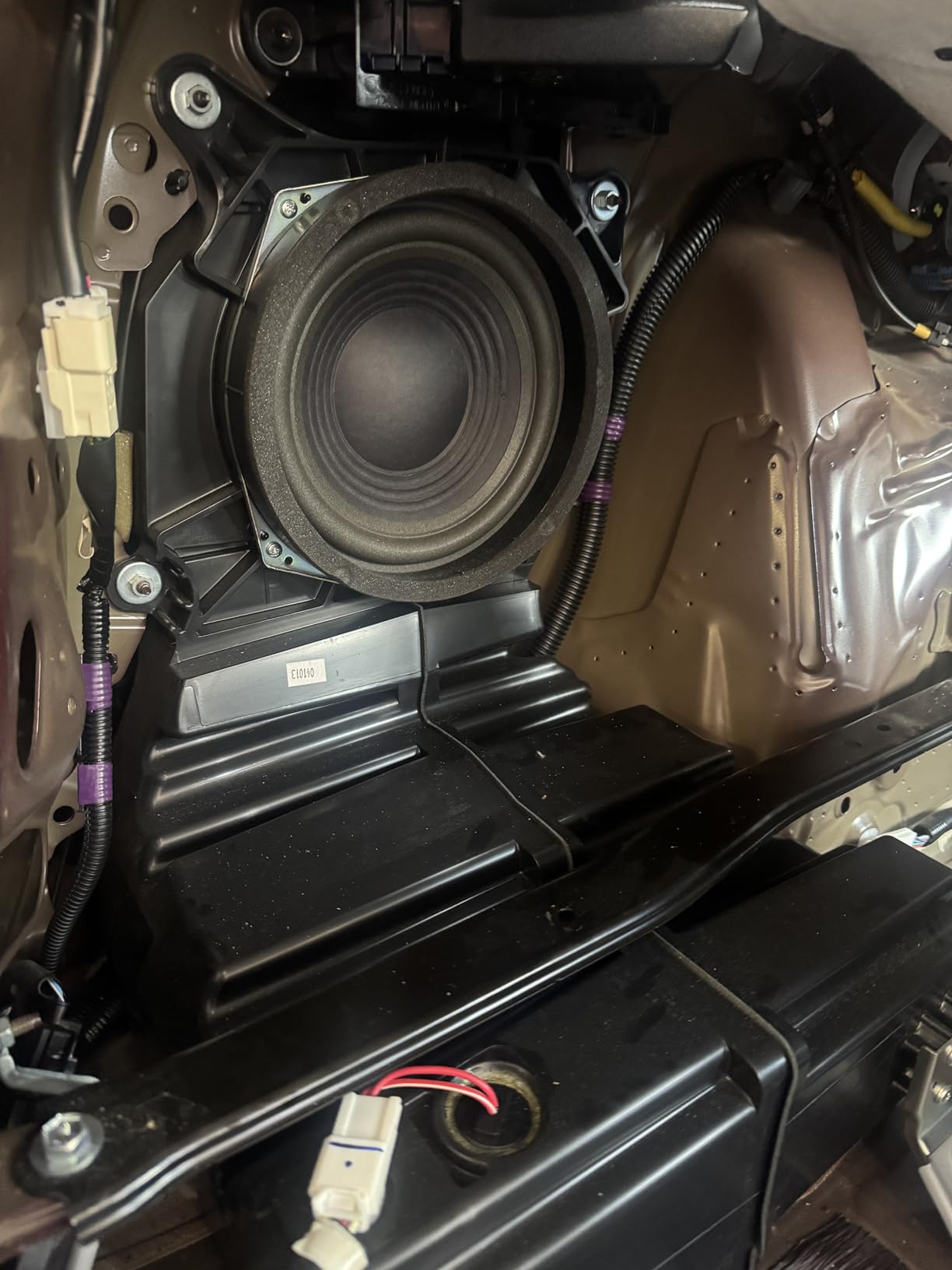

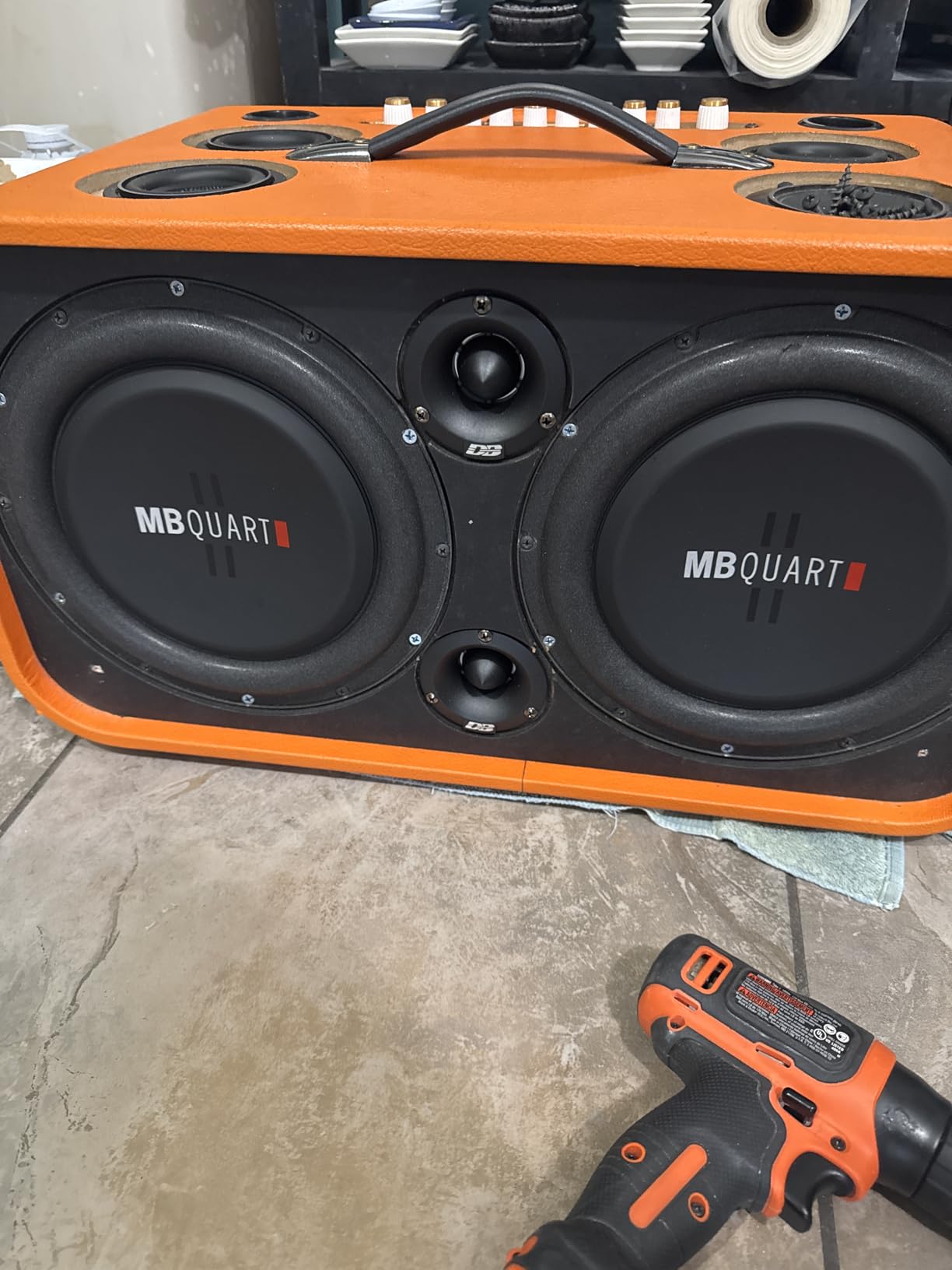

1. MB Quart Discus DS1-254 – Best Shallow 10 for the Tightest Cab
MB Quart Discus 10 Inch 400W Shallow Mount 4 Ohm DVC Car Subwoofer
Mounting depth: 2.95 inch
RMS: 200W
Voice coils: dual 4-ohm
Cutout: 9.13 inch
Pros
- Deepest fit margin in the group at 2.95 inch
- Dual 4-ohm coils give series parallel and 2-ohm options
- Largest review base here at 1226 ratings
Cons
- 200W RMS is the lowest output ceiling in the group
- Needs correct gain and a high-pass to avoid mud
- Limited extension compared with higher-power designs
The DS1-254 is the driver we keep coming back to when the depth budget is genuinely tight. At 2.95 inches of mounting depth it clears seat pans and rear seat backs that stop every other 10-inch on this list, and the 9.13-inch cutout keeps the mounting ring compact if you are cutting into a seat-back enclosure.
Owners consistently pair it with an amplifier at or near its 200W RMS rating and report real punch for a driver this small. Multiple reviews describe it going behind or under a truck seat with minimal fuss, which is exactly the use case here. The rating distribution is unusually healthy, with 77% five-star and only 5% one-star.
The two 4-ohm coils are the reason this driver is so easy to install. Wired in series it presents an 8-ohm load for a lighter amp, in parallel it drops to 2 ohm for a beefier monoblock, and each coil alone gives you 4 ohm if you only have one channel. That flexibility matters more in a truck because your amp options are often decided by what physically fits behind the seat or under the console.
What you trade is output. 200W RMS is a low ceiling, and pushing past it with a much larger amp is the fastest way to cook a voice coil that has little thermal headroom. Clean, deep output here depends on correct gain settings and a properly set high-pass filter, which reviewers call out again and again.
Why it fits where other 10s will not
The 2.95-inch depth is the whole argument. Behind an F-150 rear seat, builders report roughly 4.25 inches of usable mounting depth and design to a 3.5-inch ceiling to leave room for terminal clearance and airflow. That leaves about half an inch of margin at 3.5-inch drivers, which sounds generous until the box brace and the seat cradle are in the way.
At 2.95 inches, the DS1-254 leaves a full inch of breathing room. That margin is what lets the box sit flat against both the enclosure wall and the seat cradle, which is how you avoid the point-contact rattle installers complain about constantly in Ford trucks.
Where the compromise shows up
Expect an in-cabin thump rather than an exterior rattler. A single 200W RMS driver will not push meaningful output through a bedliner, and forum users running MB Quart shallow 12s have posted plenty of disappointment about the wider line. This 10-inch model has a much better review profile than the brand’s 12s, but the ceiling is still 200W.
If your priority is cabin bass on a daily-driven truck with tight clearance, this is the pick. If you want the bed to shake from a parking lot, step up to a 300W or 500W RMS driver and accept the extra inch of depth.

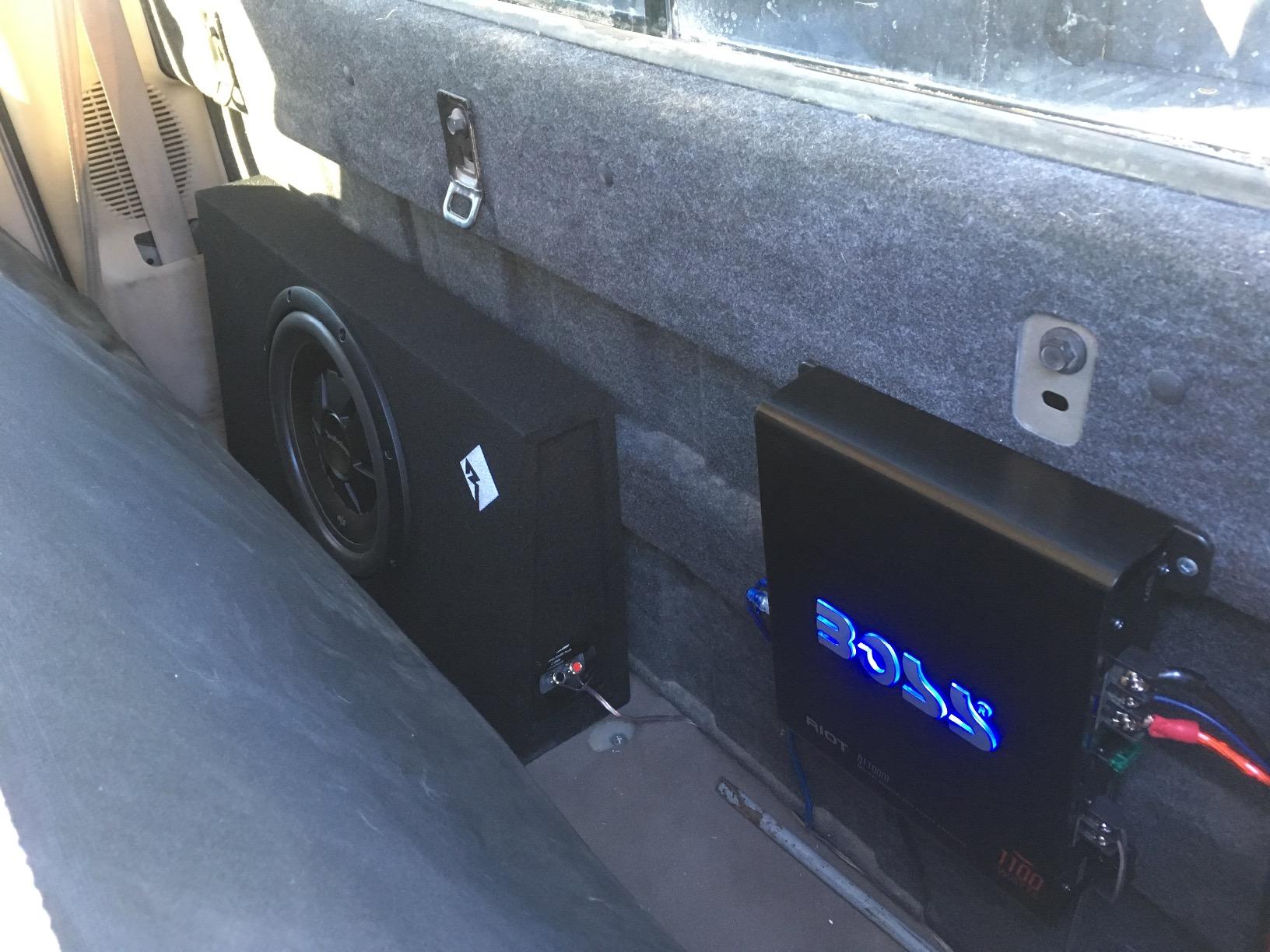

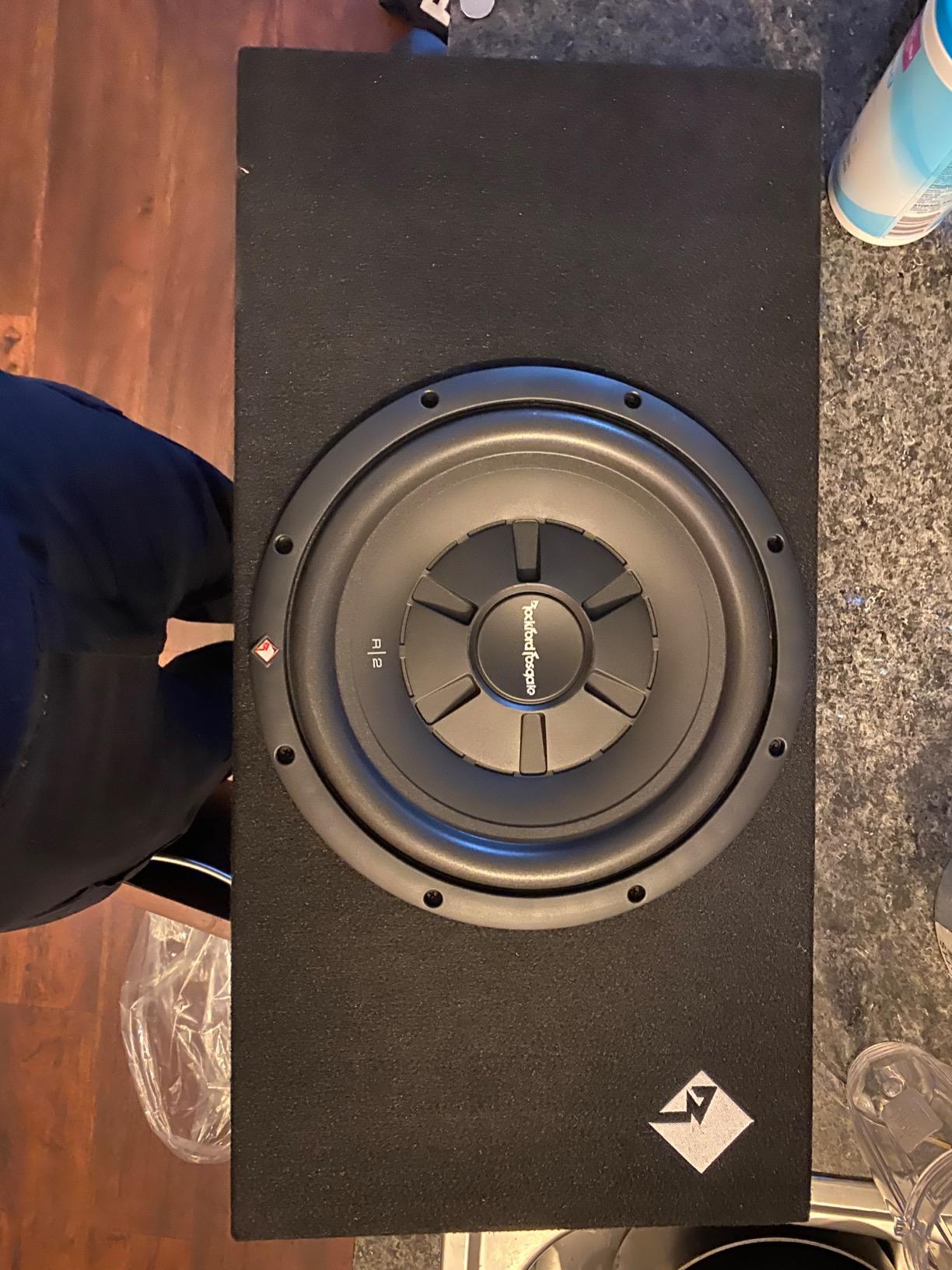

2. Rockford Fosgate R2S-1X12 – Best Pre-Loaded Box for Single-Cab Trucks
Rockford Fosgate Prime R2S-1X12 Loaded 12” Slim Subwoofer in Enclosure
Enclosure: pre-loaded sealed wedge
Power: 250W RMS / 500W max
Load: 2-ohm
Depth: 3.25 inch top
Pros
- Complete package with driver box and terminals
- 3.25 inch top depth suits limited seat travel
- Internal 2-ohm wiring simplifies amp matching
Cons
- Bulky and heavy compared with a bare driver
- Fixed enclosure rules out a future driver swap
- 18 pound weight complicates tight-space mounting
The R2S-1X12 is the only pre-loaded enclosure in this group, and that is exactly why it earns a slot. Rockford Fosgate built a wedge that is 3.25 inches deep at the top and 5.25 inches at the bottom, sized specifically for single-cab trucks with limited seat travel, where a flat box simply will not sit flat.
It arrives with the R2S 12-inch dual voice coil driver loaded into a sealed enclosure made from 5/8-inch MDF under high-density carpet, internally wired to a 2-ohm load. Quick-release compression terminals are included. You cut nothing, glue nothing, and cannot get the airspace wrong.
The 2-ohm internal wiring is a genuine convenience. A 250W RMS mono amp at 2 ohms is one of the easiest matches in car audio, and the sealed alignment is the alignment experienced builders recommend for every behind-seat install regardless of brand.
Buyers point to the wedge profile and slim top depth as the reason it fits behind a single-cab seat, and the build quality draws consistent praise. The rating split of 75% five-star against 8% one-star reflects a smaller group of fitment and tuning friction, which is normal for a rigid pre-built shape.
When a pre-loaded wedge beats a custom box
A pre-loaded box wins when your cavity has an odd shape, when you do not want to cut MDF in a truck cab, or when you need the install finished in a weekend. The internal wiring is already correct, the airspace is already right, and the carpet finish will not rattle against a seat cradle the way bare MDF does.
It is also the fastest route to a working system if you have never built an enclosure. The tradeoff is permanent. Once it is in, you are not swapping drivers, changing alignment, or going bigger later without replacing the whole box.
When to skip it
Skip the R2S-1X12 if your rear seat must stay fully functional and the wedge footprint fights you, or if you plan to grow the system. At 18 pounds and a 31.3-inch width, handling it into a tight cab is genuinely awkward, and the fixed shape offers no second chance on geometry.
For a double cab where you already know you have 0.5 to 0.8 cu ft of volume and a competent amp, a bare driver in a custom wedge is the better long-term platform. For a single cab or an extended cab, this box solves a problem you would otherwise be solving with hand-cut panels.

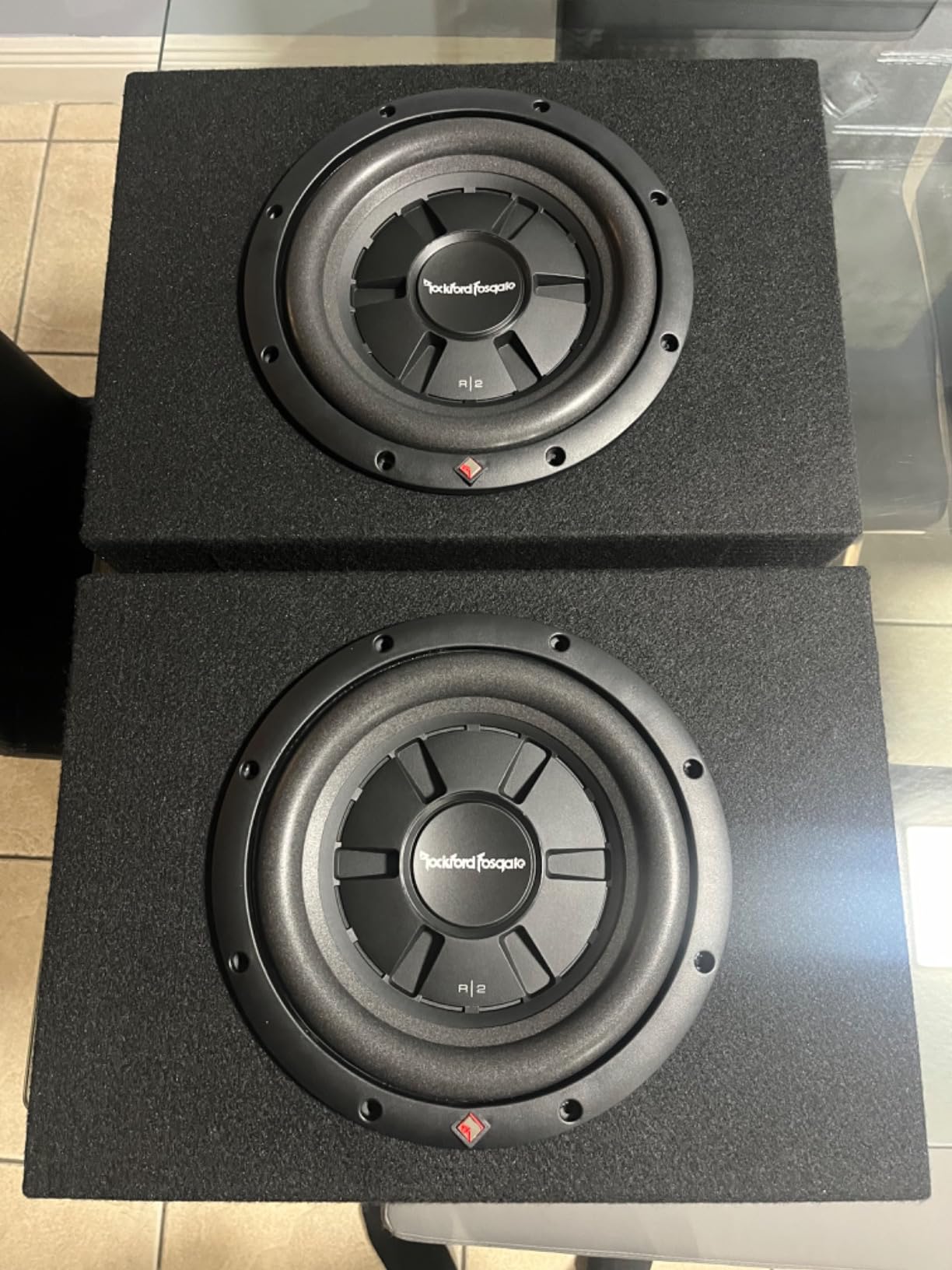

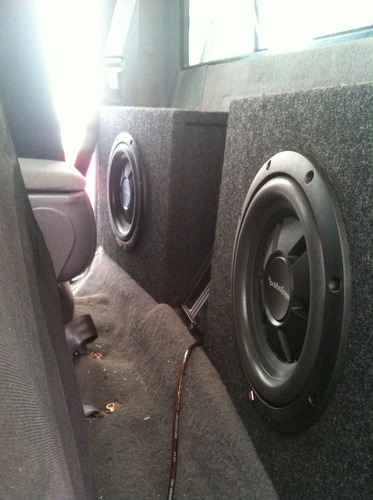

3. Rockford Fosgate R2SD4-10 – Best Value 4-Ohm DVC Behind a Rear Seat
Rockford Fosgate R2SD4-10 Prime R2 4-Ohm DVC Shallow 10″ Subwoofer
RMS: 200W / 400W max
Voice coils: dual 4-ohm
Depth: 3.417 inch
Cutout: 9.125 inch
Pros
- 4-ohm dual coils support series parallel or 2-ohm loads
- 3.417 inch depth works behind most truck rear seats
- Stamp-cast basket with spider venting cools the motor
Cons
- Terminal layout on some units may not match the printed diagram
- Needs correct gain and high-pass to avoid muddy low end
- Will not match the output of a pair of 12s in a ported box
The R2SD4-10 sits in the middle of everything that matters: 3.417 inches of depth, a 9.125-inch cutout, 200W RMS, and dual 4-ohm coils. It is optimized for sealed enclosures, which is the correct alignment for a behind-seat truck install, and the 579 ratings give it more proven history than most shallow 10s at this level.
Owners consistently describe it as a value driver that punches above its class in a small sealed enclosure, and several reviews show it installed under a truck rear seat or in a custom wedge. Deep, clean output is the recurring description once the amplifier is right.
The wiring flexibility is the practical draw. Two 4-ohm coils give you 8 ohm in series, 2 ohm in parallel, or 4 ohm on a single coil, so the driver adapts to whatever monoblock you end up with. That is a wider range than most entry-level dual 2-ohm drivers offer in reverse.
The stamp-cast basket with spider venting is a real feature rather than marketing. Shallow motors have less surface area to shed heat, and venting the spider gives the coil windings a path for airflow, which is why this driver tolerates 200W RMS without complaint.
How to tune it without muddy low end
Set the high-pass filter on your amp to around 80 Hz with a 12 dB/octave slope and bring the gain up until the bass is strong, then back it off a third. Muddy bass in a small sealed box is nearly always a tuning problem rather than a driver fault, and reviewers make the same point independently.
Because the cab already supplies substantial low-end reinforcement, you need less amplifier power here than the numbers suggest. A monoblock delivering roughly 1 to 1.25 times the 200W RMS rating is the sensible target, which also keeps the voice coil out of clipping.
What to watch before you commit
Check the terminal arrangement against the printed wiring diagram when the driver arrives. Some buyers found the physical terminal layout did not match the diagram on their unit, which is an easy afternoon mistake to avoid.
Also set expectations correctly. This driver will not replace the output of a pair of 12-inch drivers in a properly ported box, and at 200W RMS it is not the choice if you want the bed to move. It is the choice if you want reliable, repeatable cabin bass in a double cab without custom fabrication headaches.

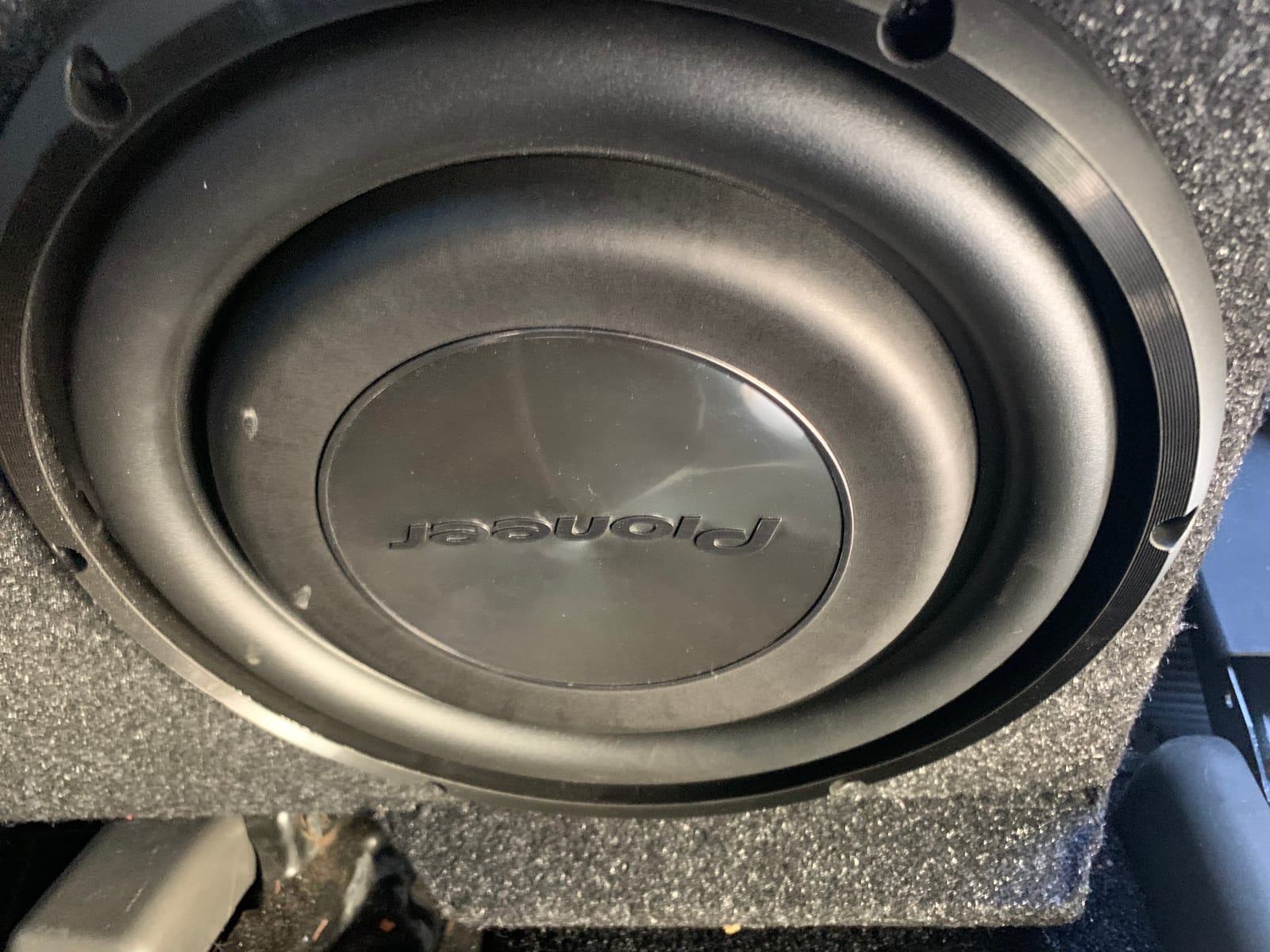

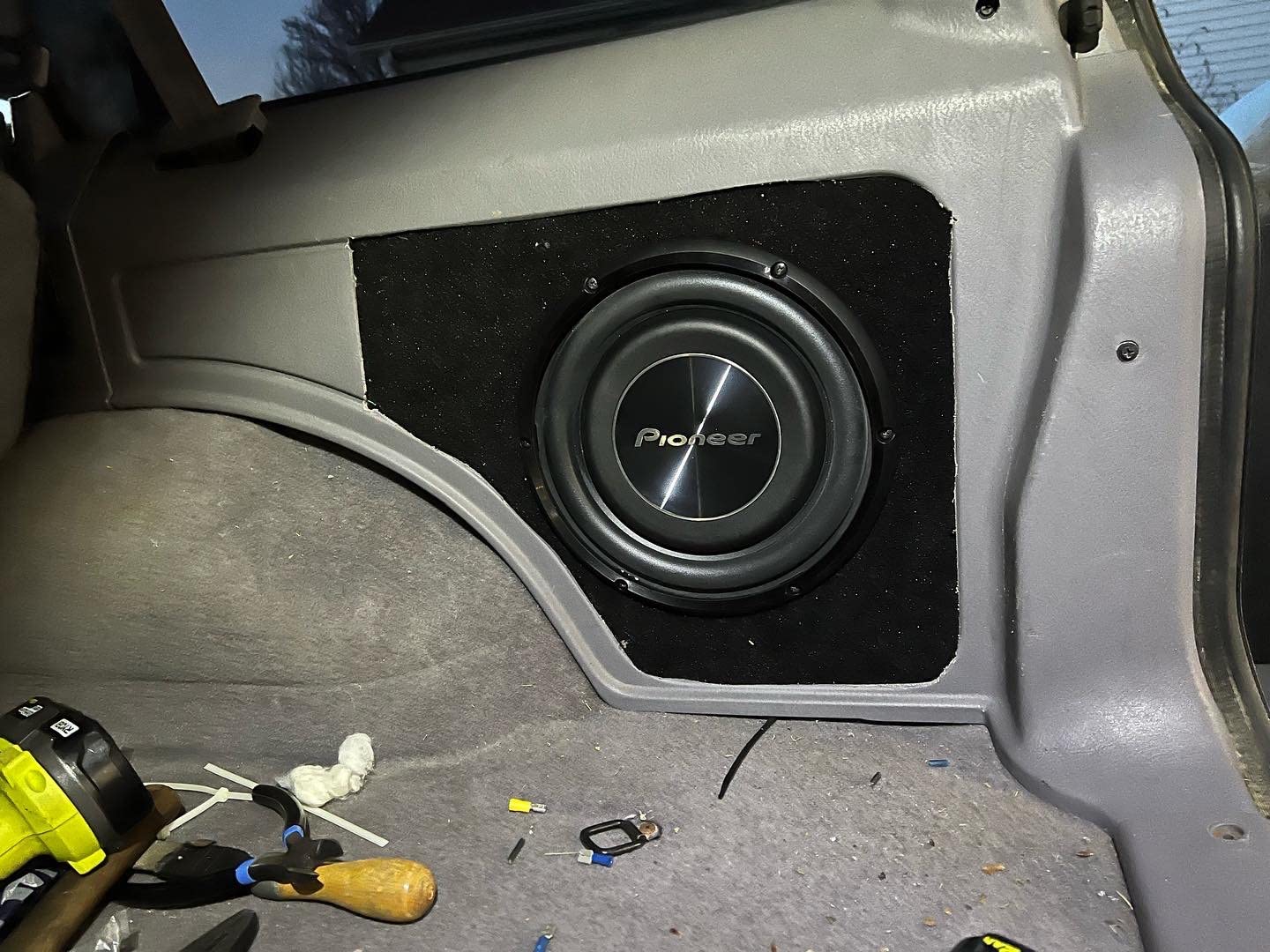

4. Pioneer TS-A2500LS4 – Top Rated 10-Inch for Clean Bass
PIONEER A-Series TS-A2500LS4 Shallow-Mount 10″ Subwoofer 1200W Max
Power: 1200W max / 300W nominal
Voice coil: single 4-ohm
Cone: glass-fiber and mica IMPP
Sensitivity: 85 dB
Pros
- Highest average rating in the group
- 4-ohm single voice coil keeps wiring simple
- 85 dB sensitivity produces output from modest power
- Slim profile preserves rear seating
Cons
- Single 4-ohm coil offers less wiring flexibility than DVC
- Delivers an in-cabin thump rather than exterior rattle
- Needs a proper amplifier to reach its potential
The TS-A2500LS4 carries the highest average rating of any product here at 4.6 stars across 516 ratings, with 81% of buyers giving five stars. That is unusual consistency for a shallow driver, and the reason is straightforward: this is a well-engineered 10-inch that behaves predictably when it is correctly amplified.
The cone is glass-fiber and mica reinforced IMPP, which gives it the rigidity to stay clean at higher volumes where cheaper polypropylene cones start to break up. Rated at 300W nominal against a 1200W peak figure, the 85 dB efficiency rating is genuinely useful in a truck cab where you are chasing output from a modest monoblock.
Reviewers repeatedly note that output is amplifier-dependent. Cheap amps left them unimpressed, while a proper mono amp made the difference obvious. Several owners cite clean 20 Hz performance without distortion, and truck owners specifically praise how little cabin space it uses while still delivering tight low end.
The single 4-ohm voice coil is the design decision worth understanding before you buy. One coil means one set of terminals and no wiring math, which is genuinely simpler for a first install. It also means no 2-ohm option, so your amp has to be happy at 4 ohm, and you cannot run two of them in parallel onto a 1-ohm-stable monoblock.
Who buys this driver and is happy with it
This is the pick for someone who wants the cleanest bass per watt in the group and has no interest in wiring options. A single 4-ohm SVC driver on a 4-ohm-stable mono amp is a two-terminal install, and the high sensitivity means you do not need a huge amplifier to fill a cab.
It is also the sensible choice when your rear seat has to stay usable. The slim profile leaves the mounting cavity free, and the 3.38-inch listed depth keeps the box slim enough to tuck under a rear bench in most double cabs.
What you give up with a single coil
You give up the impedance flexibility that makes multi-sub installs possible. A DVC driver can be wired to match an amp’s minimum impedance; an SVC driver cannot. If you ever plan to add a second sub, this is the wrong foundation, and installers on r/CarAV flag SVC-only drivers for exactly that reason.
The other honest limitation is that it thumps more inside the cabin than outside the vehicle. A minority of reviewers say this plainly, and it is a function of the design rather than a defect. Cabin bass is what a truck daily driver needs, but it is not the same as bed output.

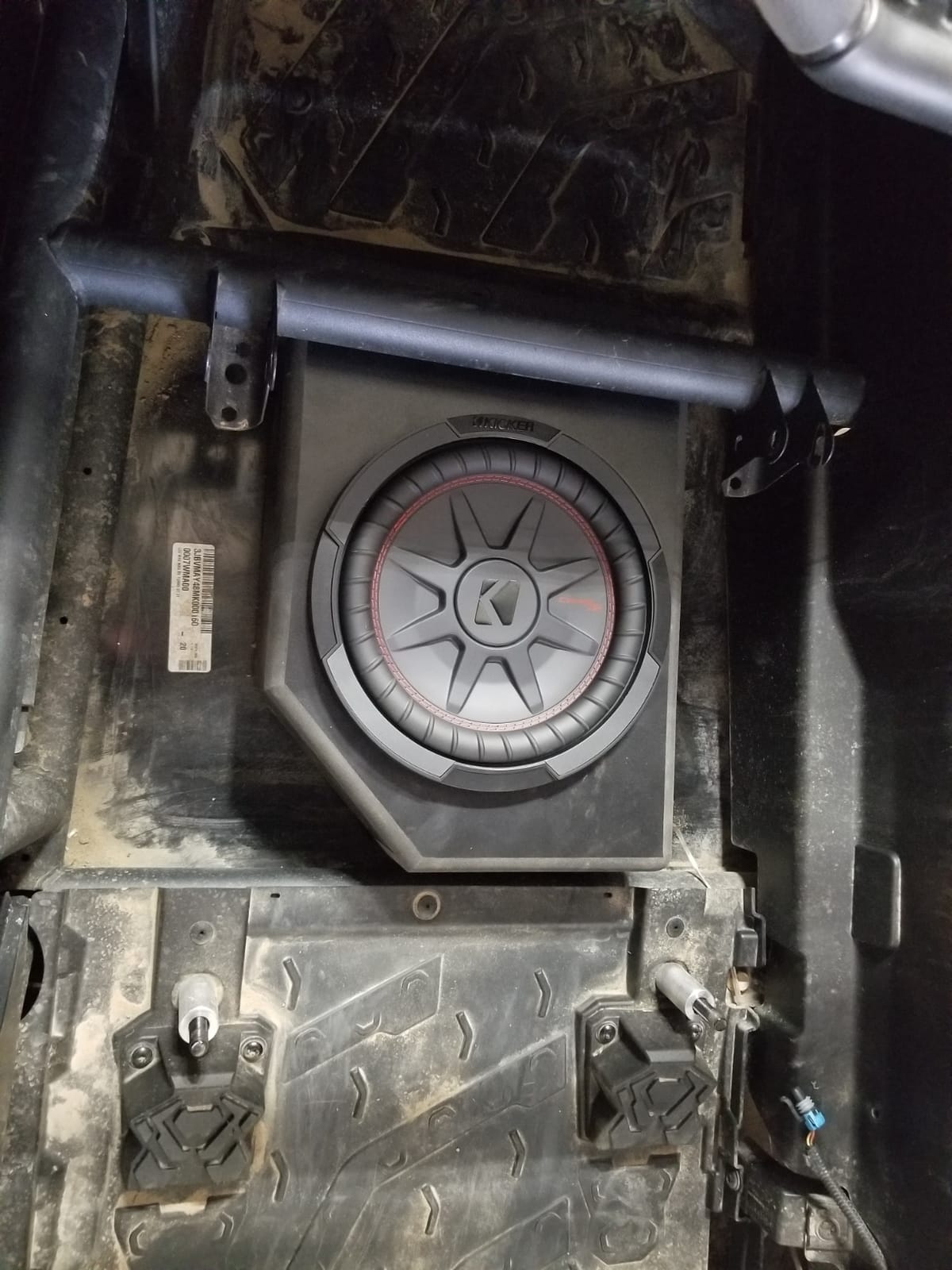

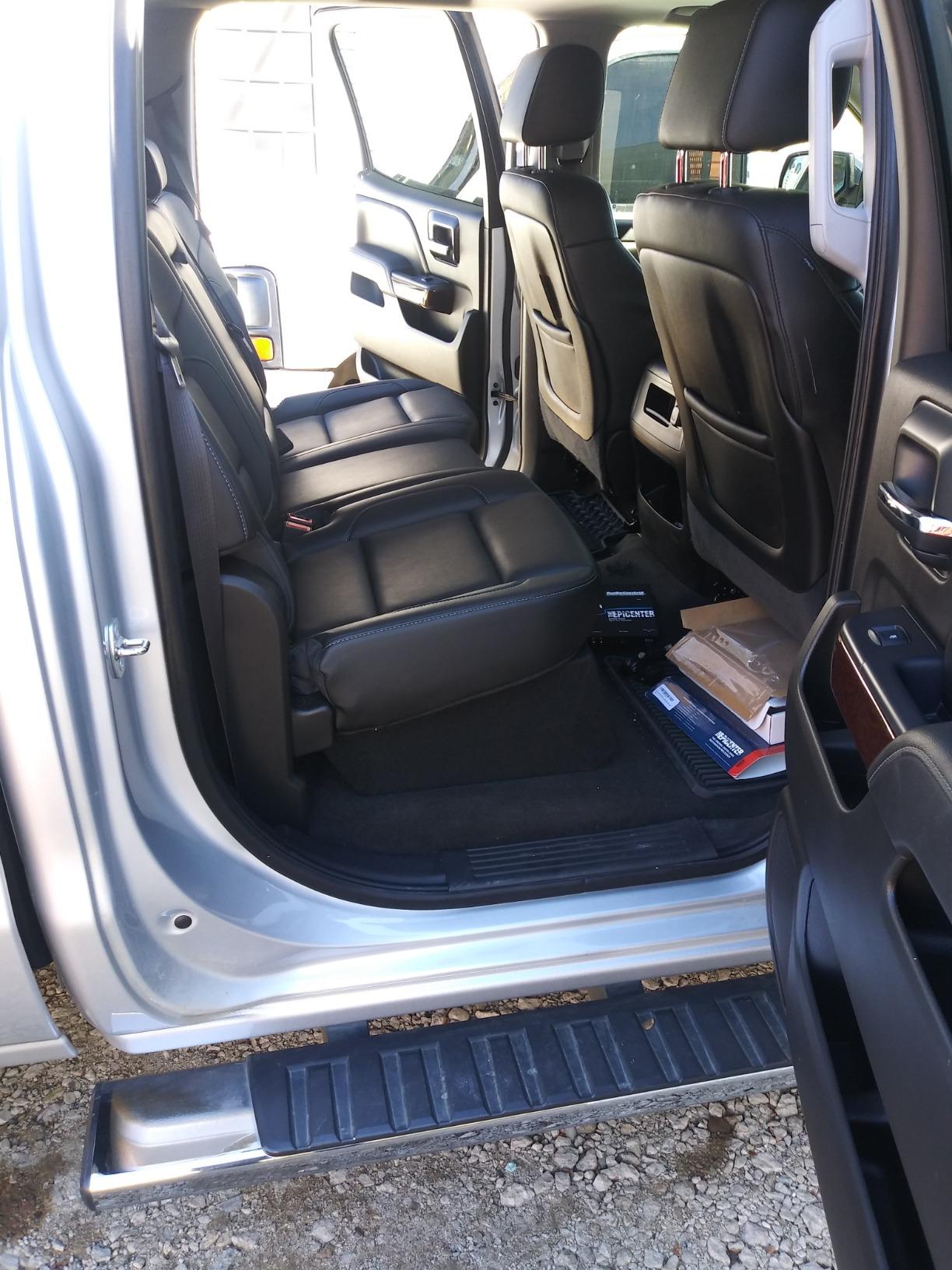

5. KICKER 43CWRT102 CompRT – Best Proven Thin Platform for Amp Flexibility
Kicker 43CWRT102 CompRT 10″ Inch Shallow Mount Subwoofer 2 Ohm Thin Car Sub
RMS: 100-400W / 800W peak
Voice coils: dual 2-ohm at 200W each
Cone: injection-molded polypropylene
Surround: rubber
Pros
- Dual 2-ohm coils simplify mono amplifier matching
- Thin CompRT profile suits tight truck installs
- Injection-molded cone and rubber surround are durable
Cons
- Dual 2-ohm setup limits some series wiring options
- Needs a capable amplifier to reach rated output
- Some listings carry limited enclosure guidance
The CompRT 10 is one of the most widely deployed shallow platforms in the aftermarket, and that maturity shows in the feedback. Each of the two 2-ohm coils handles 200 watts, so the driver works as a single 2-ohm load, or coils can be wired separately depending on what your amplifier offers.
At 100 to 400W RMS and 800W peak, the range is unusually broad for a shallow 10. Buyers treat the thin profile and coil flexibility as the deciding factors, and the injection-molded polypropylene cone with a rubber surround is praised for durability rather than subtlety.
Durability is the quiet strength here. A molded cone and a rubber surround tolerate the repeated thermal cycling of a truck cab, where interior temperatures swing hard between a parked summer afternoon and a cold winter morning. That matters more in a pickup than in a sedan.
The 77% five-star share reflects a driver that does what it says. KICKER’s CompRT line is recognised as a proven shallow-mount platform, and the reviews cluster around the same point: match it to a real mono amp and it performs well above what the thin profile suggests.
When the CompRT is the right call
Choose this driver when you want a proven, widely serviced platform and your amplifier is 2-ohm stable. That combination is the most common successful pairing in the shallow-mount world, and it removes most of the guesswork from the install.
It is also a good second sub later. Dual 2-ohm coils can be arranged to suit more amp options than a dual 4-ohm pair in a series arrangement, which means a future dual-sub install is easier to plan from this foundation.
Where it stops short
The dual 2-ohm configuration restricts some series wiring options, so if your amp is only stable at 4 ohm, this driver is harder to use than a dual 4-ohm. Some reviews also mention limited enclosure guidance in the documentation, so plan the box volume from the driver’s published specifications rather than guessing.
And it needs a capable amplifier. A low-power amp is the most common reason buyers report disappointment, and it is the same failure mode the Rockford and Pioneer sections describe: underpowered, then clipped, then cooked.

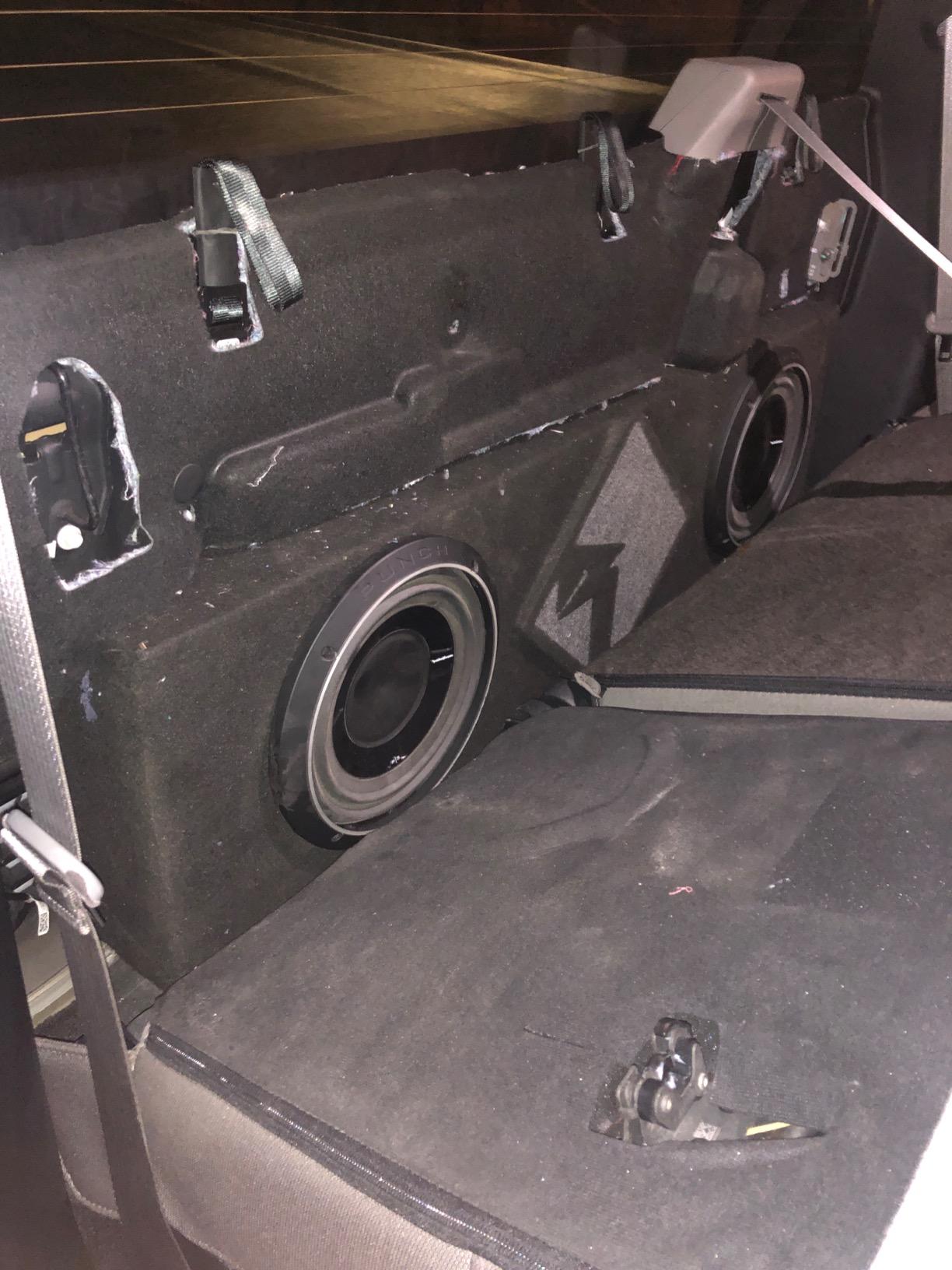

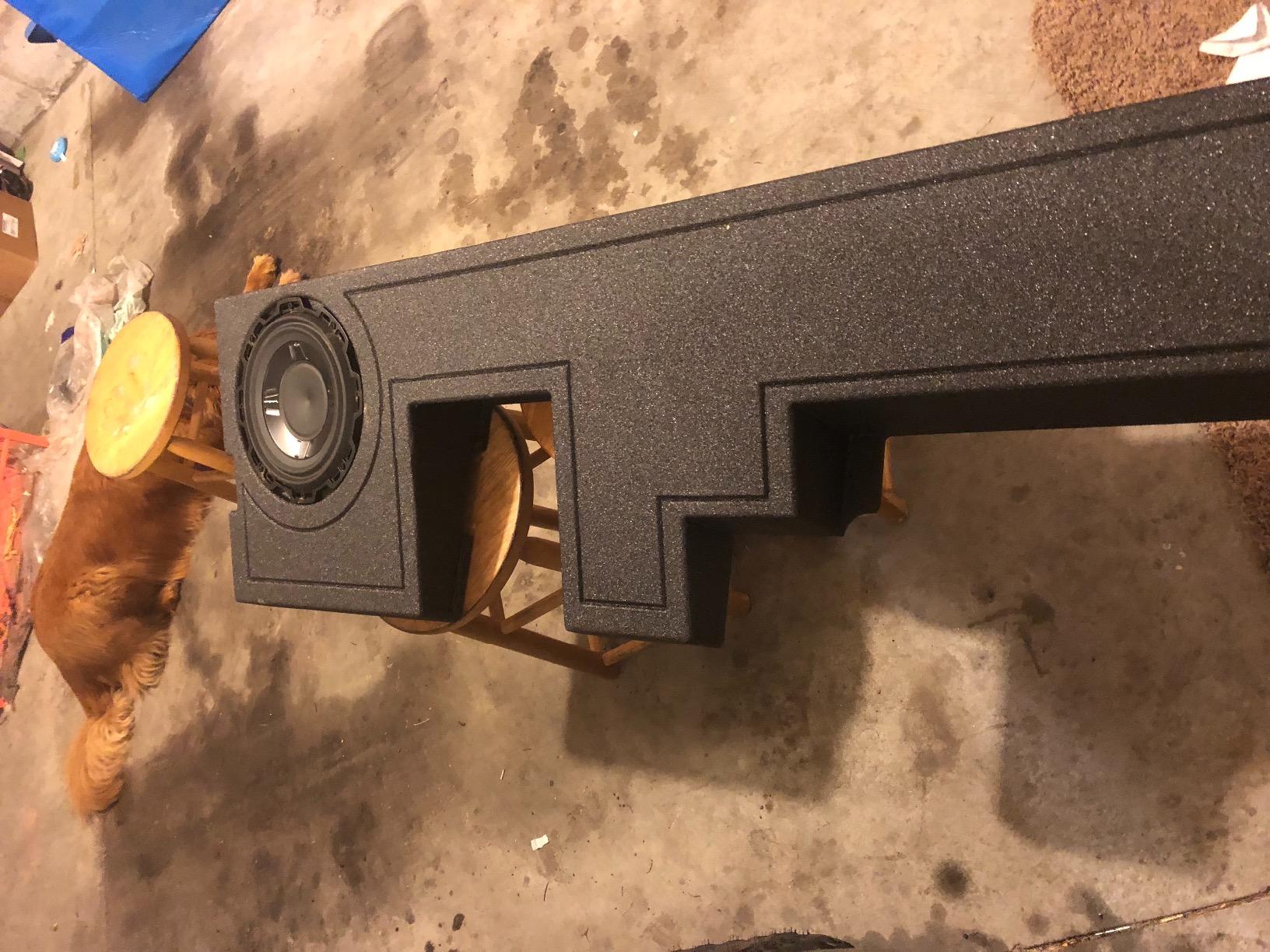

6. Rockford Fosgate P3SD4-10 – Best for 300W RMS Output
Rockford Fosgate P3SD4-10 Punch P3S 4-Ohm DVC Shallow 10″ Subwoofer
RMS: 300W / 600W max
Voice coils: dual 4-ohm
Depth: 3.50 inch
Cutout: 9.06 inch
Pros
- Highest RMS rating among the bare shallow 10s here
- Anodized aluminum cone resists heat and stays rigid
- Works in sealed 0.5 cu ft or vented 1.0 cu ft boxes
Cons
- Heaviest of the group at 11 pounds
- 3.50 inch depth is tighter than the slimmest options
- Needs a solid amplifier to reach full potential
The P3SD4-10 is the step up from entry shallow drivers, and its 300W RMS rating is the highest among the bare 10-inch options in this roundup. Rockford Fosgate publishes both alignment volumes, 0.5 cu ft sealed and 1.0 cu ft vented, which removes the guesswork from the box build entirely.
The anodized aluminum cone and dustcap are the technical headline. Aluminum is stiffer and more heat-tolerant than the injection-molded polypropylene used on the entry drivers, so it resists distortion and thermal compression at higher drive levels, which is exactly the stress a shallow motor feels.
Buyers describe the P3S as a genuine tier above entry-level, and they consistently credit the fact that it accepts both sealed and ported enclosures. Reviewers report strong, clean output when paired with a quality mono amplifier, and the published volumes are commonly called easy to build.
The hybrid stamp-cast basket gives strength without adding much mass, and spider venting handles motor cooling. Custom 10-AWG nickel-plated push terminals are a small detail that matters in a truck where you want a secure connection behind a moving seat.
Why 300W RMS changes the design brief
With a 300W RMS ceiling you can target a monoblock in the 300 to 375W range and get real output without clipping the voice coil. That is a meaningful jump from a 200W driver, particularly in a ported box where excursion and displacement translate directly into low-frequency output.
The dual 4-ohm coils again give you 8 ohm, 4 ohm, or 2 ohm depending on the amp, and the 82 dB signal-to-noise ratio keeps the noise floor low enough for a clean low-pass signal from a factory head unit.
What the extra weight and depth cost you
At 11 pounds and 3.50 inches of mounting depth, this is one of the larger shallow 10s here. If your seat rail gives you 3.5 inches total with no tolerance for error, the DS1-254 or the R2SD4-10 will fit and this one will not.
The 9.06-inch cutout is also larger than most, which matters if you are cutting into a seat-back panel rather than mounting to a flat baffle. Buyers mention weight and depth as slightly more substantial than ultra-slim designs, but nobody describes them as problems once the box is built.

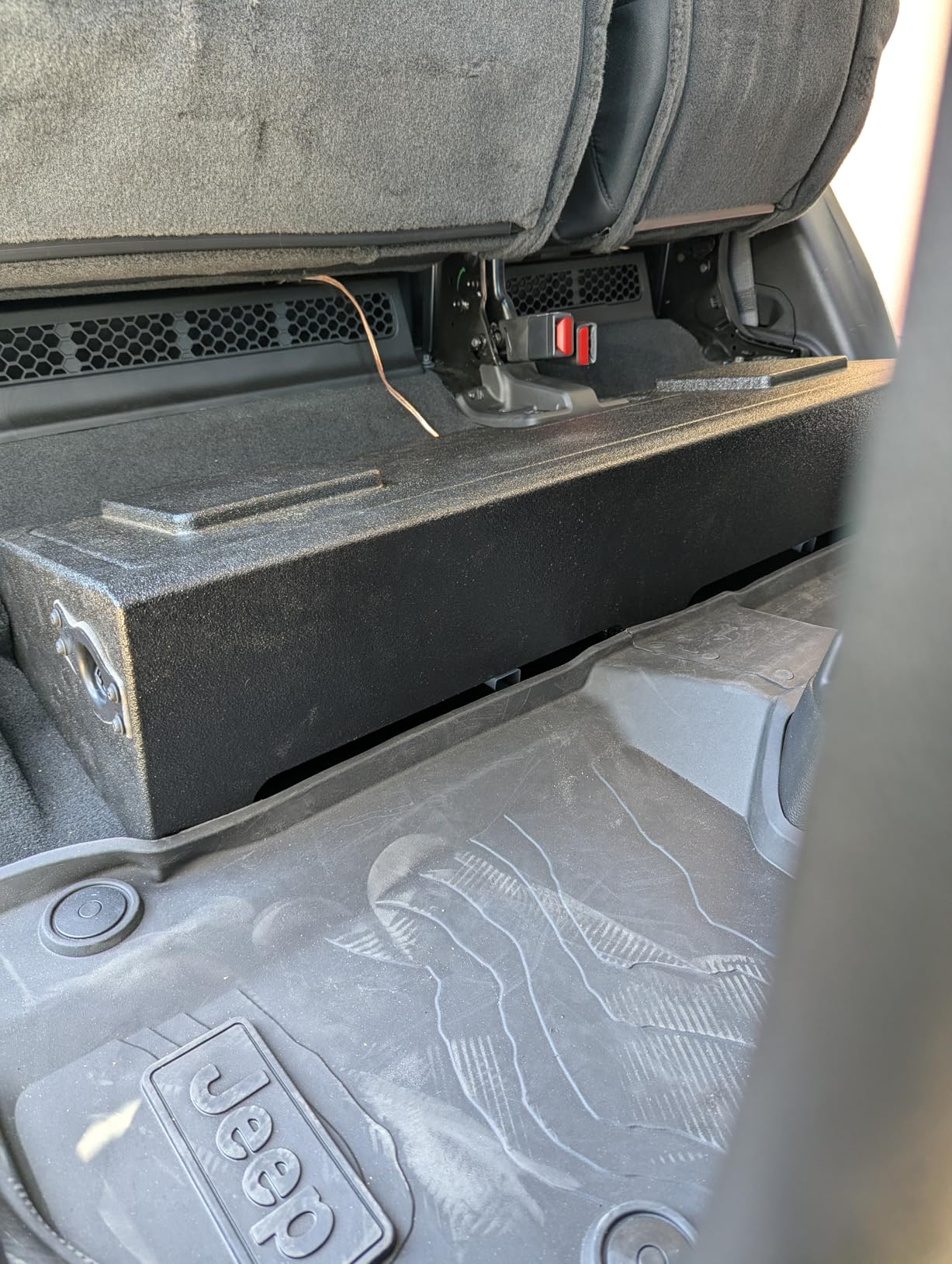

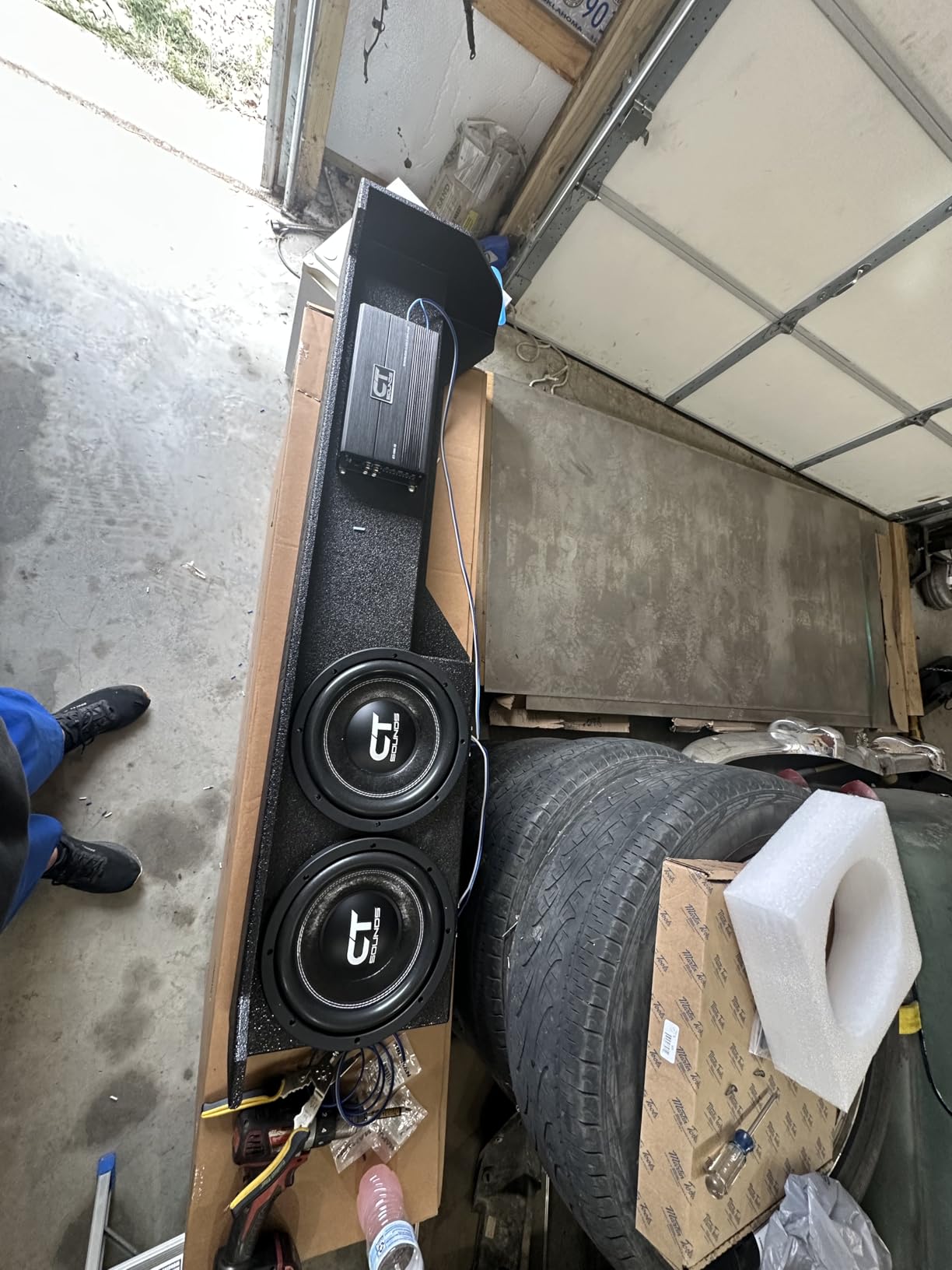

7. CT Sounds Hydro 10 Dual 4-Ohm – Best High-RMS Output in a Compact Depth
CT Sounds Hydro 10” Dual 4-Ohm 1000-Watt Shallow Mount Car Subwoofer
RMS: 500W / 1000W max
Depth: 3.90 inch
Cutout: 9.29 inch
Voice coils: dual 4-ohm
Pros
- 500W RMS is the highest rating in the roundout
- Dual 4-ohm coils give wide amp loading options
- Performs in sealed and ported boxes with correct airspace
Cons
- 3.90 inch depth is the deepest here
- Reports of failure well below rated power in a minority of reviews
- Ported boxes with adequate airspace sound noticeably better
The Hydro 10 D4 is the highest-output bare driver in this group at 500W RMS, and it does it in 3.90 inches. For a truck cab with a genuinely deep cavity and enough volume to run a ported box, that combination is hard to argue with.
Owners frequently compare it favorably to established shallow platforms on output per dollar, and several describe a specific result: a correctly ventilated box of about 1.5 cubic feet per sub transformed the sound compared with a sealed attempt. That is a real finding worth planning around.
The published parameters help with box design. With an Fs of 39.37 Hz, a Qes of 0.569, and an EBP of 69.19, this is a driver that supports a genuine ported alignment rather than only a sealed one, which is unusual at this power level in a shallow frame.
Support experiences draw consistent praise, with warranty replacements handled quickly after failures. Ratings sit at 78% five-star and 8% four-star, and the line is also available in 8, 10, and 12 inch sizes with dual 2-ohm or dual 4-ohm coils if you want to match a pair.
When the extra half inch of depth is worth it
If your cavity is a full 4.25 inches behind an F-150 rear seat, this driver fits with room to spare and gives you roughly two and a half times the power handling of an entry 10. In a ported box that is the difference between cabin thump and output you can feel from the bed.
The dual 4-ohm coils wire to 8 ohm, 4 ohm, or 2 ohm, and a 1-ohm-stable monoblock at 500 to 625W per sub is the realistic pairing. Keep a close eye on gain because the failure reports cluster around drivers being pushed well past what they were built for.
Where the caution comes from
A minority of reviews report units dying within a few months on a 1000W amplifier, and one detailed account describes wiring a dual 4-ohm pair below 1 ohm, which caused failures. Both are amp-selection errors rather than driver defects, but they are the reason to treat the 500W RMS figure as a ceiling and not a target.
The 3.90-inch depth also makes this the least forgiving driver here. If you measure your seat rail and find less than 4 inches of usable depth, this driver is out regardless of how much power you want.

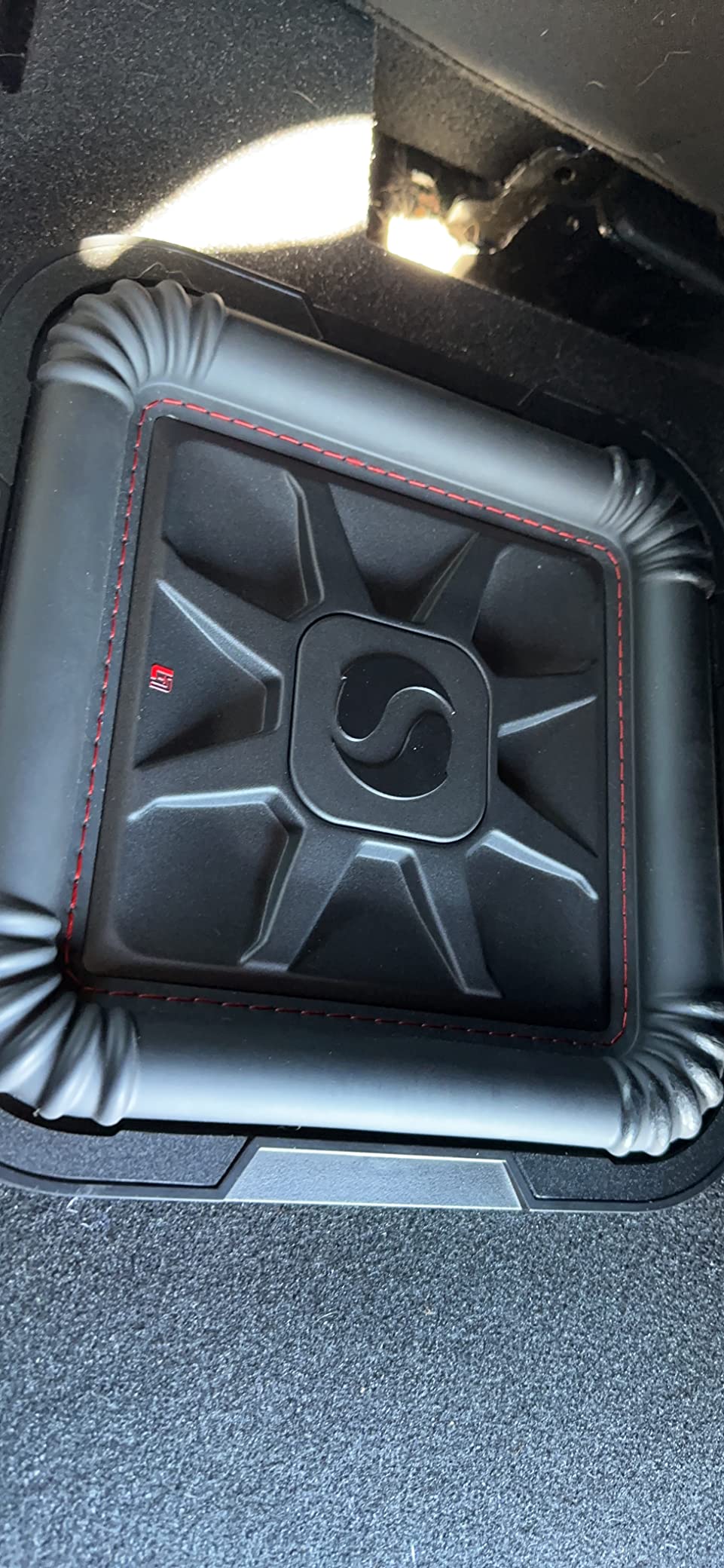

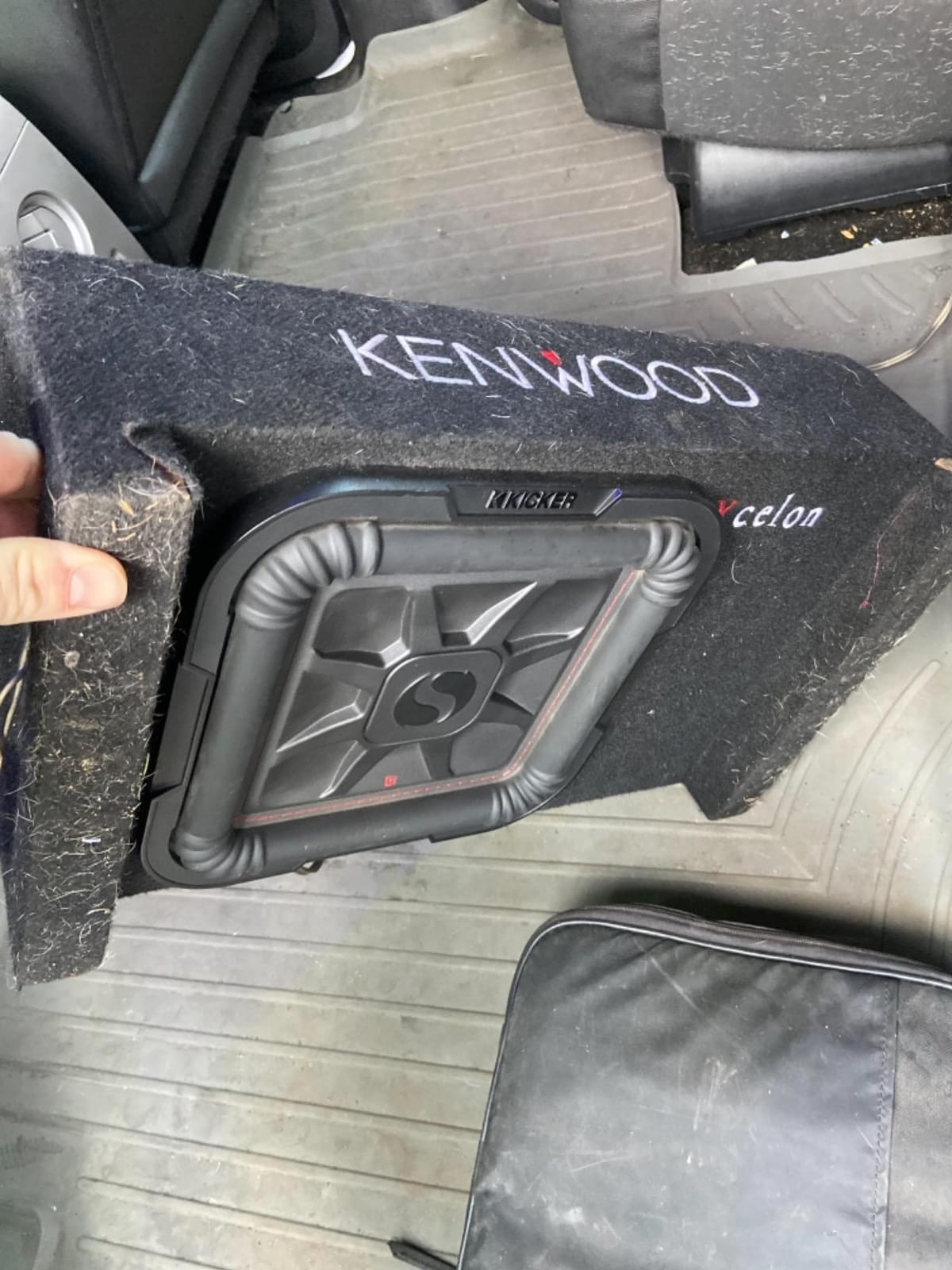

8. KICKER 46L7T102 L7-Thin – Best Cone Area in a Thin Footprint
KICKER 46L7T102 L7T L7-Thin 10-Inch (25cm) Subwoofer, Dual Voice Coil, 2-Ohm, 500 Watt
Design: Solo-Baric square cone
Power: 500W recommended
Dual 2-ohm voice coils
Optimized for sealed or ported
Pros
- Square Solo-Baric cone gives up to 20 percent more cone area
- Fits under a truck seat or a trunk corner where round subs will not
- Owners report low-frequency feel lighter 10s could not deliver
Cons
- Both voice coils must be used
- Needs roughly a week of break-in before hard use
- Some reports of voice coil failure despite matched amplification
The L7-Thin solves output with geometry instead of power. Its Solo-Baric square cone delivers up to 20% more cone area than a conventional round driver of the same depth, and more cone area means more output for the same excursion, which is precisely the resource a shallow design runs short on.
That also opens up placements a round 10 cannot use. The square footprint fits under a truck seat or into a trunk corner where a round driver simply will not sit flat, and with 500W recommended power across dual 2-ohm coils it is not shy about output.
Truck owners running it behind the seat in a custom sealed wedge report a real upgrade over conventional round shallow drivers, particularly on low-frequency feel. That is the physical mechanism showing up in practice: the square cone moves more air per millimeter of travel.
The top-plate design with an integrated heat management system, plus stitched cone construction, is KICKER’s answer to the thermal problem shallow motors have. The 90-rating review base is the smallest here, so treat the ratings as encouraging rather than conclusive.
When a square cone is the right answer
Choose the L7-Thin when your space is shaped like a square, or when you want the most low-frequency feel per inch of depth. Under-seat installs in an extended cab are the classic case, and so is a rear seat-back enclosure with a limited cutout.
Wire both coils. The driver is designed to run on both 2-ohm voice coils, and using a single coil is the most common installation error reported with this model. In parallel it presents a 1-ohm load, which is ideal for a 1-ohm-stable monoblock.
What the thin review base does not tell you
Ninety ratings is thin. That is not enough history to say the L7-Thin is unreliable, but it is also not enough to call it proven, and it carries the highest one-star share in this group at 9%. A few reviews describe voice coil failures even with a correctly matched amplifier, while KICKER warranty service is praised as fast when it happens.
Also respect the break-in. Owners consistently report needing roughly a week at moderate volume before driving it hard, and treating a 500W RMS driver as needing immediate full-power punishment is a good way to end up in that warranty queue.
What Is a Shallow Mount Subwoofer, and Why Truck Cabs Force the Issue
A shallow mount subwoofer is a passive driver built with a reduced mounting depth, typically under 4 inches, so it fits behind or under truck rear seats where a standard 5-to-8-inch-deep sub cannot, at the cost of some low-frequency extension and thermal headroom.
Shallow does not mean thin-sounding. It means the motor and voice coil were shortened. A shorter motor has less copper mass, which means less excursion and less heat dissipation, and those two limits explain nearly every performance difference you will notice between a shallow and a full-depth driver.
Truck cabs force the issue because the rear seat sits forward, the seat back tilts, and the cavity behind it is narrow. Add the seat pan, the brackets, and the wiring that lives back there, and usable depth commonly lands between 3.5 and 4.25 inches. A standard 6-inch-deep sub does not go in that space without cutting into the seat structure.
Cabin gain works in your favour here. A closed pickup cab reinforces roughly 12 dB/octave of bass below 70-90 Hz, so the same driver produces a stronger in-cabin result than an anechoic measurement implies. That is why a 200W RMS shallow 10 can feel like a much larger system in a truck than it would in a hatchback.
If you are building a home theater system rather than a vehicle install, the fitting problem is different and worth reading about separately before you buy. Our guide to the best powered subwoofers for home theaters covers room placement and crossover setup for a completely different set of constraints.
Measure Before You Buy: Mounting Depth, Cutout, and Frame Diameter
Shallow mount is generally defined as under about 4 inches of mounting depth. For a truck cab, builders report roughly 4.25 inches of usable depth behind an F-150 rear seat and design to a 3.5-inch ceiling to leave room for terminal clearance and airflow. Subtract connector depth and you are shopping against the smaller number, not the larger one.
Five measurements settle nearly every fitment question before you order anything:
Usable depth – measure from the seat back or wall to the nearest obstruction, not the nominal cavity width.
Mounting depth – the driver’s own spec, which is less than the frame depth but more than the cutout clearance.
Cutout diameter – the hole size in your baffle, which is smaller than the frame diameter.
Frame diameter – the outer basket diameter, which is what determines whether the driver physically fits the panel.
Terminal clearance – allow 0.5 to 1 inch beyond mounting depth for spring terminals and wiring bend radius.
Usable enclosure volume behind a typical rear seat lands between 0.4 and 1.0 cu ft. That range is the real constraint more often than depth is. A driver can fit perfectly at 3 inches and still sound thin, because a 0.3 cu ft box will not let a 10-inch driver work at its intended tuning frequency.
These are the placement mistakes installers report most often: not measuring the seat rail, ignoring cutout and frame diameter, forcing a ported box into a cavity with no room for port length, letting the cone contact the seat back at full excursion, and running a box loose so it buzzes the cab floor. The first four are design errors. The fifth is an installation error, and it is the most common.
Depth budget by driver here, for quick reference: the MB Quart DS1-254 at 2.95 inches, the Rockford R2SD4-10 at 3.417 inches, the Rockford P3SD4-10 at 3.50 inches, the CT Sounds Hydro 10 D4 at 3.90 inches. The pre-loaded R2S-1X12 measures 3.25 inches at the top of its wedge and 5.25 inches at the bottom.
What Size Shallow Sub Fits Your Truck: Single 12, Dual 10, or Dual 8
The 10-inch is the sweet spot for most truck cabs, the 8-inch for extended cabs with under 3.5 inches of depth, and the 12-inch only where a full-depth-ish cavity exists. That is the short version, and it holds for nearly every platform from the F-150 to the Tacoma.
Output in a cab does not scale purely with cone diameter. Two 10-inch drivers wired to the same total power and mounted in separate small sealed boxes will usually beat a single 12 in a truck, because excursion is distributed across two motors and each has more surface area for air to move. Cone area, not the number on the box, predicts how much output you hear.
Behind the seat beats under the seat for output, because a behind-seat cavity gives you real enclosure volume while an under-seat space usually gives you a wedge with very little air. Under-seat wins on preserving rear seat function and bed space, but it costs low-frequency extension and volume, and in most trucks the 8-inch is the only driver that fits there properly.
The single 12-inch case is narrower than people expect. It needs both depth and width, which in practice means a single cab, a factory spare-tire well, or a rear seat-back enclosure you have built yourself. A pre-loaded 12 is the least risky entry to that territory, which is why the Rockford R2S-1X12 earns its place here.
Dual 10s also give you a wiring advantage. Two dual 4-ohm drivers can be wired to 4 ohm, 2 ohm, or 1 ohm depending on your monoblock, which means the amp choice stops constraining the sub choice. That flexibility is one of the most practical reasons experienced builders run two smaller drivers instead of one larger one.
Sealed vs Ported for a Behind-Seat Truck Install
Sealed is the community default. Every experienced builder recommends a small sealed box for a behind-seat truck install, regardless of brand, because a sealed alignment is more forgiving of a shallow cavity, needs no port length, and cannot produce port noise in a space with no room for the port to move.
Use the published volume as the floor rather than the target. The Rockford P3SD4-10 specifies 0.5 cu ft sealed, the Pioneer A-series sits in a similar band, and a Rockford R2SD4-10 in a well-braced wedge around 0.6 cu ft is a proven reference build that truck owners cite repeatedly.
Ported is worth the effort only when you have volume and depth to spare. The CT Sounds Hydro 10 D4 is the one driver here whose owners report a large improvement moving from sealed to a correctly ventilated box of about 1.5 cu ft per sub. That volume does not exist behind most rear seats, so treat ported as a bed or seat-back-build decision.
Whichever alignment you choose, the box needs to sit flat against both the enclosure wall and the seat cradle. A tilted box creates a point contact that transmits vibration into the seat pan, and users frequently mistake that buzz for a blown subwoofer.
Wiring a Dual Voice Coil Sub and Matching a Monoblock
Dual voice coil simply means the driver has two separate voice coil terminals, each with its own impedance. Wiring them in series doubles the impedance; wiring them in parallel halves it. A dual 4-ohm driver therefore appears as 8 ohm in series, 2 ohm in parallel, or 4 ohm on a single coil.
A dual 2-ohm driver appears as 4 ohm in series, 1 ohm in parallel, or 2 ohm on a single coil. That one-ohm option is why the KICKER L7-Thin pairs so cleanly with a 1-ohm-stable monoblock, and it is also the single most common way people damage a driver by ignoring it.
Matching rule of thumb: target an amplifier rated between 1 and 1.25 times the driver’s RMS, at the impedance the driver is actually wired to present. For a 300W RMS driver that means a 300 to 375W monoblock. Going far above that does not add clean output, it adds clipping, and clipping is the leading cause of voice coil failure reported across the forums.
The single most common mistake is impedance mismatch, and it comes from buying the driver first. Choose the amp and the impedance load you need, then pick a driver that can be wired to produce that load. Skipping the second step is how people end up wiring a 4-ohm coil to an amp that will not tolerate it.
Route power and signal away from factory wiring and keep RCA cables off the power cable for at least a few inches, and a ground gauge as short as possible. In a truck cab, the factory harness behind the seat is already crowded, and a poorly grounded monoblock picks up noise that sounds like a problem with the sub itself.
Stop the Buzz: Isolation, Condensation, and Wiring Route
Behind-seat boxes transmit vibration into the seat pan and rear cab wall, producing a buzz users routinely blame on a blown driver. The fixes are unglamorous. Use closed-cell foam between the enclosure and the seat cradle, add an anti-squeal pad, and make sure the box sits flat rather than resting on a single edge.
Any tilt creates a point contact, and point contacts are where rattles start. Grommets where the wiring passes through the seat bracket protect against chafing, which is the other common source of intermittent noise that looks like an electrical fault.
Condensation is a separate problem and it is specific to parked vehicles. A cold cab warms up, the enclosure surface sits below the dew point, and moisture forms on the cone or the box lid. The mitigations are straightforward: park covered when possible, ventilate the cab, and treat the cone as moisture-resistant only when the manufacturer says so.
If you are running a bed or under-bed install, bedliner durability and UV exposure become the deciding criteria instead of depth. That is a different buying problem, and the pick here for a portable, weather-facing install is the Rockford Fosgate P3SD4-10, which pairs an anodized aluminum cone with a hybrid stamp-cast basket.
What Forum Installers Name That This List Does Not Cover
Forum consensus repeatedly names shallow models that are not in this roundup. The most-cited names are the JL Audio TW-series, the Alpine SWR-12 and SWB line, the Stereo Integrity BM, and the Rockford Fosgate P3 in its shallow form. If you search those threads, you will find strong endorsements of hardware we could not verify against current listings.
Two of those deserve honest labels. The Alpine SWR-12 and Q-Power shallow drivers are recommended by consensus but are discontinued, so hunting them down means buying used with no warranty and no return path. The Rockford P3 shallow appears here in the P3SD4-10 form, which is the current version of that recommendation.
Forum users are also blunt about budget shallow 12s in the wider market, with repeated complaints about older entry-tier 12-inch models that did not hold up. The same threads repeatedly endorse the KICKER and Skar Audio value tier once properly amplified, which lines up with what the ratings on the KICKER drivers here show.
Two things the forums agree on across every platform: sealed wins behind a rear seat, and the hardest-hitting shallow sub is the one that fits your cavity and gets an amplifier matched to it. Spec sheets rank drivers. Installation decides results.
Frequently Asked Questions
Are shallow-mount subs any good?
Modern shallow drivers are audibly competitive at 10 and 12 inches. The tradeoff is not sound quality but output: less excursion and lower extension below 40 Hz, plus less thermal headroom. In a truck cab, where cabin gain adds roughly 12 dB/octave of reinforcement below 70-90 Hz, a correctly amplified shallow driver in a small sealed box produces excellent results.
What is the hardest hitting shallow-mount sub?
Output comes from cone area and excursion, not from the wattage printed on the box. Among the drivers here, the CT Sounds Hydro 10 D4 delivers the highest rated output at 500W RMS, and the KICKER L7-Thin gets there with up to 20 percent more cone area in a thin footprint. In practice, a properly amplified dual 10 usually beats a single 12 in a truck cab.
What is the best small subwoofer for a truck?
For most truck cabs, a 10-inch is the sweet spot because it balances cone area against mounting depth. An 8-inch is the right call for extended cabs with under 3.5 inches of usable depth, and a 12-inch only makes sense where a genuinely deep cavity exists, such as a single cab or a factory spare-tire well.
What is the recommended mounting depth for a subwoofer?
Shallow mount is generally defined as under about 4 inches. For a truck cab, builders report roughly 4.25 inches of usable depth behind an F-150 rear seat and design to a 3.5-inch ceiling, then subtract another 0.5 to 1 inch for terminal and connector clearance before choosing a driver.
How much space does a subwoofer need behind it?
Behind a typical truck rear seat you are usually working with 0.4 to 1.0 cu ft of usable enclosure volume and 3.5 to 4.25 inches of depth. Volume is often the tighter constraint: a driver can fit the depth and still sound thin if the box is too small to reach its intended tuning frequency.
What are common subwoofer placement mistakes?
The most reported errors are not measuring seat rail clearance, ignoring cutout and frame diameter, forcing a ported box into a cavity with no room for port length, letting the cone contact the seat back at full excursion, and running a box loose so it buzzes against the cab floor and seat pan.
Do shallow mount subs need a separate amplifier?
Yes. Every driver in this roundup is a passive driver, which means it needs an external monoblock amplifier. The practical target is an amp rated between 1 and 1.25 times the driver’s RMS at the impedance the coils are wired to present, since clipping rather than underpowering causes most voice coil failures.
Conclusion: The Best Shallow Mount Subwoofers for Trucks in 2026
Measure first, then buy. Most disappointing shallow-mount installs are not a driver problem, they are a depth or volume problem that was never verified with a tape measure. Once you know you have 0.4 to 1.0 cu ft behind the rear seat and 3.5 to 4.25 inches of depth, the shortlist gets much shorter.
For the tightest cabins, the MB Quart DS1-254 wins on fitment at 2.95 inches with the largest proven track record here. For single-cab trucks that need a finished box, the Rockford Fosgate R2S-1X12 removes all guesswork. For most double cabs, the Rockford Fosgate R2SD4-10 or the KICKER 43CWRT102 give the cleanest path to a working sealed install, and the Pioneer TS-A2500LS4 is the pick when you want the cleanest bass per watt with the simplest wiring.
Use dual voice coil wiring to pick the amplifier first, match the amp to 1 to 1.25 times the RMS, and keep the box flat against the seat cradle. Get those three things right and almost any of the eight best shallow mount subwoofers for trucks in this roundup will outperform a far more expensive build that skipped the measurements.
