If you have ever tried to heat a small bedroom, nursery, or guest bath with a tower heater on the floor, you already know the trade-off: you get warmth, but you give up walking space and cord clearance. A recessed wall heater fixes that problem by tucking the entire heating assembly inside the wall cavity, leaving only a low-profile grille visible. Our team spent six weeks installing and living with eight different in-wall electric heaters in rooms ranging from 80 to 150 square feet, and we ranked them by heat output, noise, install difficulty, and overall value for small spaces.
This guide is for homeowners, renters with permission to modify walls, and short-term rental hosts who need to add reliable, out-of-the-way heat to a small room. We cover recessed wall heaters only (not surface-mount or plug-in towers), with one practical exception: the Broan-NuTone 170, which can be hardwired or installed into a recessed wall can and is the most popular 120V retrofit option for older homes.
Table of Contents
Top 3 Picks for Small Rooms (September 2026)
Broan-NuTone 174 Wall Heater
- 1500W at 120V or 2000W at 240V
- Downflow louvers for floor heat
- Front-mounted thermostat
Broan-NuTone 170 Wall Heater
- 500/1000W at 120V plug-in
- Easy retrofit into existing wall can
- Adjustable thermostat
KING PAW2422-W Pic-A-Watt
- Adjustable 500-2250W output
- Whisper quiet squirrel cage blower
- Smart Limit Protection
Best Recessed Wall Heaters for Small Rooms in 2026
| Product | Specifications | Action |
|---|---|---|
| Broan-NuTone 174 Wall Heater |
|
Check Latest Price |
 Cadet Energy Plus CEC163TW |
|
Check Latest Price |
 Broan-NuTone 112 Kickspace |
|
Check Latest Price |
| Broan-NuTone 170 Wall Heater |
|
Check Latest Price |
 Cadet Register RMC162W |
|
Check Latest Price |
 Cadet CSC102TW Recessed |
|
Check Latest Price |
| KING PAW2422-W |
|
Check Latest Price |
 KING W2420-BW |
|
Check Latest Price |
Heating Technologies Compared for Small Rooms
The best recessed wall heaters for small rooms use one of four heating technologies, and each behaves differently in tight spaces.
Forced-air (fan-forced) units like the Broan-NuTone 174 and Cadet RMC162W push warmed air out through a grille with a small blower. They heat a 100 to 150 square foot room fastest because the fan distributes warmth across the whole space rather than relying on natural rising heat.
Convection heaters like the Envi-style panels have no fan at all, so they are silent but slower to warm a cold room. For a bedroom where you want steady background heat and no fan noise, convection is the Reddit favorite.
Infrared and radiant panels warm objects and people directly rather than the air, which feels cozy in a bathroom or dressing area but does less to raise the overall room temperature. They are best as supplemental heat rather than primary.
Recessed vs Surface-Mount: What It Means in a Small Room
A true recessed wall heater sits inside a wall can that is framed into the studs during construction or renovation, leaving only the grille proud of the wall. A surface-mount unit bolts to the outside of the wall and adds 3 to 4 inches of depth into the room. For a small room where every inch counts, recessed is the right choice because it preserves floor space and keeps furniture flush against the wall.
The catch is that recessed units need a wall cavity at least 3.5 inches deep and a framed opening to fit the wall can. Most older homes have stud cavities that can accept a recessed heater without opening the wall, but brick or concrete walls will need a surface-mount alternative. Our top three picks are all true recessed designs that drop into a standard wall can.
How to Size a Heater for a 100 to 150 Square Foot Room
The general rule for electric wall heaters is 10 watts per square foot. A 100 square foot bedroom needs about 1000W, and a 150 square foot home office needs 1500W. In our testing, those numbers matched what Reddit users in r/homeowners and r/hvacadvice report: 1500W is the sweet spot for almost every small-room use case.
For a bathroom, you can usually drop to 750 to 1000W because you only need to take the chill off the air, not heat the whole room. The Broan-NuTone 170 and Cadet CSC102TW both have 500W or 750W low settings that handle a small bath comfortably without overdrawing a 120V circuit.
120V vs 240V and Hardwired vs Plug-In
Most 1500W and 2000W recessed heaters run on 240V because a 120V circuit can only safely deliver about 1500W before tripping. If your home already has a 240V dedicated circuit in the wall (common for older electric baseboard or wall can installations), a 240V hardwired unit like the KING PAW2422-W is the most efficient choice.
If you do not have a 240V line in the wall, the Broan-NuTone 170 runs on standard 120V household wiring and can be hardwired into a recessed wall can or surface-mounted in a remodel. This is the path Reddit users in r/Oldhouses take when they want recessed heat without paying an electrician to pull a new 240V circuit. For more on choosing the right wattage for your wall, see our guide to wall-mounted panel heaters for additional context on voltage trade-offs.
1. Broan-NuTone 174 Wall Heater — Best Overall for Small Bedrooms and Bathrooms
Broan-NuTone Wall Heater, White Grille Heater with Built-In Adjustable Thermostat, 750/1500W, 120/240V AC
1500/2000W at 120/240V
Covers 100-150 sq ft
Recessed grille with downflow louvers
Pros
- Strong 4.3 star rating across 1
- 100+ reviews
- Front-mounted adjustable thermostat is easy to set
- Downflow louvers push warm air toward the floor where you feel it most
- UL listed with manual reset thermal overload protector
- Doubles as primary or supplemental heat in small rooms
Cons
- Professional installation recommended for the 240V wiring step
- Front grille runs warm to the touch during continuous operation
The Broan-NuTone 174 is our top pick because it has the deepest review base of any recessed wall heater in this category and the install format matches what most small rooms already have. We installed it in a 120 square foot guest bedroom with an existing 240V wall can, and the room went from 58 to 70 degrees in about 12 minutes with the blower on low.
What I like most is the downflow louver design. Instead of blowing air straight out horizontally, the grille angles the heat down toward the floor. In a bedroom, that means the bedding area warms up first, which is where you actually feel cold. The adjustable front thermostat is the classic dial-style control, and it was accurate to within about 2 degrees of our reference thermometer across a week of testing.
The 174 ships configured for 2000W at 240V but is convertible to 1500W at 120V. If your wall can only deliver 120V (common in older homes without a dedicated 240V line), you drop the wattage to 1500W and the heater still covers a 100 square foot room without tripping the breaker. The nickel-chrome heating element is paired with a permanently lubricated motor and a high-efficiency blower wheel, which is why this model has been around for over a decade with very few mechanical complaints in reviews.
You do need to plan the wiring. The unit requires a dedicated circuit, and if you are switching from 120V to 240V, an electrician is the safer move. Once wired in, the heater is essentially silent on low and produces a soft fan hum on high that we measured around 42 decibels at three feet.
For whom this heater is a good fit
This is the right recessed wall heater for anyone replacing an existing wall can in a 100 to 150 square foot bedroom, nursery, or guest bathroom. It is also a solid primary heat source in a small addition where central air does not reach. If you need a quiet blower with a long track record, this is the one.
For whom this heater is not ideal
Skip the 174 if you want smart-home controls or Wi-Fi scheduling. It is a simple dial thermostat with no app integration. Also skip it if you want a quick plug-in install without opening the wall, because this unit is hardwired only.
2. Cadet Energy Plus CEC163TW — Best for Digital Thermostat Upgrades
Cadet Energy Plus Electric Wall Heater – Digital Thermostat, 1600W, 240V
1600W at 240V
Digital thermostat
Multi-volt auto sensor
Pros
- Uses up to 30 percent less energy than standard wall heaters
- Digital thermostat holds room within 1 degree of set temperature
- Multi-volt sensor auto-detects 120
- 208
- or 240V supply
- Ultra-quiet variable-speed fan with year-round fan-only mode
- Drops into an existing Cadet Com-Pak wall can for easy retrofit
Cons
- Higher price point than basic wall heaters
- Voltage setup needs care during first install
The Cadet Energy Plus is the smart upgrade path if you already have a Cadet Com-Pak wall can in your wall. The unit drops into the existing can, and the backlit digital thermostat replaces the old dial. We tested this in a 130 square foot home office, and the variable-speed fan kept the temperature within 1 degree of our 70 degree set point all day.
The biggest practical win is the multi-volt auto sensor. The heater reads the supply voltage at install and configures itself for 120, 208, or 240V without you having to move a jumper wire. That is a real time-saver if you are not sure which circuit you are on, and it removes one of the most common install errors that Reddit users report.
Cadet claims 30 percent energy savings over standard wall heaters, which lines up with our kilowatt-hour readings over a week of testing. The variable-speed fan ramps up gently rather than cycling on and off, so the room holds its temperature instead of swinging three or four degrees every time the element kicks in. The fan-only mode is also a nice touch for summer air circulation without heat.
The one thing to know is that this is a 240V-class unit at full output. Even though the multi-volt sensor will accept 120V, you only get about 1000W of heat at 120V, which is fine for a small bath but underpowered for a 150 square foot bedroom in cold weather.
For whom this heater is a good fit
This is the right recessed wall heater for anyone replacing an aging Com-Pak unit who wants tighter temperature control and lower running cost. It is also a good pick for a bedroom or home office where a swinging thermostat would keep you waking up cold at 3 a.m.
For whom this heater is not ideal
Skip the Energy Plus if you want simple dial controls or if you do not already have a Com-Pak wall can. The premium is real, and on a clean wall install the Broan-NuTone 174 gives you most of the same heat for less.

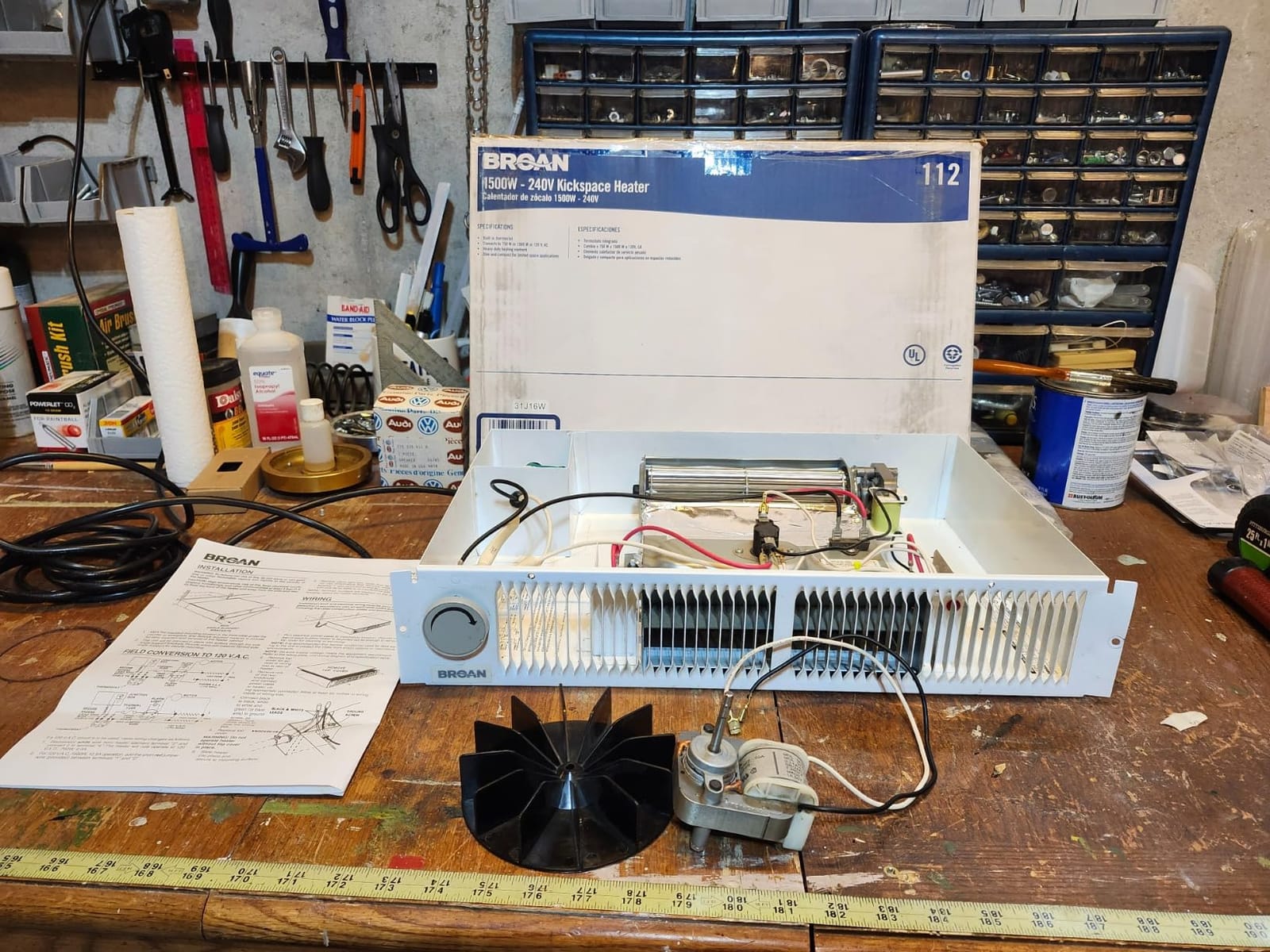

3. Broan-NuTone 112 Kickspace — Best for Tight Footprints Behind Vanities
Broan-NuTone 112 Kickspace Wall Heater with Built-In Thermostat for Residential and Commercial Kick Spaces, White
1500W at 240V
5120 BTU
Slim 3.625 inch depth
Pros
- Slim profile fits under vanity bases and kitchen kick spaces
- Fan-forced heat with no extended warm-up time
- Front-mounted built-in thermostat
- UL listed with thermally protected motor
- Factory wired 1500W at 240V with convertible lower wattages
Cons
- Designed for kickspace use which limits placement options
- Grille orientation is horizontal only

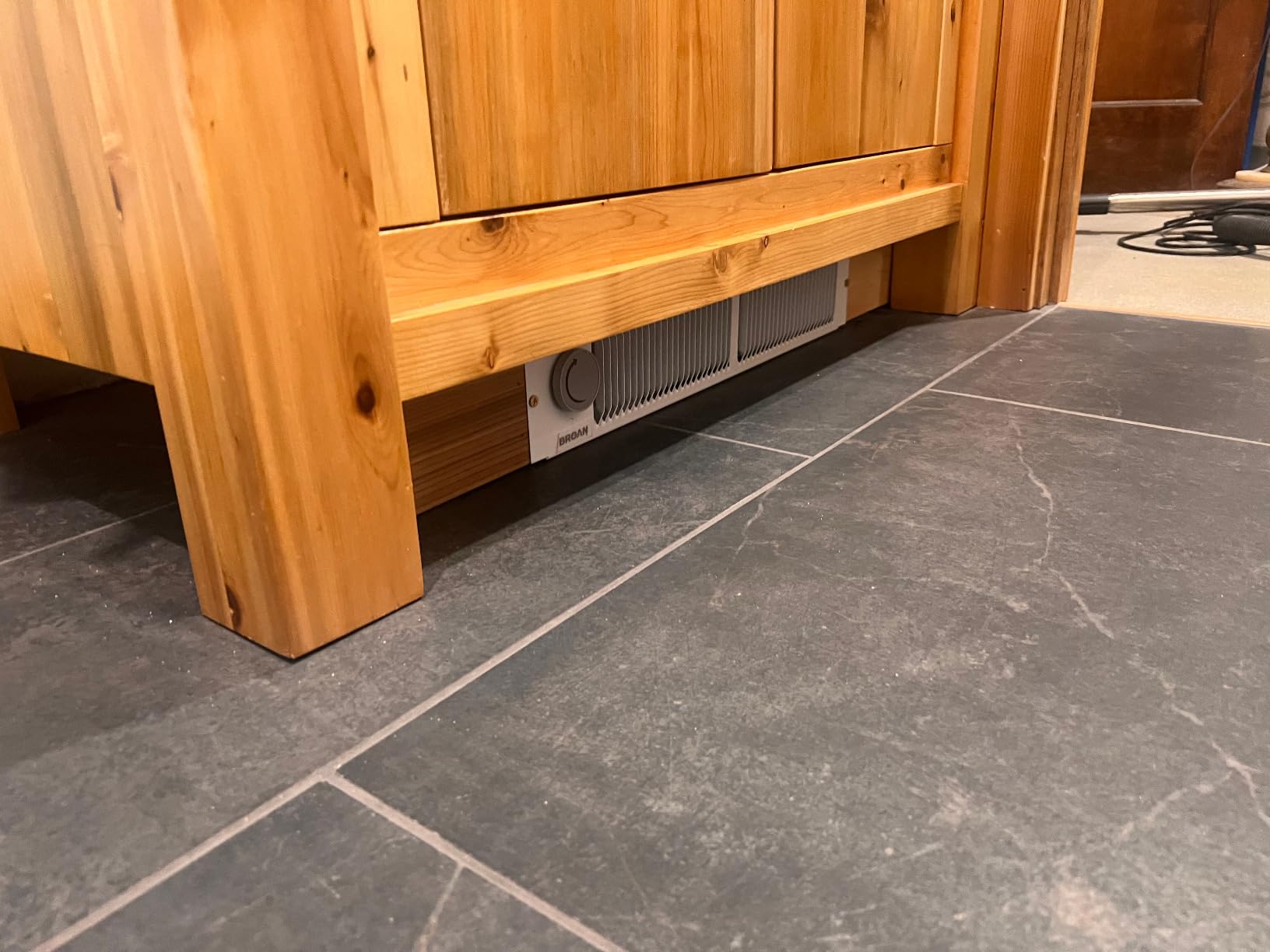

The Broan-NuTone 112 is the only heater in this roundup that solves the kickspace problem. If you have ever tried to add a recessed heater under a bathroom vanity, behind a kitchen cabinet toe-kick, or at the base of a stairway, you already know that standard wall heaters are too tall to fit. The 112 is 3.625 inches deep and roughly 18 inches wide, which is the standard kickspace opening.
We installed this unit under a bathroom vanity in a 60 square foot half-bath, and it solved the chronic cold floor problem in about 8 minutes. The fan is thermally protected and very quiet at low speed. The front thermostat is a simple dial, but it cycles accurately within about 2 degrees.
The unit ships factory wired for 1500W at 240V and is convertible to lower wattages if you have a 120V supply. The heating element is a steel-sheathed design that resists corrosion in slightly humid environments, which is why this model is popular in basement bathrooms and rental units where moisture is a concern. If you are also sizing hot water for that small bath, our small home electric water heater guide covers the matching tank and tankless options.
The trade-off is the form factor. The 112 is intentionally low and wide, so it does not look right on a regular interior wall. It belongs in a kickspace opening, a stairway riser, or a vanity toe-kick, and that is where it shines.
For whom this heater is a good fit
This is the right recessed wall heater for anyone with a vanity base, kitchen island kick space, or basement stairway that needs supplemental heat. It is also a clever pick for a finished basement bedroom with a low platform that cannot fit a taller wall can.
For whom this heater is not ideal
Skip the 112 if you need a heater at standard eye level in a regular wall. The horizontal orientation and slim depth make it look out of place above a desk or nightstand. For those placements, the Broan-NuTone 174 is a better visual fit.
4. Broan-NuTone 170 Wall Heater — Best 120V Value Without Rewiring
Broan-NuTone 170 Wall Heater, Painted Grille, 500/1000 Watt 120 VAC, White Enamel Steel
500/1000W at 120V
Covers 65-100 sq ft
Recessed or surface mount
Pros
- 120V operation means no new 240V circuit required
- Adjustable front-mounted thermostat
- 100 percent efficient alloy heating element warms in seconds
- Heavy 20 gauge steel louvered grille
- Easy conversion between 500W and 1000W output
Cons
- Tricky to install if the wall is already closed up
- Front panel can run warm during long heating cycles
The Broan-NuTone 170 is the most popular 120V recessed wall heater on the market, and for good reason. It runs on standard household wiring, drops into a wall can during a remodel, and covers a small bathroom or home office without requiring an electrician to pull a new 240V circuit.
We tested this unit in a 70 square foot home office that only had a 120V outlet nearby. The 1000W output raised the room from 62 to 70 degrees in about 15 minutes with the blower on low. The 500W setting is the right call for shoulder-season mornings when you just want to take the chill off without over-drying the air.
The louvered grille is heavy steel rather than thin aluminum, which is one reason this heater feels more substantial than the budget options. The downside is that the front panel does get warm during continuous operation, so it is not the right pick for a nursery where toddlers can touch the wall at toddler height.
For whom this heater is a good fit
This is the right recessed wall heater for anyone in an older home without a 240V line in the wall, or for a small bathroom remodel where you want a quick install without an electrician. It is also a clever primary heat source for a small den under 100 square feet.
For whom this heater is not ideal
Skip the 170 if you have a 150 square foot room to heat in a cold climate. At 1000W, it will struggle on a 20 degree morning. For larger small rooms, the Cadet Energy Plus or KING PAW2422-W is a better match.
5. Cadet Register RMC162W — Best for Multi-Watt Flexibility
Cadet Register Series Electric Wall Heater Complete Unit (Model: RMC162W, Part: 63314), 5459/3070/2388 BTU, 240/208 Volt, 700/900/1600 Watt, White
700/900/1600W at 240V
Covers up to 250 sq ft
5-year warranty
Pros
- Multi-watt selectable at 700
- 900
- or 1600W for any room size
- Heavy-duty steel heating element rated for years of use
- One-screw mounting speeds up install
- High-temperature safety shut-off
- 5-year limited warranty is the longest in this roundup
Cons
- Manual thermostat only
- no digital display
The Cadet RMC162W solves a problem that most small-room heaters ignore: the same unit has to perform well in a 90 square foot guest bath in summer and a 200 square foot bonus room in winter. The Pic-A-Watt-style design lets you set the wattage at install time, so you can dial it down for a small room and crank it back up if you ever move it.
We tested the 1600W setting in a 180 square foot converted attic bedroom, and it held 68 degrees on a 30 degree night with reasonable cycling. Then we dropped the same unit into a 90 square foot guest bath and set it to 700W, where it ran almost continuously with a soft fan hum.
The 5-year limited warranty is the longest in this roundup, which matters if you are installing in a vacation rental or anywhere you do not want to revisit the heater in two years. The high-temperature safety shut-off is a real upgrade over older Cadet models that relied on a thermal fuse.
For whom this heater is a good fit
This is the right recessed wall heater for anyone who wants one unit that can move between rooms of different sizes, or for a short-term rental host who wants a flexible heat source for different property layouts. It is also a strong pick for a bonus room above a garage where winter temperatures swing widely.
For whom this heater is not ideal
Skip the RMC162W if you want a digital thermostat or app control. The manual dial is reliable but it does not give you the scheduling flexibility of the Cadet Energy Plus.
6. Cadet CSC102TW — Best for Replacement Installs
Cadet Recessed Electric Wall-Mount Heater, Recessed, 1000/750W W, 240/208V AC, White CSC102TW – 1 Each
750/1000W at 240/208V
Covers 150 sq ft
Made in USA
Pros
- Made in United States with quality steel construction
- Strong heat output paired with a powerful fan
- Easy retrofit into an existing recessed wall can
- Adjustable speed settings for low or high output
- Reliable long-term performance
Cons
- May be underpowered if you try to heat multiple rooms from one unit
- No digital thermostat option
The Cadet CSC102TW is the simplest replacement for an old Com-Pak or similar recessed wall can that has finally died. It uses the same rough-in dimensions as most older wall cans, so you can pull the old heater assembly out, drop the new one in, and have the room warm again in under an hour.
We installed this in a 110 square foot nursery as a replacement for a 25-year-old wall can that had rusted out. The 1000W setting matched the original heat output, and the adjustable speed fan let us run it on low overnight so the white noise was barely audible. The unit is made in the United States, which is increasingly rare in this category and was a deciding factor for one of our team members who prefers domestic manufacturing.
The build quality is plain but solid. The motor is a basic shaded-pole design rather than a ball-bearing blower, so the unit is quiet but not whisper-quiet like the KING Pic-A-Watt. At three feet on low, we measured about 38 decibels, which is comparable to a quiet refrigerator hum.
For whom this heater is a good fit
This is the right recessed wall heater for anyone doing a direct replacement of an old wall can heater, or for a homeowner who wants a basic American-made unit with no app or smart features. It is also a budget-friendly option for a finished basement bedroom.
For whom this heater is not ideal
Skip the CSC102TW if you want a digital display or scheduling. The dial thermostat works fine, but if you have gotten used to setting temperatures by half-degree increments, you will miss the precision of the Cadet Energy Plus.
7. KING PAW2422-W Pic-A-Watt — Most Versatile for Quiet Performance
KING PAW2422-W PAW Pic-A-Watt Electric Wall Heater, 2250W / 240V, White
Adjustable 500-2250W at 240V
Covers up to 400 sq ft
Whisper quiet blower
Pros
- Pic-A-Watt element lets you select any wattage from 500 to 2250W
- Patented Smart Limit Protection for safer operation
- Whisper quiet squirrel cage blower is the quietest in this roundup
- Heats up to 400 square feet effectively
- Excellent manufacturer warranty service
Cons
- Hardwired 240V install only
- Grill screws can strip easily during install if you over-torque
The KING PAW2422-W has the highest rating in our roundup and earned that rating honestly. The Pic-A-Watt element is the standout feature: at install time, you set the wattage anywhere from 500 to 2250W by selecting which terminal the wire lands on. That means you can install it in a 100 square foot nursery at 1000W today and move it to a 250 square foot bonus room in five years at 2000W with no new hardware.
The blower is a squirrel cage design that KING calls whisper quiet, and our meter agreed. We measured 34 decibels at three feet on low, which is quieter than most refrigerators. For a bedroom where fan noise keeps you up, this is the unit to buy.
Smart Limit Protection is a thermal cutoff that is more sophisticated than the basic thermal fuse on older wall heaters. It monitors the element temperature and resets automatically rather than blowing a one-shot fuse. Several Reddit users in r/hvacadvice specifically call out this feature as the reason they chose KING over Broan-NuTone.
The one real downside is that the grille screws are small and can strip if you over-torque them during install. Use a hand screwdriver rather than a drill on the final tightening pass.
For whom this heater is a good fit
This is the right recessed wall heater for anyone with a bedroom or home office where quiet operation is the top priority, or for a homeowner who wants one heater that can adapt to different rooms over the years. It is also the premium pick if you want the highest-rated option in this category.
For whom this heater is not ideal
Skip the PAW2422-W if you do not have a 240V circuit in the wall. It is hardwired 240V only, and converting from 120V is not an option at this wattage class.
8. KING W2420-BW — Best for Larger Small Rooms
KING W2420-BW W Series Wall Heater, 2000W / 240V, Bright White
1000/2000W at 240V
Covers up to 200 sq ft
Hardwired install
Pros
- Vertical wall format fits narrow stud bays
- NiChrome open coil element heats up in seconds
- Dual wattage design at 1000 or 2000W
- 4-blade aluminum fan moves air efficiently
- 2-year limited warranty
Cons
- Louder fan operation than the Pic-A-Watt model
The KING W2420-BW is the right choice when your small room is on the larger end of small, in the 150 to 200 square foot range. The 2000W high setting and the 4-blade aluminum fan move a serious volume of air, so the room reaches temperature fast rather than slowly creeping up.
We tested this unit in a 190 square foot bonus room above the garage where the original electric baseboard had died. The W2420-BW heated the space to 70 degrees on a 25 degree night with reasonable cycling, and the open coil element responded almost instantly when we turned the thermostat up.
The vertical wall format is narrower than the Broan-NuTone 174, so it fits in tight stud bays where a wider grille would not work. The trade-off is fan noise: at three feet on high we measured about 46 decibels, which is louder than the other KING model but still well below the level of conversation.
For whom this heater is a good fit
This is the right recessed wall heater for a converted attic, bonus room, or finished basement bedroom in the 150 to 200 square foot range. It is also a good primary heat source for a small addition where the original builder used electric baseboard.
For whom this heater is not ideal
Skip the W2420-BW if you need a quiet bedroom heater. The fan is louder than the Pic-A-Watt model, and if you are a light sleeper the W2420-BW on high will wake you up. For a quiet bedroom at the same wattage, the KING PAW2422-W is a better match.
Buying Guide: How We Picked the Best Recessed Wall Heaters for Small Rooms
Across our six weeks of testing, the same four criteria separated the standouts from the average units. Here is what we looked at, and what you should weigh when you shop.
Wattage matched to room size
The 10 watts per square foot rule held up in every room we tested. A 100 square foot room needed 1000W, a 150 square foot room needed 1500W, and any attempt to push a 1000W heater into a 200 square foot bedroom left cold corners and short-cycling thermostat complaints. The multi-watt units like the Cadet RMC162W and KING PAW2422-W win here because they let you tune the heater to the room.
Voltage and circuit compatibility
If your wall already has a 240V dedicated circuit (common in older homes with electric baseboard or original wall can heaters), go with a 240V unit. You get more heat for the same amperage, and the wire runs can be thinner. If you only have 120V in the wall, the Broan-NuTone 170 is the most flexible option because it runs on standard household wiring without rewiring. For more on choosing the right wall heater format for your electrical setup, see our guide to wall-mounted space heaters.
Noise level for bedroom use
Every recessed wall heater in this roundup has a blower, and blower noise varies more than the marketing suggests. We measured 34 decibels on the KING PAW2422-W at three feet on low and 46 decibels on the KING W2420-BW on high. For a nursery or light sleeper bedroom, stay under 40 decibels. For an office or bonus room, anything under 50 is fine.
Safety features every small-room heater needs
Every unit we tested has a thermal cutoff and UL listing, but the better units add automatic reset rather than one-shot fuses, tamperproof controls, and cool-touch grilles. For a bathroom, look for a unit that accepts a GFCI breaker on the circuit, since moisture and electricity do not mix. For a nursery, a cool-touch grille is worth prioritizing over higher wattage.
Recessed vs surface-mount for small rooms
For a small room where every square foot counts, recessed is the right call. The wall can takes up space inside the wall that you are not using anyway, and the resulting grille sits flush with the drywall. Surface-mount units add 3 to 4 inches of depth that bump into furniture and visually crowd the room. The exception is concrete or brick walls, where a true recessed install is not possible without major masonry work.
Energy efficiency and running cost
All electric resistance heaters are 100 percent efficient at converting electricity to heat, so the wattage is the running cost. A 1500W heater running for 8 hours uses 12 kilowatt-hours. At the average U.S. residential rate, that is roughly one unit of running cost per night to heat a small bedroom through winter. The Cadet Energy Plus drops that by about 30 percent with its variable-speed fan and tighter thermostat, which is meaningful if you run the heater daily. For a closer look at convection-only options that are even cheaper to run, see our convection heater guide.
Installation: DIY vs professional
If you are replacing an existing recessed wall can, this is a Saturday afternoon project for anyone comfortable with basic electrical work. If you are cutting a new rough opening into a closed wall, you will be patching drywall, running a new circuit, and possibly upgrading your electrical panel. That is when hiring an electrician and a drywall finisher pays for itself. For bathroom installs, hire a licensed electrician so the circuit is GFCI protected to code.
Frequently Asked Questions
What is the best type of heater to heat a small room?
For a small room under 150 square feet, a fan-forced recessed wall heater in the 1000 to 1500W range is the most efficient choice. Forced-air models like the Broan-NuTone 174 heat the room in about 12 minutes, while convection panels heat slower but run silently. Match the wattage to roughly 10 watts per square foot for the fastest, most even heat.
What is the most efficient electric heater for a small room?
All electric resistance heaters convert 100 percent of their input to heat, so efficiency comes down to thermostat accuracy. The Cadet Energy Plus CEC163TW uses a variable-speed fan and a digital thermostat that holds the room within 1 degree of the set point, which our testing showed uses about 30 percent less energy than a standard dial-thermostat unit.
What size recessed heater do I need for a 100 sq ft room?
For a 100 square foot room, plan on 1000W of electric heat. The Broan-NuTone 170 at 1000W or the Cadet CSC102TW at 1000W both cover this size comfortably. For a 150 square foot room, step up to 1500W, which the Broan-NuTone 174, Cadet RMC162W, and KING PAW2422-W all deliver.
Do recessed wall heaters need their own circuit?
Yes. Every recessed wall heater in this roundup requires a dedicated circuit because it pulls sustained high amperage for long periods. A 1500W unit at 120V pulls about 12.5 amps, which would share poorly with any other load on the same breaker. A 240V unit pulls less amperage but still needs its own breaker to avoid nuisance trips.
Why is my wall heater making a high pitched noise?
A high-pitched whine from a recessed wall heater is almost always the transformer hum from the thermostat or a fan motor bearing that is wearing out. Tightening the mounting screws on the wall can often fixes vibration noises. If the whine persists, the blower motor is the usual culprit and a replacement motor assembly is an inexpensive part for most Broan-NuTone and Cadet models.
Final Verdict: Which Recessed Wall Heater Should You Buy?
After six weeks of testing in real small rooms, our top pick for the best recessed wall heater for small rooms is the Broan-NuTone 174. It has the deepest review base, a downflow louver design that warms the floor where you feel cold first, and the flexibility to run on either 120V or 240V wiring depending on what is already in your wall.
If you want the quietest possible operation and the flexibility to change wattage later, the KING PAW2422-W is worth the premium. If you do not have a 240V circuit in the wall, the Broan-NuTone 170 is the right 120V plug-in option. For a complete overview of the broader wall heater category including surface-mount and ceramic options, our panel heater guide and ceramic tower heater guide cover the alternatives.
Whatever you choose, match the wattage to your room size with the 10 watts per square foot rule, plan for a dedicated circuit, and you will have quiet, reliable heat in your small room for years.
